micrometers

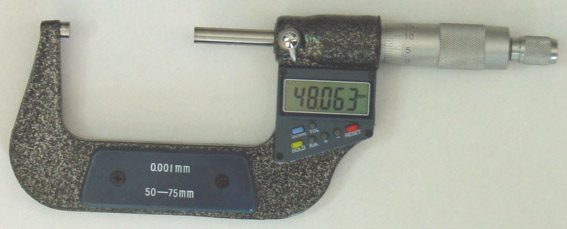

7 Keys Digital Outside Micrometers
7 Key Button and Function as follows (with data output)
  • metric/inch conversion
  • data hold function
  • relative and absolute measurement
  • tolerance set functions
  • positive setting function
  • negative setting function
  • origin resetting function


Model No. Size pcs/ctn N.W. (kg) G.W. (kg) Ctn Size (cm)
200-1025 0~25mm*0.001/0~1"*0.00005 20 9.5 10.5 42 x 22 x 20
200-1050 25~50mm*0.001/1~2"*0.00005 20 11.5 12.5 47 x 24 x 19
200-1075 50~75mm*0.001/2~3"*0.00005 20 15 16 52 x 28 x  21
200-1100 75~100mm*0.001/3~4"*0.00005 20 18 19 59 x 32 x 20

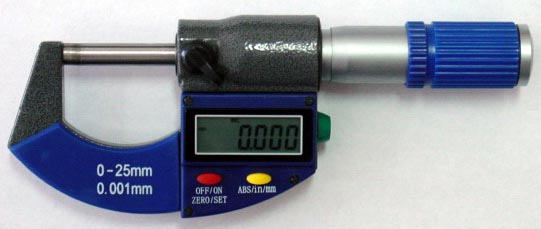

2 Keys Digital Outside Micrometers
2 Key Button and Function as follows (with data output)
  • metric/inch conversion
  • data hold function
  • relative and absolute measurement
  • tolerance set functions
  • positive setting function
  • negative setting function
  • origin resetting function

Model No. Size pcs/ctn N.W. (kg) G.W. (kg) Ctn Size (cm)
200-2025 0~25mm*0.001/0~1"*0.00005 20 9.5 10.5 42 x 22 x 20
200-2050 25~50mm*0.001/1~2"*0.00005 20 11.5 12.5 47 x 24 x 19
200-2075 50~75mm*0.001/2~3"*0.00005 20 15 16 52 x 28 x  21
200-2100 75~100mm*0.001/3~4"*0.00005 20 18 19 59 x 32 x 20

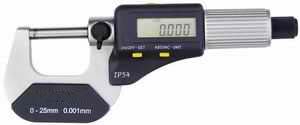

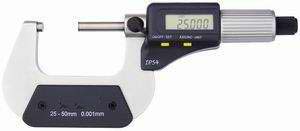

IP54 Digital Outside Micrometers
  • Protection level IP54.
  • Display data is origin data of absolute measurement after changing battery.
  • Function: Power switch; Origin data set; Absolute and incremental measurement conversion; Metric-inch conversion; Data output.
  • Chrome-plated frame. Carbide measuring faces.
  • One SR44 battery. Power consumption<35μA. Auto power off.
  • RS232 output port. Connect cable P1102 (Optional)
  • Resolution: 0.001mm(Metric); 0.00005" (Inch).
  • Criterion: DIN863/1, DIN40050/IEC529.

A

B
Order No.

Range

Accuracy
Metric Inch
200-3025 0-25mm 0-1" 0.004mm
200-3050 25-50mm 1-2" 0.004mm
200-3075 50-75mm 2-3" 0.005mm
200-3100 75-100mm 3-4" 0.005mm
200-3125 100-125mm 4-5" 0.006mm
200-3150 125-150mm 5-6" 0.006mm
200-3175 150-175mm 6-7" 0.007mm
200-3200 175-200mm 7-8" 0.007mm

4 Key Digital Outside Micrometers
Features:
1. Carbide tipped measuring faces.
2. Origin shown when it's on.
3. Protection grade: IP54.
4. Metric/Inch system conversion at any position.
5. With data output.
6. With functions of absolute and relative measurement.
7. With hold function.
8. High rigid steel frame.

Model Range (mm/in) Resolution (mm/in) Accuracy (mm)
200-4100 0-25mm/0-1" 0.001/0.0005" +/-0.002
200-4101 25-50mm/1-2" 0.001/0.0005"
200-4102 50-75mm/2-3" 0.001/0.0005" +/-0.003
200-4103 75-100mm/3-4" 0.001/0.0005"

IP54 DIGITAL OUTSIDE MICROMETERS SET

Order No.

Range

Pieces

　
Metric Inch
200-3375 0-75mm 0-3" 3
200-3210 0-100mm 0-4" 4
200-3215 0-150mm 0-6" 6

DIGITAL QUICK MICROMETERS

  • Non-rotating measuring spindle eliminates torque to work piece.

  • The measuring spindle advances 4mm per thimble rotation quickly.

  • Carbide tipped measuring face.

  • IP54 grade

  • Data Output

  • Absolute or increase.

  • LCD auto power-off, inch/metric conversion, presetting display values function.

  • Battery type AG13 1.5v.

　
Measuring Range Order No. Resolution Accuracy
0-30mm(0-1.1″) 200-2201 0.001mm ±0.002mm
25-50mm(1.1-2″) 200-2202 0.001mm ±0.002mm
50-75mm(2-3″) 200-2203 0.001mm ±0.003mm
75-100mm(3-4″) 200-2204 0.001mm ±0.003mm

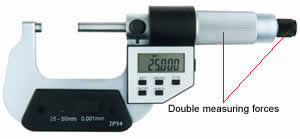

IP54 DIGITAL OUTSIDE MICROMETERS DOUBLE FORCES

  • Protection level IP54.
  • Double measuring forces (Ratchet stop/Ratchet friction thimble).
  • Display data is origin data of absolute measurement after changing battery.
  • RS232 output port. Connect cable (Optional): P1103 or P1104.
  • Function: Metric-inch conversion; Absolute and incremental measurement conversion; Power switch; Origin data set; Data output.
  • One SR44 battery. Power consumption<35μA.
  • Auto power off.
  • Chrome-plated frame, Carbide measuring faces.
  • Resolution: 0.001mm(Metric)/0.00005"(Inch)

　
Order No.

Range

Accuracy
Metric Inch
200-4001 0-25mm
                  0-1"
0.004mm
200-4002 25-50mm
                  1-2"
0.004mm
200-4003 50-75mm
                  2-3"
0.005mm
200-4004 75-100mm
                  3-4"
0.005mm
200-4005 100-125mm
                  4-5"
0.006mm
200-4006 125-150mm
                  5-6"
0.006mm
200-4007 150-175mm
                  6-7"
0.007mm
200-4008 175-200mm
                  7-8"
0.007mm

IP54 DIGITAL OUTSIDE MICROMETERS DOUBLE FORCES IN SETS

Order No.

Range

Pieces

Metric Inch
200-4009 0-75mm 0-3" 3
200-4010 0-100mm 0-4" 4
200-4011 0-150mm 0-6" 6
200-4012 0-200mm 0-8" 8

2. DIGITAL TAPE

  • Function: Hold display data; Outside and inside measurement; Metric-inch conversion; Reading direction change; Zero-set at any position. One CR2032 battery. Power consumption<50μA. Auto power off.
  • Width of tape: 19mm/ 0.75in.
  • Range: 5m/ 16Ft；Resolution: 1mm/ 0.05in.
  • Accuracy: ±（0.3+0.2L）mm.（L: m）
  • ORDER NO.: 200-4015

3. OUTSIDE MICROMETERS

  • deluxe heat insulated forged steel frame up to 6"
  • tubular steel frame (6" and up)
  • complete with standards (2" and up)
  • carbide tipped
  • ratchet stop and lock nut for exact and repetitive reading

painted

 chrome plated

range

reading

painted

 chrome plated

range

reading

201-1025

 201-2025

0-25mm

0.01

201-3001

 201-4001

0-1"

0.001"

201-1050

 201-2050

25-50mm

0.01

201-3002

 201-4002

1-2"

0.001"

201-1075

 201-2075

50-75mm

0.01

201-3003

 201-4003

2-3"

0.001"

201-1100

 201-2100

75-100mm

0.01

201-3004

 201-4004

3-4"

0.001"

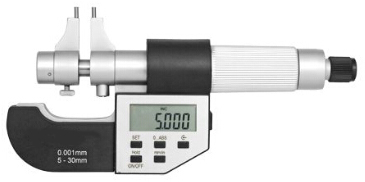

5 Keys Carbide Digital Inside Micrometers
  • Double measuring forces
  • Carbide measuring faces
Model Range Accuracy
200-3501 5~30mm/0.2~1.2" ±0.003mm
200-3502 25~50mm/1~2" ±0.003mm
200-3503 50~75mm/2~3" ±0.004mm
200-3504 75~100mm/3~4" ±0.004mm
200-3505 100~125mm/4~5" ±0.005mm
200-3506 125~150mm/5~6" ±0.005mm
200-3507 150~175mm/6~7" ±0.005mm
200-3507 175~200mm/7~8" ±0.005mm





4. Digital Three Point Inside Micrometers

　

Range

Accuracy

Setting rings

L

A
Order No. Metric Order No. Inch
Metric
Inch
　
202-3101
6 -8mm
 202-3111 0.275-0.35" 0.004mm ø6mm 0.275" 54.5mm 1.5mm
202-3102
8 -10mm
 202-3112 0.35-0.425" 0.004mm ø8mm 0.35" 54.5mm 1.5mm
202-3103
10-12mm
 202-3113 0.425-0.5" 0.004mm ø10mm 0.5" 54.5mm 1.5mm
　
202-3201
6-8mm
 202-4201 0.275-0.35" 0.004mm ø6mm 0.275" 53.5mm 0.5mm
202-3202
8-10mm
 202-4202 0.35-0.425" 0.004mm ø8mm 0.35" 53.5mm 0.5mm
202-3203
10-12mm
 202-4203 0.425-0.5" 0.004mm ø10mm 0.5" 53.5mm 0.5mm
202-3204
12-16mm
 202-4204 0.5-0.65" 0.004mm ø16mm 0.65" 80mm 0.5mm
202-3205
16-20mm
 202-4205 0.65-0.8" 0.004mm ø16mm 0.65" 80mm 0.5mm
202-3206
20-25mm
 202-4206 0.8-1" 0.004mm ø25mm 1" 90mm 0.5mm
202-3207
25-30mm
 202-4207 1-1.2" 0.004mm ø25mm 1" 90mm 0.5mm
202-3208
30-40mm
 202-4208 1.2-1.6" 0.004mm ø40mm 1.6" 97mm 0.5mm
202-3209
40-50mm
 202-4209 1.6-2" 0.005mm ø40mm 1.6" 97mm 0.5mm
202-3210
50-63mm
 202-4210 2-2.5" 0.005mm ø62mm 2.5" 114mm 0.5mm
202-3211
62-75mm
 202-4211 2.5-3" 0.005mm ø62mm 2.5" 114mm 0.5mm
202-3212
75-88mm
 202-4212 3-3.5" 0.005mm ø87mm 3.5" 114mm 0.5mm
202-3213
87-100mm
 202-4213 3.5-4" 0.005mm ø87mm 3.5" 114mm 0.5mm
202-3214
100-125mm
 202-4214 4-5" 0.005mm ø112.5mm 4.5" 150mm 0.5mm
202-3215
125-150mm
 202-4215 5-6" 0.005mm ø137.5mm 5.5" 150mm 0.5mm
202-3216
150-175mm
 202-4216 6-7" 0.005mm ø162.5mm 6.5" 150mm 0.5mm
202-3217
175-200mm
 202-4217 7-8" 0.005mm ø187.5mm 7.5" 150mm 0.5mm
202-3218
200-225mm
 202-4218 8-9" 0.007mm ø212.5mm 8.5" 150mm 0.5mm
202-3219
225-250mm
 202-4219 9-10" 0.007mm ø237.5mm 9.5" 150mm 0.5mm
202-3220
250-275mm
 202-4220 10-11" 0.007mm ø262.5mm 10.5" 150mm 0.5mm
202-3221
275-300mm
 202-4221 11-12" 0.007mm ø287.5mm 11.5" 150mm 0.5mm

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

5. Digital Three Point Inside Micrometers Sets

Order No. Range Individual range Setting rings Extension robs
Metric
202-3011 6-12mm(A=1.5mm) 6-8,8-10,10-12mm ø6,8,10mm

100mm

202-3001 6-12mm(A=0.5mm) 6-8,8-10,10-12mm ø6,8,10mm

100mm
202-3002 12-20mm(A=0.5mm) 12-16,16-20mm ø16mm

150mm
202-3003 20-50mm(A=0.5mm) 20-25,25-30,30-40,40-50mm ø25,40mm

150mm
202-3004 50-100mm(A=0.5mm) 50-63,62-75,75-88,87-100mm ø62,87mm

150mm
Inch
202-3012 0.275-0.5"(A=1.5mm) 0.275-0.35",0.35-0.425",0.425-0.5" 0.275",0.35",0.425"

100mm

202-3021 0.275-0.5"(A=0.5mm) 0.275-0.35",0.35-0.425",0.425-0.5" 0.275",0.35",0.425"

100mm
202-3022 0.5-0.8"mm(A=0.5mm) 0.5-0.65",0.65-0.8" 0.65"

150mm
202-3023 0.8-2"mm(A=0.5mm) 0.8-1",1-1.2",1.2-1.6",1.6-2" 1",1.6"

150mm
202-3024 2-4"mm(A=0.5mm) 2-2.5",2.5-3",3-3.5",3.5-4" 2.5",3.5"

150mm
