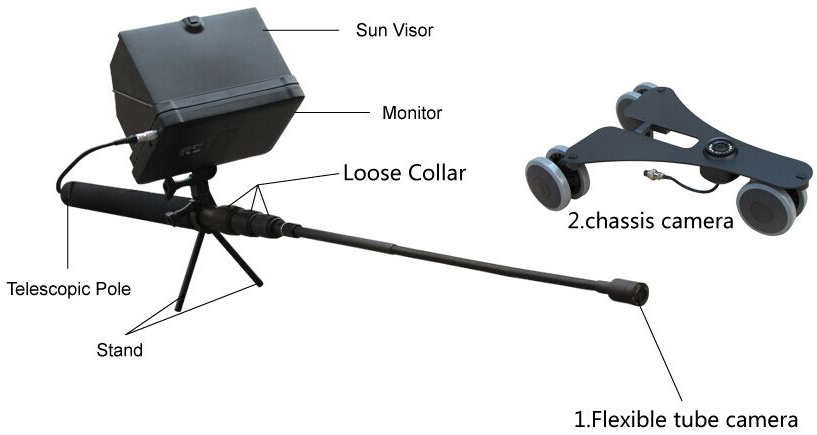

1080P HD Mini Under
Vehicle Inspection Camera DVR system AM006
 |
|
Applications: 1. Home Inspection: Roof, gutter, chimney, Loft and Attic, Basement Inspection. 2. Wildlife Survey: bird's nest, snake's cave, fish pond, pet house, aquarium, aquaculture monitor 3. Construction Inspection: tunnel and manhole ,well, elevator shaft, track drill, mine, riverbed 4. Under Vehicle detection: cars, truck, excavator, SUV and so on. 5. Under Boat/yacht Inspection and floating resort monitor. 6. Extend your hand and eye for checking everywhere. |
|
Features: 1. Double HD digital camera for checking. 1st camera: 5.0MP 16 LED camera with universal wheel. 2nd camera: 5.0 MP 6 LED camera Φ18mm with 0.25m flexible pole. 2. Universal wheel with wear-resisting tires. 3. Reinforced design passed 10000 times crash testing. 4. 7 inch monitor with sunshade. 5. Support 64GB storage. 6. Support HDMI video output. 7. Support H.264 Video Compression Format. 8. 5000mah li-battery, 8 hours working time. 9. 2m Telescopic Survey Pole for all-purpose usage. 10. Top grade aluminum allay case 11. Excellent video and photo as iphone . |
 |
| Digital Camera for Wheels Tray | Optical Element | 1/2.5 CMOS Sensor SONY |
| Optical Total Pixels | 5.0 Mega: 3200(H) x 1800(V) | |
| CMOS Sensor Size | 5.6mm (H) x 3.14mm (V) | |
| LED Lamps | 16pcs LED lamps high light | |
| Sensitivity | 0.08Lux/F1.2 | |
| Lens & View Angle | 3.6mm F1.2 (H) 120° | |
| HD Video Output Interface | FPD-Link III | |
| Wheels on the Tray | Omni-directional wheel | |
| Dimension & Weight | 37 x 46mm, 35g (only camera) | |
| Cable (5 Cores High-Speed Line) | Diameter: 4.0mm, Length: 3meters | |
| Mini Camera for Soft Metal Pipe | Optical Element | 1/3 CMOS Sensor |
| Optical Total Pixels | 5.0Mega: 3200 (H) x 1800(V) | |
| CMOS Sensor Size | 5.07mm (H) x 3.38mm (V) | |
| LED Lamps | 6 pcs LED lamps hight light | |
| Sensitivity | 0.2Lux/F1.2 | |
| Lens & View Angle | 0.5mm F1.2 120° | |
| HD Video Output Interface | FPD-Link III | |
| Dimension & Weight |
18 x 28mm, 10g |
|
| Cable (5Cores High-Speed Line) | Diameter: 4mm, Length: 3meters | |
| Flexible Pipe Lenth | 25cm soft metal pipe | |
| Telescopic Pole | Constriction Length: 58cm | Unfolded Length: 228cm |
| DVR 7" SCREEN | HD Video Output | HDMI: 1920* 1080; 1280*720 |
| Video Storage Pixels (16:9) | HDMI: 1920* 1080; 1280*720 | |
| Video Compression Format | H.264 | |
| Video Storage | AVI | |
| HD Digital Video Input Interface | FPD-Link III | |
| Photo Format | JPG 5.0 MP: 3200 (H) x 1800 (V) | |
| Storage External SD card | TF card 1GB-64GB (Optional) | |
| Operating System | Windows & Mac OS | |
| Port | USB 2.0 | |
| Language | Multiple | |
| Voltage | DC: 7-24V USB DC: 5V | |
| Current (Monitor mode) | 600 mA | |
| Current (Video mode) | 700 mA | |
| AC Adapter | DC 12V 1A | |
| Built-in Battery | Li-battery 5000mAh | |
| Record Time | 8 hours | |
| Dimension | 177mm x 120mm x 20mm | |
| Sunshade | One-press open sunshade | |
| Weight | 350 g | |
| Packing | Aluminium case, 17*34*66cm, G.W.: 8KG, N.W.: 6680g | |
|

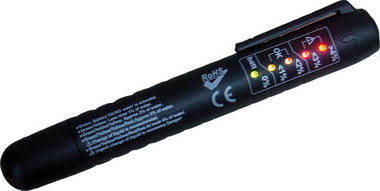

AM001 Brake Fluid Tester
|
|
Features:
* Test dot 3 & 4 brake
fluid (dot 5 for ref. only) |
|
|

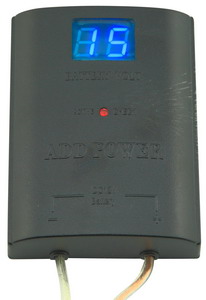

AM005 Car/Golf Cart Battery 12V
Recover
|
|
HOW IT WORKS? The battery will be sulfated after use, the AM005 will remove the sulphate so that keep the battery in good condition. After install AM005, battery life can extend 3 times more, which means no need to change the battery. |
|
 |
|
Why good to install it? 1. Extend battery life to 3 times more. 2. Save 4~7% fuels (gasoline) 3. Engineer run stable and improve the power of engine. 4. Keep power output stable to device in car such as Light, AC, Bluetooth, GPS, DVD, Ratio, CD ...... |
||
|
Why save fuel? 1. Keep car spark plug power in good condition, car power is 12V, but spark plug need 25000V, means if battery power output less 0.1V, power to spark plug less 200V, means will decrease the fuel combustion. Install AM005 will keep spark plug always to work in the right power. 2. Decrease car generator work power so that to save the fuel. |
||
|

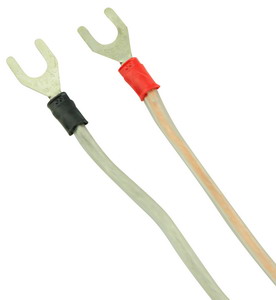

How to install? It is easy DIY, just stop the car, the AM005 black wire (-) to car battery negative pole (-), red wire (+) to battery postivie pole (+). |
||
|
Advantage: Key PCB made in Korea. LED display to show power status, auto power off when car power off. |
|

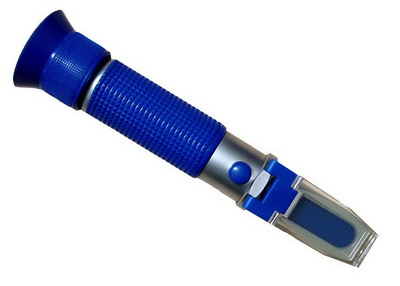

Battery/Antifreeze/Cleaning Fluid
|
| Model | Range | Min.Div. | Accuracy |
 |
| RHA-100ATC | Ethylene Glycol: -84° F-32°F | Ethylene Glycol: 5°F | Ethylene Glycol: ±5° F | |
| Propylene Glycol:-60° F-32°F | Propylene Glycol: 5°F | Propylene Glycol: ±5° F | ||
| Battery: 1.100-1.400sg | Battery: 0.01sg | Battery: ±0.01sg | ||
| RHA-200ATC | Ethylene Glycol:-60°C-0°C | Ethylene Glycol:5°C | Ethylene Glycol:±5°C | |
| Propylene Glycol:-50°C-0°C | Propylene Glycol:5°C | Propylene Glycol:±5°C | ||
| Battery: 1.100-1.400sg | Battery:0.01sg | Battery:±0.01sg | ||
| RHA-503C | Battery: 1.100-1.400sg | Battery: 0.01sg | Battery: ±0.01sg | |
| Ethylene Glycol: -50°C-0°C | Ethylene Glycol:5°C | Ethylene Glycol: ±5°C | ||
| Propylene Glycol: -50°C-0°C | Propylene Glycol: 5°C | Propylene Glycol: ±5°C | ||
| Cleaner: -40°C-0°C | Cleaner: 5°C | Cleaner: ±5°C |
|
AdBlue / DEF /
AUS32 Urea Concentration Test Meter
|
| Model | Range | Min. Div. | Size | Weight |
|
| AMR001 |
Urea: 0-40% |
0.2% |
27x40x160mm | 175g | |
| AMR002 | Urea: 0-40% | 0.2% | |||
| EG: -60°F ~ 32°F | 10°F | ||||
| PG: -50°F ~ 0°F | 10°F | ||||
| AMR003 |
Urea: 0-40% |
0.2% | |||
|
EG: -50°C ~ 0°C |
5°C | ||||
|
PG: -50°C ~ 0°C |
5°C | ||||
|
CW: -40°C ~ 0°C |
10°C | ||||
| AMR004 |
Urea: 30~35% |
0.2% | |||
|
EG: -50°C ~ 0°C |
5°C | ||||
|
PG: -50°C ~ 0°C |
5°C | ||||
|
CW: -40°C ~ 0°C |
10°C | ||||
|
BF: 1.10 ~ 1.40Kg/L |
0.01Kg/L |
|

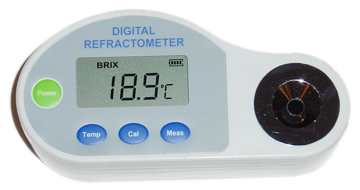

Digital AdBlue
/ DEF / AUS32 Urea Concentration Tester
|
|
1. Working Temp.
Range: 0°C-40°C (32-104°F) 2. Power Supply: 2 x AAA battery 3. Automatic Temperature Compensation 4. Automatic Shut Off 5. Dual temperature 6. Compact, robust and pocket size 7. Multi Scale versions 8. High accuracy |
|
|
AMR009 |
Urea (AdBlue) |
0 ~ 40% | 0.1% | +-0.2 |
|
PROPYLENE GLYCOL |
0 ~ -50ºC | 0.1ºC | +-0.5ºC | |
|
ETHYLENE GLYCOL |
0 ~ -50ºC | 0.1ºC | +-0.5ºC | |
|
CLEANER |
0 ~ -40ºC | 0.1ºC | +-0.5ºC | |
|
AMR010 |
Urea (AdBlue) |
0 ~ 40% | 0.1% | +-0.2 |
|

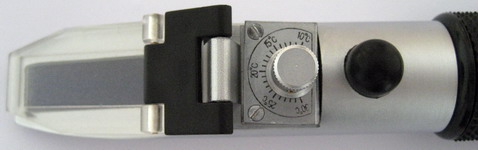

For
Brake
Check
|
 |
| Model | Range | Min.Div. | Remark | Size |
| VBK1 | DOT3: 1-6% Moisture, Boiling Point: 250-500°F | 1% | ATC | 40 x 40 x 220mm |
| Super DOT3: 1-6% Moisture, Boiling Point: 250-570°F | ||||
| VBK2 | DOT3: 1-6% Moisture, Boiling Point: 125-275°C | 1% | ATC | 40 x 40 x 220mm |
| Super DOT3: 1-6% Moisture, Boiling Point: 150-275°C |
|

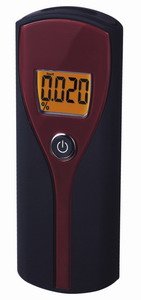

AMT125 Digital Alcohol
Tester |
|
Features: Design patented 1 Sensor: Semiconductor alcohol sensor 2 Warm-up time: Within 10 seconds 3 Respond time: Within 5 seconds 4 Operating temperature range: 5 ~ 40 5 Detection range: 0.000% - 0.199% BAC / 0.000-1.990 BAC / 0.000- 0.995 mg/l 6 Digital display results (% BAC / BAC / mg/l) 7 Quick response and resume 8 Auto power-off 9 Orange-colored backlight 10 Low voltage indicator 11 Power input: 3V (2 x AAA alkaline battery, not included) 12 Unit size: 116 x 45 x 15 mm Print size: 25 x 13 mm |
|
|
AMT126 Digital Alcohol
Tester
|
|
Main Features: 1. Advanced hot-wire alcohol sensor 2. Quick response, excellent accuracy 3. Smart MCU control 4. Direct testing process LCD Indication 5. LCD Indication, Backup Lamp 6. Portable design 7. No touch health design 8. Visible and audio warning beyond pre-set limit 9. Power saving design, low battery indication Technical Information: 1. Sensor Type: Hot-wire alcohol sensor 2. Detecting Range: 0.00-2.00g/L; 0.00-0.20%BAC; 0.00~2.0‰BAC; 0.00-1.00mg/L 3. Accuracy: ±10% F.S 4. Pre-set Level: 0.50g/L; 0.05%BAC; 0.5‰BAC; 0.25mg/L 5. Warm-up Time: <10 sec (Initial Warm-up 18 sec) 6. Testing Time: <8 sec 7. Display: 3 digitals LCD indication with red backup light 8. Power Supply: 3VDC (2 x AAA batteries) 9. Working Environment: -10°C - 50°C; ≤95%RH No dews 10. Dimension: 103 x 37 x 19mm; 45g |
|
|

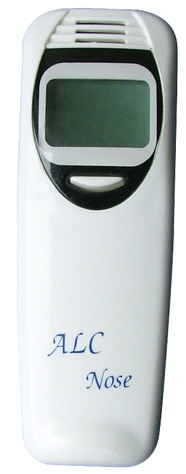

AMT128 Digital Alcohol
Tester
|
|
Main Features: 1. Advanced hot-wire alcohol sensor 2. Quick response, excellent accuracy 3. Smart MCU control 4. Direct testing process LCD Indication 5. LCD Indication, Backup Lamp 6. Portable design 7. No touch health design 8. Visible and audio warning beyond pre-set limit 9. Power saving design, low battery indication Technical Information: 1. Sensor Type: Hot-wire alcohol sensor 2. Detecting Range: 0.00-2.00g/L; 0.00-0.20%BAC; 0.00～2.0‰BAC; 0.00-1.00mg/L 3. Accuracy: ±10% F.S 4. Pre-set Level: 0.50g/L; 0.05%BAC; 0.5‰BAC; 0.25mg/L 5. Warm-up Time: <10 sec (Initial Warm-up 18 sec) 6. Testing Time: < 8 sec 7. Display: 3 digitals LCD indication with red backup light 8. Power Supply: 3VDC (2 × AAA batteries) 9. Working Environment: -10°C - 50°C, ≤95%RH No dews 10. Dimension: 90 x 30 x 16mm, 45g |
|
|

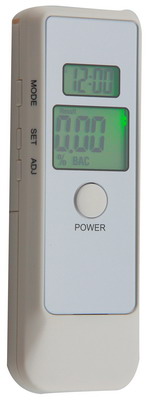

AMT139 Digital Alcohol
Tester
|
|
1. Sensor: Semiconductor
alcohol sensor 2. Warm-up time: Within 10 seconds 3. Respond time: Within 5 seconds 4. Operating temperature range: 5 ~ 40°C 5. Detection range: 0.000% ~ 0.199% BAC; 0.000‰~1.990‰ BAC; 0.000- 0.995 mg/l 6. Digital display results (% BAC / ‰ BAC / mg/l) 7. 3 color backlight 8. Clock, Alarm, Timer function 9. Quick response and resume 10. Auto power-off 11. Low voltage indicator 12. Real time & Alarm clock & Countdown timer 13. Power input: Tester: 3V (2 x AAA alkaline battery, not included) 14. Unit size: 100 x 37 x 18 mm |
|
|
AMT198 Digital Alcohol
Tester
|
|
Main Features: 1. Advanced Flat surfaced alcohol sensor 2. Quick response, excellent accuracy 3. Smart MCU control 4. Direct testing process LCD Indication 5. LCD Indication, Backup Lamp 6. Portable design 7. No touch health design 8. Visible and audio warning beyond pre-set limit 9. Power saving design, low battery indication Technical Information: 1. Sensor Type: Flat surfaced alcohol sensor 2. Detection Range: 0.00 - 0.20%BAC, 0.00-2.00‰BAC, 0.00 - 1.00mg/L; 0.00 - 2.00g/L 3. Accuracy: ±10% F.S 4. Pre-set Level: 0.05%BAC; 0.5‰BAC; 0.25mg/L; 0.50g/L 5. Testing Time: < 8 Sec 6. Display: 3 digitals LCD 7. Power: 3VDC (2×AAA batteries) 8. Working Environment: -10°C - 50°C, ≤95%RH No dews 9. Dimension: 102 x 37 x 20mm, 50g |
|
|
AMT199 Digital Alcohol
Tester
|
|
Main Features: 1. Advanced Flat surfaced alcohol sensor 2. Quick response, excellent accuracy 3. Smart MCU control 4. Direct testing process LCD Indication 5. LCD Indication, Backup Lamp 6. Portable design 7. No touch health design 8. Visible and audio warning beyond pre-set limit 9. Power saving design, low battery indication Technical Information 1. Sensor Type: Flat surfaced Sensor 2. Detection Range: 0.00-2.00‰BAC, 0.00-0.50‰BAC, 0.00 - 1.00mg/L; 0.00 - 2.00g/L 3. Accuracy: ±10% F.S 4. Pre-set Level: 0.05%BAC; 0.5‰BAC; 0.25mg/L; 0.50g/L 5. Testing Time: < 8 Sec 6. Display: 3 digitals LCD 7. Power: 3VDC (2×AAA batteries) 8. Working Environment: -10°C - 50°C, ≤95%RH No dews 9. Dimension: 102 x 37 x 20mm, 50g |
|
|

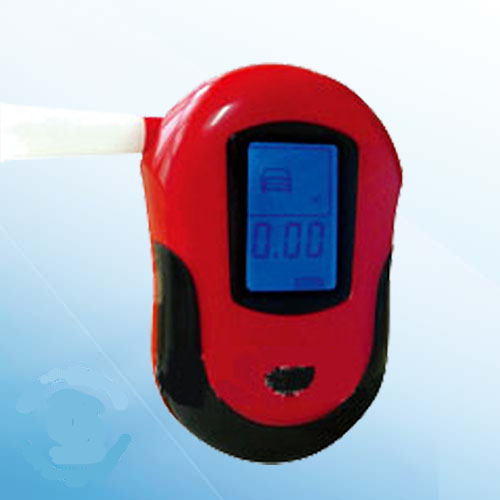

AMT6100 Digital Alcohol
Tester
|
|
Feature 1. Advanced flat surfaced alcohol sensor 2. Quick response and resume 3. SMD assembling, stable performance 4. Smart MCU control 5. Direct testing process LCD indication 6. Digital LCD display with light blue backup 7. Portable and fashion design 8. Audio warning beyond pre-set limit 9. Sensor Fault Self checking 10. Battery saved design, low voltage indication Main Techniques 1. Sensor type: flat surfaced alcohol sensor 2. Working Voltage: DC4.5V (3 x AAA)Batteries 3. Working Current: ≤120mA 4. Working Environment: Temperature -10°C~50°C, Relative Humidity ≤95% No Dews 5. Detection Range: 0.00~1.00mg/L, 0.00~0.20%BAC; 0.00~2.00g/L; 0.00~2.00‰BAC 6. Alarming Level: 0.25mg/L (0.05%BAC, 0.50g/L; 0.50‰BAC) 7. Accuracy: ±10% F.S 8. Response Time: <5s 9. Resume Time: ≤20s 10. Display: 3 digits LCD display with light blue backup 11. Dimension: 100 x 70 x 28mm (L x W x H), ≤65 g Battery excluded 12. Battery expectancy time: ≥200Times |
|
|
AMT8100 Digital Alcohol
Tester
|
|
Feature 1. Healthy anti-return mouthpieces 2. Fashioned colorized LCD indication 3. Real temperature and time indication 4. Automatic procedures for sampling, 5. simple operation and calibration by user 6. Password management 7. Passive testing available 8. Printer and computer communication optional 9. Comply with NF and DOT standard Main Techniques 1. Sensor : Fuel cell Alcohol sensor 2. Power: 2×AA batteries, rating capacity: 2.1AH, 3. Working Tem: -10~50°C; Storage Tem: -40~70°C 4. Detection Range:0.000 - 2.000mg/L 5. Accuracy: <0.200 ±0.025mg/L, 0.200～0.400 ±0.040mg/L, 0.400～.2.000 ±10% 6. Pass level indication: 0.090mg/L 7. Fail level indication: 0.250mg/L 8. Response Time: T <30s 9. Working Hum Range: <95%RH (No Dews) |
|
|
AMT8800 Professional
Alcohol Tester
|
|
Features: 1. Electrochemical (fuel cell) sensor, good reliability and accuracy 2. Colorful LCD indication 3. "Mobile phone" keyboard for operation 4. Intelligent input methods, more concise. 5. Real time and temperature indication 6. Admirable human-device interface 7. Two level audible and visible alarm indication 8. Low battery automatic power off function 9. Measurement unit and alarming level adjustable function 10. Testing record review function 11. Wireless printing function 12. Connect to PC and upload the result 13. Records memory, including test time, result and types of result 14. Password management function 15. Adopt anti-return mouthpiece for health and safety |
|
|
Technical Data: 1. Sensor type: Electrochemical (fuel cell) alcohol sensor 2. Test Range: 0.000-2.000mg/l (0.400% B.A.C; 4.000‰ B.A.C; 4.000g/l) 3. Alarming level: Pass level: 0.090mg/L (could be modified); Fail level:0.250mg/L (could be modified) 4. Work temperature: -10°C-50°C 5. Work humidity: < 95%RH (No Dews) 6. Battery: 2 x AA NiMH batteries, rating capacity: 2.1AH 7. Dimension: 122X67X31mm 8. Weight: about 120g(excluding battery) 9. Accuracy: < 0.400 +/-0.020 mg/L; 0.400 - 1.000 +/-5%; 1.000 - 2.000 +/-20% 10. Certificate: CE, RoHS 11. Package: Standard: Aluminum Alloy suitcase packing for each piece, 5pcs packed in one carton. 12. Carton size is 33*39*45cm, Gross weight per carton is 10.00Kgs. |
|
|
AMT8900 Professional
Alcohol Tester
|
|
1. Law Enforcement
Alcohol Tester with built-in/detachable and stand-alone thermal/dot
matrix printer. 2. Fuel cell sensor: Sensor Module changeable design more convenient for recalibration and module change 3. Key input: Simplify keyboard with touch panel 4. Display: 2.83" OLED screen, applicable for wide range of working temperature 5. Quick and precise analysis: Ensure a high sensitivity to alcohol and stable & reliable working life 6. Memories: 20,000 memories stored with full information, like driver information, vehicle No., Police ID, testing result and type, date and time, location, calibration date etc. 7. Built-in/detachable printer: the printer can be detached to be stand-alone to work separately, also stand-alone thermal, dot-matrix printer optional 8. GPS: Geography information provided by GPS 9. Data Upload: PC upload by USB 10. Password management: password can be changed by users 11. Indication unit: Multi - unit (mg/L, mg/100ml, g/L, ‰ BAC, % BAC) optional 12. Mouthpiece: disposable anti-return mouthpiece design 13. Power supply: Rechargeable Li battery, 7.4V/2500mA 14. Display range: 0.000-2.000mg/L(0~440mg/100mL,0.000~4.000g/L,0.000~0.400%BAC,0.000~2.000‰ BAC) 15. Auto flow monitoring: Flow detection automatically 16. Temperature range: working range -30°C-50°C 17. Accuracy: <0.400 +/-0.020 mg/L; 0.400 - 1.000 +/-5%; 1.000 - 2.000 +/-20% 18. Continuous working time: more than 20hours in normal testing conditions. 19. Standard: comply with CE, NF, OIML126, DOT |
|
|
AMT319 Coin Operated
Vending Breathlyzer (Alcohol Tester)
Manual
|
Order Number:
|
AMT319 |
|
Features: -Popular in public, bar, restaurant or hotel etc... -Fuel Cell Sensor, sensor module replaceable -Blow by disposable straw -Straw box with capacity of 200pcs -Multi language panel available -Audible and visual warning -Test result with 4 digits display -Large LEDs instruct the operating procedure -Power by AC adaptor 110/220V -Setup 1 kind coin with 1-15 pcs -Press straw dispenser to get 1 straw |
|
|
Specification: -Sensor type: Electrochemical (fuel cell) alcohol sensor -Test Range: 0.000-2.000mg/l; (0.400%B.A.C; 4.000%oB.A.C; 4.000g/l;) -Warning level: 0.250mg/L (could be modified) -Accuracy: +/-0.005 @ 0.05%BAC -Work temperature: -10°C-50°C -Work humidity: <95%RH (No Dews) -Indication manner: mg/l, mg/100ml, g/l ,%BAC, %oBAC optional -Coin for single time: 0-15 (For 0, the tester can be tested without coin) -Coin diameter: 20mm-28mm -Coin thickness: 1.2mm-2.5mm -Coins Capacity: about 200 pieces -Straw box capacity: 200pcs(dia<=7mm) -Breath sampling time: about 5 seconds continuous breath. |
AMT319V |
|

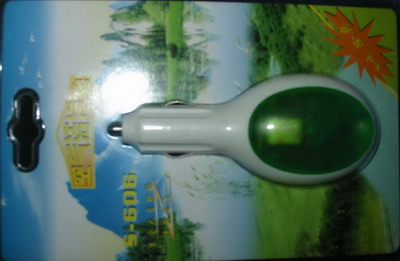

Car Air Cleaner
KS-606
|
|
Product Description: Purified bacteria, pollen, dust and other contaminants; Removes unpleasant odors and fumes. Removes musty and stale air. Keeps you clear-headed and alert. Relieves allergies, hay fever and asthma. No chemical agent used. Power: 1W Voltage: DC 12V Ozone: 1mg/h Anion: 1500000 pcs/cm3 CE/ROHS approval |
 |
|
Carbon Fiber
Composite Depth Gauge TA200
|
|
FEATURES Range: 0-25.4mm/1" Resolution: 0.01mm/0.0005" Large, easy-to-read LCD Lightweight Carbon Fiber Composite Material With data output Zero setting at any position, mm/inch conversion Power: one 3V battery |
|
|

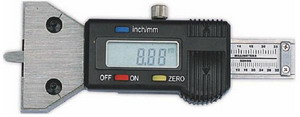

Thread Depth
Gauge TA201
|
|
RANGE:
0-25mm*0.01/0-1in*0.0005 LCD display Zero setting at any position Metric/Inch system interchange Manual power on/off Suitable for Tread Depth Brake Shoe and pad wear |
|
|
Digital
Depth Gauge TA202 Serials
|
|
FEATURES
Large, easy-to-read LCD, digit height 12.5mm Customer's Logo can be printed on it With data output Interchangeable rods(25,50,100mm) can be inspecting depths 0-300mm Zero setting at any position, mm/inch conversion. Manual ON/OFF or automatic power off Power: one 1.55V battery |
|
| Model | Range | Resolution | Accuracy |
| TA202A | 0-150mm/6" | 0.01mm/.0005" | ±0.03mm |
| TA202B | 0-300mm/12" | 0.01mm/.0005" | ±0.04mm |
| TA202C | 0-25.4mm/1" | 0.001mm/.00005" | ±0.009mm |
|

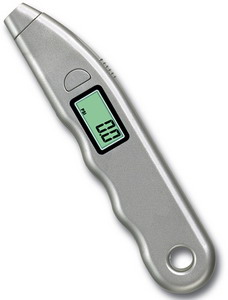

Digital Tyre Gauge
TA109
|
|
Features:
This digital tire gauge adopts the high precision sensor and the advance microcomputer technique. It is easy and fast to measure the automobile tire's pressure accurately. With the clipper-built and humanistic design that tally with the human body engineering science makes it in good looking and convenience to use. |
|
|
Specifications: •Auto power off •PSI/BAR conversion •21×10mm LCD display •Power: CR-2032 lithium battery •Range: 0~100PSI (0~7.0BAR) •Resolution: 0.5PSI (0.05 BAR) •Accuracy: ±1%FS •Weight: about 40g |
|
3 in 1 Digital
Tyre Gauge TA110
|
|
FEATURES:
Tyre Gage + Tyre Depth + Flashlight Large LCD display for reading Small and portable With backlight Four units in measuring pressure: PSI, Bar, Kgf/cm², Kpa Range: 0-100PSI Accuracy: ±1% With a Vernier Tread Depth Gauge Operation Temp.: -5~+50°C One 3V CR2032 battery |
|
|
3 in 1 Digital
Tyre Gauge TA110A
|
|
FEATURES:
Tyre Gage + Tyre Depth + Flashlight Large LCD display for reading Small and portable With backlight Four units in measuring pressure: PSI, Bar, Kgf/cm², Kpa Range: 0-200PSI Accuracy: ±1% With a Vernier Tread Depth Gauge Operation Temp.: -5 ~+50°C One 3V CR2032 battery |
|
|
3 in 1 Digital
Tyre Gauge TA112 & TA112A
|
|
Order No: TA112
Range: 0-100PSI TA112A Range: 0-200PSI FEATURES Large LCD display for reading, with Compass Small and portable; Accuracy: +-1% Four units in measuring pressure: PSI, Bar, Kgf/cm²,Kpa Digital Tread Depth Gauge (Measuring units: mm/inch) Operation Temp.: -5~+50°C One 3V CR2032 battery |
|
|
2
in 1 Digital Tyre Gauge TA113 & TA113A
|
|
Order No: TA113
Range: 0-100PSI TA113A Range: 0-200PSI FEATURES Large LCD display for reading Small and portable; Accuracy: +-1% Four units in measuring pressure: PSI, Bar, Kgf/cm²,Kpa Operation Temp.: -5~+50°C One 3V CR2032 battery |
|
|
2
in 1 Digital Tyre Gauge TA115 & TA115A
|
|
Order No: TA115
Range: 0-100PSI TA115A Range: 0-200PSI FEATURES Large LCD display for reading Small and portable; Accuracy: +-1% Can be attached to key ring. It's a good choice for promotion Single key operation: manual ON/OFF, unit conversion, auto power off Four units in measuring pressure: PSI, Bar, Kgf/cm², Kpa Operation Temp.: -5 - +50°C One 3V CR2032 battery |
|
|
2

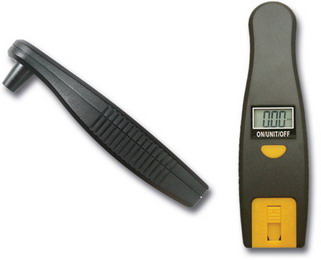

in 1 Digital Tyre Gauge TA116 & TA116A
|
|
Order No: TA116
Range: 0-100PSI TA116A Range: 0-200PSI FEATURES Large LCD display for reading Small and portable; Accuracy: +-1% Can be attached to key ring. It's a good choice for promotion Single key operation: manual ON/OFF, unit conversion, auto power off Four units in measuring pressure: PSI, Bar, Kgf/cm², Kpa Operation Temp.: -5 - +50°C One 3V CR2032 battery |
|
|
2
in 1 Digital Tyre Gauge TA117
|
|
Range: 0-150PSI Large LCD display for reading Small and portable; Accuracy: +-1% Four units in measuring pressure: PSI, Bar, Kgf/cm², Kpa With a Vernier Tread Depth Gauge Operation Temp.: -5 ~+50°C One 3V CR2032 battery |
|
|

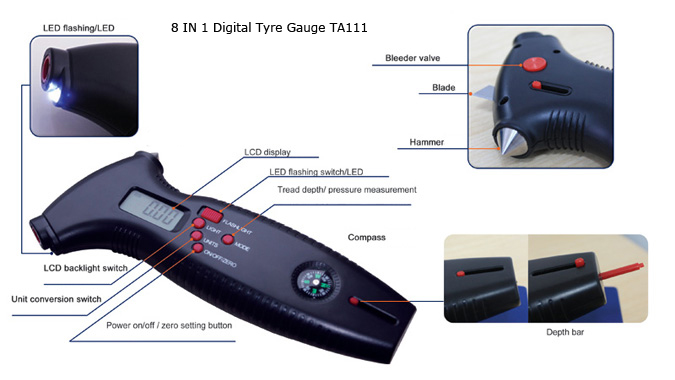

Multipurpose
Digital Tyre Gauge TA111
|
|
FEATURES: Multi-scales: PSI, Bar, Kgf/cm², Kpa Range: 0-200PSI Accuracy: ±1% Digital tread depth gauge (mm/inch) Bright LED flash light Back lighted LCD for use in the dark Bleeder valve for pressure adjustment The hammer easily shatters glass to free when doors are jammed on land or under water The seat belt cutter quickly slices through a jammed With Compass Operation Temp.: -5~+50°C Power: 3 PCS AAA batteries |
|
 |
|
|

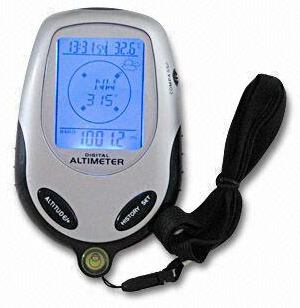

8-in-1 Digital
Compass AMC-101
|
FEATURES
|
|
|

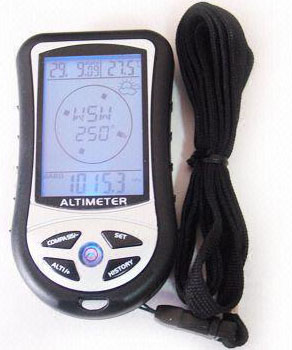

8-in-1 Digital
Compass AMC-102
|
FEATURES
|
|
|

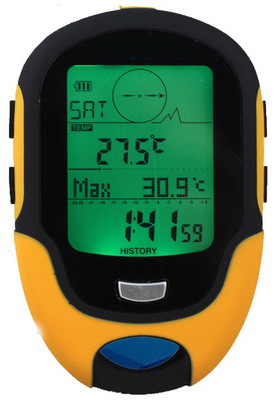

Multifunctional Digital
Barometric Altimeter Compass AMC-107
|
|
Multifunction
barometric altimeter & compass incorporates altimeter, barometer,
thermometer, compass, flashlight and weather forecast functions etc.
Adopting super-accuracy sensor from Swiss, it deserve to be called a
professional outdoor equipment. Features: 1. Altitude total gain/loss, 24 hours altitude record and trend chart 2. Max/Min altitude, temperature, humidity record 3. 24 hours air pressure trend chart 4. Incorporate altimeter, barometer, compass, thermometer and hygrometer functions etc. 5. Time, date, alarm clock functions 6. Built-in rechargeable battery 7. IPX4 waterproof |
|
|
Specifications: 1. Altimeter: 1) Display range: -2296ft to 29500ft/-700m to 9000m 2) Resolution: 1m/3ft 3) Altimeter measurement: Sea level altitude/Climbing altitude 4) The highest altitude record automatically during climbing: Available 5) Altitude gain/loss calculation: Yes 6) History altitude record: Record altitude every 30 minute 7) Unit: M and Ft unit switch available 2. Barometer: 1) Display range: 300hpa to 1100hpa/8.8 to 32.6inHg 2) Resolution: 0.1hpa 3) Unit: Millibar and InHg unit switch available 3. Thermometer: 1) Display range: -20ºC to 60ºC /-4ºF to 140ºF 2) Resolution: 1ºC/1ºF 3) Unit: Celsius and Fahrenheit unit switch available 4) History temperature record: Max/min temperature record 4. Hygrometer: 1) Display range: 20% ~ 95% 2) History humidity record: Max/min humidity record 5. Compass: 1) Display mode: 360º with eight directions 2) Resolution: 1° 6. Weather forecast: 1) Forecast for future 12 to 24 hours weather 2) Four weather status: Sunny-Slight sunny-Cloudy-Rain 3) Time & Date: Display mode 24H or 12H available 7. LED torch: High-light LED torch 8. Backlight: 5 seconds high-light LED backlight 9. Waterproof: IPX4 |
|
|

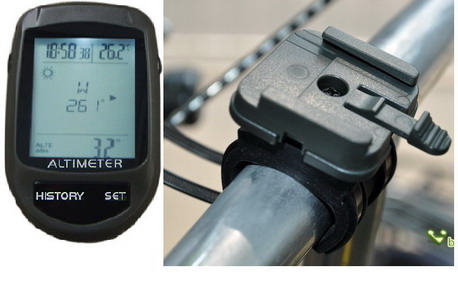

Bicycle 8-in-1
Digital Compass AMC-103
|
FEATURES
|
|
|

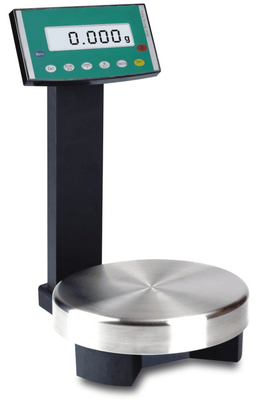

Digital Paint
Mixing Scale
|
|
PST Paint Mixing Scale is
suitable for fast and accurate paint-mixing. It is widely used in the
industries of auto fast repair, paint-mixing, coating-mixing etc. Main features: 1. Particularly suitable for the paint-mixing under the harsh environmental conditions. 2. Standard RS232 communication port, realize the communication between data and computer, printer or other device. 3. Full metal structure, durable in use. 4. Sequential cumulative batching system. 5. Coefficient calculation method batching system. 6. Filling weighing function 7. Percentage weighing function 8. Count weighing function 9. Formula weighing function Optional Parts: 1. Thermal printer. 2. Below hook weighing device. 3. Explosion proof standard. |
|
| Model | PST-20 | PST-21 | PST-22 |
| Max Capacity | 5kg | 8kg | 10kg |
| Readability | 0.1g | ||
| Repeatability | +-0.1g | ||
| Linearity Error | +-0.2g | ||
| Operating Temperature | 13~25˚C | ||
| Operating Moisture Range (RH) | 10~70% | ||
| Response Time | 2.5s | ||
| Pan Diameter | 240mm | ||
| External Diameter | 233 x 340 x 385mm | ||
| Pre-heat Time | 20~30 minutes | ||
| DC Adaptor | Input: 110/220V, Output: 7.5V DC/600mA | ||
| Band Rate Options | 300, 600, 1200, 2400, 4800, 9600 | ||
|

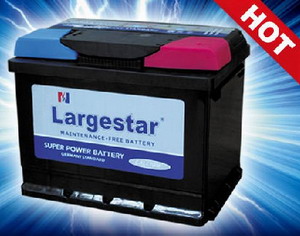

Car Dry Battery
|
| These
initials stand for starting, lighting and ignition, which are the three
basic functions which a battery has to perform on all normal vehicles.
Batteries given this description will have been specifically designed for service on cars and trucks within a voltage controlled electrical system. Those SLI batteries which are intended for heavy haulage vehicles fitted with large diesel motors may often be called COMMERCIAL batteries. They have to be much more powerful and more robust than batteries intended for cars. |
|
JIS STANDARD
|
Model |
Standard
|
Voltage
|
Capacity @20hr
rate
|
5HR |
Maximum overall
|
Cranking ampere
|
|||
|
Dimension (mm)
|
at-15C
|
||||||||
|
(V)
|
(Ah)
|
L
|
W
|
H
|
TH
|
(Amp)
|
/
|
NS40
|
12
|
32
|
25.6
|
197
|
129
|
203
|
227
|
250
|
/
|
NS40L
|
12
|
32
|
25.6
|
197
|
129
|
203
|
227
|
250
|
/
|
NS40(S)
|
12
|
32
|
25.6
|
197
|
129
|
203
|
227
|
250
|
/
|
NS40L(S)
|
12
|
32
|
25.6
|
197
|
129
|
203
|
222
|
250
|
36B20R
|
NS40Z
|
12
|
35
|
28
|
197
|
129
|
203
|
227
|
280
|
36B20L
|
NS40ZL
|
12
|
35
|
28
|
197
|
129
|
203
|
227
|
280
|
36B20R(S)
|
NS40Z(S)
|
12
|
35
|
28
|
197
|
129
|
203
|
227
|
280
|
36B20L(S)
|
NS40ZL(S)
|
12
|
35
|
28
|
197
|
129
|
203
|
227
|
280
|
38B20R
|
NT60-54
|
12
|
35
|
28
|
199
|
131
|
203
|
231
|
285
|
38B20L
|
NT60-54L
|
12
|
35
|
28
|
199
|
131
|
203
|
231
|
285
|
32C24R
|
N40
|
12
|
40
|
32
|
237
|
129
|
203
|
231
|
280
|
32C24L
|
N40L
|
12
|
40
|
32
|
237
|
129
|
203
|
231
|
280
|
46B24R
|
NS60
|
12
|
45
|
36
|
237
|
129
|
203
|
231
|
330
|
46B24L
|
NS60L
|
12
|
45
|
36
|
237
|
129
|
203
|
231
|
330
|
46B24R(S)
|
NS60(S)
|
12
|
45
|
36
|
237
|
129
|
203
|
231
|
330
|
46B24R(l)
|
NS60L(S)
|
12
|
45
|
36
|
237
|
129
|
203
|
231
|
330
|
55B24R
|
NX100-56
|
12
|
45
|
36
|
237
|
129
|
203
|
231
|
340
|
55B24L
|
NX100-56L
|
12
|
45
|
36
|
237
|
129
|
203
|
231
|
335
|
48D26R
|
N50
|
12
|
50
|
40
|
260
|
172
|
204
|
232
|
360
|
48D26L
|
N50L
|
12
|
50
|
40
|
260
|
172
|
204
|
232
|
360
|
|
46B24R(l)
|
NS60L(S)
|
12
|
45
|
36
|
237
|
129
|
203
|
231
|
330
|
55B24R
|
NX100-56
|
12
|
45
|
36
|
237
|
129
|
203
|
231
|
340
|
55B24L
|
NX100-56L
|
12
|
45
|
36
|
237
|
129
|
203
|
231
|
335
|
48D26R
|
N50
|
12
|
50
|
40
|
260
|
172
|
204
|
232
|
360
|
48D26L
|
N50L
|
12
|
50
|
40
|
260
|
172
|
204
|
232
|
360
|
55D23R
|
/
|
12
|
60
|
48
|
230
|
170
|
201
|
222
|
440
|
55D23L
|
/
|
12
|
60
|
48
|
230
|
170
|
201
|
222
|
440
|
55D26R
|
N50Z
|
12
|
60
|
48
|
260
|
172
|
204
|
232
|
440
|
55D26L
|
N50ZL
|
12
|
60
|
48
|
260
|
172
|
204
|
222
|
440
|
65D23R
|
/
|
12
|
65
|
52
|
230
|
170
|
201
|
222
|
470
|
65D23L
|
/
|
12
|
65
|
52
|
230
|
170
|
201
|
222
|
470
|
65D26R
|
NS70
|
12
|
65
|
52
|
260
|
172
|
204
|
232
|
470
|
65D26L
|
NS70L
|
12
|
65
|
52
|
260
|
172
|
204
|
232
|
470
|
75D26R
|
/
|
12
|
65
|
52
|
260
|
172
|
204
|
232
|
470
|
75D26L
|
/
|
12
|
65
|
52
|
260
|
172
|
204
|
232
|
470
|
80D26R
|
NX110-5
|
12
|
68
|
54.4
|
260
|
172
|
204
|
232
|
540
|
80D26L
|
NX110-5L
|
12
|
68
|
54.4
|
260
|
172
|
204
|
232
|
540
|
65D31R
|
N70
|
12
|
70
|
56
|
308
|
174
|
204
|
232
|
470
|
65D31L
|
N70L
|
12
|
70
|
56
|
308
|
174
|
204
|
232
|
470
|
75D31R
|
N70Z
|
12
|
75
|
60
|
308
|
174
|
204
|
232
|
550
|
|
80D26R
|
NX110-5
|
12
|
68
|
54.4
|
260
|
172
|
204
|
232
|
540
|
80D26L
|
NX110-5L
|
12
|
68
|
54.4
|
260
|
172
|
204
|
232
|
540
|
65D31R
|
N70
|
12
|
70
|
56
|
308
|
174
|
204
|
232
|
470
|
65D31L
|
N70L
|
12
|
70
|
56
|
308
|
174
|
204
|
232
|
470
|
75D31R
|
N70Z
|
12
|
75
|
60
|
308
|
174
|
204
|
232
|
550
|
75D31L
|
N70ZL
|
12
|
75
|
60
|
308
|
174
|
204
|
232
|
550
|
95D31R
|
NX120-7
|
12
|
80
|
65
|
308
|
174
|
204
|
232
|
580
|
95D31L
|
NX120-7L
|
12
|
80
|
60
|
304
|
173
|
204
|
222
|
580
|
105D31R
|
N100A
|
12
|
95
|
76
|
415
|
171
|
213
|
227
|
570
|
105D31L
|
N100AL
|
12
|
95
|
76
|
415
|
171
|
213
|
227
|
570
|
95E41R
|
N100
|
12
|
100
|
80
|
415
|
171
|
213
|
227
|
600
|
95E41L
|
N100L
|
12
|
100
|
80
|
415
|
171
|
213
|
227
|
600
|
105E41R
|
N100Z
|
12
|
105
|
84
|
415
|
171
|
213
|
227
|
640
|
105E41L
|
N100ZL
|
12
|
105
|
84
|
415
|
171
|
213
|
227
|
640
|
/
|
N120A
|
12
|
110
|
88
|
512
|
189
|
212
|
225
|
680
|
130E41R
|
NX200-10
|
12
|
115
|
92
|
415
|
171
|
213
|
227
|
630
|
130E41L
|
NX200-10L
|
12
|
115
|
92
|
415
|
171
|
213
|
227
|
630
|
115F51
|
N120
|
12
|
120
|
96
|
512
|
189
|
212
|
228
|
720
|
135G51
|
N135
|
12
|
135
|
108
|
512
|
189
|
212
|
225
|
820
|
145F51
|
NS150
|
12
|
135
|
108
|
512
|
189
|
212
|
225
|
800
|
|
130E41R
|
NX200-10
|
12
|
115
|
92
|
415
|
171
|
213
|
227
|
630
|
130E41L
|
NX200-10L
|
12
|
115
|
92
|
415
|
171
|
213
|
227
|
630
|
115F51
|
N120
|
12
|
120
|
96
|
512
|
189
|
212
|
228
|
720
|
135G51
|
N135
|
12
|
135
|
108
|
512
|
189
|
212
|
225
|
820
|
145F51
|
NS150
|
12
|
135
|
108
|
512
|
189
|
212
|
225
|
800
|
150F51
|
NT200-12
|
12
|
135
|
108
|
512
|
189
|
212
|
225
|
725
|
145G51
|
N150
|
12
|
150
|
120
|
511
|
220
|
212
|
228
|
800
|
170F51
|
NX250-12
|
12
|
150
|
120
|
512
|
189
|
212
|
225
|
830
|
180G51
|
NT250-12
|
12
|
160
|
128
|
511
|
220
|
212
|
228
|
870
|
/
|
N165
|
12
|
165
|
132
|
511
|
220
|
212
|
228
|
880
|
165G51
|
NS200
|
12
|
165
|
132
|
511
|
220
|
212
|
228
|
880
|
195G51
|
NX300-15
|
12
|
175
|
140
|
511
|
220
|
212
|
228
|
880
|
180H52
|
N180
|
12
|
180
|
144
|
513
|
264
|
220
|
237
|
900
|
/
|
N200A
|
12
|
180
|
144
|
513
|
264
|
220
|
237
|
900
|
190H52
|
N200
|
12
|
200
|
160
|
513
|
264
|
220
|
237
|
950
|
245H52
|
NX400-20
|
12
|
220
|
176
|
513
|
264
|
211
|
237
|
1050
|
DIN STANDARD
|
Model
|
Din type
|
Capacity
|
CCA(-18 C)
|
Rc
|
Overall
Dimension (mm)
|
Layout |
Terminals |
Hold downs |
||||
|
(Ah)
|
IEC
|
EN
|
DIN
|
(min)
|
L
|
W
|
H
|
53020224
|
53520
|
35
|
175
|
240
|
150
|
55
|
199
|
131
|
231
|
0
|
3
|
|
535021054
|
53521
|
35
|
175
|
240
|
150
|
55
|
199
|
131
|
231
|
0
|
535022024
|
53522
|
35
|
175
|
240
|
150
|
55
|
199
|
131
|
231
|
1
|
536028024
|
53628
|
36
|
200
|
300
|
175
|
60
|
207
|
175
|
175
|
1
|
1
|
B3
|
536046030
|
53646
|
36
|
200
|
300
|
175
|
60
|
207
|
175
|
175
|
0
|
0
|
B4
|
536054030
|
53654
|
36
|
200
|
300
|
175
|
60
|
207
|
175
|
175
|
0
|
1
|
B3
|
543017033
|
54317
|
43
|
240
|
330
|
210
|
60
|
207
|
175
|
175
|
0
|
19
|
B3
|
544059036
|
54459
|
44
|
240
|
360
|
210
|
70
|
207
|
175
|
190
|
0
|
1
|
B3
|
544064036
|
54465
|
44
|
240
|
360
|
210
|
70
|
207
|
175
|
175
|
0
|
1
|
B3
|
544065036
|
54466
|
44
|
240
|
360
|
210
|
70
|
207
|
175
|
175
|
1
|
1
|
B3
|
544069036
|
54469
|
44
|
255
|
360
|
220
|
70
|
207
|
175
|
190
|
0
|
1
|
B4
|
545019036
|
54519
|
45
|
220
|
300
|
190
|
32
|
242
|
175
|
190
|
0
|
1
|
|
545024030
|
54524
|
45
|
220
|
300
|
190
|
65
|
237
|
129
|
231
|
1
|
1
|
|
545051030
|
54551
|
45
|
220
|
300
|
190
|
65
|
237
|
129
|
231
|
1
|
3
|
|
548027051
|
54827
|
48
|
380
|
210
|
320
|
70
|
207
|
175
|
175
|
0
|
19
|
B3
|
550046051
|
55046
|
50
|
350
|
510
|
300
|
80
|
242
|
175
|
175
|
0
|
1
|
B3
|
552018042
|
55218
|
52
|
285
|
420
|
250
|
75
|
242
|
175
|
175
|
0
|
19
|
B3
|
554014045
|
55414
|
54
|
310
|
450
|
265
|
85
|
279
|
175
|
175
|
0
|
1
|
B4
|
554015045
|
55415
|
54
|
310
|
450
|
265
|
85
|
279
|
175
|
175
|
0
|
0
|
B4
|
554027051
|
55427
|
54
|
340
|
510
|
300
|
75
|
242
|
175
|
175
|
0
|
19
|
B3
|
|
550046051
|
55046
|
50
|
350
|
510
|
300
|
80
|
242
|
175
|
175
|
0
|
1
|
B3
|
552018042
|
55218
|
52
|
285
|
420
|
250
|
75
|
242
|
175
|
175
|
0
|
19
|
B3
|
554014045
|
55414
|
54
|
310
|
450
|
265
|
85
|
279
|
175
|
175
|
0
|
1
|
B4
|
554015045
|
55415
|
54
|
310
|
450
|
265
|
85
|
279
|
175
|
175
|
0
|
0
|
B4
|
554027051
|
55427
|
54
|
340
|
510
|
300
|
75
|
242
|
175
|
175
|
0
|
19
|
B3
|
555059042
|
55559
|
55
|
295
|
420
|
255
|
85
|
242
|
175
|
190
|
0
|
1
|
B3
|
555065042
|
55565
|
55
|
295
|
420
|
255
|
85
|
242
|
175
|
190
|
1
|
1
|
B3
|
555073048
|
55573
|
55
|
340
|
480
|
290
|
90
|
242
|
175
|
190
|
0
|
1
|
B3
|
560077060
|
56077
|
60
|
420
|
600
|
360
|
100
|
242
|
175
|
175
|
0
|
1
|
B3
|
561011054
|
56111
|
61
|
380
|
540
|
330
|
100
|
242
|
175
|
190
|
0
|
1
|
B4
|
562019048
|
56219
|
62
|
330
|
180
|
280
|
100
|
242
|
175
|
190
|
0
|
1
|
B3
|
562021048
|
56221
|
62
|
330
|
480
|
280
|
100
|
242
|
175
|
190
|
1
|
1
|
B3
|
563018051
|
56318
|
63
|
350
|
510
|
300
|
110
|
306
|
175
|
175
|
0
|
1
|
B3
|
563023060
|
56323
|
63
|
420
|
600
|
360
|
110
|
306
|
175
|
175
|
0
|
19
|
B3
|
563030051
|
56330
|
63
|
420
|
510
|
300
|
110
|
306
|
175
|
185
|
0
|
1
|
B4
|
566018051
|
56618
|
66
|
435
|
600
|
350
|
120
|
279
|
175
|
190
|
0
|
1
|
B3
|
566038051
|
56638
|
66
|
350
|
510
|
300
|
110
|
279
|
175
|
175
|
0
|
1
|
B3
|
566041051
|
56641
|
66
|
350
|
510
|
300
|
110
|
279
|
175
|
190
|
0
|
1
|
B3
|
568018060
|
56818
|
68
|
435
|
600
|
350
|
120
|
279
|
185
|
185
|
0
|
|
B3
|
568023060
|
56823
|
68
|
435
|
600
|
350
|
120
|
279
|
175
|
175
|
0
|
|
B3
|
|
566018051
|
56618
|
66
|
435
|
600
|
350
|
120
|
279
|
175
|
190
|
0
|
1
|
B3
|
566038051
|
56638
|
66
|
350
|
510
|
300
|
110
|
279
|
175
|
175
|
0
|
1
|
B3
|
566041051
|
56641
|
66
|
350
|
510
|
300
|
110
|
279
|
175
|
190
|
0
|
1
|
B3
|
568018060
|
56818
|
68
|
435
|
600
|
350
|
120
|
279
|
185
|
185
|
0
|
|
B3
|
568023060
|
56823
|
68
|
435
|
600
|
350
|
120
|
279
|
175
|
175
|
0
|
|
B3
|
570032054
|
57032
|
70
|
350
|
540
|
310
|
125
|
279
|
175
|
190
|
1
|
|
B3
|
570029054
|
57029
|
70
|
365
|
540
|
315
|
125
|
258
|
173
|
220
|
0
|
|
B3
|
570024054
|
57024
|
70
|
365
|
540
|
315
|
125
|
258
|
173
|
220
|
1
|
|
B3
|
570028057
|
57028
|
70
|
480
|
570
|
350
|
115
|
279
|
175
|
190
|
0
|
1
|
B1
|
572019072
|
57219
|
72
|
480
|
720
|
420
|
120
|
279
|
175
|
190
|
1
|
1
|
B3
|
572020072
|
57220
|
72
|
430
|
720
|
420
|
120
|
279
|
175
|
190
|
0
|
1
|
B3
|
572030064
|
57230
|
72
|
470
|
640
|
380
|
120
|
279
|
175
|
190
|
0
|
1
|
B4
|
574012068
|
57412
|
74
|
430
|
680
|
400
|
120
|
279
|
175
|
190
|
0
|
1
|
B3
|
575040060
|
57540
|
75
|
430
|
600
|
370
|
120
|
279
|
175
|
190
|
0
|
1
|
B3
|
580032064
|
57233
|
80
|
430
|
640
|
360
|
130
|
279
|
175
|
190
|
1
|
|
B3
|
585015072
|
58515
|
85
|
530
|
720
|
440
|
170
|
353
|
175
|
175
|
0
|
|
B3
|
588027064
|
58827
|
88
|
460
|
640
|
395
|
170
|
353
|
175
|
190
|
0
|
B3
|
|
588015076
|
58815
|
88
|
530
|
760
|
450
|
150
|
353
|
175
|
175
|
0
|
1
|
B3
|
588021064
|
58821
|
88
|
460
|
640
|
395
|
150
|
353
|
175
|
190
|
1
|
1
|
B3
|
588033064
|
58833
|
88
|
460
|
640
|
395
|
150
|
353
|
175
|
190
|
0
|
1
|
B3
|
|
585015072
|
58515
|
85
|
530
|
720
|
440
|
170
|
353
|
175
|
175
|
0
|
|
B3
|
588027064
|
58827
|
88
|
460
|
640
|
395
|
170
|
353
|
175
|
190
|
0
|
B3
|
|
588015076
|
58815
|
88
|
530
|
760
|
450
|
150
|
353
|
175
|
175
|
0
|
1
|
B3
|
588021064
|
58821
|
88
|
460
|
640
|
395
|
150
|
353
|
175
|
190
|
1
|
1
|
B3
|
588033064
|
58833
|
88
|
460
|
640
|
395
|
150
|
353
|
175
|
190
|
0
|
1
|
B3
|
590017042
|
59017
|
90
|
340
|
420
|
260
|
160
|
353
|
175
|
313
|
0
|
1
|
|
590018042
|
59018
|
90
|
340
|
420
|
260
|
160
|
355
|
175
|
213
|
1
|
1
|
|
592015076
|
59215
|
92
|
530
|
760
|
450
|
160
|
353
|
175
|
190
|
0
|
1
|
B4
|
592018076
|
59218
|
92
|
530
|
760
|
450
|
160
|
353
|
175
|
190
|
0
|
1
|
B3
|
592021085
|
59221
|
92
|
600
|
850
|
520
|
160
|
353
|
175
|
190
|
0
|
1
|
B3
|
595019064
|
59519
|
95
|
460
|
640
|
395
|
170
|
305
|
175
|
220
|
1
|
1
|
B1
|
595024057
|
59524
|
95
|
400
|
570
|
340
|
170
|
353
|
175
|
190
|
0
|
1
|
B3
|
600026060
|
60026
|
100
|
420
|
600
|
360
|
170
|
415
|
171
|
227
|
0
|
1
|
|
600032068
|
60032
|
100
|
490
|
680
|
420
|
170
|
305
|
175
|
220
|
0
|
1
|
B1
|
600033068
|
60033
|
100
|
490
|
680
|
420
|
170
|
305
|
175
|
220
|
1
|
1
|
B1
|
600038085
|
60038
|
100
|
585
|
850
|
500
|
170
|
353
|
175
|
190
|
0
|
1
|
B3
|
605025076
|
60525
|
105
|
515
|
760
|
450
|
220
|
415
|
171
|
227
|
0
|
1
|
|
605027068
|
60527
|
105
|
500
|
680
|
410
|
220
|
355
|
175
|
213
|
1
|
1
|
|
605028068
|
30528
|
105
|
5100
|
680
|
410
|
220
|
355
|
175
|
213
|
0
|
1
|
|
610017068
|
61017
|
110
|
490
|
680
|
420
|
200
|
512
|
189
|
225
|
3
|
1
|
|
|
600038085
|
60038
|
100
|
585
|
850
|
500
|
170
|
353
|
175
|
190
|
0
|
1
|
B3
|
605025076
|
60525
|
105
|
515
|
760
|
450
|
220
|
415
|
171
|
227
|
0
|
1
|
|
605027068
|
60527
|
105
|
500
|
680
|
410
|
220
|
355
|
175
|
213
|
1
|
1
|
|
605028068
|
30528
|
105
|
5100
|
680
|
410
|
220
|
355
|
175
|
213
|
0
|
1
|
|
610017068
|
61017
|
110
|
490
|
680
|
420
|
200
|
512
|
189
|
225
|
3
|
1
|
|
620034068
|
62034
|
120
|
490
|
680
|
420
|
200
|
512
|
189
|
225
|
3
|
1
|
|
630013095
|
63013
|
130
|
490
|
950
|
570
|
245
|
504
|
213
|
213
|
3
|
|
|
635030068
|
63530
|
135
|
490
|
680
|
420
|
240
|
512
|
189
|
225
|
3
|
1
|
|
640020076
|
64020
|
140
|
530
|
760
|
460
|
270
|
512
|
189
|
225
|
3
|
1
|
|
643017090
|
64317
|
143
|
630
|
900
|
540
|
295
|
511
|
220
|
228
|
3
|
1
|
|
643027095
|
64327
|
143
|
660
|
950
|
570
|
295
|
511
|
220
|
228
|
3
|
1
|
|
645013090
|
64513
|
145
|
630
|
900
|
540
|
295
|
512
|
189
|
225
|
3
|
1
|
|
650033095
|
65033
|
150
|
630
|
950
|
540
|
295
|
511
|
220
|
22
|
3
|
1
|
|
665014090
|
66514
|
165
|
630
|
900
|
540
|
300
|
511
|
220
|
228
|
3
|
1
|
|
670018100
|
67018
|
170
|
695
|
1000
|
600
|
310
|
511
|
220
|
228
|
3
|
1
|
|
680021095
|
68021
|
180
|
680
|
950
|
570
|
300
|
511
|
270
|
237
|
3
|
1
|
|
680022110
|
68022
|
180
|
770
|
1100
|
650
|
350
|
511
|
220
|
228
|
3
|
1
|
|
680029110
|
680029
|
180
|
770
|
1100
|
650
|
350
|
511
|
220
|
228
|
3
|
1
|
|
680032100
|
68032
|
180
|
710
|
1000
|
600
|
350
|
511
|
220
|
228
|
3
|
1
|
|
700027105
|
70027
|
200
|
730
|
1050
|
630
|
390
|
511
|
270
|
237
|
3
|
1
|
|
|
680021095
|
68021
|
180
|
680
|
950
|
570
|
300
|
511
|
270
|
237
|
3
|
1
|
|
680022110
|
68022
|
180
|
770
|
1100
|
650
|
350
|
511
|
220
|
228
|
3
|
1
|
|
680029110
|
680029
|
180
|
770
|
1100
|
650
|
350
|
511
|
220
|
228
|
3
|
1
|
|
680032100
|
68032
|
180
|
710
|
1000
|
600
|
350
|
511
|
220
|
228
|
3
|
1
|
|
700027105
|
70027
|
200
|
730
|
1050
|
630
|
390
|
511
|
270
|
237
|
3
|
1
|
|
700036105
|
70036
|
200
|
730
|
1050
|
630
|
390
|
511
|
270
|
237
|
3
|
1
|
|
710014115
|
71014
|
210
|
820
|
1150
|
700
|
400
|
511
|
270
|
237
|
3
|
1
|
|
720018140
|
72513
|
220
|
740
|
1400
|
850
|
490
|
511
|
270
|
237
|
4
|
|
|
720018140
|
72511
|
220
|
740
|
1400
|
850
|
490
|
511
|
270
|
237
|
3
|
|
|
720026105
|
72026
|
220
|
740
|
1050
|
630
|
390
|
511
|
270
|
237
|
3
|
1
|
|
|
Car Maintenance Free
(MF) Battery
|
| Valve regulated lead acid battery, this type of battery is sealed Maintenance Free with a hole Valves in the top of them that opens when a preset pressure is realized inside the battery and let's the excess gas pressure out, then the valve resets itself. |
|
JIS STANDARD
|
Type
|
Nominal
|
Capacity(1.75V/cell)
|
Cold cranking
|
Dimension (mm)
|
Aprox Weight
(kg)
|
||||||
|
Voltage (V)
|
Ampere
|
||||||||||
|
Nominal
|
Reserved
|
CCA (-18C)
|
L
|
W
|
H
|
Total
|
DRY
|
WET
|
|||
|
Capacity (Ah)
|
Capacity
|
Height
|
|||||||||
|
20HR
|
5HR
|
(min)
|
|
36B20R
|
12
|
36
|
28
|
52
|
274
|
197
|
129
|
201
|
221
|
|
10.1
|
36B20L
|
12
|
36
|
28
|
52
|
274
|
197
|
129
|
201
|
221
|
|
10.1
|
32C24R
|
12
|
40
|
32
|
57
|
238
|
237
|
128
|
201
|
226
|
|
13
|
32C24L
|
12
|
40
|
32
|
57
|
238
|
237
|
128
|
201
|
226
|
|
13
|
32C24RS
|
12
|
40
|
32
|
57
|
238
|
237
|
128
|
201
|
226
|
|
13
|
46B24R
|
12
|
45
|
36
|
71
|
325
|
237
|
128
|
201
|
226
|
|
13.9
|
46B24L
|
12
|
45
|
36
|
71
|
325
|
237
|
128
|
201
|
226
|
|
13.9
|
46B24RS
|
12
|
45
|
36
|
71
|
325
|
237
|
128
|
201
|
226
|
|
13.9
|
46B24LS
|
12
|
45
|
36
|
71
|
325
|
237
|
128
|
201
|
226
|
|
13.9
|
48D26R
|
12
|
50
|
40
|
61
|
278
|
256
|
170
|
203
|
224
|
|
14.8
|
48D26L
|
12
|
50
|
40
|
61
|
278
|
256
|
170
|
230
|
224
|
|
14.8
|
55D26R
|
12
|
60
|
48
|
101
|
356
|
256
|
170
|
203
|
224
|
|
15.5
|
55D26L
|
12
|
60
|
48
|
101
|
356
|
256
|
170
|
203
|
224
|
|
15.5
|
55D23R
|
12
|
60
|
48
|
99
|
356
|
229
|
170
|
201
|
221
|
|
15.2
|
55D23L
|
12
|
60
|
48
|
99
|
356
|
229
|
170
|
201
|
221
|
|
15.2
|
65D26R
|
12
|
60
|
48
|
101
|
348
|
268
|
173
|
203
|
224
|
|
16.5
|
65D26L
|
12
|
60
|
48
|
101
|
348
|
256
|
170
|
203
|
224
|
|
16.5
|
75D26R
|
12
|
65
|
52
|
113
|
413
|
256
|
170
|
203
|
224
|
|
17.5
|
75D26L
|
12
|
65
|
52
|
113
|
413
|
256
|
170
|
203
|
224
|
|
17.5
|
80D26R
|
12
|
70
|
56
|
133
|
582
|
256
|
170
|
203
|
224
|
|
19.6
|
|
65D26R
|
12
|
60
|
48
|
101
|
348
|
268
|
173
|
203
|
224
|
|
16.5
|
65D26L
|
12
|
60
|
48
|
101
|
348
|
256
|
170
|
203
|
224
|
|
16.5
|
75D26R
|
12
|
65
|
52
|
113
|
413
|
256
|
170
|
203
|
224
|
|
17.5
|
75D26L
|
12
|
65
|
52
|
113
|
413
|
256
|
170
|
203
|
224
|
|
17.5
|
80D26R
|
12
|
70
|
56
|
133
|
582
|
256
|
170
|
203
|
224
|
|
19.6
|
80D26L
|
12
|
70
|
56
|
133
|
572
|
256
|
170
|
203
|
224
|
|
19.6
|
65D31R
|
12
|
70
|
56
|
126
|
389
|
310
|
173
|
204
|
224
|
|
20.5
|
65D31L
|
12
|
70
|
56
|
126
|
389
|
340
|
173
|
204
|
224
|
|
20.5
|
75D31R
|
12
|
75
|
60
|
137
|
447
|
310
|
173
|
204
|
224
|
|
20.5
|
75D31L
|
12
|
75
|
60
|
137
|
447
|
310
|
173
|
204
|
224
|
|
20.5
|
95D31R
|
12
|
80
|
64
|
159
|
622
|
310
|
173
|
204
|
224
|
|
21.5
|
95D31L
|
12
|
80
|
64
|
159
|
622
|
310
|
173
|
204
|
224
|
|
21.5
|
DIN STANDARD
|
Type
|
Nominal
|
Capacity
|
Cold cranking
|
Dimension (mm)
|
Aprox Weight
(kg)
|
||||||
|
Voltage (V)
|
Ampere
|
||||||||||
|
Nominal
|
Reserved
|
CCA(-18C)
|
L
|
W
|
H
|
Total
|
DRY
|
WET
|
|||
|
Capacity (Ah)
|
Capacity
|
Height
|
|||||||||
|
20HR
|
5HR
|
(min)
|
|
53520MF
|
12
|
35
|
|
55
|
150
|
197
|
129
|
201
|
221
|
|
10.7
|
53522MF
|
12
|
35
|
|
55
|
150
|
197
|
129
|
201
|
221
|
|
10.7
|
53628 MF
|
12
|
36
|
|
60
|
175
|
207
|
175
|
173
|
173
|
|
11.4
|
53646MF
|
12
|
36
|
|
60
|
175
|
207
|
175
|
173
|
173
|
|
11.4
|
53654MF
|
12
|
36
|
|
60
|
175
|
207
|
175
|
173
|
173
|
|
11.4
|
54324MF
|
12
|
43
|
|
60
|
195
|
207
|
175
|
173
|
173
|
|
12.2
|
54459MF
|
12
|
44
|
|
70
|
120
|
207
|
175
|
188
|
188
|
|
12.9
|
54464MF
|
12
|
44
|
|
70
|
210
|
207
|
175
|
188
|
188
|
|
12.9
|
54466MF
|
12
|
44
|
|
70
|
220
|
207
|
175
|
188
|
188
|
|
12.9
|
54469MF
|
12
|
44
|
|
70
|
220
|
207
|
175
|
188
|
188
|
|
12.9
|
54519MF
|
12
|
45
|
|
75
|
220
|
241
|
175
|
173
|
173
|
|
13.8
|
54523MF
|
12
|
45
|
|
65
|
190
|
237
|
128
|
200
|
226
|
|
14.5
|
54524MF
|
12
|
45
|
|
65
|
190
|
237
|
128
|
200
|
226
|
|
14.5
|
54551MF
|
12
|
45
|
|
65
|
190
|
237
|
128
|
200
|
226
|
|
14.5
|
54612MF
|
12
|
46
|
|
70
|
250
|
207
|
175
|
188
|
188
|
|
14.5
|
55066MF
|
12
|
50
|
|
80
|
200
|
207
|
175
|
188
|
188
|
|
14.7
|
55040MF
|
12
|
50
|
|
80
|
265
|
241
|
175
|
173
|
173
|
|
14.5
|
55044MF
|
12
|
50
|
|
80
|
265
|
241
|
175
|
173
|
173
|
|
14.5
|
55054MF
|
12
|
50
|
|
80
|
220
|
207
|
175
|
188
|
188
|
|
14.5
|
55055MF
|
12
|
50
|
|
80
|
320
|
241
|
175
|
173
|
173
|
|
14.5
|
|
55066MF
|
12
|
50
|
|
80
|
200
|
207
|
175
|
188
|
188
|
|
14.7
|
55040MF
|
12
|
50
|
|
80
|
265
|
241
|
175
|
173
|
173
|
|
14.5
|
55044MF
|
12
|
50
|
|
80
|
265
|
241
|
175
|
173
|
173
|
|
14.5
|
55054MF
|
12
|
50
|
|
80
|
220
|
207
|
175
|
188
|
188
|
|
14.5
|
55055MF
|
12
|
50
|
|
80
|
320
|
241
|
175
|
173
|
173
|
|
14.5
|
55056MF
|
12
|
50
|
|
80
|
320
|
241
|
175
|
173
|
173
|
|
14.5
|
55415MF
|
12
|
54
|
|
85
|
265
|
241
|
175
|
173
|
173
|
|
16.5
|
55530MF
|
12
|
55
|
|
85
|
225
|
241
|
175
|
188
|
188
|
|
14.7
|
55564MF
|
12
|
55
|
|
85
|
255
|
241
|
175
|
188
|
188
|
|
14.7
|
55565MF
|
12
|
55
|
85
|
255
|
241
|
175
|
188
|
188
|
14.7
|
|
|
55573MF
|
12
|
55
|
|
85
|
255
|
241
|
175
|
188
|
188
|
|
14.7
|
56077MF
|
12
|
60
|
|
100
|
360
|
241
|
175
|
173
|
173
|
|
18
|
56049MF
|
12
|
60
|
|
94
|
170
|
256
|
170
|
201
|
224
|
|
16.5
|
56073 MF
|
12
|
60
|
|
90
|
360
|
241
|
175
|
188
|
188
|
|
16.5
|
56111MF
|
12
|
61
|
|
100
|
330
|
241
|
175
|
188
|
188
|
|
16.8
|
56219MF
|
12
|
62
|
|
100
|
280
|
241
|
175
|
188
|
188
|
|
16.8
|
56221MF
|
12
|
62
|
|
100
|
280
|
241
|
175
|
188
|
188
|
|
16.8
|
56318MF
|
12
|
63
|
|
110
|
300
|
286
|
185
|
181
|
181
|
|
18.9
|
56420MF
|
12
|
64
|
|
110
|
380
|
286
|
175
|
181
|
181
|
|
18.9
|
56030MF
|
12
|
65
|
|
110
|
320
|
286
|
175
|
181
|
181
|
|
18.9
|
|
56219MF
|
12
|
62
|
|
100
|
280
|
241
|
175
|
188
|
188
|
|
16.8
|
56221MF
|
12
|
62
|
|
100
|
280
|
241
|
175
|
188
|
188
|
|
16.8
|
56318MF
|
12
|
63
|
|
110
|
300
|
286
|
185
|
181
|
181
|
|
18.9
|
56420MF
|
12
|
64
|
|
110
|
380
|
286
|
175
|
181
|
181
|
|
18.9
|
56030MF
|
12
|
65
|
|
110
|
320
|
286
|
175
|
181
|
181
|
|
18.9
|
56618MF
|
12
|
66
|
|
110
|
300
|
274
|
173
|
187
|
187
|
|
19.2
|
57024MF
|
12
|
70
|
|
113
|
315
|
256
|
170
|
201
|
224
|
|
20
|
57029MF
|
12
|
70
|
|
113
|
315
|
256
|
170
|
201
|
224
|
|
20
|
57113MF
|
12
|
71
|
|
120
|
400
|
286
|
175
|
181
|
181
|
|
20.5
|
57219MF
|
12
|
72
|
|
120
|
420
|
274
|
173
|
188
|
187
|
|
20.5
|
57220MF
|
12
|
72
|
|
120
|
420
|
274
|
173
|
187
|
187
|
|
20.5
|
57412MF
|
12
|
74
|
|
120
|
400
|
274
|
173
|
187
|
187
|
|
20.6
|
57413MF
|
12
|
74
|
|
120
|
400
|
274
|
173
|
187
|
187
|
|
20.6
|
57531MF
|
12
|
75
|
|
120
|
350
|
274
|
173
|
187
|
187
|
|
20.6
|
57539MF
|
12
|
75
|
|
120
|
350
|
274
|
173
|
187
|
187
|
|
20.6
|
57540MF
|
12
|
75
|
|
120
|
370
|
274
|
173
|
187
|
187
|
|
20.6
|
58034MF
|
12
|
80
|
|
130
|
300
|
274
|
173
|
187
|
187
|
|
21.2
|
58521MF
|
12
|
85
|
|
150
|
320
|
306
|
173
|
204
|
224
|
|
22.5
|
58522MF
|
12
|
85
|
|
150
|
320
|
306
|
173
|
204
|
224
|
|
22.5
|
58815MF
|
12
|
88
|
|
150
|
450
|
349
|
174
|
174
|
174
|
|
23.5
|
|
56219MF
|
12
|
62
|
|
100
|
280
|
241
|
175
|
188
|
188
|
|
16.8
|
56221MF
|
12
|
62
|
|
100
|
280
|
241
|
175
|
188
|
188
|
|
16.8
|
56318MF
|
12
|
63
|
|
110
|
300
|
286
|
185
|
181
|
181
|
|
18.9
|
56420MF
|
12
|
64
|
|
110
|
380
|
286
|
175
|
181
|
181
|
|
18.9
|
56030MF
|
12
|
65
|
|
110
|
320
|
286
|
175
|
181
|
181
|
|
18.9
|
56618MF
|
12
|
66
|
|
110
|
300
|
274
|
173
|
187
|
187
|
|
19.2
|
57024MF
|
12
|
70
|
|
113
|
315
|
256
|
170
|
201
|
224
|
|
20
|
57029MF
|
12
|
70
|
|
113
|
315
|
256
|
170
|
201
|
224
|
|
20
|
57113MF
|
12
|
71
|
|
120
|
400
|
286
|
175
|
181
|
181
|
|
20.5
|
57219MF
|
12
|
72
|
|
120
|
420
|
274
|
173
|
188
|
187
|
|
20.5
|
57220MF
|
12
|
72
|
|
120
|
420
|
274
|
173
|
187
|
187
|
|
20.5
|
57412MF
|
12
|
74
|
|
120
|
400
|
274
|
173
|
187
|
187
|
|
20.6
|
57413MF
|
12
|
74
|
|
120
|
400
|
274
|
173
|
187
|
187
|
|
20.6
|
57531MF
|
12
|
75
|
|
120
|
350
|
274
|
173
|
187
|
187
|
|
20.6
|
57539MF
|
12
|
75
|
|
120
|
350
|
274
|
173
|
187
|
187
|
|
20.6
|
57540MF
|
12
|
75
|
|
120
|
370
|
274
|
173
|
187
|
187
|
|
20.6
|
58034MF
|
12
|
80
|
|
130
|
300
|
274
|
173
|
187
|
187
|
|
21.2
|
58521MF
|
12
|
85
|
|
150
|
320
|
306
|
173
|
204
|
224
|
|
22.5
|
58522MF
|
12
|
85
|
|
150
|
320
|
306
|
173
|
204
|
224
|
|
22.5
|
58815MF
|
12
|
88
|
|
150
|
450
|
349
|
174
|
174
|
174
|
|
23.5
|
|
57540MF
|
12
|
75
|
|
120
|
370
|
274
|
173
|
187
|
187
|
|
20.6
|
58034MF
|
12
|
80
|
|
130
|
300
|
274
|
173
|
187
|
187
|
|
21.2
|
58521MF
|
12
|
85
|
|
150
|
320
|
306
|
173
|
204
|
224
|
|
22.5
|
58522MF
|
12
|
85
|
|
150
|
320
|
306
|
173
|
204
|
224
|
|
22.5
|
58815MF
|
12
|
88
|
|
150
|
450
|
349
|
174
|
174
|
174
|
|
23.5
|
58821MF
|
12
|
88
|
|
150
|
395
|
352
|
175
|
189
|
189
|
|
24.5
|
58827MF
|
12
|
88
|
|
150
|
395
|
352
|
175
|
189
|
189
|
|
24.5
|
58833MF
|
12
|
88
|
|
150
|
395
|
352
|
175
|
189
|
189
|
|
24.8
|
59215MF
|
12
|
92
|
|
160
|
450
|
352
|
175
|
189
|
189
|
|
24.8
|
59218MF
|
12
|
92
|
|
170
|
450
|
352
|
175
|
189
|
189
|
|
24.8
|
60026MF
|
12
|
100
|
|
170
|
360
|
401
|
172
|
207
|
227
|
|
25.5
|
60038MF
|
12
|
100
|
|
170
|
500
|
352
|
175
|
189
|
189
|
|
25.5
|
60525MF
|
12
|
105
|
|
220
|
450
|
401
|
172
|
207
|
227
|
|
26.2
|
