Dispenser

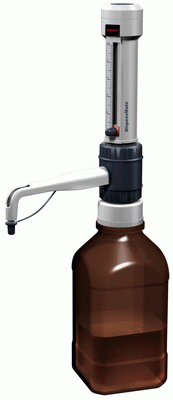

Bottle Top Dispenser
Features
•Excellent chemical resistance
•Entirely auto clavable at 121℃
•Four ranges of bottle top dispenser cover a volume range of 0.5ml to 50ml
•Easy to clean and maintain
•The optional flexible discharge tube with safety handle permits fast and precise dispensing
•Made of PTFE, ETFE, FEP, BGS, PP
•Vapor pressure Max. 500mbar, viscosity max. 500mm2/s, temperature max. 40℃, density max. 2.2g/cm3
•Adaptor allow fitting to standard reagent bottles
•Supplied with S40,GL32,GL38,GL25,GL28 sized adapters
Model No. Volume Range Increment A≤± CV≤
% μl % μl
AMT-F01 0.5-5ml 0.1 0.5 25 0.1 5
AMT-F02 1.0-10.0ml 0.2 0.5 50 0.1 10
AMT-F03 2.5-25.0ml 0.5 0.5 125 0.1 25
AMT-F05 5.0-50.0ml 1.0 0.5 250 0.1 50
AMT-FB1

1 Liter Reagent Bottles

Weight: 600g with box, 12pcs per carton, the bottle is not standard packing.


Electric Pipette Filler AMT-P01
Features
  • Full volume range of 1-100ml
  • Easy to one-handed operation
  • Lightweight, ergonomic designs allow longer, fatigue-free pipetting
  • Lithium-ion battery offers long runtime charge and no battery memory problems
  • Low battery indication
  • Powerful motor fills a 25ml pipette in＜5 seconds
  • Supplied with integral but replaceable 0.45um filter
  • Can be used while recharging
  • Large LCD display provides visual confirmation of remaining battery charge and speed settings.
  • Eight speeds are available for aspirate and dispense liquid. If the dispense button is pressed only up to a point where a check can be felt, the dispensing function will be based on the force of gravity and the liquid will simply flow out.
Specifications
Aspirate Speeds 8

Dispense Speeds 8 Gravity Dispense
Battery Lithium-Ion
Battery Service Life More than 8 Hours of Intermittence Use
Charging Time Approx 2 Hours
Pipette Types Glass or Plastic Pipette(0.1-100ml), Pasteur Pipettes
Filter 0.45μm Hydrophobic
Power 220V/50HZ, 110V/60HZ

Levo Manual Pipette Filler
Features:
Comfortable design
Precise pipetting control
Autoclavable silicone pipette holder
Supplied with integral and replaceable 3um filter
Available in 5 great colors: Green, Blue, Red, Yellow, Pink
LEVO-G LEVO-B LEVO-R LEVO-Y LEVO-P

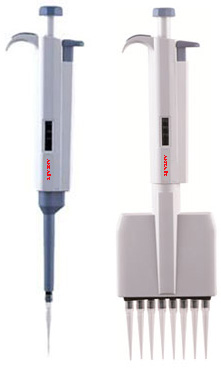

Hand Type Adjustable and Fixed Pipettor
Features
  • Lightweight, ergonomic, low force design
  • Digital display clearly reads volume setting
  • The pipettors cover volume range of 0.1μl to 5000μl
  • Easy to calibrate and maintain with tool supplied
  • Design helps avoid repetitive strain injuries

Features for Multi-channel pipettors

  • 8-and 12-channel pipettors are available for standard 96-well plate
  • Dispensing head rotates for optimum pipetting convenience
  • Individual piston/tip cone assemblies allow easy repair and maintenance
  • Compound material tip cone design allows visual seal verification
  • Can be used with ‘universal’ style pipette tips
  • Calibrated in accordance with ISO/DIS8655. Each pipettor supplied with individual test certificate



Ordering information (Adjustable volume)

  Model Volume Range Increment Test Volume Inaccuracy(+-) Imprecision(+-)
Single-channel AMT-Y01 0.1-2.5μl 0.05μl 2.5μl
1.25μl
0.25μl		 2.50%
3.00%
12.00%		 2.00%
3.00%
6.00%
AMT-Y02 0.5-10μl 0.1μl 10μl
5μl
1μl		 1.00%
1.50%
2.50%		 0.80%
1.50%
1.50%
AMT-Y03 2-20μl 0.5μl 20μl
10μl
2μl		 0.90%
1.20%
3.00%		 0.40%
1.00%
2.00%
AMT-Y04 5-50μl 0.5μl 50μl
25μl
5μl		 0.60%
0.90%
2.00%		 0.30%
0.60%
2.00%
AMT-Y05 10-100μl 1μl 100μl
50μl
10μl		 0.80%
1.00%
3.00%		 0.15%
0.40%
1.50%
AMT-Y06 20-200μl 1μl 200μl
100μl
20μl		 0.60%
0.80%
3.00%		 0.15%
0.30%
1.00%
AMT-Y07 50-200μl 1μl 200μl
100μl
50μl		 0.60%
0.80%
1.00%		 0.15%
0.30%
0.40%
AMT-Y08 100-1000μl 5μl 1000μl
500μl
100μl		 0.60%
0.70%
2.00%		 0.20%
0.25%
0.70%
AMT-Y09 200-1000μl 5μl 1000μl
500μl
200μl		 0.60%
0.70%
0.90%		 0.20%
0.25%
0.30%
AMT-Y10 1000-5000μl 50μl 5000μl
2500μl
1000μl		 0.50%
0.60%
0.70%		 0.15%
0.30%
0.30%
AMT-Y11 2-10ml 0.1ml 10ml
5ml
2ml		 0.60%
1.20%
3.00%		 0.20%
0.30%
0.60%
8-channel AMT-Y801 0.5-10μl 0.1μl 10μl
5μl
1μl		 1.50%
2.50%
4.00%		 1.50%
2.50%
4.00%
AMT-Y802 5-50μl 0.5μl 50μl
25μl
5μl		 1.00%
1.50%
3.00%		 0.50%
1.00%
2.00%
AMT-Y803 50-300μl 5μl 300μl
150μl
50μl		 0.70%
1.00%
1.50%		 0.25%
0.50%
0.80%
12-channel AMT-Y1201 0.5-10μl 0.1μl 10μl
5μl
1μl		 1.50%
2.50%
4.00%		 1.50%
2.50%
4.00%
AMT-Y1202 5-50μl 0.5μl 50μl
25μl
5μl		 1.00%
1.50%
3.00%		 0.50%
1.00%
2.00%
AMT-Y1203 50-300μl 5μl 300μl
150μl
50μl		 0.70%
1.00%
1.50%		 0.25%
0.50%
0.80%
Ordering information (Fixed volume)
Cat No. Volume Range Inaccuracy (+-) Imprecision (+-)
AMT-Y11 5μl 1.3% 1.2%
AMT-Y12 10μl 0.8% 0.8%
AMT-Y13 20μl 0.6% 0.5%
AMT-Y14 25μl 0.5% 0.3%
AMT-Y15 50μl 0.5% 0.3%
AMT-Y16 100μl 0.5% 0.3%
AMT-Y17 200μl 0.4% 0.2%
AMT-Y18 250μl 0.4% 0.2%
AMT-Y19 500μl 0.3% 0.2%
AMT-Y20 1000μl 0.3% 0.2%
AMT-Y21 2000μl 0.3% 0.15%

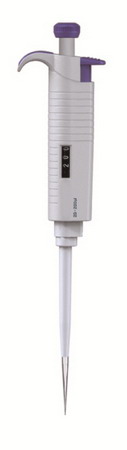

Autoclavable Single Channel Variable Pipettor
Features:
1. Volume adjustment is selected by turning the thumb plunger mechanism.
2. Calibrated in accordance ISO/DIS 8655. Each pipettor passes a quality control/calibration test and is supplied with a certificate.
3. Fully autoclavable at 121˚C
4. Lightweight and ergonomic design
5. Clear digital display
6. Integral tip ejector for access into narrow tubes
7. Easy to calibrate and maintain with tool supplied
8. Autoclavable tip-cone
9. Used with 'universal' pipette tips
Order Number Volume Range Increments Test Volume Accuracy(±) Precision(±)
% μl % μl
AMT-YA01 0.1-2.5μl 0.05μl 2.5 2.50% 0.0625 2.00% 0.05
1.25 3.00% 0.0375 3.00% 0.0375
0.25 12.00% 0.03 6.00% 0.015
AMT-YA02 0.5-10μl 0.1μl 10 1.00% 0.1 0.80% 0.08
5 1.50% 0.075 1.50% 0.075
1 2.50% 0.025 1.50% 0.015
AMT-YA03 2-20μl 0.5μl 20 0.90% 0.18 0.40% 0.08
10 1.20% 0.12 1.00% 0.1
2 3.00% 0.06 2.00% 0.04
AMT-YA04 5-50μl 0.5μl 50 0.60% 0.3 0.30% 0.15
25 0.90% 0.225 0.60% 0.15
5 2.00% 0.1 2.00% 0.1
AMT-YA05 10-100μl 1μl 100 0.80% 0.8 0.15% 0.15
50 1.00% 0.5 0.40% 0.2
10 3.00% 0.3 1.50% 0.15
AMT-YA06 20-200μl 1μl 200 0.60% 1.2 0.15% 0.3
100 0.80% 0.8 0.30% 0.3
20 3.00% 0.6 1.00% 0.2
AMT-YA07 50-200μl 1μl 200 0.60% 1.2 0.15% 0.3
100 0.80% 0.8 0.30% 0.3
50 1.00% 0.5 0.40% 0.2
AMT-YA08 100-1000μl 5μl 1000 0.60% 6 0.20% 2
500 0.70% 3.5 0.25% 1.25
100 2.00% 2 0.70% 0.7
AMT-YA09 200-1000μl 5μl 1000 0.60% 6 0.20% 2
500 0.70% 3.5 0.25% 1.25
200 0.90% 1.8 0.30% 0.6
AMT-YA10 1000-5000μl 50μl 5000 0.50% 25 0.15% 7.5
2500 0.60% 15 0.30% 7.5
1000 0.70% 7 0.30% 3
AMT-YA11 2-10ml 0.1ml 10ml 0.60% 60 0.20% 20
5ml 1.20% 60 0.30% 15
2ml 3.00% 60 0.60% 12

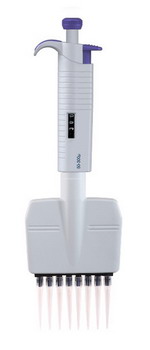

Autoclavable 8 Channel Variable Pipettor
Features:
1. Lightweight and ergonomic design
2. Fully autoclavable
3. Clear digital display
4. Staggered tip ejector for easy tip ejection
5. Head rotates 360° for user comfort
6. Easy to calibrate with tool supplied
7. Used with universal pipette tips

8-channel AMT-YA801 0.5-10μl 0.1μl 10μl
5μl
1μl		 1.50%
2.50%
4.00%		 1.50%
2.50%
4.00%
AMT-YA802 5-50μl 0.5μl 50μl
25μl
5μl		 1.00%
1.50%
3.00%		 0.50%
1.00%
2.00%
AMT-YA803 50-300μl 5μl 300μl
150μl
50μl		 0.70%
1.00%
1.50%		 0.25%
0.50%
0.80%

Autoclavable 12 Channel Variable Pipettor
12-channel AMT-YA1201 0.5-10μl 0.1μl 10μl
5μl
1μl		 1.50%
2.50%
4.00%		 1.50%
2.50%
4.00%
AMT-YA1202 5-50μl 0.5μl 50μl
25μl
5μl		 1.00%
1.50%
3.00%		 0.50%
1.00%
2.00%
AMT-YA1203 50-300μl 5μl 300μl
150μl
50μl		 0.70%
1.00%
1.50%		 0.25%
0.50%
0.80%
