Conductivity/ec/cf/TDS meters

AMT02 Water Proof Conductivity/TDS/Salt/Temp Meter
Technical Data:
Range:
Conductivity: 0-2000uS; 2.00-20.00mS
TDS: 0-1300ppm, 1.30-13.00ppt
Salt: 0-1000ppm; 1.00-12.00ppt
Temperature: 0-90°C
Accuracy:
Conductivity, TDS, Salt: ±2% F.S.
Temp: ±0.2°C + 1digit
Resolution:
Cond.: 1uS/0.01mS;  TDS: 1ppm/0.01ppt; Salt: 1ppm/0.01ppt;  Temp: 0.1°C
ATC: Cond/TDS/Salt: 0-50°C
Power: DC1.5V x 4 battery size: AAA/UM-4

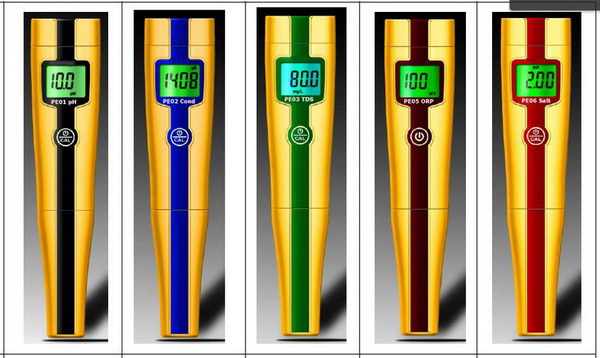

Pen Type pH/ Meter

Features: Auto calibration, Auto identification of standard solutions, Auto power-off, low voltage alarm, Auto temperature compensation, Auto switches of range, IP57 dustproof and waterproof

Model

 PE01 PE02 PE03 PE05 PE06 PE07

Description

 pH Meter Conductivity Tester TDS Meter ORP Meter Salinity Meter Sea Water

Range

 0~14.0pH 0~100.0μS/cm
0~1000μS/cm
0~10.00mS/cm		 0~50.0 ppm
0~500 ppm
0~5.00 ppt		 ±1000mV 0~5.00ppt 0~100.0ppt
Resolution 0.1pH 0.1/1μS/cm; 0.01mS/cm 0.1/1ppm;  0.01ppt 1mV 0.01ppt 0.01/0.1ppt
Accuracy ±0.2pH ±1%FS ±1%FS ±0.5%FS ±1%FS ±1.5%FS
Calibration Solution

YES

 NO YES
Power AAA batteries×2，1.5V×2
Dimension 39×25×176 mm

KL-732 Dual Conductivity TDS Meter
Measuring Range: 0-9999 uS/cm, 0-4999ppm
Temp Range: 0-99°C (32-212˚F)
Resolution: 1 uS/cm, 1ppm, 0.1°C
Display: 4 digit LCD with backlight
Accuracy: ±2% FS
Data Hold
Backlight: 0-40ppm green colour for direct drink, up 40ppm red light
Size: 165 x 28 x 13mm
Weight: 41g


KL-733 Dual Conductivity TDS Meter
Measuring Range: 0-9999 uS/cm, 0-4999ppm
Temp Range: 0-99°C (32-212˚F)
Resolution: 1 uS/cm, 1ppm, 0.1°C
Display: 4 digit LCD with backlight
Accuracy: ±2% FS
Data Hold
Backlight: 0-40ppm green colour for direct drink, up 40ppm red light
Size: 165 x 28 x 13mm
Weight: 41g

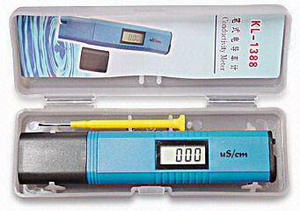

KL-1388 Conductivity Meter
Measuring Range: 0-1999 uS/cm
Resolution: 1 uS/cm
Display: 4 digit LCD
Accuracy ±2% FS
Temp 5 - 50°C (ATC)
Size 150 x 32 x 16 mm
Weight: 54g


KL-1382 Serials Conductivity Meter
Order No.:
KL-1382P (Platinum Probe)
KL-1382S (Stainless Steel Probe)
1.Measuring range:0~1999μs/cm
2.Resolution: 1μs/cm
3.Accuracy: ±2%F.S
4.Operating Temperature: 0℃- 50℃
5.Power Supply: 2×3V（CR2032 Battery）
6.Display:4-digital LCD
7.Environment:Humidity:≤95%
8.Weight:46g
9.Dimension:150mm×27mm×20mm


KL-138C Serials Conductivity Meter
Order No.:
KL-138CP (Platinum Probe)
KL-138CS (Stainless Steel Probe)
Technical Specification: Model
Measuring range: 100~19900us/cm
Accuracy: ±2% F.S
Resolution: 100us/cm
Automatic Temperature Compensation: 0℃~50℃
Power Supply: 4×1.5V(AG13)
Dimensions: 150mm×29mm×15mm
Weight: 51g

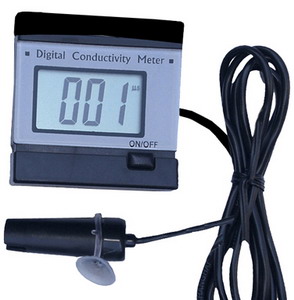

KL-1382A & KL-1382B Conductivity Meter
Model KL-1382A KL-1382B
Measuring range 0~1999us/cm
Accuracy ±2% F·S
Resolution 1us/cm
Display 4-digital LCD
Environment Humidity:≤95%
ATC 0℃~50℃
Power Supply 4×1.5V(AG13)
Dimensions 165×26×26(mm3) 60×55×23(mm3)
Weight 63g 60g

Order No.:
KL-1382AP (Platinum Probe)
KL-1382AS (Stainless Steel Probe)

Order No.:
KL-1382B (Normal Battery)
KL-1382BA (Adaptor + Rechargeable Battery)

KL-1383 Conductivity Meter
Order No.:
KL-1383P (Platinum Probe)
KL-1383S (Stainless Steel Probe)
Measuring range: 0~19.99ms/cm
Accuracy: ±2%F·S
Resolution: 0.01ms/cm
Display: 4-digit LCD
Environment Humidity: ≤95%
Automatic Temperature Compensation: 0℃~50℃
Power Supply: 2×3V(CR2032 Battery)
Dimensions: 150×27×20(mm3)
Weight: 46g

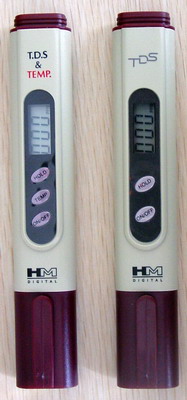

Conductivity/TDS Meter

Model

 　HMT-1 HMT-2 HMT-3 HMT-4 HMT-5
　Range
0~9990ppm　
0~9990ppm
0~99℃;32~212℉
0~9990us/cm
0~9990us/cm
0~99℃;32~212℉
0~9990ppm;0~9990us/cm
0~99℃; 32~212℉
　Accuracy
±2%F.S
　A T C
0 ~ 50℃
　Auto Shut-off
10 minutes
　Power
2×1.5v(LR44l)
　Dimensions
142×25×15mm
　Weight
30g

Conductivity Tester EC-3
Ideal for all water purification applications, wastewater regulation, aquaculture, hydroponics, and colloidal silver. Perfect for both consumer or commercial use. Carry one in your pocket or toolbox at all times!
Features
•Ideal for commercial use. Includes a carrying case with belt clip.
•Highly efficient and accurate due to its advanced microprocessor technology.
•Hold Function: saves measurements for convenient reading and recording.
•Auto-off function: the meter shuts off automatically after 10 minutes of non-use to conserve batteries.
•Measurement Range: 0-9990µS. From 0-999µS, the resolution is in increments of 1µS. From 1000 to 9990µS, the resolution is in increments of 10µS, indicated by a blinking 'x10' image.
•Built-in digital thermometer
•Display: large and easy-to-read LCD screen.
•Factory Calibrated: our meters are calibrated with a 700µS NaCl solution. Meters can be recalibrated with a mini-screwdriver.
Specifications
EC Range: 0 - 9990µS (µS/cm)
Temp. Range: 0 - 80 degrees Celsius
Resolution: 1µS; 10 µS, 0.1 degree Celsius
Accuracy: +/- 2%
ATC: Built-in sensor for 1 to 50°C (33 to 122°F)
Power source: 2 x 1.5V button cell batteries
Dimensions: 15.5 x 3.1 x 2.3cm (6.1 x 1.25 x 1 inches)
Weight with case: 76.5g (2.7 oz)
Weight without case: 56.7g (2 oz)

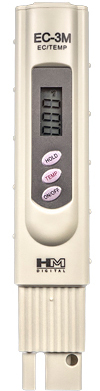

Conductivity Tester EC-3M
Ideal for all water purification applications, wastewater regulation, aquaculture, hydroponics, and colloidal silver. Perfect for both consumer or commercial use. Carry one in your pocket or toolbox at all times!
Features
•Ideal for commercial use. Includes a carrying case with belt clip.
•Highly efficient and accurate due to its advanced microprocessor technology.
•Hold Function: saves measurements for convenient reading and recording.
•Auto-off function: the meter shuts off automatically after 10 minutes of non-use to conserve batteries.
•Measurement Range: 0.00-9.99ms/cm. From 9.99ms/cm, the resolution is in increments of 0.001ms/cm. From 1 to 9.99ms/cm, the resolution is in increments of 0.01ms/cm, indicated by a blinking 'x10' image.
•Built-in digital thermometer
•Display: large and easy-to-read LCD screen.
•Factory Calibrated: The EC-3M has been factory calibrated to a 1.413ms/cm KCl solution. Meters can be recalibrated with a mini-screwdriver.
Specifications
EC Range: 0 ~ 9.99ms/cm
Temp. Range: 0 ~ 80 degrees Celsius
Resolution: 0~9.99: 0.001ms; 1~9.99: 0.01ms (indicated by a 'x10' icon)
Temperature Resolution: 0.1 degree Celsius (Celsius only)
Accuracy: +/-2%
ATC: Built-in sensor for Automatic Temperature Compensation of 1 to 50°C (33 to 122o °F)
Power source: 2 x 1.5V button cell batteries (included) (LR44 or equivalent)
Battery life: 1000 hours of usage
Dimensions: 15.5 x 3.1 x 2.3cm (6.1 x 1.25 x 1 inches)
Weight with case: 76.5g (2.7 oz)
Weight without case: 56.7g (2 oz)
To convert mS (milli-Siemens) to µS (milli-Siemens): multiply by 1000. 1mS = 1000 µS

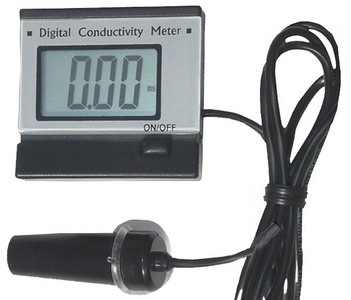

KL-1383A & KL-1383B Conductivity Meter
Model KL-1383A KL-1383B
Measuring range 0~19.99ms/cm
Accuracy ±2% F·S
Resolution 0.01ms/cm
Display 4-digital LCD
Environment Humidity:≤95%
ATC 0℃~50℃
Power Supply 4×1.5V(AG13)
Dimensions 165×26×26(mm3) 60×55×23(mm3)
Weight 63g 60g

Order No.:
KL-1383AP (Platinum Probe)
KL-1383AS (Stainless Steel Probe)

 Order No.:
KL-1383B (Normal Battery)
KL-1383BA (Adaptor + Rechargeable Battery)


KL-1386 Conductivity Meter with Temp

Order No.:
KL-1386P (Platinum Probe)
KL-1386S (Stainless Steel Probe)
KL-1386 μs/cm Temp
Measuring range 0~1999μs/cm -50℃~70℃
Resolution 1μs/cm 0.1℃
Accuracy ±2℅F·S ±1℃
Display 4-digital LCD
Environment Humidity:≤95℅
ATC 0℃~50℃
Power Supply 4×1.5V(AG13)
Dimensions 170×36×23mm3
Weight 98g

KL-13836 Conductivity Meter with Temp

Order No.:
KL-13836P (Platinum Probe)
KL-13836S (Stainless Steel Probe)
KL-13836 ms/cm Temp
Measuring range 0~19.99ms/cm -50℃~70℃
Resolution 0.01ms/cm 0.1℃
Accuracy ±2% F·S ±1℃
Display 4-digital LCD
Environment Humidity:≤95℅
ATC 0℃~50℃
Power Supply 4×1.5V(AG13)
Dimensions 170×36×23mm3
Weight 98g

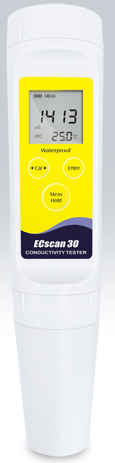

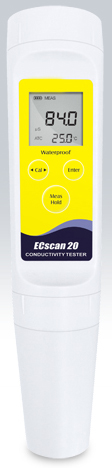

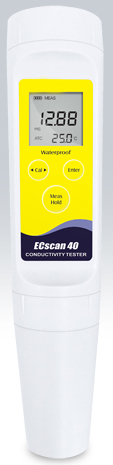

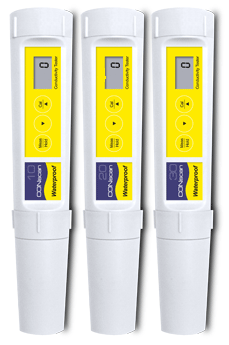

Waterproof Conductivity Tester
CD20 is used to measure low conductivity liquids, E.g. Pure water, Distilled water etc; CD30 is used to measure general conductivity liquids. E.g. Tap water, Table-water etc; CD40 is used to measure high conductivity liquids. E.g. Waste water, Salt water etc.
Waterproof: The meter with good waterproof performance, It can float when sink in water.
Model CD20 CD30 CD40
Conductivity Range　 0.0~199.9uS/cm 0~1999uS/cm 0.00~19.99mS/cm
Conductivity Accuracy　 ±1% F.S ±1% F.S ±1% F.S
Resolution　 0.1uS/cm 1uS/cm 0.01mS/cm
Calibration Points　 2 Points
Calibration Solutions　 146.6uS/cm 1408uS/cm 12.85mS/cm
Temp Coefficient　 2%/oC
Auto-Off　 8 minutes after last key pressed
Hold Function　 Yes
Non-Volatile Memory　 Yes
Operating Temperature　 0~60oC
Power Requirements　 3×1.5V alkaline button cell batteries
Battery Life　 Approx. 150 hours of continuous use
Dimensions　 180(L)mm×30(Dia.)mm
Weight　 85g

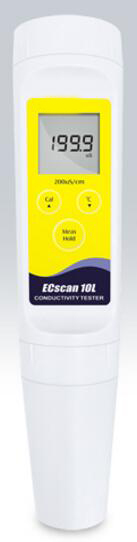

Low Range Conductivity Tester  CD10L
Applications:
• Pure water and drinking water
• Education and other industrial applications

Features:
• Low range pocket conductivity tester is equipped with a standard platinum sensor.
• 1 point push-button calibration allows using the custom calibration solutions.
• Automatic temperature compensation provides accurate reading over the entire range.
• Hold function freezes current reading for easy viewing and recording.
• Auto-Power Off helps user effectively conserve battery life.
• Replaceable electrode module reduces maintenance and replacement cost.
• Waterproof feature to ensure complete protection in harsh environment.
Specifications:
1. Range: 1.0~199.9µS/cm
2. Accuracy: ±1% F.S.
3. Calibration Points: 1 point
4. Calibration Solutions: 146.5µS/cm
5. Temperature Compensation: 0~50°C
6. Temperature Coefficient: 2%/°C
7. Cell Constant: K=1
8. Normalization Temperature: 25°C
9. Hold Function: Manual
10. Power Off: Manual or Automatic (8 minutes after last key pressed)
11. Operating Temperature: 0~60°C, 32~140°F
12. Power Requirements: 3×1.5V "G13A" Batteries
13. Dimensions: 185(L)×40(Dia.)mm
14. Weight: 100g

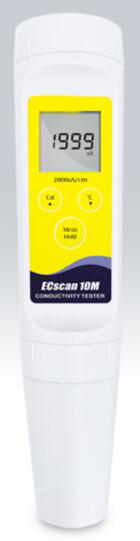

Middle Range Conductivity Tester  CD10M
Applications:
• Water and wastewater treatment
• Swimming pools and aquariums
• Aquaculture and hydroponics
• Beverage industry and other industrial applications

Features:
• Mid range pocket conductivity tester is equipped with a standard platinum sensor.
• 1 point push-button calibration allows using the custom calibration solutions.
• Automatic temperature compensation provides accurate reading over the entire range.
• Hold function freezes current reading for easy viewing and recording.
• Auto-Power Off helps user effectively conserve battery life.
• Replaceable electrode module reduces maintenance and replacement cost.
• Waterproof feature to ensure complete protection in harsh environment.
Specifications:
1. Range: 10~1999µS/cm
2. Accuracy: ±1% F.S.
3. Calibration Points: 1 point
4. Calibration Solutions: 1413µS/cm
5. Temperature Compensation: 0~50°C
6. Temperature Coefficient: 2%/°C
7. Cell Constant: K=1
8. Normalization Temperature: 25°C
9. Hold Function: Manual
10. Power Off: Manual or Automatic (8 minutes after last key pressed)
11. Operating Temperature: 0~60°C, 32~140°F
12. Power Requirements: 3×1.5V "G13A" Batteries
13. Dimensions: 185(L)×40(Dia.)mm
14. Weight: 100g

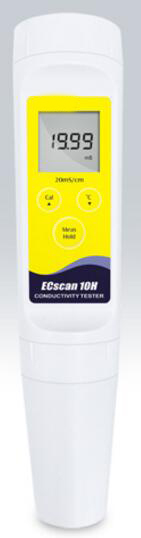

High Range Conductivity Tester  CD10H
Applications:
• Water and wastewater treatment
• Electroplating and printing industry
• Aquaculture and hydroponics
• Aquarium and other industrial applications

Features:
• High range pocket conductivity tester is equipped with a standard platinum sensor.
• 1 point push-button calibration allows using the custom calibration solution.
• Automatic temperature compensation provides accurate reading over the entire range.
• Hold function freezes current reading for easy viewing and recording.
• Auto-Power Off helps user effectively conserve battery life.
• Replaceable electrode module reduces maintenance and replacement cost.
• Waterproof feature to ensure complete protection in harsh environment.
Specifications:
1. Range: 0.1~19.99mS/cm
2. Accuracy: ±1% F.S.
3. Calibration Points: 1 point
4. Calibration Solutions: 12.88mS/cm
5. Temperature Compensation: 0~50°C
6. Temperature Coefficient: 2%/°C
7. Cell Constant: K=1
8. Normalization Temperature: 25°C
9. Hold Function: Manual
10. Power Off: Manual or Automatic (8 minutes after last key pressed)
11. Operating Temperature: 0~60°C, 32~140°F
12. Power Requirements: 3×1.5V "G13A" Batteries
13. Dimensions: 185(L)×40(Dia.)mm
14. Weight: 100g

Pocket Conductivity Tester  CD20T
Applications:
• Water and wastewater treatment
• Research and education
• Environmental monitoring
• Electroplating and printing industry
• Aquaculture and hydroponics
• Beverage industry and other industrial applications

Features:
• Multi-range pocket conductivity meter covers the low, mid, high ranges.
• Standard platinum sensor provides fast and reliable measuring results.
• 1 to 3 points push-button calibration with automatic calibration solution recognition.
• Automatic temperature compensation ensures accurate reading over the entire range.
• Auto-Hold function freezes stable measured value for easy viewing and recording.
• Battery indicator shows the remaining battery capacity.
• Auto-Power Off helps user effectively conserve battery life.
• System menu allows setting the 5 parameters, including the number of calibration points, temperature unit, hold function, etc.
• Reset feature automatically resumes all parameters back to factory default settings.
• Replaceable electrode module reduces maintenance and replacement cost.
• Waterproof feature to ensure complete protection in harsh environments.
Specifications:
Conductivity:
1. Range: 0~20.00, 200.0, 2000µS/cm, 20.00mS/cm
2. Accuracy: ±1% F.S.
3. Resolution: 0.01, 0.1, 1
4. Calibration Points: 1 to 3 points
5. Calibration Solutions: 84µS/cm, 1413µS/cm, 12.88mS/cm

Temperature:
1. Range: 0~60°C, 32~140°F
2. Accuracy: ±1°C
3. Resolution: 0.1°C, 0.1°F
4. Calibration Points: 1 point
5. Calibration Range: Measured value ±10°C

Others:
1. Temperature Compensation: 0~60°C, 32~140°F
2. Temperature Coefficient: 2%/°C
3. Cell Constant: K=1
4. Normalization Temperature: 25°C
5. Hold Function: Manual or Automatic
6. Power Off: Manual or Automatic (8 minutes after last key pressed)
7. Reset Function: Yes
8. Power Requirements: 2×1.5V "AAA" Batteries
9. Dimensions: 185(L)×40(Dia.)mm
10. Weight: 100g

Pocket Conductivity TDS Tester  CD30T
Applications:
• Water and wastewater treatment
• Research and education
• Environmental monitoring
• Electroplating and printing industry
• Aquaculture and hydroponics
• Beverage industry and other industrial applications

Features:
• Multi parameter pocket conductivity meter contains TDS measurement mode.
• Standard platinum sensor provides fast and reliable measuring results.
• Adjustable TDS conversion factor for different measurement requirements.
• 1 to 3 points push-button calibration with automatic calibration solution recognition.
• Automatic temperature compensation ensures accurate reading over the entire range.
• Auto-Hold function freezes stable measured value for easy viewing and recording.
• Battery indicator shows the remaining battery capacity.
• Auto-Power Off helps user effectively conserve battery life.
• System menu allows setting the 6 parameters, including the number of calibration points, TDS factor, temperature unit, hold function, etc.
• Reset feature automatically resumes all parameters back to factory default settings.
• Replaceable electrode module reduces maintenance and replacement cost.
• Waterproof feature to ensure complete protection in harsh environments.
Specifications:
Conductivity:
1. Range: 0~20.00, 200.0, 2000µS/cm, 20.00mS/cm
2. Accuracy: ±1% F.S.
3. Resolution: 0.01, 0.1, 1
4. Calibration Points: 1 to 3 points
5. Calibration Solutions: 84µS/cm, 1413µS/cm, 12.88mS/cm

TDS:
1. Range: 0~10ppt (Max. 20ppt, depending on factor setting)
2. Accuracy: ±1% F.S
3. TDS Factor: 0.1~1.0 (Default 0.5)

Temperature:
1. Range: 0~60°C, 32~140°F
2. Accuracy: ±1°C
3. Resolution: 0.1°C, 0.1°F
4. Calibration Points: 1 point
5. Calibration Range: Measured value ±10°C

Others:
1. Temperature Compensation: 0~60°C, 32~140°F
2. Temperature Coefficient: 2%/°C
3. Cell Constant: K=1
4. Normalization Temperature: 25°C
5. Hold Function: Manual or Automatic
6. Power Off: Manual or Automatic (8 minutes after last key pressed)
7. Reset Function: Yes
8. Power Requirements: 2×1.5V "AAA" Batteries
9. Dimensions: 185(L)×40(Dia.)mm
10. Weight: 100g

Pocket Conductivity TDS Salinity Tester  CD40T
Applications:
• Water and wastewater treatment
• Research and education
• Environmental monitoring
• Electroplating and printing industry
• Aquaculture and hydroponics
• Beverage industry and other industrial applications

Features:
• Multi parameter pocket conductivity meter is equipped with a dual display LCD.
• Standard platinum sensor provides fast and reliable measuring results.
• Adjustable TDS conversion factor to meet different measurement requirements.
• 1 to 3 points push-button calibration with automatic calibration solution recognition.
• Automatic temperature compensation ensures accurate reading over the entire range.
• Auto-Hold function freezes stable measured value for easy viewing and recording.
• Battery indicator shows the remaining battery capacity.
• Auto-Power Off helps user effectively conserve battery life.
• System menu allows setting 6 parameters, including the number of calibration points, temperature unit, hold function, auto-power off, etc.
• Reset feature automatically resumes all parameters back to factory default settings.
• Replaceable electrode module reduces maintenance and replacement cost.
• Waterproof feature to ensure complete protection in harsh environments.
Specifications:
Conductivity:
1. Range: 0~20.00, 200.0, 2000µS/cm, 20.00mS/cm
2. Accuracy: ±1% F.S
3. Resolution: 0.01, 0.1, 1
4. Calibration Points: 1 to 3 points
5. Calibration Solutions: 84µS/cm, 1413µS/cm, 12.88mS/cm

TDS:
1. Range: 0~10ppt (Max. 20ppt, depending on factor setting)
2. Accuracy: ±1% F.S
3. TDS Factor: 0.1~1.0 (Default 0.5)

Salinity:
1. Range: 0~10ppt
2. Accuracy: ±1% F.S
3. Resolution: 0.01ppt

Temperature:
1. Range: 0~60°C, 32~140°F
2. Accuracy: ±1°C
3. Resolution: 0.1°C, 0.1°F
4. Calibration Points: 1 point
5. Calibration Range: Measured value ±10°C

Others:
1. Temperature Compensation: 0~60°C, 32~140°F
2. Temperature Coefficient: 2%/°C
3. Cell Constant: K=1
4. Normalization Temperature: 25°C
5. Hold Function: Manual or Automatic
6. Power Off: Manual or Automatic (8 minutes after last key pressed)
7. Reset Function: Yes
8. Power Requirements: 2×1.5V "AAA" Batteries
9. Dimensions: 185(L)×40(Dia.)mm
10. Weight: 100g

KL-1387 Waterproof Conductivity  and Temperature Meter

Technical Specification:

  μs/cm Temp(℃)

Measuring range

 0~19990μs/cm -50℃~70℃

Resolution

 10μs/cm 0.1℃

Accuracy

 ±2% F·S ±1℃

Display

 4-digital LCD

Environment

 Humidity:≤95%

Automatic Temperature Compensation

 0℃~50℃

Power Supply

 4×1.5V(AG13)

Dimensions

 188mm×35mm×35mm

Weight

 98g

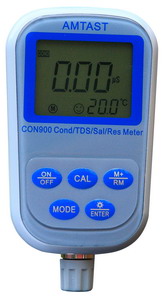

Professional CON900 Conductivity/TDS/Salinity/Resistivity Meter        Manual
This meter is a perfect combination with the most advanced electronic technology, sensor technology and software design. The meter can measure the parameters of conductivity, TDS, salinity, resistivity, and temperature for high accuracy water solution. It is the best portable conductivity meter with the highest performance and the lowest cost. It is suitable for the trade such as the mining industry, power plant, water treatment projects and environmental protection, etc., especially has more extensive application in the field and spot test.

Measuring range

 Conductivity:
0.00~19.99μS/cm; 20.0~199.9μS/cm; 200~1999μS/cm; 2.00~19.99mS/cm;
20.0~199.9mS/cm
TDS: 0~100g/L
Salinity: 0~100ppt
Resistivity: 0~100MΩ·cm

Resolution

0.01/0.1/1μS/cm;  0.01/0.1mS/cm

Accuracy

Meter:±1.0% FS, meter with electrode:±1.5% FS

Temp. Compensation

0 ~ 50℃ (automatic)

Electrode constant

0.1/1/10cm-1

Benchmark temperature

25℃, 20℃and 18℃

Data storage

100groups

Storage content

Series number, measuring value, unit and temp.

Power

Two AA batteries (1.5V x2)

Size and weight

Meter:65×120×31mm/180g;  Carrying case:255 x 210x 50mm/790g

Quality Safety Certificate

ISO9001:2000, CE and CMC

Environment Temp.

5 ~ 35℃ (0.01grade)

Environmental Humidity

≤85%

IP Rating

IP57 Dustproof and waterproof

10 IN 1 pH/mV Conductivity/TDS/DO Meter EC910 (Chinese Probe) EC910X (UK Probe)
Features:
High accuracy multi parameter water quality meter includes 8 measurement modes, the meter is suitable for measuring the pH, ORP, Ion concentration, Conductivity, TDS, Salinity, Resistivity and Dissolved Oxygen of the liquids.

pH Mode:
• High accuracy portable multi parameter water quality meter is equipped with a large backlit LCD display.
• 1 to 5 points push-button calibration with auto-buffer recognition.
• Selectable pH buffer standards (USA/NIST/DIN) or using the custom calibration solutions.
• Automatic electrode slope display helps user decide whether to replace sensor.
ORP Mode:
• Single point offset calibration allows adjusting the displayed value to a known standard.
• Relative and absolute millivolt measurement modes provide accurate ORP readings.
Ion Mode:
• 2 to 5 points calibration including the eight concentration calibration points can be selected.
• Automatically recognize ion selective electrodes, does not need to specify type of ion.
• Direct ion concentration readout simplifies the elaborate measurement process.
• Selectable multiple concentration units including the ppm, mg/L and mol/L.
Conductivity/TDS/Salinity/Resistivity Mode:
• 1 to 5 points push-button calibration with automatic calibration solution recognition.
• Selectable cell constants (0.1/1/10), normalization temperatures (20/25°C), TDS conversion factors, seawater and practical salinity measurement modes.
Dissolved Oxygen Mode:
• 1 or 2 points calibration using air-saturated water and zero oxygen solution.
• Manual salinity and barometric pressure compensation improve the measurement accuracy.
Other Features:
• Automatic Temperature Compensation provides accurate reading over the entire range.
• Calibration Due Reminder prompts user to calibrate the meter regularly.
• Stability indicator automatically shows current measurement status.
• Auto-Hold function freezes stable measured value for easy viewing and recording.
• Manual temperature calibration corrects temperature deviation.
• Selectable temperature unit (°C or °F) meets different application requirements.
• Automatic electrode diagnosis shows zero point offset and slope of the electrode.
• Help message as a operational guide that helps you quickly begin using the meter.
• System menu allows setting the 15 parameters, including the calibration points, resolutions, stability conditions, measurement units, etc.
• Reset feature automatically resumes all parameters back to factory default options.
• Expanded memory stores and recalls up to 500 readings.
• Built-in real-time clock stamps stored data to meet GLP standard.
• Stored data can be transferred into computer by USB communication interface.
• Multi-mode power scheme (battery, power adapter, computer's USB port) ensures that use the meter smoothly.
Specifications:
1. pH •Range: -2.000~20.000pH
•Accuracy: ±0.002pH
•Resolution: 0.1, 0.01, 0.001pH
•Calibration Points: 1 to 5 points, USA, NIST, DIN Standards
•Temperature Compensation: 0~100°C, 32~212°F, Manual or Automatic
2. mV •Range: -1999.9~1999.9mV
•Accuracy: ±0.2mV
•Resolution: 0.1, 1mV
•Calibration Points: 1 point (Only for Relative mV mode)
•Calibration Range: ±200mV
3. Ion •Range: 0.001~19999ppm, mg/L, mol/L (Depending on range of ISE)
•Accuracy: ±0.5% F.S (Monovalent), ±1% F.S (Divalent)
•Resolution: 0.001, 0.01, 0.1, 1
•Calibration Points: 2 to 5 points
•Calibration Solutions: 0.001, 0.01, 0.1, 1, 10, 100, 1000, 10000ppm, mol/L, mg/L
4. Conductivity •Range: 0~20.00, 200.0, 2000µS/cm, 20.00, 200.0mS/cm
•Accuracy: ±0.5% F.S
•Calibration Points: 1 to 5 points
•Calibration Solutions: 10µS/cm, 84µS/cm,1413µS/cm,12.88mS/cm,111.8mS/cm
•Temperature Compensation: 0~100°C, 32~212°F, Manual or Automatic
•Temperature Coefficient: 0.0~10.0%/°C
•Compensation Modes: Linear or Pure Water
•Cell Constant: K=0.1, 1, 10
•Normalization Temperature: 20 or 25°C
5. TDS •Range: 0~10ppt (Max. 20ppt, depending on factor setting)
•Accuracy: ±1% F.S
•TDS Factor: 0.1~1.0 (Default 0.5)
6. Salinity •Range: 0~10ppt (Max. 80ppt)
•Accuracy: ±1% F.S
•Measurement Modes: Seawater or Practical Salinity
7. Resistivity •Range: 0~100MΩ
•Accuracy: ±1% F.S
•Resolution: 0.01, 0.1, 1
8. Dissolved Oxygen (DO) •Range: 0.00~20.00mg/L (or ppm)
•Accuracy: ±0.2mg/L
•Resolution: 0.01mg/L
•Calibration Points: 1 or 2 points
•Temperature Compensation: 0~50°C, 32~122°F
•Pressure Correction: 60.0~112.5kPa, 450~850mmHg
•Salinity Correction: 0~50g/L
9. Saturation of Oxygen •Range: 0.0~200.0%
•Accuracy: ±2.0%
•Resolution: 0.1%
10. Temperature •Range: 0~105°C, 32~221°F
•Accuracy: ±0.5°C, ±0.9°F
•Resolution: 0.1°C
•Calibration Points: 1 point
•Calibration Range: Measured value ±10°C
11. Others Hold Function: Manual or Automatic
Stability Conditions: Low or High
Calibration Due: 0 to 31 days
Power Off: Manual or Automatic (10, 20, 30 minutes)
Reset Function: Yes
Memory: Stores up to 500 data sets
Output: USB Communication Interface
Connector: BNC, 6-pin Mini Plug
Power Requirements: 3 x 1.5V "AA" Batteries
Battery Life: Approximately 150 hours (Turn off the backlit)
Dimensions: 170(L)x 85(W) x 30(H)mm
Weight: 300g

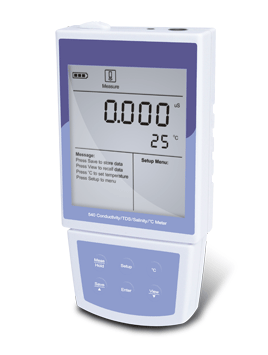

CD5 Series Portable Conductivity/TDS/Salinity/Temp Meter
CD5 series are used to measure conductivity, total dissolved solid, salinity and temperature of solution.
Microprocessor-Based:
CD5 series has built-in high performance CPU, it can work about 200 hours continuously with 9 volt battery.
Single Point Push-Button Calibration:
The meter with single point calibration function, it is permitted to use standard conductivity solution, you need only set conductivity value of the calibration solution at 25℃ and immerse conductivity electrode into solution, then press ENTER key, the meter will be calibrated automatically.
Auto Standard Solution Recognition:
In calibration, the meter will display ERROR if you use conductivity solution by mistake.
Auto-Ranging for Conductivity:
The meter with auto-ranging function when measure conductivity or total dissolved solid. After electrode immersed in solution, CD5 series will fast response and convert range.
Auto Temperature Compensation:
The meter will recognize the temperature sensor automatically and measure temperature after temperature sensor connected to the host. If the conductivity electrode connected to it, the meter will enter automatic temperature compensation.
Adjustable Temperature Coefficient:
Solution contained different ions usually have different temperature coefficient,CD5 series can be set in the range of 0 and 3.9% per centigrade degree.

Adjustable Cell Constant:
When measure solution with higher or lower concentration, you should choose different constant of conductivity electrode. The meter with three cell constants for your choose, it can save the measured value for different constant electrode separately. After setting the constant, you needn't calibrate it again when replacing a new electrode.
Adjustable TDS Coefficient:
According to the theory of electrical conductivity, you need estimate TDS coefficient when measure total dissolved solid of solution.CD530/540 can be set in the range of 0.01 to 1.00,
which can ensure accuracy of measured value.
Hold Function:
The meter with hold function, press MEAS/HOLD key, the meter momentarily freezes reading for easy viewing.
Message Indicator:
The meter with operational message indicator. When you need setup or measurement, the message indicator will help you what you can do and how do it. You can set parameter or select functions under it's guide.
Save Data:
The meter can save 64 data sets, press SAVE key, and the meter will store current measured value, serial number, date, time and other information.
Output Data:
The data can be sent to computer through USB Communication interface, you can print out test report via software.
Model CD520 CD530 CD531 CD540
Conductivity Range 0~1.999, 19.99, 199.9, 1999uS/cm, 19.99, 199.9mS/cm
Conductivity Accuracy ±0.5% F.S ±0.5% F.S ±0.5% F.S ±0.5% F.S
TDS Range --- 0~Max.200ppt --- 0~Max.200ppt
TDS Accuracy --- ±1% F.S --- ±1% F.S
TDS Conversion Factor --- 0.01~1.00 --- 0.01~1.00
Salinity Range --- --- 0.00~5.00% 0.00~5.00%
Salinity Accuracy --- --- ±0.05% ±0.05%
Temperature Range 0~100oC　
Temperature Accuracy ±1oC
Calibration Points 1 Point
Calibration Solution 146.6uS/cm, 1408uS/cm, 12.85mS/cm
Temperature Compensation 0~50oC
Temperature Coefficient 0~3.9%/oC
Cell Constant K=0.1, 1, 10, adjustable
Memory 64 data sets
Display 4.3' LCD
Output

USB Communication interface
Power Requirements 9V Battery
Battery Life Approx. 200 hours of continuous use
Dimensions 185(L)mm×88(W)mm×32(H)mm
Weight 300g

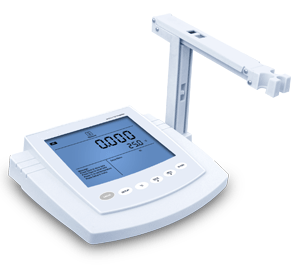

CD950 Conductivity/TDS/Salinity/Temp Meter
CD950 are used to measure conductivity, TDS (Total Dissolved Solid), salinity and temperature of solution.
Feature:
Microprocessor-Based
Single point push-button calibration
Auto standard solution recognition
Auto-ranging for conductivity
Auto temperature compensation
Adjustable temperature coefficient (0~3.9%)
Adjustable cell constant (K=0.1,1,10)
Adjustable TDS coefficient



Model CD950
Conductivity Range 0~1.999, 19.99, 199.9, 1999uS/cm, 19.99, 199.9mS/cm
Conductivity Accuracy ±0.5% F.S
TDS Range 0~Max.200ppt
TDS Accuracy ±1% F.S
Salinity Range 0.00~5.00% (50ppt)
Salinity Accuracy ±0.05% (0.5ppt)
Resistivity Range 0 to 100MΩ
Resistivity Accuracy ±1% F.S
Temperature Range 0~100oC
Temperature Accuracy ±1oC
Calibration Points 1 Point
Calibration Solution 146.6uS/cm, 1408uS/cm, 12.85mS/cm
Temperature Compensation 0~50oC
Temperature Coefficient 0~3.9%/oC
TDS Conversion Factor 0.01~1.00
Cell Constant K=0.1, 1, 10, adjustable
Memory 99 data sets
Output

USB Communication interface
Power Requirements DC9V, using AC adapters, 220VAC, 50Hz
Dimensions 210(L)mm×188(W)mm×60(H)mm
Weight 1.5kg

KL-1385 & KL-1385L EC/CF/TDS Waterproof Nutrient Meter
1. Large and easy-to-read LCD
2. Waterproof design to withstand wet environment
3. Measures 3 parameters including EC,CF,TDS using one electrode
4. Hold Function to saves measurements for convenient reading and recording
Measuring range: EC: 0.00~19.99EC; CF: 0.0~199CF; TDS: 10~19990ppm
Resolution: EC: 0.01EC; CF: 0.1CF; TDS: 10ppm
Accuracy: ±2%F·S
Operating Temperature: 0℃~50℃
ATC: 0℃~50℃
Power Supply: 4×1.5V(AG13)
Dimensions: 185×38×38mm


Nutra Wand Accurate EC/CF/PPM Nutrient Meter RS-100B
This meter is a new generation of the "Nutra Wand". It has wider measuring range and higher accuracy, with LCD display instead of analogue display.
Automatic Off
Display hold function
Display illumination
Switching among CF, EC, and PPM values
100% waterproof
Measuring Range: 0-100CF; 0.0-10.0EC; 10-9990ppm
Resolution: 1CF; 0.1EC; 10ppm
Accuracy: ±2% FS
Temp: 5-50°C (ATC)
Calibration: One point at 6.7 EC
Power supply: DC9v battery
Display LCD with illumination, with hold function

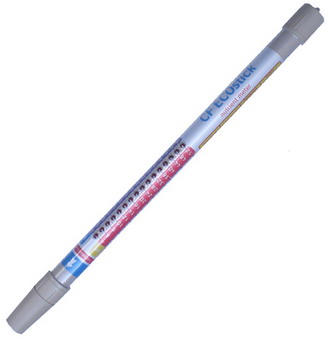

KL-2385 CF ECO stick - EC/CF/PPM Nutrient Meter
Technical Specifications:
Range: 4-52CF; 280-3640ppm (EC x 700); 0.4-5.2EC; 200-3000ppm (ECx500)
Resolution: 0.1 EC(1 CF); 70ppm 700; 50ppm 500
Accuracy: ±4% of reading
Temperature Compensation: Automatic
Operating Temperature: 0 - 50℃(32 - 122。F)
Calibration: Factory Calibrated
Power Source: 3×1.5V Alkaline Batteries
Auto Sense: Auto On and Auto Off


KL-1371 & KL-1372 Pen Type EC Meter

Order No.:
KL-1371P, KL-1372P (Platinum Probe)b
KL-1371S, KL-1372S (Stainless Steel Probe)
Model KL-1371 KL-1372
Range 0~19.9EC 0~19.99EC
Resolution 0.1 EC 0.01 EC
Accuracy ±2% F·S
Operating Temp 0℃~50℃
ATC 0℃~50℃
Power Supply 4×1.5V(AG13) 2×3V(CR2032)
Dimension (mm) 142×29×15 150×27×20
Weight 51g 46g

KL-1361 & KL-1362 Pen Type CF Meter

Order No.:
KL-1361P, KL-1362P (Platinum Probe)
KL-1361S, KL-1362S (Stainless Steel Probe)
Model KL-1361 KL-1362
Range 0~100CF
Resolution 1CF
Accuracy ±2℅F·S
Operating Temperature 0℃~50℃
Power Supply 4×1.5V(AG13) 2×3V(CR2032)
Calibration 1 point
Dimension(mm) 142×29×15 150×27×20
Weight 51g 46g

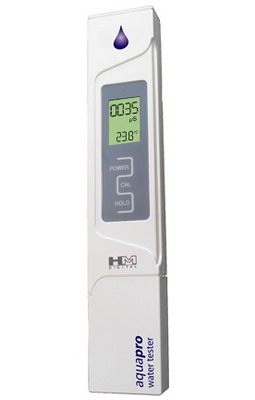

AP-2 AquaPro Water Quality EC Meter


FEATURES
Measures electrical conductivity (EC) and temperature.
Automatic Temperature Compensation (ATC)
Water-resistant housing
Measurement Range: 0-9999 µS
Digital Calibration (push button)
Auto-off function, data-hold function and low-battery indicator.
Display: large and easy-to-read LCD screen includes simultaneous temperature reading.
Factory Calibrated: The AquaPro is calibrated with a 700 µS solution. The meter can be recalibrated with digital calibration using the push buttons, rather than a screwdriver.
Includes a cap and batteries
Comes in a retail-oriented package
SPECIFICATIONS
EC Range: 0-9999 µS
Temperature Range: 0-80 °C; 32-176 °F
Resolution: 1 µS; Temp. resolution is 0.1 °C/F
Accuracy: +/- 2%
Calibration: Digital calibration by push button.
Housing: Water-resistant
Power source: 1 x 3V button cell (included) (model CR2032)
Dimensions: 15 x 2.8 x 1.3 cm (5.9 x 1.1 x .5 inches)
Weight: 42.5 g (1.5 oz)

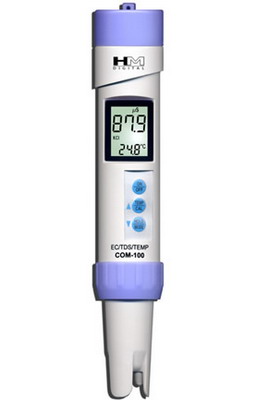

COM100 EC/TDS/Temp Combo Meter
Features
  • Measures EC, TDS and Temperature
  • Range: EC:0-9990µs/cm, 0-9.99ms/cm; TDS:0-8560ppm, 0-8.56ppt; 0-80°C;32-176°F
  • Resolution: EC: 0-999 0.1µs; 1000-9990 10µs; TDS: 0-999 1ppm; 1000-9990 10PPM; Temperature: 0.1°C/F
  • Three different calibration options (KCl,442,NaCl), each with its own non-linear conversion factor
  • Digital calibration, not a screwdriver
  • Automatic Temperature Compensation (ATC)
  • Water proof and floats
  • +/-2% accuracy
  • Platinum electrodes
  • Data hold
  • Auto off, low battery indicator
  • Large easy to read LCD display
  • Simple to program and use
  • Weight: 90.7g without case
  • Probe changerable

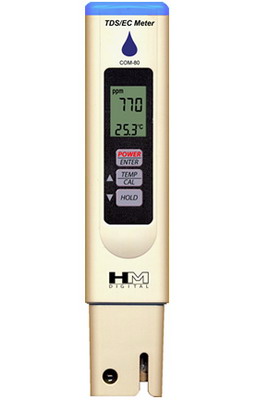

COM80 EC/TDS/Temp Combo Meter
Features
  • Measures EC, TDS and Temperature
  • Range: EC:0-9990µs, 0-9.9ms/cm; TDS:0-5000ppm, 0-5.0ppt; 0-80°C;33-176°F
  • Resolution: EC: 1µs/cm, 0.1ms/cm; TDS: 1ppm, 0.1ppt; Temperature: 0.1°C/F
  • Three different calibration options (KCl,442,NaCl), each with its own non-linear conversion factor
  • Digital calibration, not a screwdriver
  • Automatic Temperature Compensation (ATC)
  • +/-2% accuracy
  • Data hold
  • Auto off
  • Large easy to read LCD display
  • Simple to program and use
  • Weight: 54g


Professional Conductivity Meter DDS-307
This precision meter is for laboratory and can be used for measuring the conductivity of distilled water, drinking water, industrial water and other liquid.
Range: 0.001 ~ 200000μS/cm
Scale 1: 0.001～2μS/cm
Scale 2: 0.01～20μS/cm
Scale 3: 0.1～200μS/cm
Scale 4: 0.001～2ms/cm
Scale 5: 0.01～20ms/cm
Scale 6: 0.1～200mS/cm
Accuracy: ±1% Full Scale
ATC: 15～40℃
Power: DC9V 100mA
Size: 208×200×76mm
Weight: 390g

Professional Conductivity Meter DDS-17
Model

DDS-17

Measuring Range

0~1.999x105us/cm

Accuracy

≤±1.5%F.S±1 digits

ATC

15～35℃

Power Supply

220V 50Hz

Environment

Temp:5~40℃ RH<85%

Dimensions

240×158×100mm

Weight

950g

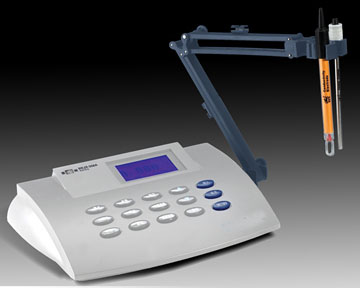

Professional Conductivity Meter DDSJ-308A
Characteristics:
1.Double digits LCD display with big screen and blue back light, display conductivity value and temperature value
2.It can be used to measure conductivity, TDS, salinity and temperature.
3.Auto temperature compensation, auto calibration, auto range changing and electricity cutting off protection
4.Measurement results can be stored, deleted, consulted, printed. can store at most 50 sets of measurement data.
5.With RS-232 interface, Model TP-16 printer can be connected
6.With calibration function, can set electrode constant and TDS switching coefficient
7.Measuring ultrapure water with using K=0.01cm-1 titanium alloy electrode and sealing measuring cell
8.Connecting PC with the meter with selecting data soft
Specifications:
1. Measurement range: Conductivity: 0-1.999 X 10uS/cm (can be divided into six ranges and can range changing automatically); 0-1.999uS/cm, 2.00-19.99uS/cm, 20.0-199.9 uS/cm, 200-1999uS/cm, 2.00-19.99mS/cm,20.0-199.9mS/cm
TDS: 0-19900mg/L (can be divided into five ranges and can range changing automatically),0-10.00mg/L,10.0-100.0mg/L, 100-1000mg/L, 1.00-10.00g/L, 10.0-19.99g/L
Salinity: 0.0-80ppt〔(0.0-8.00)%〕
Temperature: -5-105° C
2.Electrode constant, cm-1: 0.01; 0.1; 1.0; 10.0
3. Accuracy: Conductivity: ±0.5%(FS) ±1bit; Salinity: ±1.0ppt; Temperature: ±0.3°C ±1.bit
4. Stability: ±0.33%(FS) ±1bit/3h
5. The range of temperature compensation: 0-50° C

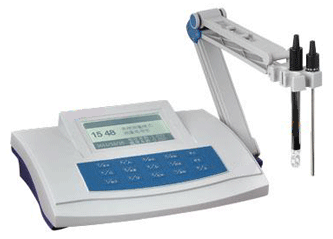

Professional Conductivity Meter DDSJ-308F
Characteristics:
1. It can perform measurement of conductivity, resistance, TDS, salinity and temperature.
2. It has functions of automatic temperature compensation, automatic switch of calibration, measuring range and frequency. Also, power- off protection function is included.
3. It supports calibration of cell constant and TDS factor.
4. It adopts dot-matrix LCD and backlight display and light-touch keys.
5. It can view, print and delete stored data. Up to 200 sets of measuring data can be saved.
6. It has USB interface. If matched with specific communication software, the meter can be connected with computer.
7. It can be used with titanium alloy electrode and sealing groove for measurement of high pure water.
Specifications:
Accuracy grade:0.5
1. Measuring range: Conductivity: 0.000us/cm ~199.9mS/cm; Resistance: 5.00Ω.cm~20.00MΩ.cm; TDS:0.000mg/L~99.9g/L; Salinity: 0.00~8.00%
2. Resolution: Temperature: 0.1°C
3. Accuracy: Conductivity:±0.5%(FS); Resistance:±0.5%(FS); TDS: ±0.5%(FS); Salinity: ±0.1%; Temperature: ±0.2°C
4. Manual/automatic Temperature compensation range: 0.0~40.0°C
5. Power supply: DC adapter (9V,DC,800mA，inside positive and outside negative)
6. Size: 280x215x92mm
7. Weight: 2kg

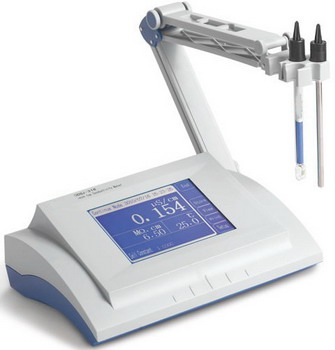

Professional Conductivity Meter DDSJ-318
Features
1. This conductivity meter can measure conductivity, resistivity, TDS (total
dissolved solids), salinity and temperature of the current solution.
2. It applies microprocessor-based technology and functions as automatic
temperature compensation, auto-calibration, auto measuring range switch can be
supported.
3. The user can calibrate the electrode constant or TDS conversion coefficient.
It supports two-point calibration.
4. The stored data can be displayed by graphics and can be viewed, printed and
deleted.
5. This conductivity meter allows the user to review current measuring data and
the last calibration data.
6. It contains three kinds of measuring modes: Continuous measurement, timed
measurement and balance measurement which can meet different measuring
requirements.
7. This conductivity meter uses a 5.7 inch large touch screen, RS-232 and USB
interface. With data collecting software, it can be communicated with PC.




Technical Specifications
Range Conductivity 0.055μS/cm～199.9mS/cm (full range measuring, no need to exchange electrode)
Resistivity 5.00Ω·cm～18.25MΩ·cm
TDS 0.000 mg/L～100g/L
Salinity 0.00～8.00%
Temperature -5.0～135.0℃
Accuracy Conductivity ±0.5%FS
Resistivity ±0.5%FS
TDS ±0.5%FS
Salinity ±0.1%
Temperature ±0.3℃
Resolution Conductivity 0.001μS/cm
Resistivity 0.01Ω·cm
TDS 0.001 mg/L
Salinity 0.01%
Temperature 0.1℃
Temp compensation Manual/Auto -5.0～135.0℃
Temp coefficient Adjustable
Calibration May calibrate electrode constant or TDS switch coefficient. Support two-point calibration
Measuring mode Continuous, timed, balance
Data storage 1500 data with time-and-date for GLP compliance(to display measuring result in diagram directly)
View, delete and print Yes
Output RS-232, USB
Software 1.1DC
Power Adapter (9V DC, 800mA)
Sipping package 370x310x340mm, 4kg

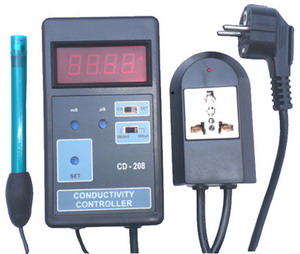

CD-208 Digital Conductivity Controller
Measuring Range: 0~1999us/cm, 0~199.9mS
Accuracy: ±(1.5%+2 digits) after calibration
Resolution: 1us, 0.1mS
Set Range: 0~1000us, 0~100.0mS
Environment Temperature: 0~50℃ Humidity<95%
Power Supply: 220V±10℅ 50Hz±2℅
Dimensions: 150mm×85mm×40mm

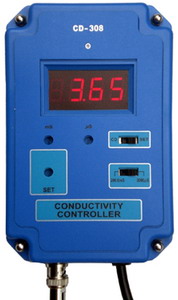

CD-308 Digital Conductivity Controller
Measuring Range: 0~1999us/cm, 0~199.9mS
Accuracy: ±(1.5%+2 digits) after calibration
Resolution: 1us, 0.1mS
Set Range: 0~1000us, 0~100.0mS
Environment Temperature: 0~50℃ Humidity<95%
Power Supply: 220V±10℅ 50Hz±2%
Dimensions: 160mm×102mm×40mm

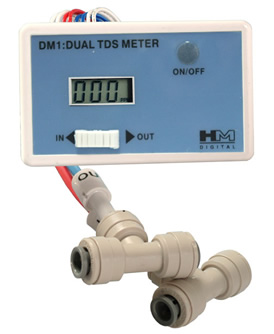

Dual TDS Monitor KL-761EC  (HM model DM-2EC)
FEATURES

•Highly efficient and accurate due to its advanced microprocessor technology.
•Displays EC levels of the Feed Water and Product Water with in & out electrode probes.
•Auto-Off function conserves battery power. The unit shuts off automatically after 3 minutes.
•Dual Range - Measures from 0-999µS, with a resolution of 1µS. From 1000 to 9990µS, the resolution is in 10µS increments, indicated by a blinking 'x10' image.
•Factory Calibrated: calibrated to 1413µS. The DM-2EC features digital calibration.
•Diagnostic error messaging
•Shielded sensor cables
•Comes equipped with 1/4 inch Quick-Connect T-fittings. Also available with 3/8" or 1/2" fittings.
•Installs quickly and easily.
SPECIFICATIONS
1. Range: 0-9990µS
2. Accuracy: ±2%
3. Cable Length: 46" (including sensor), shielded cables
4. Sensor: Dual, 1/4" diameter for quick-connect fittings (model SP-3, included)
5. Digital Calibration: Digitally factory calibrated to 1413 µS. Re-calibration can be done separately for each line.
6. Power source: 2 x AA batteries
7. Battery life: Approx. 2 years
8. Size: 11.6 x 6.8 x1.8 cm (4.6 x 2.6 x .7in.)
9. Weight: 201.3 g (7.1 oz.)

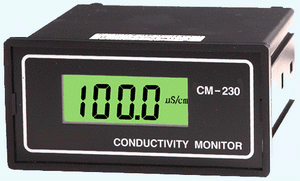

Conductivity Monitor CM-230
This instrument is a panel instrument for on-line monitoring of industrial process conductivity. Range switch over and constant check can both be freely set and adjusted through the operation component on the rear panel; unique signal collecting and processing technology and special thick film circuit are adopted to make measurement accurate and operation stable; there are also other features such as linearized data, automatic temperature compensation, not subject to the length change of cable and maintenance-free. It’s an ideal auxiliary instrument of various types of small pure water equipment.
Measurement range:
0~20  0~200  0~2000μS/cm
Accuracy
1.5% (FS)
Stability
±2 × 10-3 (FS) / 24h
Auxiliary electrode
Plastic structure;  constant: 1.0cm-1
Temperature compensation component
NTC
Medium temperature
5~50℃
Thread dimension
1/2″pipe thread
Medium pressure
0~0.5Mpa
Cable composition
Quad cable, copper mesh and foil shielded plastic jacket
Cable length
5m or on other agreement (5~30m)
Temperature compensation
Automatic compensation， with 25℃ as the reference temperature
Display
3.5-bit LCD
Power supply
AC  220V ±10%  50Hz
Power consumption
≤1W
Environment conditions
(1)   Temperature: 5~50℃; (2)   Humidity: ≤85%RH
Dimensions
48 × 96 × 100mm (height × width × depth)
Slot dimensions for installation
45 × 91mm (height × width)

Conductivity Monitor CCT-3320V (CM-230 new version)
This instrument is a panel instrument for on-line monitoring of industrial process conductivity. Range switch over and constant check can both be freely set and adjusted through the operation component on the rear panel; unique signal collecting and processing technology and special thick film circuit are adopted to make measurement accurate and operation stable; there are also other features such as linearized data, automatic temperature compensation, not subject to the length change of cable and maintenance-free. It’s an ideal auxiliary instrument of various types of small pure water equipment.

Measurement range:
0~20  0~200  0~2000μS/cm
Accuracy
1.5% (FS)
Stability
±2 × 10-3 (FS) / 24h
Auxiliary electrode
Plastic structure;  constant: 1.0cm-1
Temperature compensation component
NTC
Medium temperature
5~50℃
Thread dimension
1/2″pipe thread
Medium pressure
0~0.5Mpa
Cable composition
Quad cable, copper mesh and foil shielded plastic jacket
Cable length
5m or on other agreement (5~30m)
Temperature compensation
Automatic compensation， with 25℃ as the reference temperature
Display
3.5-bit LCD
Power supply
AC  220V ±10%  50Hz
Power consumption
≤1W
Environment conditions
(1)   Temperature: 5~50℃; (2)   Humidity: ≤85%RH
Dimensions
48 × 96 × 100mm (height × width × depth)
Slot dimensions for installation
45 × 91mm (height × width)

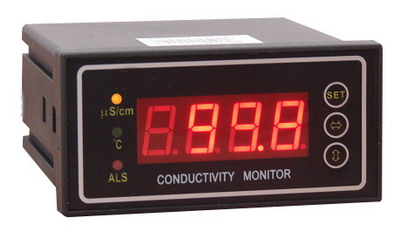

Conductivity Controller CM-230KL
This instrument is a panel instrument for on-line monitoring of industrial process conductivity. Range switch over and constant check can both be freely set and adjusted through the operation component on the rear panel; unique signal collecting and processing technology and special thick film circuit are adopted to make measurement accurate and operation stable; there are also other features such as linearized data, automatic temperature compensation, not subject to the length change of cable and maintenance-free. It has control function, including setting of over limit of conductivity, and the outputs are control contacts. It’s an ideal auxiliary instrument of various types of small pure water equipment.

Measurement range
0~20.00, 0~200.0, 0~2000, 0~9999μS/cm automatic switch, Temp.:0~100℃
Accuracy
±2% (FS)
Display mode
4 digit 0.56" (14mm) LED digital display
Auxiliary electrode
K=1.00 plastic electrode (K=0.1 0~200.0μS/cm, K=0.01 0~20.00μS/cm optional, plastic or stainless steel)
Thread dimension
G1/2″ pipe thread
Current Output
4~20mA
Relay Control
Single 1 high point setting, contact capacity 3A/220V; 2 High Low points setting (optional)
Temperature compensation
Automatic compensation 0~60℃
Power supply
AC220V ±10%; 50Hz or DC24V (optional)
Operation pressure of conductance cell
0~0.5MPa
Cable length
5m or on other agreement
Dimensions
48 x 96 x 100mm (height x width x depth)
Slot dimensions for installation
45 x 91mm (height x width)

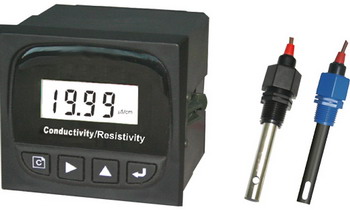

Conductivity Controller
Applications:
Widely used for pharmacy, food, beverage, paper making, environment protection or chemical industries.

Specifications:
1. Power supply:
    CCT-5320E: AC 220±10%
    CCT-5310E: AC 110±10%
    CCT-5300E: DC24V±4V
2. Conductivity Cell Constant: 0.10 (Optional); 1.00 (Standard range 0-2000us/cm); 5.00 (optional) (cm-¹）
3. Measurement Range: Conductivity 0.5μS/cm~10.00mS/cm; TDS: 0.25ppm~5.00ppt; Temp.: 0~50℃ (Temp. compensation component: NTC10K)
4. Resolution: Conductivity: 0.01μS/cm; 0.01mS/cm; TDS: 0.01ppm; Temp.: 0.1℃
5. Accuracy: Conductivity: 1.5% (FS); TDS: 1.5% FS; Temp.: ±0.8℃
6. Temp. Compensation Range: 0~50℃ (with25℃ as standard)
7. 4~20mA: 1)Channels: Single channel, isolated; 2) Characteristics: Reversible, fully adjustable, instrument / transmitter mode for selection; 3) Loop resistance: 400Ω max, DC24V; 4) Accuracy: ±0.1mA
8. Control contacts: 1) Channels: Single channel; 2) Relay contacts: SPDT; 3) Load capacity: AC 220V/3A Max; AC 110V/5A Max; DC 24V/3A Max
9. Work Environment: Temp: 0~50℃, relative humidity: <85%RH,
10. Storage Environment: Temp: -20~60℃; relative humidity: <85%RH
11. Dimensions: 96 x 96 x 105mm
12. Hole size: 91 x 91mm (H x W)
13. Installation: Panel mounted, fast installation
Conductivity cell selection
CON3133-13: (0.1cm-¹) sanitary grade 316L sensor used for RO pure water measuring, optional;
CON1134-13: (1.0 cm-¹) plastic sensor used for industry water, tap water and cooling water measuring;
CON2134-13: (1.0 cm-¹) graphite sensor used for municipal and industrial pure water measuring, optional;
CON2135-13: (5.0 cm-¹) graphite sensor used for waste water and high salinity water measuring
Note: CON1134-13 (1.0 cm-¹) can’t be used for food, beverage, medical or sanitary industries.

Panel Mount TDS Controller PS100
FEATURES
•Monitors and controls TDS levels for high output commercial systems.
•Large, bright L.E.D. display.
•An alarm will sound if the TDS level rises above the user-set level.
•Installs easily in minutes.
•Includes one sensor probe (at no extra cost).
•Protective cover also available (sold separately)

SPECIFICATIONS
Range: 0 - 999ppm
Accuracy: ±2%
Conversion Factor: NaCl (avg. 0.5)
Resolution: 1 PPM
ATC: Yes (1 - 65 degrees Celsius)
Calibration: Adjustable (manual)
Setting: Controlled by on-screen up/down buttons
Relay Control: The unit will open or close a circuit via dry contacts when the ppm level reaches or exceeds the control setting (simple switch). It can be used to control a pump, solenoid valve or other device.
Relay Voltage: 5V
Alarm: Optional steady beep (set by user)
Display: Bright 5/8" L.E.D. display
Probe: 1/2" bushing, 3 meter (9.8 ft) shielded cable
Power supply: AC 110V / AC 220V
Dimensions: 7.2 x 7.2 x 10.2 cm (2.8 x 2.8 x 4 in.)
Monitor Weight: 476 g (1 lb .8 oz)
Total Weight: 680.4 g (1 lb 8 oz)

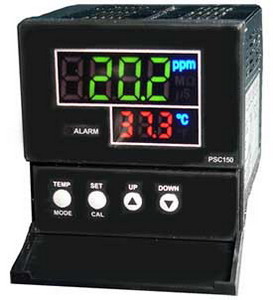

Conductivity/TDS Controller PSC-150

FEATURES

  • Monitors and controls TDS levels for high output commercial systems.
  • Large, bright LED display.
  • An alarm will sound if the TDS level rises above the user-set level.
  • On-screen temperature display (C/F).
  • Installs easily in minutes.
  • Includes one sensor probe (at no extra cost).
  • Protective cover also available (sold separately)
SPECIFICATIONS
EC Range: 0-9999 µS; TDS Range: 0 - 5000ppm
Temperature Range: 1-75°C; 33-167 °F
Accuracy: ±2%
Conversion Factor: NaCl (avg. 0.5)
Resolution: 0.1µS/ppm (0-999); 1µS/ppm (1000-9999)
ATC: Yes (1 - 65°C)
Calibration: Adjustable (manual)
Setting: Controlled by on-screen up/down buttons
Relay Control: The unit will open or close a circuit via dry contacts when the ppm/µS level reaches or exceeds the control setting (simple switch). It can be used to control a pump, solenoid valve or other device.
Relay Voltage: 5V
Alarm: Optional steady beep (set by user)
Display: Bright 5/8" L.E.D. display
Probe: 1/2" bushing, 3 meter (9.8 ft) shielded cable
Power supply: AC 110V / AC 220V
Dimensions: 7.2 x 7.2 x 10.2 cm (2.8 x 2.8 x 4 in.)
Monitor Weight: 476 g (1 lb .8 oz)
Total Weight: 680.4 g (1 lb 8 oz)

Optional Protective Cover


TDS/EC Controller with 4-20mA Output PSC-154
FEATURES
•Monitors and controls TDS/EC levels for high output commercial systems.
•Large, bright L.E.D. display.
•4-20mA output signal can connect to a PLC to record values.
•An alarm will sound if the TDS /EC level rises above the user-set level.
•A switch will control a device based upon the set point.
•On-screen temperature display (C/F).
•Installs easily in minutes.
•Includes one sensor probe (at no extra cost).
•Protective cover also available (sold separately)
SPECIFICATIONS
EC Range: 0-9999 µS; TDS Range: 0 - 5000ppm
Temperature Range: 1-75°C; 33-167 °F
Accuracy: ±2% (of the reading)
Conversion Factor: NaCl (avg. 0.5)
Resolution: 0.1µS/ppm (0-999); 1µS/ppm (1000-9999)
ATC: Yes (1 - 65°C)
Calibration: Digital by push button
Set-Point: Single point, controlled by on-screen up/down buttons (to any point within the range)
Relay Control: The unit will open or close a circuit via dry contacts when the ppm/µS level reaches or exceeds the control setting (simple switch). It can be used to control a pump, solenoid valve or other device.
Relay Voltage: 5V
Output Signal: Digital 4-20mA
Output Accuracy (mA): ±1%
Alarm: Optional steady beep (set by user)
Display: Bright 5/8" L.E.D. display
Probe: 1/2" bushing, 3 meter (9.8 ft) shielded cable
Power supply: AC 110V / AC 220V
Dimensions: 7.2 x 7.2 x 10.2 cm (2.8 x 2.8 x 4 in.)
Monitor Weight: 476 g (1 lb .8 oz)
Total Weight: 680.4 g (1 lb 8 oz)

Optional Protective Cover


CIC-152 Dual Control Dosing/Injection TDS/EC Controller
FEATURES
•Monitors and controls dosing or injection systems.
•Large, bright tri-color L.E.D. display.
•Two adjustable set points keep TDS levels within a range (maximum and minimum TDS/EC levels).
•Minimum and maximum control points will activate relay controls via switching dry contacts.
•The CIC-152 can control two different devices (e.g., a pump and a valve).
•Two alarms (maximum and minimum levels) can be set independently of the control points.
•Digital calibration.
•On-screen temperature display.
•On-screen range & control indicator lights (green, yellow or red)
•Installs easily in minutes.
•Includes one sensor probe (no extra cost)
•Protective cover also available (sold separately)
•Available with the NaCl conversion factor (model CIC-152) or the 442TM conversion factor (model CIC-152-4)
SPECIFICATIONS
TDS Range: 0 - 5000ppm (CIC-152): 0 - 8500ppm (CIC-152-4)
EC Range: 0 - 9999µS
Temperature Range: 1-80oC; 33-176oF
Accuracy: ±2% (of the reading)
Resolution: 0.1 ppm (0-999); 1 ppm (1000-9999)
ATC: Yes (1 - 80 degrees Celsius)
Calibration: Digital (by push button)
Factory Calibration: 1413 µS
Set Points: Adjustable by push button. Control Point 2: Maximum TDS Limit. Control Point 1: Lower TDS Level.
Relay Control: The unit will transmit an analog signal (simple switch) via open or closed contacts to a device (e.g. pump/valve) when the ppm/µS level reaches the maximum TDS/EC limit (Control Point 2) or the minimum TDS/EC limit (Control Point 1). The contacts are switched back to the normal position once the TDS returns to the acceptable range.
Relay Voltage: 5V (attached devices must have their own power supply)
Alarm: Two independent alarms (set by user)
Display: Bright 5/8" L.E.D. display
Probe: 1/2" bushing, 3 meter (9.8 ft) shielded cable (model SP-1-PSC)
Power supply: AC 110V / AC 220V
Dimensions: 7.2 x 7.2 x 11.1 cm (2.8 x 2.8 x 4.4 in.)
Monitor Weight: 476 g (1 lb .8 oz)
Total Weight: 680.4 g (1 lb 8 oz)

Conductivity/TDS/Resistivity/Temp. Transmitting Controller CCT-8301A
Applications and features
1) With 32 bit processor as the core of the powerful kernel and operating system, make products to IT new era.
2) Using advanced modulus hybrid technology, intelligent measure range automatically measurement switch
3) Language man-machine interface, Guided operation menu, Humanized design process
4) TFT320×240 color LCD, Chinese/English language, multi parameter display in one screen
5) Grading permission password protect function, prevent noncertified person freely revise the engineering parameter when log in.
6) LCD background lighting can select long time lighten or delay sleep, fit low carbon fashion.

Conductivity Cell Type 10.00cm-¹ (optional) 1.000cm-¹ (standard) 0.100cm-¹ (optional) 0.010cm-¹ (optional)
Range Conductivity 500~100000us/cm (100ms/cm) 1.0~10000us/cm 0.5~200us/cm 0.05~18.25MΩ·cm
TDS 250~50000ppm 0.5~50000ppm 0.25~100ppm
Temp. 0~180℃ (Sensor PT1000)
Resolution Conductivity: 0.01us/cm, 0.01ms/cm; Resistivity: 0.01MΩ·cm; TDS: 0.01ppm; Temp.: 0.1℃
Accuracy Conductivity/TDS: 1.5% F.S.; Resistivity: 2.0%; Temp.:  ±0.5℃
ATC 25℃/90℃
Output 4-20mA
Communication RS485, Modbus RTU agreements
Power DC24V
IP Grade IP65
Size 96 x 96 x 94mm
Slot Size 91 x 91mm
Installation Panel

RO System Conductivity Controller ROC-2313
1. Power voltage: AC 220V±15%  50Hz, Power consumption: ≤3W
2. Environment conditions: temperature: 0～50℃;  humidity: ≤85%RH
3. Measuring range: 0～200μS /cm; accuracy: 1.5 level
4. Load capacity of output contact: 3A/250V AC (the magnetic valve should be driven through intermediate relay)
5. Operation pressure of conductance cell: 0～0.5Mpa
6.Medium temperature:5～50℃
7.Temperature compensation: automatic temperature with 25℃ as reference temperature
8. Distance of measuring range: less than 30m (the ex-factory configuration of electrode cable is 5m unless there is a special agreement)
9. Display mode: 3 1/2-digit LED digital display
10. Electrode selected: 1.0cm-1
11. outline dimensions: 96×96×110mm (height×width×depth)
12.meter board hole: 92×92mm (height×width)

The instrument is a combined control instrument of a reverse osmosis controller and an on-line conductivity instrument. It can perform the operation test, status control and on-line monitoring of water quality conductivity (combining PLC controller and conductivity meter). It takes multiple anti-interference measures, adopts unique process flow and graphical control panel with LED indicator lamp embedded, the interface is friendly; menu-driven operation is used, multiple groups of parameters can be set and modified, the requirements of automatic operation are met.

KL-5100 & KL-5200 Conductivity Transmitter
Performance features
5100 is an integration mode conductivity transmitter. 5200 is a fission mode conductivity transmitter. They can meet long distance measurement of water solution conductivity in the industrial processes. The all sealed shell design meet the IP65 defending technology grade , can adapt to the wet environment .The any transferable 4~20mA isolated current signal can realize the operation mode of meter/transmitter by change the connection mode.
Technical Specification
Conductivity measurement range:
Electrode constant 0.1cm-1 : 0~20μS/cm, 0~200μS/cm (optional)
Electrode constant 1.0cm-1 : 0~20μS/cm, 0~200μS/cm 0~2000μS/cm (optional)
Electrode constant 10.0cm-1 : 0~200μS/cm, 0~2000μS/cm 0~20mS/cm (optional)
Temperature measurement range :0~50℃
Accuracy:1.5%(FS)
Stability: ±2×10-3 (FS)/24h
Signal output : isolate , transferable 4~20mA current , the optional output mode of meter/transmitter
Power supply: DC 24V±10%
Temperature of measured solution: 5～50℃
Defending types :IP65 defending grade
The max circulative resistance : DC 24V@600Ω
Display mode : Conductivity : 3.5bit LCD digital display , Temperature : 3bit digital display
Outline dimensions: 130×70×50mm (height×width×depth)
Installation mode: pipeline installation(5100), plane installation(5200).

 HM AP-1 AquaPro Water Quality TDS Meter
FEATURES
Measures total dissolved solids (TDS) and temperature.
Automatic Temperature Compensation (ATC)
Water-resistant housing
Measurement Range: 0-5000ppm
Digital Calibration (push button)
Auto-off function, data-hold function and low-battery indicator.
Display: large and easy-to-read LCD screen includes simultaneous temperature reading.
Factory Calibrated: The AquaPro is calibrated with a 342 ppm NaCl solution. The meter can be recalibrated with digital calibration using the push buttons, rather than a screwdriver.
Includes a cap and batteries
Comes in a retail-oriented package
SPECIFICATIONS
TDS Range: 0-5000ppm (mg/L)
Temperature Range: 0-80 °C; 32-176 °F
Resolution: 1ppm; Temp. resolution is 0.1 °C/F
Accuracy: +/- 2%
Calibration: Digital calibration by push button.
Housing: Water-resistant
Power source: 1 x 3V button cell (CR2032)
Dimensions: 15 x 2.8 x 1.3cm (5.9 x 1.1 x .5 inches)


HM TDS Meters KL-730 (TDS-3) & KL-731 (TDS-3 Temp, With Temp Display)
  • Range: 0 - 9990ppm (mg/L)
  • Resolution: 1ppm (also available in 10ppm)
  • Accuracy: +/- 2%
  • Power source: 2 x 1.5V button cell batteries (included)
  • Battery life: over 1000 hours of continuous use
  • Dimensions: 15.5 x 3.1 x 2.3cm (6.1 x 1.25 x 1")
  • Weight with case: 76.5g (2.7 oz)
  • Weight without case: 56.7g (2 oz)
  • Ideal for commercial use. Includes a carrying case with belt clip.
  • Highly efficient and accurate due to its advanced microprocessor technology.
  • Hold Function: saves measurements for convenient reading and recording.
  • Auto-off function: the meter shuts off automatically after 10 minutes of non-use to conserve batteries.
  • Measurement Range: 0-9990ppm. From 0-999ppm, the resolution is in increments of 1ppm. From 1000 to 9990ppm, the resolution is in increments of 10ppm, indicated by a blinking 'x10' image.
  • Display: large and easy-to-read LCD screen.
  • Factory Calibrated: recalibration is not necessary, but can be done easily with a watch screwdriver. There's no need for messy solutions.
  • Also available in "x10" mode: reads in increments only of 10ppm (0-9990ppm).

HM TDS Meters (Total Dissolved Solids) KL-740 & KL-741 (With Temp Display)
FEATURES
Includes an internal digital thermometer (celsius).
The smallest and lightest TDS meter available on the market.
Hold Function - Saves measurements for convenient reading and recording.
Auto-off function - Turns off meter after 10 minutes of non-use to conserve batteries.
Dual Range - Measures from 0 - 999ppm, with a resolution of 1ppm. From 1000 to 9990ppm, the resolution is 10ppm, indicated by a blinking 'x10' image.
Factory Calibrated: our meters are calibrated with a 342ppm NaCl solution. Meters can be recalibrated with a mini-screwdriver.
Recommended for aquariums & aquaculture, horticulture & hydroponics, pools & spas and water cooler professionals.

SPECIFICATIONS
TDS Range: 0-9990ppm (mg/L)
Temp. Range: 0-80 degrees Celsius
Resolution: 1ppm, 1 degree Celsius
Accuracy: +/- 2%
ATC: Built-in sensor for Automatic Temperature Compensation of 1 to 50 degrees Celsius (33 to 122 degrees Farenheit)
Power source: 2 x 1.5V button cell batteries (included)
Battery life: 1000 hours of usage
Dimensions: 14 x 2.3 x 1.5 cm (5.5 x .9 x .55 inches)
Weight: 34g (1.2 oz)


TDS Meters (Total Dissolved Solids) KL-710
  • TDS Range: 0-9990ppm (mg/L)
  • Resolution: 1ppm, 1 degree Celsius
  • ATC: Built-in sensor for Automatic Temperature Compensation of 1 to 50 degrees Celsius (33 to 122 degrees Farenheit)
  • Accuracy: +/-3%
  • Auto Power Off.
  • Power source: 2 x 1.5V button cell batteries (included)
  • Dimensions: 15.5 x 3.1 x 2.3 cm (6.1 x 1.25 x 1")
  • Weight: 85g (3 oz)
  • Factory calibrated to NaCl 342ppm; adjustable
  • Data Hold
  • Durable Construction
  • For drinking water, water filter checks, travel, hydroponics, aquariums, food and coffee ...


TDS Meters (Total Dissolved Solids) KL-711
SPECIFICATIONS
TDS Range: 0-9990ppm (mg/L)
Temp. Range: 0-80 degrees Celsius
Resolution: 1ppm, 1 degree Celsius
Accuracy: +/-2%
ATC: Built-in sensor for Automatic Temperature Compensation of 1 to 50 degrees Celsius (33 to 122 degrees Farenheit)
Power source: 2 x 1.5V button cell batteries (included)
Battery life: 1500 hours of usage
Dimensions: 153 x 31 x 23mm
Weight: 77g


Conductivity/TDS Meter

Model

 　HMT-1 HMT-2 HMT-3 HMT-4 HMT-5
　Range
0~9990ppm　
0~9990ppm
0~99℃;32~212℉
0~9990us/cm
0~9990us/cm
0~99℃;32~212℉
0~9990ppm;0~9990us/cm
0~99℃; 32~212℉
　Accuracy
±2%F.S
　A T C
0 ~ 50℃
　Auto Shut-off
10 minutes
　Power
2×1.5v(LR44l)
　Dimensions
142×25×15mm
　Weight
30g

KL-139 TDS Meter
Order No.:
KL-139P (Platinum Probe)
KL-139S (Stainless Steel Probe)

Technical Specification:
1.Measuring range:0-1999ppm (mg/L)
2.Resolution: 1ppm (mg/L)
3.Accuracy: ±2%F.S
4.Operating Temperature: 0℃- 50℃
5.Power Supply: 2×3V（CR2032 Battery）
6.Environment: Humidity: ≤95%
7.Display:4-digital LCD
8.Weight:46g
9.Dimension:150mm×27mm×20mm

Pocket sized and feather-weight for portable use in a large number of applications including Production and drinking of pure water, Cleanness of swimming pool water, Food processing, Hospitals and medical products, Aquatic cultivation, Boiler water, Households and offices, Aquarium water, Teaching of physics and chemistry, Electroplating water, Cooling towers, Laboratories, Ionized water and water quality testing etc


KL-139A & KL-139B TDS Meter
Model KL-139A KL-139B
Measuring Range 0~1999PPm(mg/L)
Accuracy ±2℅F·S
Resolution 1PPm(mg/L)
Display 4-digital LCD
Environment Humidity:≤95℅
ATC 0℃~50℃
Power Supply 4×1.5V(AG13)
Dimensions 165×26×26(mm3) 60×55×23(mm3)
Weight 63g 60g

Order No.:
KL-139AP (Platinum Probe)
KL-139AS (Stainless Steel Probe)

Order No.:
KL-139B (Normal Battery)
KL-139BA (Adaptor + Rechargeable Battery)

KL-139C TDS Meter
Order No.:
KL-139CP (Platinum Probe)
KL-139CS (Stainless Steel Probe)
Measuring Range: 10~1990ppm
Accuracy:±2% F.S.
Resolution: 10ppm
ATC: 0℃~50℃
Power Supply: 4×1.5V(AG13)
Dimensions: 150mm×29mm×15mm
Weight: 51g


KL-9835 TDS Meter
Order No.:
KL-9835P (Platinum Probe)
KL-9835S (Stainless Steel Probe)
Measuring Range: 0~1999ppm
Accuracy: ±2% Full Scale
Resolution: 1ppm
ATC: 0℃~50℃
Power Supply: 3×1.5V(AG13)
Dimensions: 175mm×51mm×25mm
Weight: 60g


KL-1396 (Stainless Steel Probe) KL-1396P (Platinum Probe) Waterproof TDS and Tem. Meter

Technical Specification:

  ppm Temp(℃)

Measuring range

0~19990ppm

-50℃~70℃

Resolution

10ppm

0.1℃

Accuracy

±2% F·S

±1℃

Display

 4-digital LCD

Environment

 Humidity≤95%

Automatic Temperature Compensation

 0℃~50℃

Power Supply

 4×1.5V(AG13)

Dimensions

 188mm×35mm×35mm

Weight

 98g

KL-1395 TDS Meter  with Temp Display
Order No.:
KL-1395P (Platinum Probe)
KL-1395S (Stainless Steel Probe)
Measuring Range: 0~1999ppm (mg/L); -50℃~70℃
Resolution: 1ppm (mg/L); 0.1℃
Accuracy: ±2% F.S.; ±1℃
Display: 4-digital LCD
Environment: Humidity≤95%
ATC: 0℃~50℃
Power Supply: 4×1.5V(AG13)
Dimensions: 170×36×23(mm3)
Weight: 98g


KL-1393 TDS Meter
Order No.:
KL-1393P (Platinum Probe)
KL-1393S (Stainless Steel Probe)

Measuring Range: 0~19.99ppt
Accuracy:±2% F.S.
Resolution: 0.01ppt
ATC: 0℃~50℃
Power Supply: 2×3V(CR2032)
Dimensions: 150mm×27mm×20mm
Weight: 46g


KL-1393A & KL-1393B TDS Meter
Model KL-1393A KL-1393B
Measuring range 0~19.99PPt
Accuracy ±2%F·S
Resolution 0.01PPt
Display 4-digital LCD
Environment Humidity≤95%
Automatic Temperature Compensation 0℃~50℃
Power Supply 4×1.5V(AG13)
Dimensions 165×26×26(mm3) 60×55×23(mm3)
Weight 63g 60g

Order No.:
KL-1393AP (Platinum Probe)
KL-1393AS (Stainless Steel Probe)

Order No.:
KL-1393B (Normal Battery)
KL-1393BA (Adaptor + Rechargeable Battery)


KL-1393C TDS Meter
Order No.:
KL-1393CP (Platinum Probe)
KL-1393CS (Stainless Steel Probe)

Measuring Range: 100~10000ppm
Accuracy:±2% F.S.
Resolution: 100ppm
ATC: 0℃~50℃
Power Supply: 4×1.5V(AG13)
Dimensions: 150mm×29mm×15mm
Weight: 51g


KL-1393 TDS Meter
Order No.:
KL-1393P (Platinum Probe)
KL-1393S (Stainless Steel Probe)

Measuring Range: 0-19.99ppt
Accuracy:±2% F.S.
Resolution: 0.01ppt
ATC: 0℃~50℃
Power Supply: 2×3V(CR2032)
Dimensions: 150mm×27mm×20mm
Weight: 46g


Filter Monitor FM-1
The new Filter Monitor is an innovative inline combination timer and volumizer. The battery-powered FM-1 has five timers for a 5-stage system, as well as a water volumizer and programmable set-points and alarms for each function, all in a crisp, attractive housing.
FEATURES
A five-stage filter monitor with five independent timers and a tri-color LED faucet indicator disc.
Works on time (and volume for the FM-2) for up to five stages (can be less).
The LED indicator disc will illuminate a green, yellow or red light when the water is turned on. The color indicates the percentage of elapsed time.
Auto-Off function conserves battery power. The unit shuts off automatically after 5 minutes of non-use.
The timer counts down in months or days (settings can be modified).
Includes an audible alarm (beep).
Modern design is perfect for any kitchen.
Installs quickly and easily.
SPECIFICATIONS
Timer Range: 0-999 days/months
Timer Modes: Days or months (default is months)
Settings: One alert per stage, up to five stages
Default Setting: 12 months
Batteries: 2 x AA (included)
Battery Life: approx. 18 months
Base Unit Dimensions: 100 x 63 23 mm (4 x 2.5 x 0.9 in)
Base Unit Weight: 119 g (4.2 oz.) (including batteries)
Flow Switch Cable Length: 93 cm (36.6 in)
Flow Switch Fitting Size: 1/4" Quick Connect
LED Faucet Indicator Disc Cable Length: 92cm (36.25 in)
LED Faucet Indicator Disc Dimensions:4.75cm (1-1/4") dia., 8cm (5/16") high

Filter Monitor FM-2
The new Filter Monitor is an innovative system to alert when a filter needs to be changed via color-coded lights at the base of the faucet. The battery-powered FM-2 has five timers for a 5-stage system, as well as a water volumizer and programmable set-points and alarms for each function, all in a crisp, attractive housing.
FEATURES
•A five-stage filter monitor with five independent timers and a tri-color LED faucet indicator disc.
•Counts time and volume for up to five stages (can be less).
•The LED indicator disc will illuminate a green, yellow or red light when the water is turned on. The color indicates the percentage of elapsed time and volume used.
•Auto-Off function conserves battery power. The unit shuts off automatically after 5 minutes of non-use.
•The timer counts down in months or days (settings can be modified).
•The volumizer counts up in gallons or liters (settings can be modified).
•Includes an audible alarm (beep).
•Modern design is perfect for any kitchen.
•Installs easily.
•Includes the FMS-2 flow sensor.
SPECIFICATIONS
Timer Range: 0-999 days/months
Timer Modes: Days or months (default is months)
Volume Range 0-99999 Gallons / Liters
Volume Modes: Gallons (default) or Liters
Volume Accuracy: +/-1% (at typical flow rates of approx. 1.5 to 2.5 LPM; low and high rates may affect accuracy)
Maximum Pressure: 150 psi
Settings: One alert per stage, up to five stages
Default Setting: 12 months
Batteries: 2 x AA (included)
Battery Life: approx. 18 months
Base Unit Dimensions: 100 x 63 23 mm (4 x 2.5 x 0.9 in)
Base Unit Weight: 119 g (4.2 oz.) (including batteries)
Flow Sensor Cable Length: 93 cm (36.6 in)
Flow Sensor Fitting Size: 1/4" Quick Connect
LED Faucet Indicator Disc: Works with any non-air gap filter faucet
LED Faucet Indicator Disc Cable Length: 92 cm (36.25 in)
LED Faucet Indicator Disc Dimensions: 4.75 (1 1/4" in.) dia., 8 cm (5/16") high

Dual TDS Monitor KL-760 & Changeable Probe KL-760P (HM model DM-1)
FEATURES
1. Displays TDS levels of the feed water and product water with in & out electrode probes.
2. Highly efficient and accurate due to its advanced microprocessor technology.
3. Auto-Off function conserves battery power. The unit shuts off automatically after 10 minutes of non-use.
4. Dual Range 0-9990ppm (From 0 - 999ppm the
resolution is 1ppm. From 1000 to 9990ppm, the resolution is 10ppm, indicated by a blinking 'x10' image.)
5. Factory Calibrated -Recalibration is not necessary.
6. Comes equipped with John Guest Quick-Connect T-fittings as shown.
7. Installs quickly and easily.

SPECIFICATIONS
  • Range: 0-9990 ppm
  • Accuracy: ±2%
  • Cable Length: 24.5" (including sensor)
  • Power source: 2 x 1.5V button cell batteries (included)
  • Battery life: over 1000 hours of continuous use
  • Size: 7.6 x 2 x 4.7 cm (3 x 0.8 x 1.9")
  • Weight: 79.4 g (2.8 oz.)

Dual TDS Monitor KL-761 (HM model DM-2)
FEATURES

  • Differences from the KL-760:
  • Designed for commercial/industrial applications.
  • Stronger, water-resistant casing.
  • Improved design, including an extra large, easy-to-read LCD display.
  • Longer, waterproof, shielded cables.
  • Variable mounting bracket.
SPECIFICATIONS
  • Range: 0-9990 ppm
  • Accuracy: ±2%
  • Cable Length: 46" (including sensor)
  • Power source: 2 AAA batteries (included)
  • Battery life: over 1000 hours of continuous use
  • Size: 11.6 x 6.8 x1.8 cm (4.6 x 2.6 x 0.7")
  • Weight: 201.3 g (7.1 oz.)

Dual TDS Monitor KL-761EC  (HM model DM-2EC)
FEATURES

•Highly efficient and accurate due to its advanced microprocessor technology.
•Displays EC levels of the Feed Water and Product Water with in & out electrode probes.
•Auto-Off function conserves battery power. The unit shuts off automatically after 3 minutes.
•Dual Range - Measures from 0-999µS, with a resolution of 1µS. From 1000 to 9990µS, the resolution is in 10µS increments, indicated by a blinking 'x10' image.
•Factory Calibrated: calibrated to 1413µS. The DM-2EC features digital calibration.
•Diagnostic error messaging
•Shielded sensor cables
•Comes equipped with 1/4 inch Quick-Connect T-fittings. Also available with 3/8" or 1/2" fittings.
•Installs quickly and easily.
SPECIFICATIONS
1. Range: 0-9990µS
2. Accuracy: ±2%
3. Cable Length: 46" (including sensor), shielded cables
4. Sensor: Dual, 1/4" diameter for quick-connect fittings (model SP-3, included)
5. Digital Calibration: Digitally factory calibrated to 1413 µS. Re-calibration can be done separately for each line.
6. Power source: 2 x AA batteries
7. Battery life: Approx. 2 years
8. Size: 11.6 x 6.8 x1.8 cm (4.6 x 2.6 x .7in.)
9. Weight: 201.3 g (7.1 oz.)

KL-RO22 Dual TDS Meter
Technical Specification
Measuring Range: 0～1999ppm
Resolution: 1ppm
Accuracy:±2% Full Scale
Automatic Temperature Compensation: 0～50℃
Power Supply: 4×1.5V (AG13)
Dimensions: 60mm×55mm×23mm
Weight: 98g


HL-233 Level Controller
Power Supply: 220V/50HZ or 110V/60HZ
Power Consumption: 2Watts
Size: 150 x 85 x 42mm
Weight: 690g
Environment: Temperature: 0-50ºC, Humidity 95%
The electronic level controller with 2 sensors will automate aquarium water top off. We include two float switch sensors with our electronic water level controller. The first float switch sensor triggers the feed pump (sold separately) to maintain the desire water level. The second float switch sensor ensures dependability and offers over flow protection. Our water level controller can also be used to protect pump from running dry. It can be utilized in three ways.


HL-233T Level Controller with Temperature

Technical Specification:
Temp Range: 0～80°C
Resolution: 0.1°C
Accuracy: ±1°C
Environment Temperature: 0~50°C, Humidity<95%
Power Supply: AC 220V 50Hz
Dimensions: 150mm×85mm×42mm
Weight: 690g


PS-100 Panel Mount TDS Controller
Install the Panel Mount Controller to constantly monitor TDS levels of water produced by a high-output system.
FEATURES
•Monitors and controls TDS levels for high output commercial systems.
•Large, bright L.E.D. display.
•An alarm will sound if the TDS level rises above the user-set level.
•Installs easily in minutes.
•Includes one sensor probe (at no extra cost).
•Protective cover also available (sold separately)
SPECIFICATIONS
Range: 0 - 999ppm
Accuracy: ±2%
Conversion Factor: NaCl (avg. 0.5)
Resolution: 1 PPM
ATC: Yes (1 - 65 degrees Celsius)
Calibration: Adjustable (manual)
Setting: Controlled by on-screen up/down buttons
Relay Control: The unit will open or close a circuit via dry contacts when the ppm level reaches or exceeds the control setting (simple switch). It can be used to control a pump, solenoid valve or other device.
Relay Voltage: 5V
Alarm: Optional steady beep (set by user)
Display: Bright 5/8" L.E.D. display
Probe: 1/2" bushing, 3 meter (9.8 ft) shielded cable
Power supply: AC 110V / AC 220V
Dimensions: 7.2 x 7.2 x 10.2 cm (2.8 x 2.8 x 4 in.)
Monitor Weight: 476 g (1 lb .8 oz)
Total Weight: 680.4 g (1 lb 8 oz)

PS-200 Dual TDS Controller

Install the Dual TDS Controller to constantly monitor TDS levels of water produced by a high-output system. Immediately know if the TDS levels rise above an acceptable level.
FEATURES
•Monitors and controls TDS levels of two water lines (e.g., feed water and product water) for high output commercial systems.
•Large, bright L.E.D. display.
•An alarm will sound if the TDS level rises above the user-set level for the output water.
•Installs easily in minutes.
•Includes two sensor probes (at no extra cost).
•The PS-200 is a monitor for Line 1 (in-line) and a controller for Line 2 (out-line).
•Protective cover also available (sold separately)

SPECIFICATIONS
Range: 0 - 999ppm
Accuracy: ±2%
Conversion Factor: NaCl (avg. 0.5)
Resolution: 1PPM
ATC: Yes (1 - 65 degrees Celsius)
Calibration: Adjustable
Setting: Controlled by on-screen up/down buttons
Relay Control: The unit will open or close a circuit via dry contacts when the ppm level (out line/line 2 only)reaches or exceeds the control setting (simple switch). It can be used to control a pump, solenoid valve or other device. (In line/Line 1 does not have a control function)
Relay Voltage: 5V (simple switch)
Alarm: Optional steady beep for Out line/Line 2 (set by user)
Display: Bright 5/8" L.E.D. display
2 Probes: 1/2" bushing, 3 meter (9.8 ft) shielded cable
Power supply: AC 110V / AC 220V
Dimensions: 7.2 x 7.2 x 10.2 cm (2.8 x 2.8 x 4 in.)
Monitor Weight: 476 g (1 lb .8 oz)
Total Weight: 822.1 g (1 lb 13 oz)

PS-202 Dual TDS Controller

The PS-202 allows for continuous and simultaneous monitoring and control of TDS levels on two water lines.
FEATURES
•Simultaneously monitors and controls the TDS levels of two water lines (e.g., the feed water and product water) for high output commercial systems.
•Large, bright L.E.D. displays.
•An alarm will sound if the TDS level rises above the user-set level for both lines.
•Installs easily in minutes.
•Includes two 1/2" sensor probes (at no extra cost).

SPECIFICATIONS
Range: 0 - 999ppm
Accuracy: ±2%
Conversion Factor: NaCl (avg. 0.5)
Resolution: 1 PPM
ATC: Yes (1 - 65 degrees Celsius)
Calibration: Adjustable
Setting: Controlled by on-screen up/down buttons
Relay Control: The unit will open or close a circuit via dry contacts when the ppm level of the output water (line 2) or input water (line 1) reaches or exceeds its control setting (simple switch). The PS-202 can be used to control one or two pumps, solenoid valves or other device.
Relay Voltage: 5V
Alarm: Steady beep for both lines
Display: Bright 5/8" L.E.D. dual displays
2 Probes: 1/2" bushing, 3 meter (9.8 ft) shielded cable
Power supply: AC 110V / AC 220V
Dimensions: 9.4 x 9.4 x 12.5 cm (3.7 x 3.7 x 4.9 in.)
Monitor Weight: 569.8 g (1 lb 4.1 oz)
Total Weight: 938.4 g (2 lbs 1.1 oz)

Water Electrolyzer WE-1

Electrolysis of water is the decomposition of water (H2O) into oxygen (O2) and hydrogen gas (H2) due to an electric current being passed through the water.
This technique can be used to make hydrogen fuel (hydrogen gas) and breathable oxygen; for drinking water to test the water TDS value.


Reverse Osmosis (RO) Program Controller AMX001
Overview
The controller is a collection of typical mode of operation of many small and medium-sized reverse osmosis system, the control of single technology is a direct replacement for the PLC, programmed operation, greatly simplifying the construction elements. Control panel graphics, image process embedded LED indicators display system status, intuitive. RO controller uses four of the five into work.

Specifications
1. Signal acquisition: water no water protection, low-pressure protection, the protection of high-pressure, pure water tank level protection, external.

2. Output control: the inlet valve, flush valve, source pumps, high pressure pump
3. Rinse method: pressure flushing
4. Display: the RO flow chart
5. Control Output: ON normally open single contact output
6. Contact capacity: 10A/250V AC (resistive load)
7. Power supply: AC 220V ± 10% 50/60Hz OR required.
8. Working conditions: ambient temperature: 0 ~ 50°C; Relative Humidity: ≤85%
9. Dimensions: 48 x 96 x 100mm
10. Cut-out Dimensions: 45 x 92mm
11. Installation: Panel
