Gas Detector

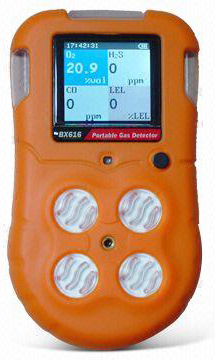

BX616 Multi Gas Detector

Manual

Gas sampling method: natural diffusion Gas sensor type: catalytic (for combustible gas) and electrochemical (for H2S, CO and O2) Detecting gas: combustible gas, H2S, CO, O2 Accuracy: ≤±5%FS Response time: ≤30s Indication: LCD displays real-time and system status, LED, audio and vibration alert for gas leakage, fault and low voltage Working environment: -20 to 50°C, 95% RH （no dew） Power source: 3.6V DC Rechargeable Li-on battery, 1,800Ah Charging time: ≤6h Working time: ≥8h continuously (without alarming) Gas sensor life: 2 years Explosion-proof grade: ExiallCT4 Protection grade: IP65 Weight: 200g (with battery) Dimensions: 116 x 66 x 30mm
Optional External Sampling Pump PP01 Manual
Power: DC3V±30% (2pcs of AA DC1.50V batteries) Electric current: <100mA Sampling flow: ≥400ml/min Working condition: Tem.: -10℃～60℃ Hum.: ≤95%RH Housing material: ABS Dimension:42×27×160mm Weight: About 140g

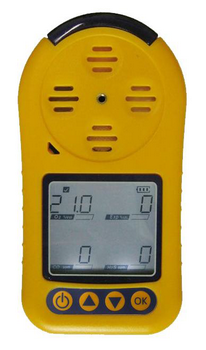

BX615 Multi Gas Detector

Features Warning modes: Alarm/Flash/Vibration Power supply: 1800MA.H Battery Life: 10 hours Sensor life: 24 months per sensor Suitable working environment: -10~+50˚C, 15~95%RH Blast grade: EXiaIICT4 Net weight: 200 gram Dimensions: 98x65x30 mm
Specifications: 1. CO: Range: 0~1000PPM; Resolution: 1PPM; Accuracy: ±5%; Response time: 40s 2. H₂S: Range: 0~100PPM; Resolution: 1PPM; Accuracy: ±5%; Response time: 60s 3. O₂: Range: 0~25%VOL; Resolution:0.1%;Accuracy: ±0.7%; Response time:30s 4. CH4: Range: 0~100%LEL; Resolution: 0.1%; Accuracy: ±5%; Response time:40s

Multi Gas Detector PGM-2400 (Diffusion Type) and PGM-2400P (Pump Type)

Key Features Patented SPE O₂™ Oxygen sensor unique features: 1) Lead-free design that complies with RoHS directive; 2)Extended life compared to lead-type electrochemical oxygen sensors, resulting in a low cost of ownership; 3)Leak-free design, minimizing downtime Best EMI/RFI immunity technology for products in its class, eliminating radio interference Easy access to pump, sensors, filter and battery compartment without exposing electronic components to potential damage IP-65 water- and dust-resistant case Strong, protective, concussion-proof design Advantages Plug-in sensors: oxygen, combustibles, hydrogen sulfide, carbon monoxide or sulfur dioxide Intuitive simple-to-operate two-button user interface with built-in pump Display can be flipped 180º with the push of a button for easy viewing from belt or hand Multi-language support One-button calibration with auto zero capability Loud 95dB audible alarm Bright, red flashing visible alarm Vibration alarm Interchangeable drop-in Lithium-ion and alkaline battery packs
Applications: Oil & Gas HazMat Industrial Safety Environmental
Specifications 1. Size: Diffusion: 5" L x 2.8" W x 1.5" H (12.5cm x 7.2cm x 3.8cm); Pump: 5" L x 2.8" W x 2" H (12.5cm x 7.2cm x 5.0cm) 2. Weight: Diffusion: 9 oz (250g); Pump: 12 oz (350g) 3. Sensors • Catalytic bead for combustibles; • Oxygen: SPE O2™ (non-consumable Solid Polymer Electrolyte technology); • Toxic: electrochemical for H2S or CO 4. Battery Interchangeable Lithium-ion or alkaline battery packs 5. Operating Period: Diffusion: Up to 14 hours continuous operation with Lithium-ion battery, up to 10 hours with alkaline battery (typical, without alarm); Pump: Up to 10 hours with Lithium-ion battery, up to 8 hours with alkaline battery 6. Display Graphic 4 lines, with LED automatic back light in dim light or alarm condition 7. Keypad Two-button operation 8. Direct Readout • Instant reading from up to four sensors; • Oxygen as percentage by volume; • Combustible gas as percentage of lower explosive limit (LEL), scalable using correction factors; • Toxic gases in parts per million; • High and low values for all gases; • Battery and shutdown voltage; • Date, time, elapsed time, temperature 9. Alarms • 95dB buzzer (at 30 cm, typical), vibration alarm, and flashing red LED; • High: 3 beeps, vibration and flashes per second; • Low: 2 beeps, vibration and flashes per second; • STEL and TWA: 1 beep, vibration and flash per second; • Alarms: latching with manual override or automatic reset; • Additional diagnostic alarm and display message for low battery; • Pump stall alarm (QRAE II Pump only) 10. EMI/RFI Highly resistant to EMI/RFI. Compliant with EMC directive; 2004/108/EC additional +60 volts/meter 11. IP Rating IP-65 12. Data logging Standard 12 days at one-minute intervals 13. Calibration Two-point calibration for zero and span (manual, or automatic with the AutoRAE Lite) 14. Sampling Pump Optional, internal pump 300 cc/min 15. Hazardous Area Approval: • US and Canada: C RUS CI, D1, Groups A, B, C, D, T4; • Europe: ATEX II 2G EEx ia d IIc T4; • IECEX: Ex ia d II C T4 16. Temperature: -4° to 113° F (-20° to 50° C) for T4 temperature code 17. Humidity 0% to 95% relative humidity (non-condensing) 18. Attachments Stainless-steel alligator clip 19. Warranty Full 2-year warranty, including all sensors

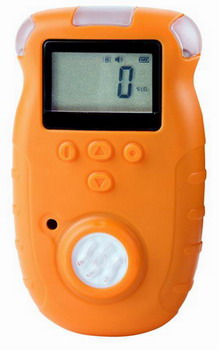

Single Gas Detector BX176

Features
1. Advanced MCU control with low power consumption
2. Large LCD display
3. Adjustable low and high alarm level
4. Adjustable calibrating level
5. High concentration protection for combustible gas
6. Self test for the combustible gas sensor
7. Low battery indication
8. Real time clock display
9. Replaceable sensor module
10. Self-adjustment function
11. Visual and audible alarm with vibration
12. Data logging and uploading;
13. STEL and TWA alarming for toxic gases
14. Advanced self-examination and self-renovation function
15. Password management to avoid wrong operation
16. Intrinsically safe

Specifications
1. Accuracy: <= +/-5% F.S.
2. Response time: T<30s
3. Indication of alarm, fault and low voltage with LED, sound, vibration
4. Operating Environment: temperature -40~70℃ (for combustible gas); -20~50℃ (for toxic gas); Humidity: <95%RH non-condensing
Operating voltage: DC3.7V Li-ion battery 1300mAh
Working time: Combustible gas: 8h continuously; Toxic gas: >=300h continuously
Charging time: 4h~6h
Sensor life: 2 years
IP rating: IP65
Weight: about 125g (including battery but without accessories)
Dimension: 104.0mmX60.8mmX30.5mm

Model	Range	L-Alarm Range	H-Alarm Range	L-Alarm	H-Alarm	TWA	STEL
BX176-CH₄	0-100%LEL	10%LEL~25%LEL	25%LEL~80%LEL	20%LEL	50%LEL
BX176-C₃H₈	0-100%LEL	10%LEL~25%LEL	25%LEL~80%LEL	20%LEL	50%LEL
BX176-H₂	0-100%LEL	10%LEL~25%LEL	25%LEL~80%LEL	20%LEL	50%LEL
BX176-H₂	0-1000ppm	20ppm~150ppm	150ppm~500ppm	35ppm	250 ppm
BX176-H₂S	0-100ppm	5ppm~15ppm	15ppm~30ppm	10ppm	15ppm	10ppm	15ppm
BX176-CO	0-1000ppm	25ppm~100ppm	100ppm~500ppm	35ppm	200ppm	35ppm	200ppm
BX176-CO	0-2000ppm	25ppm~100ppm	100ppm~500ppm	35ppm	200ppm	35ppm	200ppm
BX176-O₂	0-30%vol	16%vol~19.5%vol	22.5%vol~24%vol	19.5%vol	23.5%vol
BX176-C₂H₅OH	0-100%LEL	10%LEL~25%LEL	25%LEL~80%LEL	20%LEL	50%LEL
BX176-NH₃	0-100ppm	20ppm~30ppm	30ppm~70ppm	25ppm	50ppm	25ppm	50ppm
BX176-CL₂	0-20ppm	3ppm~10ppm	5ppm~15ppm	5ppm	10ppm	0.5ppm	1.0ppm
BX176-SO₂	0-100ppm	1ppm~3ppm	3ppm~10ppm	2ppm	5ppm	2ppm	5ppm

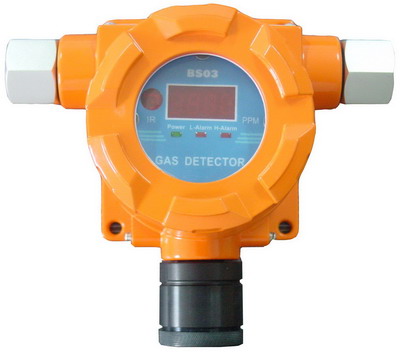

Explosion Proof Gas Detector and Transmitter BS03 Serials

Manual

Features: ATEX Certificate Combustible and Toxic Gases Status at a glance LCD and LED 4~20mA or RS485 signal output Infrared control for adjusting Specifications: Principle: Catalytic/Electrochemical Output signal: 4~20mA or RS485 Alarming output: Free contact: 2pcs; Capacity: 0.5A DC24V Environmental: Combustible: Tem: -40℃ ~70℃, Hum: ≤95%RH Toxic: Tem: -20℃ ~ 50℃, Hum: ≤95%RH Power: DC24V ±25% Consumption: ≤3W Protection explosion: Exd II CT6 Weight: about 2Kg Size: 160x170x105mm Pressure: 86kPa ~ 106kPa Thread: G1/2
Gas Available: CO, H2S, NH3, O2, Cl2, HCN, CIO2, C2H4O, C3H3N, NO, NO2, PH3, SO2, H2, C4H8S, COCL2, HF, F2, HCl, HBr, VOC, Ben2E, CH4, LPG, CnHm, C6H6-CH, C2H2, CnHmOH, FC
When order please inform us the gas tested.

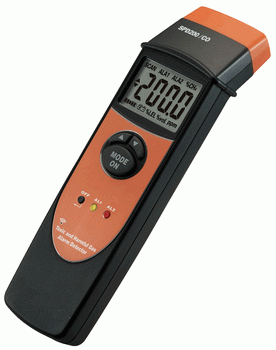

SPD200/CO Carbon Monoxide (CO) Gas Detector

Applications:
This product can be used in industries such as mining, metallurgy, petrochemical, pharmaceutical, waste water treatment, papermaking and infrastructure construction, etc.
Features:
Intellectualized design and multiple functions;
Highlight backlight display and acousto-optic alarming, easily configured;Low power symbol display; Ergonomically case designed, beautiful outlook, nice operate feeling and easy to carry
Specifications:
Measured gas: CO
Measuring range: 0~1,000PPM
Resolution: 1PPM
Measurement error:≤±5%
Test result read time: ≤30 seconds
Dimension: 172Lx51Wx26H(mm)
Power: 3x1.5V AAA battery

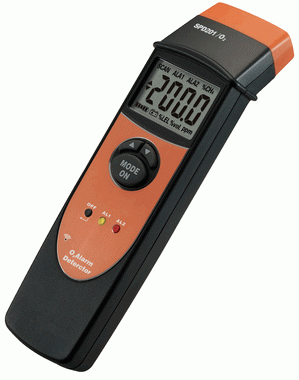

SPD201/O2 Oxygen Gas Detector

Features
1. Test Oxygen in the office, workshop, train, bus, mine, mountain, vessel cabinet ect.
2. With backlight, alarm with light and sound.
3. Low battery indicate
4. Easy operation
Specifications:
Range: 0~25%VOL
Accuracy: ±0.5%
Power: 3x1.5V AAA battery
Size: 172x51x26mm

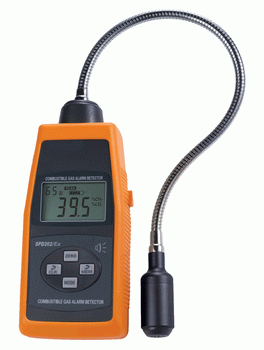

SPD202/Ex Combustible Gas Detector

Applications:
Gas leakage detecting of city gas
Combustible gas leakage detecting of petrochemical industry
Combustible gas leakage detecting of Shipbuilding industry
Combustible gas leakage detecting of Depot, gas station
Combustible gas leakage detecting of oil tank truck
Combustible gas leakage detecting of fire & rescue industry
Features:
Intellectualized design, with recording function, can record up to 99 sets of data.
Chameleon background lighting, white, green and red, react three different measurement condition.
Acousto-optic alarming, easy to set.
Power: 4×1.5V AA battery.
Ergonomically case designed, beautiful outlook, nice operate feeling and easy to carry.
Sealed pouch can improve the performance of explosion-proof.
Specifications:
Measured gas type: natural gas, liquefied petroleum gas, coal gas and other combustible gas, organic solvent volatilization gas of gasoline, alcohol, ketone, etc
Measuring range: 0～100%LEL
Resolution: 0.1% LEL
Measurement error: ≤5%
Test result read time: 10 seconds

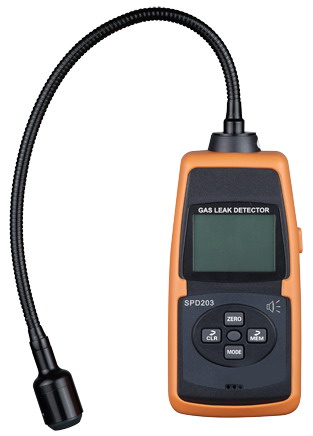

SPD203/Ex Combustible Gas Detector

Features:
The gas leak detector can be used in the natural gas is leaked indoors and outdoors, where the gas is produced, stored, used, etc., such as chemical, petroleum, metallurgy, oil depot, LPG (Liquefied Petroleum Gas) station, gas transmission and distribution, etc. to detect the leakage and show the leaking concentration or explosion percentage with a digital display. This device can set two-level alarming value. The detector can rise the acousto-optic alarming when the detected concentration reaches the preset value. It adopts high sensitivity sensor from Japan Figaro. The meter’s function is powerful. It also can synchronously measure that time’s temperature and humidity when measuring methane gas.

Specifications:
1)Principle for sensor measurement: semi-conductive method
2)Detectable gas: methane gas
3)Measurement range: 0~10000ppm 0~20%LEL (LEL: Lower explosive limit)
4)Resolution: 1ppm 0.1%LEL
5)Error: ±2%
6)Response time: <3s
7)Measurement temperature range: -5ºC~50ºC
Measurement humidity range: 25%~90%RH
8)Operation environment temperature: -5ºC ~ 50ºC
Operation environment humidity: <90%RH
9)Display: large screen digital LCD
10)Alarming: acousto-optic alarming
11) Power supply: 4×1.5V AA batteries
12)Electric current: <90mA(Measurement status)

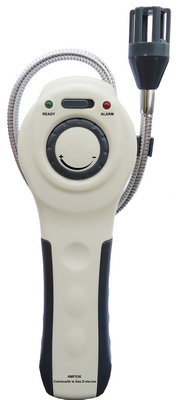

AMF036 Combustible Gas Detector

Specifications:
1. Response time: 2 seconds
2. Warm up time: 60 seconds approx (25℃, 60% RH environment)
3. Continuous operation time: 8 hours (varying with operating status)
4. Low battery indication: 3±0.2V
5. Operation temperature: 0~52℃
6. Adjustable detection control
7. Reset button on the probe handle
8. Constant power indication
9. Power: 3*1.5V LR14 Battery
10. Unit size: 76*49*220MM
11. Standard quantity per carton: 20PCS
12. Standard carton size: 51.1*37.4*28.5CM
13. Standard carton gross weight: 14.4KG

7752 CO2/Temp Meter

Features:
•Low cost portable meter checking for indoor air quality in home, office, workshop.
•Dual display 2 parameters simulatneously: CO2, Temperature
•Warning Carbon Dioxide Level
•Big LCD display with high resolution
•Design with NDIR (Non-Dispersive Infrared) waveguide technology sensor
•Manual calibration is recommended
Specifications:
•Measuring Range CO2: 0~9999ppm (2001~9999ppm not suggested)
•CO2 accuracy: ±50ppm±5% of reading (0~2000ppm)
•CO2 resolution: 1ppm
•Temperature range: -10~60℃
•Temperature accuracy: ±0.6℃
•Temperature resolution: 0.1℃
•Warm up time: 30s
•Response time: 30s max
•LCD Size: 26 x 44mm
•Power: 4 x AA
•Weight: 200g
•Size: 205 x 70 x 56mm

77535 CO2/Temp./RH Meter

Features:
•High CO2 measurement range
•Low cost portable meter checking for indoor air quality in home, office, workshop, vegetable plant, agricultrual plant
•Three display 3 parameters simulatneously: CO2, Temperature, R.Humidity (RH) and display Air/Dew point/Wet Bulb Temp. by selection
•Warning Carbon Dioxide Level
•Big LCD display with high resolution
•Design with NDIR (Non-Dispersive Infrared) waveguide technology sensor
•Manual calibration is recommended
Specifications:
•Measuring Range CO2: 0~9999ppm (5001~9999ppm not suggested)
•CO2 accuracy: ±30ppm±5% of reading (0~5000ppm)
•CO2 resolution: 1ppm
•Temperature range: -10~60; Relative Humidity: 0.1%~99.9% RH; Dew Point Temp.: -20.0~59.9; Wet Bulb Temp: -5.0~59.9
•Temperature accuracy: ±0.6; RH: ±3%
•Temperature resolution: 0.1; RH: 0.1%
•Warm up time: 30s
•Response time: 30s max; RH: 10minutes max
•LCD Size: 26 x 44mm
•Power: 4 x AA
•Weight: 200g
•Size: 205 x 70 x 56mm

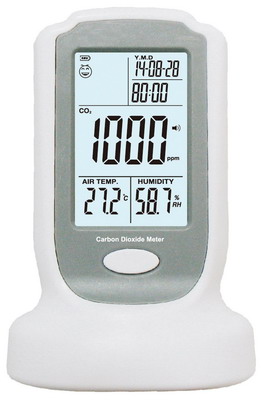

Carbon Dioxide CO2/Temp./RH Meter AMF062

Functional and technical parameters:
1. Detection of gas: carbon dioxide in the air
2. Measuring range: 0 ~ 2000ppm
3. Resolution: 1ppm
4. Minimum reading: 1ppm
5. The basic error: ± 50ppm or ± 3%
6. Response time: <30 seconds
7. Sensor Type: NDIR CO2 gas sensor
8. Charging function: √
9. Buzzer alarm limit settings: √
10. Maximum, minimum inversion and data retention: √
11. Low power indicator: √
12. LCD backlight display: √
13. Work environment: 0-50. C.32-122. F: 10-90% RH
14. Preservation of the environment: -10 ~ 80. C, -14 ~ 176. F; 10 ~ 75% RH
15. Dimensions: 91.5 * 64.8 * 135mm
16. Weight: 156.5g

CO2 Temperature RH Monitor; IAQ (Indoor Air Quality) Monitor AMT76, AMT77

Application: AMT66, AMT67 has the widely application for classroom, kindergarten, meeting room, office building, shopping mall, theater, exhibition, hospital, hotel, sports center, gymnasium, railway station, bus station, airport and other public place where the comfort, healthy indoor air quality is important.
AMT76, AMT77 Multi IAQ monitor is a cost-effective, air quality indicator, the large single digit LED display with three most critical parameters of indoor air quality, the current CO2 concentration, the ambient temperature and the relative humidity (RH).
Size: AMT77: (W)x(H)=22.68 x 16.77 inch (576 x 426mm) AMT76: (W)x(H)=11.69 x 8.27 inch (297 x 210mm) = A4 Paper

Why Monitor CO2?
Indoor Air Quality (IAQ) is measure for the quality of air in interiors, the comfortable indoor environmental quality can make people feel fresh, work efficiency and good for the health. The CO2 concentration is the important factor of good indoor air quality. People breath in oxygen and breath out CO2, nowadays people often close the windows to avoid noise and enjoy the comfort living and working environment provided by air-conditioning systems, which results in the fact that the indoor concentration of CO2 is far higher than outdoor average. With the high CO2 concentration and non- proper ventilation, people will feel headaches, dull, drowsiness, lose of concentration and correspond to the high levels of dust, chemicals and bacteria in the air.

Features
1. CO2, RH, Temperature measure mode
2. Excellent for measure IAQ in Public places
3. Ultra low cost CO2 Monitor achieved by New IR-SoC Technology
4. It uses Dual Beam NDIR technology to improve the long term stability

Specifications:
CO2	Measurement Range	0-3,000ppm display
	Display Resolution	1ppm@ 0~1,000ppm; 5ppm@ 1,001~2,000ppm; 10ppm@ 2,001~3,000ppm
	Accuracy	0~2,000ppm: ±70ppm or ±5% of reading, whichever is greater; over 2000ppm: +/-7%
	Repeatability	±20ppm
	Temperature Dependence	Typ. ±0.2% of reading per °C or ±2ppm per °C, whichever is greater, referenced to 25°C
	Pressure Dependence	0.13% of reading per mmHg
	Response Time	About 2min for 63% of step change
	Warm-Up Time	<60 seconds at 22°C
Temperature	Temperature Range	0°C to 40°C (32°F to 104°F) display
	Display Resolution	0.1°C (0.1°F when temperature display is within 100°F)
	Display Options	°C/°F
	Accuracy	±1°C (±2°F)
	Response Time	20-30 minutes (case must equalize with environment)
RH	Measurement Range	20%-90% RH
	Display Resolution	1%RH
	Accuracy	±5%RH@23°C
	Response time	<5 min for 63% of step change
Operating & Storage Condition	Operating Temperature	0°C to 40°C (32°F to 104°F)
	Humidity Range	0 ~ 95% RH non-condensing
	Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Power Supply	Power Supply	Universal 100~240VAC, 50/60Hz , External Power Adaptor
	Power Consumption	AMT77	AMT76
		11 Watts (Max.)	7 Watts ( Max. )

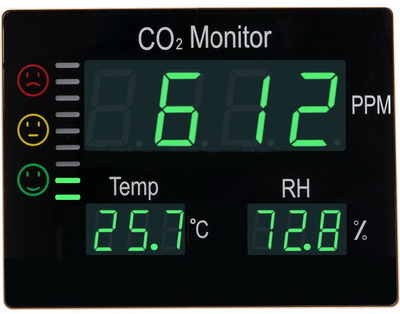

CO2 Temperature RH Monitor AMF103

Brief introduction:
AMF103 is of a detecting carbon dioxide concentration, temperature and humidity of multifunctional testing instrument. It is widely used in industrial production, hotels, shopping malls, office conference room, library, storage warehouses, airports, train stations, bio pharmaceuticals, family room, school laboratory, library, hospital, agricultural production greenhouses and other places of environmental quality detection

Features:
1. Unique shell material design, a long time to use bright as new, the overall appearance,
Humanized button design, easy to operate.
2. High precision, high resolution, fast response;
3. Use matching 220V DC 9V AC power adapter to supply power, can be a long time continuous work;
4. Multiple sets of super large three color LED digital display, clear and intuitive, clear air quality;
5. Carbon dioxide concentration, the lower limit of the alarm value can be arbitrarily set, with two levels of sound and light alarm function, the preset alarm concentration can prompt response and alarm;
6. Sensor using the European imported carbon dioxide sensor, sensor linear output, fast response;
7. Carbon dioxide concentration and temperature and humidity at the same time show that in a timely manner to detect air quality.

Technical parameter:
1. Measure Range: CO₂ concentration: 0~9999PPM; Temperature: -10ºC~100ºC; Humidity: 0~99.9%RH
2. Accuracy: CO₂ concentration: ±70PPM±3%reading; Temperature: ±0.6ºC; Humidity: ±3%
3. Resolution: CO₂concentration: 1PPM; Temperature: 0.1ºC; Humidity: 0.1%RH
4. Repeatability: ≤±0.5%
5. Respond time: 10 seconds
6. Working environment: 0ºC~50ºC, 0%~90% non-condensing
7. Storage environment: -30ºC~70ºC, 0%~90% non-condensing
8. Power supply: AC 220V;9V 2A adapter
9. Power consumption: 9V*350mA
10. Dimension: 388*288*43mm
11. Weight: 2420g

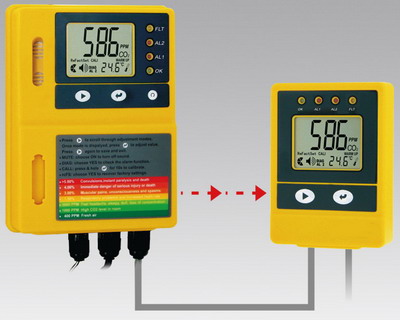

Wall Mount CO2 Temperature Monitor & Controller AMT75 (Main Unit) & AMT75R (Remote Unit)

Features: 1. Dual Beam NDIR (Non-Dispersive Infrared) technology is used to measure CO2 concentration up to 50,000ppm. 2. With the SEU (Sensor Unit, Order Number AMT75) and RDU (Remote Display Unit, Order Number AMT75R), it can connect up to 3 RDU for safety notices. 3. Large digital LCD display clearly indicates the ambient CO2 Concentration and Temperature. 4. Relay output can automatically control a fan to ventilate confined spaces. 5. Audible and visual alarm indications. 6. IP54 Water Proof Protection of SEU (Sensor Unit) except backside when installed on the wall.

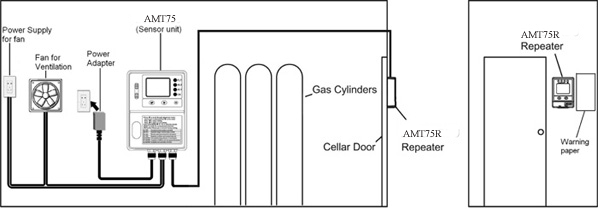

Installation Instruction

Specifications - CO2:

Measurement Range	0~50,000ppm (5%) display
Display Resolution	10ppm @0~10,000ppm, 100ppm @10,001ppm~50,000ppm
Accuracy	±100ppm or ±5% of reading, whichever is greater
Repeatability	±20ppm @400ppm
Annual Drift	<20ppm/Year @400ppm
Temperature Dependence	±0.2% of reading per °C or ±2ppm per °C, whichever is greater, referenced to 25°C
Pressure Dependence	0.13% of reading per mmHg
Response Time	<60 seconds for 90% response to step change
AL1 (First Alarm Level)	5000ppm, 1 / 1.5 / 2 % , Default AL1= 1.5%
AL2 (Second Alarm Level)	1.5 / 2 / 2.5/ 3 / 3.5 / 4 %, Default AL2= 3%
Warm-Up Time	<60 seconds at 22°C
Sound Alarm	80db@10cm

Specifications - Power Supply & Relay Output

Power Supply		AC adapter 110/220 VAC
AC Input	Voltage	100 ~ 240 VAC
	Frequency	50/60 Hz
	Power Requirement	1 W maximum @ 115 VAC 60 Hz; 2 W maximum @ 230 VAC 50 Hz
AC/DC Output	Voltage	6VDC
AC/DC Output	Power	3.0 W
Peak Input Current		0.5 A from 6VDC
Relay Output		30VDC or 250VAC, max 2A, SPST, Normally Open

Specifications - Temperature

1. Temperature Range: 0°C to 50ºC ( 32ºF to 122ºF)
2. Display Resolution: 0.1ºC (0.1ºF)
3. Display Options: ºC / ºF
4. Accuracy: ±1ºC(±2ºF) when CO2 concentration is below first alarm level
5. Response Time: 20-30 minutes (case must equalize with environment)

Operating Conditions:
Operating Temperature: 0°C to 40ºC (32ºF to 104ºF), 0-95% RH, non-condensing
Storage Temperature: -20 to 60ºC (-4 to 140ºF)
Dimensions:
AMT75: 124.8 x 167.7 x 46.57mm (4.91 x 6.6 x 1.83 inch)
AMT75R: 85.0 x 117.5 x 33.4mm (3.35 x 46.3 x 1.32 inch)
Weight (including batteries)：
AMT75: 450 grams
AMT75R: 130 grams

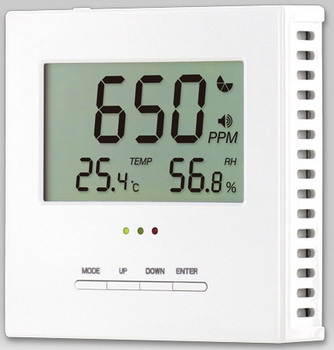

Wall Mount CO2, Temperature, RH Monitor & Controller AMT72

Features: 1. Dual Beam NDIR (Non-Dispersive-Infrared) technology used to measure CO2 concentration. 2. Three different LED display show the current Indoor Air Quality situation. (HVAC/Green House Mode) 3. Linear analog output (0~10V Voltage, 4~20mA Current) and Relay output based on CO2 Level. 4. Reliable Sensor provides long-term calibration stability. 5. The visual and audible alarm function can be adjustable by user. 6. Mounting bracket with terminal block provides quick easy installation.

Typical Wiring Diagrams	CO2 IAQ Level

Specifications - CO2:

Measurement Range	0~3,000ppm display
Display Resolution	1ppm at 0~1,000ppm; 10ppm at 1,001~3,000ppm
Accuracy	±75ppm or ±5% of reading whichever is greater
Repeatability	±20ppm @400ppm
Temperature Dependence	Typ. ±0.2% of reading per ºC or ±2ppm per ºC, whichever is greater, referenced to 25ºC
Pressure Dependence	0.13% of reading per mm Hg
Response Time	About 2min for 90% of step change
Warm-Up Time	About 60 seconds at 22ºC
Sound Alarm	About 65db@10cm
Zone LED Display	Green:<800ppm Yellow:800~1200ppm Red: >=1200ppm (HVAC mode)
Zone LED Display	Green:>1000ppm Yellow:600~1000ppm Red: <=600ppm (Green House mode)
Power Supply	18~26VAC RMS 50/60Hz or 18~36VDC (half-wave rectified, polarity protected)
Linear Voltage Output	0~10VDC (100 Ohms output impedance)
Linear Current Output	4~20mA (Max Load is 500 Ohm, Max Load is 400 Ohm while power supply< 20VDC )
Relay Output	30VDC or 250VAC, max 2A ., SPST .Normally Open
Operating Temperature	0ºC ~50ºC (32ºF~122ºF)
Operating Humidity Range	0 ~ 95% RH non-condensing
Storage Temperature	-20ºC to +60ºC (-4ºF to 140ºF)

Specifications - Temperature

Temperature Range	Display 0ºC to 50ºC
Display Resolution	0.1ºC
Display Options	ºC
Accuracy (Relay no action and be under the alarm level)	±1ºC; when thºe fan blows to the device directly, the accuracy of temperature is +/-1.5ºC
Accuracy (Relay action and exceeds the alarm level)	±2.5ºC; when the fan blows to the device directly, the accuracy of temperature is +/-1.5ºC
Response Time	20-30 minutes (case must equalize with environment)

Specifications - RH

Measurement Range	20%-90% RH
Display Resolution	1%RH
Accuracy	±5%RH@ 23ºC
Response Time	About 5 min for 63% of step change

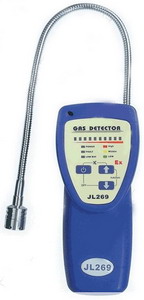

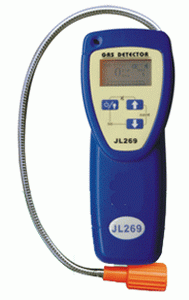

JL269 Serials Gas Leakage Detector

Model: JL269-E, LED Indicate, JL269-C, LCD Display
Features: - Calibration-free on gas sensor - Quick response to combustible gas leakage - Long and flexible gooseneck tube - Adjustable sensitivity - 30-level LED / tricolor show - Battery low voltage alert - Sensor fault self test
Specifications: - Detecting Gas: Natural gas, LPG - Sensitivity: better than 50ppm - Detection range: 0ppm-30000ppm, 0~60%LEL, 0-3.0%VOL - Working condition: Temperature. -40ºC-70ºC Humidity: <=95% RH - Warm-up time: <20S - Response time: <10S - Indication: 30 levels of LED indication - Green: low concentration - Yellow: middle concentration - Red: high concentration - Alarming levels: The shorter the frequent buzzer sound, the higher the concentration reach - Power supply: Ni-H chargeable battery DC3.6V 1600mAh - Charge time: 4-6 hours - Using time of the battery: >8h - Weight: about 310g - Dimensions: L x W x H 170mm x 62mm x 26mm

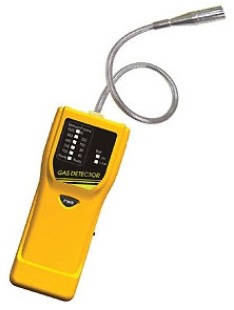

Gas Leakage Detector 7291

Features: •Detects Methane & Propane Gas leakage •Single color LED display 5-level leak •Alarm & LED flash •Battery low indication •Auto calibration while powers on •Built in earphone jack •Features Mute function •Quality semi-conductor sensor •Quick response •High sensitivity
Specifications: Range: Methane: 40~640ppm Propane: 40~640ppm Sensitivity: 40ppm Response time: within 10 seconds Warm up time: within 60 seconds Operating condition: -5~45ºC, 5~95% RH Power: 4 x AA or 9V adaptor Size: 175 x 47 x 28mm Weight: 120g Flexible probe length: 18"/465mm

CO₂ Temp. RH Data Logger AMF102

Features:
1. Super large LCD simultaneously display and log CO₂ Level, Temperature, Relative Humidity, Calendar (Y/M/D) and Time (clock).
2. DIGITAL WALL MOUNTABLE/DESK TOP TYPE
3. 40000 data logging memory
4. WARNING CARBON DIOXIDE LEVEL
5. Stable NDIR sensor for CO₂ concentration, NDIR (Non-Dispersive Infrared) WAVE GUIDE TECHNOLOGY WITH ABC (Automatic Background Calibration)
6. High and Low setting
7. ALARM OUTPUT DRIVE RELAY TO CONTROL SYSTEM
8. Backlight Function
9. Recall MAX and MIN reading
10. LONG TIME DRIFT COMPENSATION
11. Comes with Power Adaptor

Specifications:
1. Large LCD Display: 3.5" (8.9cm) LCD display with backlight
2. Logger mode: Key start/stop, Immediately, Schedule, Real-time & Roll-over
3. Carbon Dioxide (CO₂) Range: 0~9999ppm
4. Accuracy: ±50ppm; ±5% reading (0~2000ppm)
5. Response time: 10sec
6. Temperature Range: 0.0~70.0ºC (14~158ºF)
7. Resolution: 0.1ºC/ºF
8. Accuracy: ±0.6ºC/±0.9ºF (0~50ºC/32~122ºF), others ±1.2ºC
9. Humidity Range: 0.1~99.9%
10. Resolution: 0.1%
11. Accuracy: ±3% (10~90%)
12. Logging Memory: 40000
13. Operating Condition: 0~50ºC, 0~95%RH
14. Storage Condition: -20~60ºC, 0~99%RH
15. Sensor life: 15 years in normal comm.
16. Power Supply: 1A Output 9V AC Adaptor

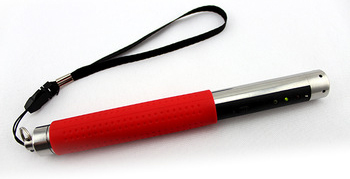

Portable Gas Leakage Indicator TLD030

Features: 1.Stainless steel shell 2.Indicating propane, natural gas, methane and butane 3.Simple to operate 4.Audible and visual alerts
Specifications: Gas indicated: Natural gas (methane), LPG (propane, butane etc) combustible gas Sensitivity: Propane: 500ppm min; 6500ppm max Natural gas: 100ppm min; 6500ppm max Working conditions: Temp:-4~131ºF(-20~55ºC), humidity:<95%RH Working current: 200mA Power Source: DC3V (two 1.5V AA battery) Response time: <5s Alarm method: Visual and audible alarm Sound: >65dB

Carbon Monoxide Meter AMF075

Product Name: Carbon Monoxide Detector
Model: GM8805
Functional and technical parameters
Detection of gas: air, carbon monoxide
Measuring range: 0 ~ 1000ppm
Resolution: 1ppm
Minimum reading: 1ppm
The basic error: ± 5% (F.S), ± 10ppm
Response time: 60 seconds
Sensor Type: Electrochemical CO sensor
Buzzer alarm limit settings: √
Check the highest and lowest concentration of carbon monoxide: √
Setting the highest and lowest concentration of carbon monoxide: √
Maximum, average and data retention: √
Auto power off function: √
Low power indicator: √
LCD backlight display: √
Working environment: 0 ~ 50oC, 32 ~ 122oF, 10 ~ 90% RH
Preservation of the environment: -10 ~ 80oC, -14 ~ 176oF, 10 ~ 75% RH
Dimensions: 55.7 * 29.9 * 135.5mm
Weight: 104g
Power: 2x1.5V AAA battery

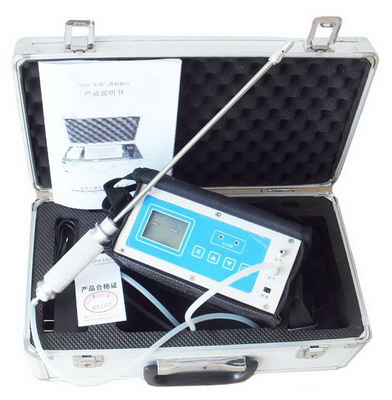

OZONE ANALYZER GS350-O31

Character: Model GS350-O31 is designed to test ozone in the air with big screen display. • Portable, light weight • Imported sensor. • Large LCD display, can show peak value, max and min value. • Rechargeable battery • With pump suck air and response quickly.
Specifications: Gas: Ozone (O3) in the air Range: 0-50ppm Accuracy: <±3% (F.S) Resolution: 0.01ppm Response time: <25s Restart time: <40s With pump suck air Sensor life: 36 months Battery: Rechargeable and working time about 14 hours IP Grade: IP45 Working Temp: -20ºC ~ +70ºC Size: 180 x 80 x 110mm Weight: 1kg Range max can be 100PPM

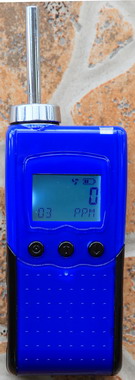

Portable Ozone Test Meter GS100 Serials

Features 1. Test gas in the office, workshop, train, bus, mine, mountain, vessel cabinet ect. 2. With backlight, alarm with light vibration and sound. 3. 1800mA rechargeable battery. 4. High accuracy, high resolution and easy operation. 5. Sensor changeable 6. Automatic Temperature Compensation in full range. 7. Large test range up to 0-50000ppm or 0-100% Vol. 8. Explosion-proof grade: Exia ll CT6 and Protection grade: IP65
Specifications: House Materials: ABS Accuracy: +-3% F.S. Alarm method: light, sound and vibration Working Temperature: -40℃ ~ 70℃, 0-95%RH Test Method: pump inhale Power: 1800mA rechargeable battery, 3.6VDC Weight: 200g; Size: 125x52x30mm
Gas: Ozone (O3)
Model	GS100-O31	GS100-O32	GS100-O33	GS100-O35	GS100-O36
Range	0-1ppm	0-10ppm	0-20ppm	0-50ppm	0-100ppm
Resolution	0.001ppm	0.01ppm
Response Time: 30S max
Others available gas: All

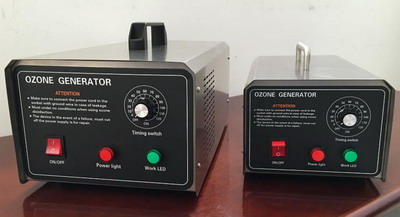

Portable Ozone Generator AM-T Serials

Product introduction:
It is easy for the portable ozone generator to move on the desktop. The equipment is distributed evenly according to the workshop shape. Driven by the axial fan in the equipment, the ozone diffuses into the air. The equipment is suitable to be used in the relatively dry environment.
Scope of application:
Sterilization, disinfection and odor removal: such as hotel air purification, laboratory sterilization, changing room deodorization, toilet deodorization, packaging and storage room and other relatively dry environment with small air humidity.
Product characteristics:
Ceramic chip extending face discharge pattern is used in the ozone core of the equipment; the equipment is characterized by high output and stable ozone concentration; non-standard specifications can also be customized according to the needs of the customers; Microcomputer (CPU) control system; CPU (microcomputer) controls the whole process of the whole machine; free programming host can be started and stopped automatically;
Automatic working time adjustment function of free programming host; Three-digit display; The main function keys of the equipment can be operated artificially according to the need.

Model	Size	Power	Ozone Output	Disinfection Area
AM-T3	180x320x185mm	90W	3g/H	30M³
AM-T5	235x420x175mm	180W	5g/H	50M³
AM-T10	235x420x175mm	240W	10g/H	100M³

Home CO Gas Test Meter GS005, GS006

CARBON MONOXIDE DETECTOR Detailed： - Advanced design - Long Life electro-chemical sensor - Excellent reliability & high accuracy - Self test on the sensor and self diagnostics on the electronics - Easy installation - Test / Reset Button - Low battery warning - Designed to latest EN 50291/CE requirements - Cannot be fitted with battery missing - Loud 85dB alarm signal - Supplied with fixing kits -battery life: more than 1 year -9VDC Alkaline battery
	GS006 without LCD Display	GS005 with LCD Display

Combustible Gas Test Meter

Order No.:
-GS007: Standalone / Single
-GS007A: 12V Relay Output
-GS007B: 220V Relay Output

Hot wire type sensor
-Easy installation and maintenance
-Modernized design
-Detect all sorts of combustible gases, LPG and LNG include, city gas
-Ideal for all kitchens
-Excellent reliability & high stability
-Self test function
-Durable sensor head
-Less affected by other organic solvent
-High Accuracy
-AC ~ DC adaptor included
-Loud sound signal of 85 dB at alarm mode
-Three-year limited warranty.
-Suitable for the safety valve.
SPECIFICATIONS:
Power Source :220V AC
Sensitivity : Propane LEL: 2.1 Vol% / HEL (UEL): 9.5Vol%
Butane LEL: 1.8 Vol% / HEL (UEL): 8.4 Vol%
Methane LEL: 5.0 Vol% / HEL(UEL): 15.0 Vol%
Power Consumption : 1.7W
Operating Temperature : -10℃ ~ 50℃
Ambient Humidity : Less than 95% RH
Horn Level :75 Decibels at 10 feet
Standby Mode : Green LED on
Alarm Mode : Red LED flashes and an acoustic alarm

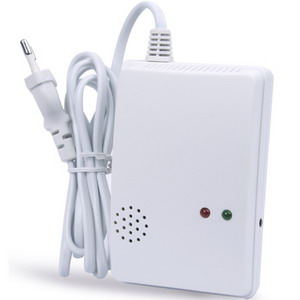

Combustible Gas Test Meter

Order No.:
-GS008: Standalone / Single
-GS008A: 12V Relay Output
-GS008B: 220V Relay Output
-GS008C: Wireless 315MHz
-GS008D: Wireless 433MHz

Characters:
-Semiconductor gas sensor
-Easy installation and maintenance
-Modernized design
-Detect all sorts of combustible gases, LPG and LNG include city gas
-Ideal for all kitchens
-Excellent reliability & high stability
-Self test function
-85db sound
-sensor faulty indicator
-metal bracket for easy installation
-Durable sensor head
-Less affected by other organic solvent
-High Accuracy
-AC ~ DC adaptor included
-Loud sound signal of 85 dB at alarm mode
-Three-year limited warranty.
-suitable for the safety valve.
-EN50194 approval.
SPECIFICATIONS:
Power Source :220V AC
Sensitivity : 10%LEL
Power Consumption : 1.7W
Operating Temperature : -10oC ~ 50oC
Ambient Humidity : Less than 95% RH
Horn Level :85 Decibels at 10 feet
Standby Mode : Green LED on
Alarm Mode : Red LED flashes and an acoustic alarm
Type Of Gas Sensed : Natural gas, town gas, LPG
Size: 110 x 69 x 36mm
Weight: 270g/pcs
Package Size:43 x 110 x 142mm
Quantity/BOX:110pcs

Photoelectronic Smoke Alarm GS009

Order No.:
-GS009-1: 2 wire, 12~35V, Alarm current 70ua max
-GS009-2: 2 wire, 12~35V, Alarm current 70ua max, led remote
-GS009-3: 4 wire, 10.2~13.8V, Alarm current 35ua max, alarm contact N/C or N/O
-GS009-4: 4 wire, 20.4~27.6V, Alarm current 35ua max, alarm contact N/C or N/O

Characters:
1. Advanced photoelectric smoke sensing technology
2. Durable sensor head; excellent smoke access
3. AR (auto reset) function for security systems (optional for 4 wire models)
4. N/C (normal/close)-N/O (normal/open) selectable relay output
5. Easy installation and maintenance
6. Modern design (white and beige colors)
7. Freq.:3~5 sec

SPECIFICATIONS:
1. Smoke sensitivity: EN 54-5/7:2000 standard
2. Detection range: 100 square meters rating for smoke sensor; 50 square meters rating for heat sensor
3. Start-up current: 70ua maximum
4. Alarm impedance: for 2-wire models: 100Ω+3v max; 560Ω+3v max (red led open circuit)
5. Alarm indicator: led continuously emitting red light
6. Temperature range: -10°c to 50°c
7. Remote output: 15 ma max, diode gate
8. Humidity: 0 to 95% rh, non condensing
9. Alarm contact: for 4-wire: n/o or n/c operation
10. Form a: 1.0a@30vdc/0.5a@125vac
11. Dimensions: 10 (dia) x 46mm (ht) with base
12. Weight: 130g/set with base

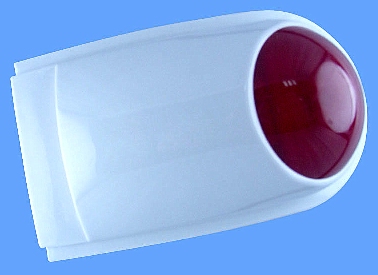

Wireless Siren with Strop Light GS010

Specifications:
1. Rated current: 300mA
2. Rated voltage :12VDC
3. Sound pressure: 128±3DB
4. Color: red /blue/ yellow
5. Dimensions (L x W x H):：210x130x78mm
6. housing ：fire-proof ABS
7. Waterproof grade：IP55
8. Special features： dual tamper-proof design
9. Support 433MHz, 315MHz ect, when order please inform.

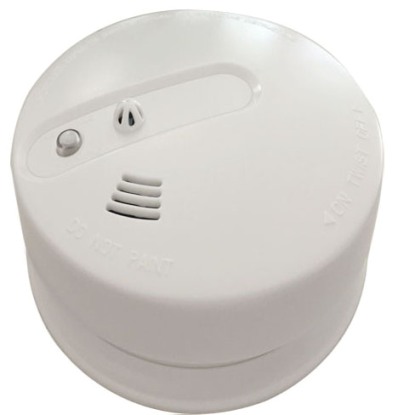

Wireless Smoke and Heat Alarm GS011

Specifications:
1. Detect smoke and heat
2. Sensitixity：2.06%/ft ± 1.3
3. Alarm sound: 85dB/3m
4. Dustproof, anti white light
5. RF frequency:433.92Mhzr
6. DI DI sound & flash alarm
7. 9V alkaline battery powered

Water Leakage Alarm WL-1

More homes damaged by water than by fire, this water leakage alarm can alarm when water leakage.
Easy use and free maintenance.
Widely used in bathroom, kitchen, office, workshop, warehouse, anywhere that water maybe leakage.
Only need 1 x 9V battery.
Easy to install, just put the alarm in the floor.
Can flow in the water, small size, stainless steel sensor.

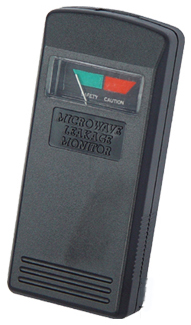

Microwave Leakage Monitor EM0328

FEATURES
No battery needed, compact and easy to use, no harm to environment Needle indicates the intensity of electromagnetic field Green area means safety; Red area means danger, easy to read Frequency range: 3MHz to 3GHz Applicable to mobile phone, microwave oven，mini camera using electromagnetic field, etc
SPECIFICATIONS
Range: 0-10mW/cm Green Zone: Under 5mW/cm (Safety) Red Zone : Over 5mW/cm (Dangerous)

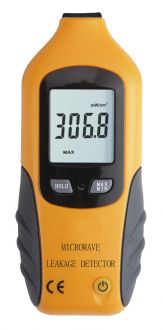

Microwave Leakage Monitor EM0329

FEATURES
1. LCD digital readout 2. Low leakage volume display for warning 3. Never needs recalibration 4. Hign sensitivity to the microwave 5. Excellent reliability and high precision
SPECIFICATIONS
1. Calibrated at 2450MHz 2. Range: 0~9.99mW/cm2 3. Warning value: 5.0mW/cm2 4. Accuracy: +1dB 5. Power supply: 9v battery 6. Size: 1308026mm 7. Weight: 87g

Halogen Leakage Detector CPU-C

Features:
● Displaying quantity of the leak with single color
● Seven-level sensitivity adjustable
● Trigger key board
● Real-time sensitivity adjustable
● Battery voltage display
● Ability to all the halogen gases
● 14-inch (35.5cn) soft stainless probe Application Range:
● Halogen check for lines of freezing, refrigeration and air-conditioning
● Leak check for Serial of vehicle-use air conditioners
● Leak for other systems and storage/recovery vessel. The product takes effect to all the halogen acting refrigerating medium with chlorine and fluorine included, which include but are not limited to:
   1) CFCs e.g. R12, R11, R500, R503 etc.
   2) HCFCs e.g. R22, R123, R124, R502 etc.
   3) HFCs e.g. R134a, R404a, R125 etc.
   4) Other mixers such as AZ-50, HP62, MP39, etc.
● Detect Ethylene Oxide gas leaks in hospital sterilizing equipment (it will detect the homogenate carrier gas).
● Detect SF-6 in high voltage circuit breakers.
● Detect most gases that include Chlorine, Fluorine and Bromine (halogen gases).
● Detect cleaning agents used in dry-cleaning equipment such as carbon tetrachloride.
● Detect perchloroethyl in fire extinguishing system.

Specifications:
1)Power supply: DC3V, Size 2 Alkaline batteries(2)
2) Maximum sensitivity: R12, R22 and R134a have got approved.14g/y
3) Limit sensitivity: fitting for halogen acting refrigerating medium 3g/yr
4) Sensor life expectancy: about 20 hours
5) Battery life expectancy: About 30 hours under normal condition
6) Mode: continue and no limit
7) Reaction time: Instantaneous
8) Warm-up time: 6 seconds
9) Reset time: 2 seconds
10) Weight: 560g
11) Size:22.9cm×6.5cm×6.5cm
12) Length of the probe: 35.5cm Gross Weight: 1550G/PC
13) Packing: 8 PCS/CTN
14) Measurement of the carton: 57×36×39cm

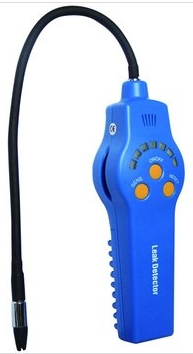

Halogen Leakage Detector HLD-200+

General Descriptions: HLD-200+ is a newly high performance intelligent halogen leak detector. The new shell designed with LED displaying is elegant, easily-carried, easy operation, visual and clear display, etc.
Main features: 1. Visual display and single light diode displays the leak degree in large range in the form of "gradually lights the light". 2. Providing 6 levels of sensitivity to set the real-time cycle adjustment 3. Battery checked function with tricolor display 4. Detect all kinds of halogenated refrigerants. 5. Easy operation with pushbutton 6. The high effective true mechanical pumping provides positive airflow through sensing tip, which can improve the sensitivity and response speed.
Applications: 1. The leak-detect in vocation of freeze, refrigeration, and air-conditioner 2. The leak-detect for air-conditioner in the car 3. It will respond to all halogen gases (including Chlorine and Fluorine). Including 1) CFCS e.g. R12, R11, R500, R503 etc. 2) HCFCS e.g. R22, R123, R124, R502 etc 3) HFCS e.g. R134a, R404a. R125 etc. 4) Other mixtures, e.g. AZ-50, HP62, MP-39, etc. 4. Detect Ethylene Oxide gas leaks in hospital sterilizing equipment (it will detect the homogenate carrier gas. 5. Detect SF-6 in high voltage circuit breaks 6. Detect most gases including Chlorine, Fluorine and Bromine (halogen gas) 7. Detect cleaning agents used in dry cleaning applications such as per chloroethyl. 8. Detect halogen gases in fire-extinguishing system.
Technical parameters: 1. Power supply: 3VDC (2XAA battery) 2. Max. Sensitivity: R12, R22, R134a are certified to 6g/yr 3. Ultimate Sensitivity: 3g/yr 4. Probe life: about 30h 5. Operating temperature: 0~52 6. Battery life: Approximately 30h under normal condition 7. Response time: Instantaneous 8. Work mode: continuous, no limitation 9. Warm-up time: approximately 6s 10. Reset time: 2s 11. Weight: 200g 12. Probe length: 30.5cm 13. Size: 17.0cmx3.4cmx5.5cm

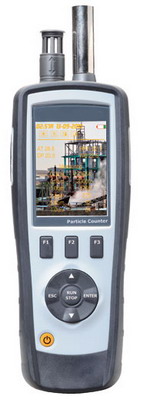

Multi Function Particle Counter AMT17 (DT-9880) and AMT18 (DT-9881)

AMT17 and AMT18 is a multi function Particle Counter with 2.8”color TFT LCD display & a micro SD memory card for capturing images (JPEG) or video (3GP) for viewing on your PC, providing fast, easy and accurate readings for 1) Particle Counter; 2) Air Temperature; 3) Air Relative Humidity (RH); 4)Infrared Temperature Measurements; 5) Dew Point & Wet Bulb Temperature; 6) Gas (HCHO,CO) Detectors (AMT18 only). It is a good hand for industrial measurements and data analyzing, the real scene and time can be displayed on color TFT LCD. Any memory readings can be recorded in SD card. User can analyze the measured air quality any time under the support of software.
Features: 1. 2.8" TFT 320x240 pixels Color LCD display 2. Images (JPEG) & Video (3GP) 3. Simultaneously measure and display 6 channel of particle sizes, measure particle size down to 0.3 μm 4. IR temperature measure & Laser targeting 5.Gas (HCHO,CO) detectors (AMT18 only) 6. Air temperature and humidity, Dew point & Wet bulb temperature 7. Max, Min, DIF, AVG record, Date/time setup controls, High and low alarm 8. Adjustable emissivity & Trigger lock 9. MicroSD (MAX. use 8GB) memory card, Bluetooth /USB interface 10. Auto Power Off 11. Selectable sample time, count data, programmable delay 12. Store 5000 records of date, time, counts, relative humidity, temperature, sample volumes, alarms and location label 13. Language selection English/Chinese, English/French/German/Spanish
Specifications

1. Particle Counter	AMT17	AMT18
Channel	0.3, 0.5, 1.0, 2.5, 5.0, 10μm
Flow Rate	0.1ft3(2.83L/min) controlled by internal pump
Count Modes	Totalize, Concentration, Audio
Coincidence Loss	5%, 2000000 particles per ft3
2. IR Temperature Measure
IR Temp. Range	-20.0ºC ~ 500.0ºC/-4.0ºF to 916ºF; Basic Accuracy: ±1.5% of reading
Optical Resolution	8:1 Distance to Spot size
Emissivity Adjustable	0.10~1.0 Adjustable
Response Time	500mS
3. Air Temperature Measure
Air Temp Range	0 to 50ºC/32 to 122ºF; Basic Accuracy:±0.5ºC/1ºF
Humidity Range	0 to 100%RH; Basic Accuracy:±2.5%RH(20%~80%RH)
Dew Point Temp. Range	-30~100ºC/ -22~199ºF
Wet Bulb Temp. Range	0~80ºC/ 32~176ºF
4. GAS Detectors
HCHO (formaldehyde) Range	N/A	0.01~5.00ppm; Basic Accuracy: ±5%± 0.01ppm
CO (carbon monoxide) Range	N/A	0~1000ppm; Basic Accuracy:±5% ± 10ppm

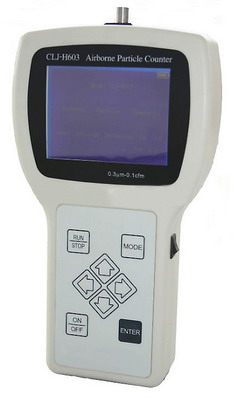

Portable Particle Counter H603

The H603 model is reliable and easy-to-use meter, portable and lightweight.
It counts airborne particles in six different size ranges simultaneously. Count data is displayed on screen (320 x 240 pixels, high resolution) as total number of particles (cumulative count). Data can be easily downloaded to computer, or print out by an optional printer.

FEATURES:
1. 0.1 CFM (2.83 LPM) flow rate
2. Six particle-size channels (0.3, 0.5, 1.0, 2.0, 3.0, 5.0µm)
3. 320×240 pixels LCD display
4. Rechargeable Li-ion battery
5. Internal audible alarm
6. 95% UCL Calculation
7. Large memory for storing data(1500 samples)
8. Data easily downloaded to computer
9. Lightweight (0.6kg)

APPLICATIONS
• Monitor and verify clean rooms
• Test filters in place
• Track down particle sources
• Monitor: Laminar Air Flow and biohazard benches; Clean room laundries; HVAC systems; Computer rooms; Food and beverage packaging; Hospitals: Pharmacy and surgery; Indoor Air Quality (IAQ); Aerospace Assembly
Medical Device Assembly; Automotive: Paint spray booths; Filter performance

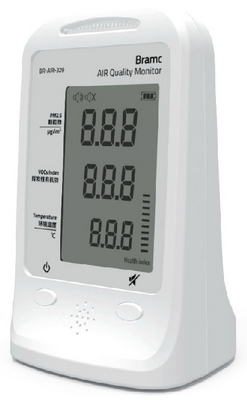

PM2.5 VOC Home/Car Air Quality Detector BR-AIR-329

Display Mode: LCD
Measure Principle: Light Scattering Method
Measure Range Of PM2.5: 0~999µg/m³
Resolution Of PM2.5: 1µg/m³
Measure Range Of TVOC: 0~9.99mg/m³
Resolution Of TVOC: 0.01mg/m³
Measurement Error: 0%
Method Of Monitoring: Automatic
Size: 95*158*85mm
Weight Of Host: 290g
Power Adapter: DC5V
Battery Power Supply: 3 AA Batteries
Alarm Function: Three Colors Indicating Lamp and Buzzer

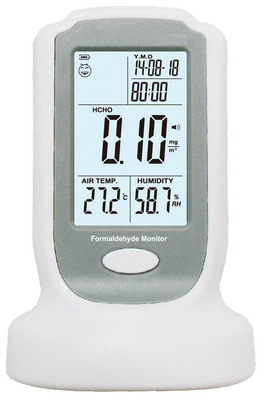

Formaldehyde Air Quality Detector AMF061

Specifications:
1. Detection of gas: air formaldehyde
2. Measuring range: 0-3mg/M³
3. Resolution: 0.01mg/M³
4. Minimum reading: 0.01mg/M³
5. The basic error: ± 0.03mg/M³ or ±3%
6. Response time: <30 seconds
7. Sensor Type: Electrochemical sensors HCHO
8. Charging function: √
9. Buzzer alarm limit settings: √
10. Maximum, minimum inversion and data retention: √
11. Low power indicator: √
12. LCD backlight display: √
13. Work environment: 0-50ºC/32-122ºF; 10-90% RH
14. Dimensions: 91.5 * 64.8 * 135mm
15. Weight: 152g
16. Power: 3x3.6 NiMH batteries

Carbon Dioxide (CO₂) Air Quality Detector AMF062

Specifications:
1. Detection of gas: carbon dioxide in the air
2. Measuring range: 0~2000ppm
3. Resolution: 1ppm
4. Minimum reading: 1ppm
5. The basic error: ±50ppm or ±3%
6. Response time: <30 seconds
7. Sensor Type: NDIR CO₂ gas sensor
8. Charging function: √
9. Buzzer alarm limit settings: √
10. Maximum, minimum inversion and data retention: √
11. Low power indicator: √
12. LCD backlight display: √
13. Work environment: 0~50ºC/32~122ºF; 10-90% RH
14. Dimensions: 91.5 * 64.8 * 135mm
15. Weight: 156.5g

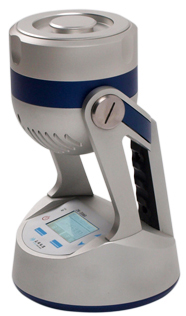

Air Sampler AM2050

Description: AM2050 air bacteria sampler is high effective porous suction sampler. Based on Anderson percussive principle, AM2050 with impact velocity 10.8m/s, as the five grade of Anderson percussive grade. The getter device of equipment get air through porous sampling head, and impact to petri dish of ¢90m, then microorganisms in the air is captured by the agar medium. This equipment can be widely used in pharmacy, food, juice, running water industries, drug control institute, health and epidemic prevention, hospitals, etc.

Features and functions: 1. Standard impact way, Screen type working mode, equal to five grade of Anderson percussive grade sophisticated air flow sensor. Constant current sampling, with high accuracy flow controlling. It will shut off automatically once insufficient battery power or flow mirror more than 2.5%. 2. Measure ambient temperature, atmospheric pressure automatically. Automatically maintain a constant current flow with the change of temperature, atmospheric pressure 3. AC-DC dual-use, with built-in high-energy lithium battery 4. Can be matched with professional A frame, the sampling height can be adjustable. 5. Large-capacity data storage 6. Dot-matrix liquid crystal display, Chinese and English operation. 7. User password protection 8. Fault detection automatic protection 9. There is no need to recalibrate the flow no matter under any temperature, sea level, atmospheric pressure.
Technical parameters: Sampling flow: 100L/min; Resolution: 1L/min; Error: ≤±2.5% Atmospheric pressure: 80~106kPa; Resolution: 0.01kPa; Error: ≤±0.53kPa Working temp: -20~50°C Sampling volume range: 100~3000L Petri dish size: ¢90mm Material: Anodized aluminum Lithium battery: 11.1V/4.4Ah Charging power time: <6h Battery working time: >10h Power supply source: DC15V,3A size: 150×235mm Noise: <60dB(A) Weight: About 2kg Power consumption: <20W
Optional Parts: Compressed Gas Sampling Adaptor AM2050CS; Tripod TR-573	Optional AM2050CS
The optional compressed gas sampling adaptor designed according to GMP standard and widely used for Pharmacy, Food Industry ect. Pressure can adjust by the pressure gauge. Quick connector with pipe and easy to install.

Flow Range	0~6000L/min adjustable
Accuracy	±4%
Pressure	0~10MPa
Working Temperature	0~65℃

Economic Air Sampler AM2050A

Features: 1. Imported fan, electronic flow sensors, flow control and high precision ; 2. Less than the rated sampling flow ( low or sampling head clogging ) automatically stop sampling , to ensure the accuracy of Proof sampling; 3. Built-in high-capacity lithium battery that lasts up to 6 hours sampling ; 4. Any query historical data that can be derived through the U disk ; 5. Dot matrix LCD display, English menu of operations ; 6. Real-time clock display 7. Power saving feature automatically adjusts the backlight brightness, no automatic shutdown ; 8. Full Metal Jacket , solid and durable , stylish appearance ; 9. Sampling head horizontally and vertically adjustable ; 10. Special tripod , sampling height adjustable ; 11. Compressed gas sampling adaptor (optional)
Technical parameters: Sampling flow: 100L/min; Resolution: 1L/min; Error: ≤±2.5% Working temp: -20~50°C Sampling volume range: 100~3000L Petri dish size: ¢90mm Material: Anodized aluminum Lithium battery: 11.1V/4.4Ah Charging power time: <6h Battery working time: >10h Power supply source: DC15V,3A Size: 110×210mm Noise: <60dB(A) Weight: About 1.5kg Power consumption: <15W
Optional Parts: Compressed Gas Sampling Adaptor AM2050CS (See above); Tripod TR-573
