grain moisture meter

Grains Moisture Meter TK25G

Features:
The Grain Moisture Meter TK25G is used for fast and accurate measurement of moisture in the process of allotment, acquisition, storage, machining of packed grains, Barley, Corn, Hay, Oats, Rapeseed, Rough Rice, Sorghum, Soybeans and Wheat .
Specifications:
1. Display:4 digital LCD
2. Measuring range: 7%-28%
3. Temperature: 0-60°C;Humidity: 5%-90%
4. Resolution: 0.1
5. Accuracy: ± 0.5%n
6. Operation: Electrical Resistance Method, Automatic temperature Compensation
7. Power supply: 4x1.5 AAA size (UM-4) battery
8. Dimensions: 460mm×75mm×35mm
9. Weight:203g (not including batteries)
10. Grain:25 Kinds

Grains Moisture Meter TK100G

Specifications:
1. Display:4 digital LCD
2. Measuring range: 7%-28%
3. Operating conditions: Temperature:0-60°C, Humidity:5%-90%
4. Resolution:0.1
5. Accuracy: ± 0.5%n
6. Code choice:7 kinds
7. Operation:
8. Electrical Resistance Method, Automatic temperature Compensation
9.Power supply:
4x1.5 AAA size (UM-4) battery
10. Dimensions:
460mm×75mm×35mm
11. Weight:203g (not including batteries)

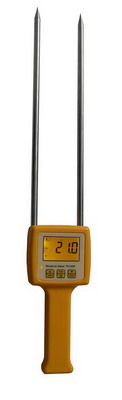

Grains Moisture Meter TK100S

Features:
1. Display:4 digital LCD
2. Measuring range: 5-30%
3. Operating conditions: Temperature:0-60°C; Humidity: 5%-90%
4. Resolusion:0.1
5. Accuracy: ±0.5%n
6. Operation: Electrical Resistance Method, Automatic temperature Compensation
7. Power supply: 4x1.5 AAA size (UM-4) battery
8. Dimensions: 460 x 75 x 35mm
9. Weight:203g (not including batteries)
10. Grains:5 kinds (Corn, wheat, rice, bean, wheat flour.)

Grains Moisture Meter WILE 55

Wile 55 is the best selling moisture meter. It can measure a wide range of moisture, Grain 8~35% and Oil Seeds 5~25 %. Wile 55 is the basic tool for precise quick measurement of grain moisture. It has an easy-to-read LCD display. The user can adjust calibration to match the readings with another meter.
Wile 55 has an automatic temperature compensation that utilises the internal temperature sensors for both grain and the temperature of the device itself.

Technical Data
1. Pre-calibrated for 16 crops covering all the main areas.
2. Only need about 5 seconds to test.
3. Measurement range:
• Grain 8–35 %
• Corn 8-41 %
• Oilseeds 5–25 %
4. Accuracy: +/-0.5% humidity in normal conditions

Benefits of the Wile 55
- Capacitive measurement method
- Measures whole grain samples - no need to grind down samples
- Automatic temperature compensation so accurate even with warm grain
- Average calculation of multiple measurements
- Scale can be adjusted to match the oven test/commercial grain elevators
- Measurement by pushing a single button
- Easy to read numeric display
- Quick guide on the side sticker
- Automatic power off

Grains Moisture Meter WILE 65

Wile 65 pre-programmed with 16 grains
1. Wheat: 8-35% 2. Corn: 8-35% 3. Barley: 8-35% 4. Oats: 8-35% 5. Canola: 5-25% 6. Rice: 8-35% 7. Sorghum: 8-30% 8. Lupin: 8-35% 9. Triticale: 8-35% 10. Linseed: 5-25% 11. Soya beans: 5-25% 12. Oil Seed Sunflower: 4-35% 13. Green Lentil: 8-25% 14. Red Lentil: 8-35% 15. Field Pea: 8-35% 16. Desi Chickpea: 8-25%
*Charts available for non-programmed grains

Technical Data
1. Microprocessors-controlled measurement of whole grain, kernels & seeds
2. Alphanumeric display in user's own language
3. External temperature probe Wile-651 as an option
4. Moisture % for 16 grains and seeds
5. Wide range of moisture: Grain 8...35%, Oil Seeds 5...25%
6. Accuracy: ±0,5% moisture at storage condition
7. User can adjust calibration to "match" commercial meter
8. Automatic temperature compensation
9. Stores test results and displays average reading

Quick and easy to us.
Measurement with the Wile 65 is simple and fast. The meter is operated with the use of two buttons and it has an easy to read display that guides you while doing the measurements. The display shows the grain type and helps you make the possible settings before measurement. A quick reference guide is located on the side of the meter to remind you of the basic steps in measuring grain.
The meter is ready for measurement after the correct grain type is selected. Measurement is done by simply filling the test cell with grain, compressing it by the help of the cap of the meter and pressing the test button. Testing is extremely quick and easy. The Wile 65 always shows the temperature of the grain sample and it has an outlet for the additional external temperature probe (W-651)
that can be used for various temperature measurements from grain, silage, compost and other substances. When using the external temperature probe the result is shown in large numbers on the display.

Coffee and Cocoa Moisture Meter WILE CC

Applications:
Moisture Meter for Robusta & Arabica coffee plus Cocoa Beans.

Features and Specifications:
1. Use Wile Coffee moisture tester when you need quick and reliable information about the moisture content in coffee and cocoa beans.
2. Includes scales for: arabica, robusta, roasted coffee, parchment coffee, cocoa beans.
3. Clear display with easy to see number
4. Easy to adjust calibration
5. Automatic temperature compensation
6. Calculates average values
7. Accuracy +/- 0.5%
8. Moisture range from 1% to 38% dependent on bean type.

Grain Moisture Tester GM001

MANUAL

Specifications
1.Grain Moisture meter for rice, wheat, corn, soybean, rapeseed etc.
2.LCD display
3.Automatic weighing, temperature compensation
Features:
-Quick, accurate, convenient
-AC/DC power supply compatible
-High-brightness backlight LCD, clear and energy-saving
-Multi point calibration, error correction
-Low power consumption, automatic shutdown
-Automatic weighing and temperature compensation
-Volume-weight conversation display
Measuring objectives: foodstuff, and other non-metal granular sample, such as rice grain, wheat, corn, soybean and rape seed etc.
Technical data:
-Measuring error: less than +/- 0.5%
-Repetitive error: less than 0.2%
-Measuring range:0-40%
-Measuring time: less than 10 seconds
-Environmental temperature: 0-40C
-Power supply: four 5#alkaline batteries or external 9V DC.
-Display model: high-brightness backlight LCD
-Net weight: 910gm
Packaging Detail: Each piece packed in aluminium alloy box and 4pc/ctn,65.5*43*41=0.12CBM 14.5Kgs/GW, 12Kgs/NW.

Grain Moisture Tester GM002

Specifications
1.Grain Moisture meter for Japonica Paddy (P1); Bean (P2); Wheat (P3); Rapeseed (P4); Maize (P5); Barely (P6); Long grained Nonglutinous Paddy (P7); Rice (P8); Bean Residue (P9); Peanut (P10); Rapeseed Residue (P11); Granule Feedstaff (P12), Sunflower Seed (P13); Watermelon Seed (big) (P14); Watermelon Seed (small) (P15); Radish Seed (P16); Black Sesame (P17); Yellow Sesame (P18); Cotton Seed (P19); Cotton Residue (P20).
2.LCD display
3.Automatic weighing, temperature compensation
Features:
-Quick, accurate, convenient
-AC/DC power supply compatible
-High-brightness backlight LCD, clear and energy-saving
-Multi point calibration, error correction
-Low power consumption, automatic shutdown
-Automatic weighing and temperature compensation
-Volume-weight conversation display
Measuring objectives: foodstuff, and other non-metal granular sample, such as rice grain, wheat, corn, soybean and rape seed etc.
Technical data:
-Measuring error: less than +/- 0.5%
-Repetitive error: less than 0.2%
-Measuring range:3-35%
-Measuring time: less than 10 seconds
-Environmental temperature: 0-40C
-Power supply: four 5#alkaline batteries or external 9V DC.
-Display model: high-brightness backlight LCD
-Net weight: 700g
Packaging Detail: Each piece packed in aluminium alloy box and 2pc/ctn

Hazelnut Moisture Tester GM005H

Specifications
1.Special designed for hazelnut moisture, it can test both Hazelnut in shelled and unshelled.
2.LCD display
Features:
-Quick, accurate, convenient
-AC/DC power supply compatible
Technical data:
-Measuring error: less than +/- 0.5%
-Repetitive error: less than 0.2%
-Measuring range:3-35%
-Measuring time: less than 10 seconds
-Environmental temperature: 0-40C
-Power supply: AA alkaline batteries or external 6V DC.

Grains Moisture Tester GM005

Specifications 1.Designed for 20 kinds of grains moisture. 2.LCD display Features: -Quick, accurate, convenient -AC/DC power supply compatible Technical data: -Measuring error: less than +/- 0.5% -Repetitive error: less than 0.2% -Measuring range:3-35% -Measuring time: less than 10 seconds -Environmental temperature: 0-40C -Power supply: AA alkaline batteries or external 6V DC.
Code Table: P1: Japonica Rice; P2: Soybean; P3: Wheat; P4: Rapeseed; P5: Corn; P6: Barley; P7: Indica Rice; P8: Rice; P9: Large corn; P10: White wheat; P11: Peanut kernel, P12: Sorghum; P13: Black sesame; P14: Sunflower seed; P15: Watermelon seed; P16: Cotton seed; P17: Soybean meal; P18: Cotton seed meal; P19: Rapeseed meal; P20: Pellet feed; P21-24 Optional.

Grain Moisture Tester GM006

Specifications
1.Test for 14 kinds of grains, Wheat, Maize, Japonica rice, Indica rice, Soybean, Rice, Sorghum, Rapeseed, Millet, Peanut, Barley, Sunflower seed, Coffee bean, Cocoa bean.
2.LCD display
3.Automatic temperature compensation with temperature display.
Features:
-Quick, accurate, convenient
-Multi point calibration, large range error correction
-Low power consumption
-Automatic weighing and temperature compensation
Technical data:
1. Measuring Range: 3%-40%
2. Adjust Range: -9.9% ~ +9.9%
3. Accuracy: 0.5%
4. Repeat Error: 0.2%
5. Working Temperature: 0 ~ 40ºC
6. Automatic Temperature Compensation
7. Battery: 9V (6F22)
8. Auto off: 3 minutes.

Infrared Grain Component Analyzer GM090

Features:
GM090 does not need to pretreatment sample generally, with the quick speed, high analysis efficiency, wide range of samples, low analysis cost, good reproducibility, no damage to the sample, easy to realize on-line analysis, easy operation.
GM090 supports quantitative and qualitative determination, it stores many sets application model, by switch may realize many kinds of material determination, may uses the calibration equation of instrument, also can establish a new calibration equation by user.
This product with results display, measures after choosing calibration model, may display the forecast results and output directly; Friendly man-machine interface, easy and reliable operation, grasps the using of instrument in a short time; connection computer by RS232 serial port, for convenient data transfer and the configuration of software establishment calibration model.
Specifications:
1. Wavelength range: 1600-2400nm 11wavelengthes for choice
2. Wavelength precision: ±5nm
3. Spectral bandwidth: Approximately λ/100
4. Application: Wheat, Maize, Paddy, Soybean and so on
5. Parameter: Protein, Moisture, Amylose.
6. Accuracy: Moisture<±0.2%(content); crude protein content ≤15%, ≤±0.2%; crude protein content ≥15%, ≤±0.5%
7. Repeatability: ＜±0.5% (content)
8. Temperature range: 20-35℃
9. Lamp-house power: 20W
10. Working voltage: 220V
11. Communication Interface: Serial port (RS232)

Plier Type Grain Moisture Meter GM011

Features:
GM011 is a fast grain moisture meter, with plier type sensor, automatic temperature compensation, it can measure the moisture quickly and accurately. it can test 7 different grains.
Specifications:
1. Grain Species: Wheat, Maize, Soybean, Rapeseed, Rice, Japonica Rice, Indica Rice
2. Moisture Range: Wheat: 8%~24%; Maize: 8.2%~25%; Soybean: 5.7%~24%; Rapeseed: 2.5%~17%; Rice: 8.5%~24.5%; Japonica Rice: 8%~25%; Indica Rice: 7.5%~25%
3. Accuracy: ±0.5%
4. Battery: C type (2#) battery, 1.5V*4
5. Size of packing: 29x18x6.5cm
6. Weight: 2kg

High Range Grain Moisture Meter GM015

Features:
GM015 is a fast grain moisture meter, with bucket type sensor, automatic temperature compensation, it can measure the moisture quickly and accurately. it can test 7 different grains.
Specifications:
1. Grain Species: Wheat, Maize, Soybean, Rapeseed, Sorghum, Japonica Rice, Indica Rice
2. Moisture Range: Wheat: 8%~40%; Maize: 8%~48%; Soybean: 6%~35%; Rapeseed: 3%~34%; Sorghum: 6%~37%; Japonica Rice: 8%~40%; Indica Rice: 7%~37%
3. Accuracy: ±0.5%
4. Battery: C type (2#) battery, 1.5V*4
5. Size of packing: 29x18x6.5cm
6. Weight: 2kg

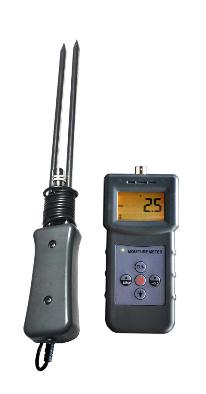

Digital Grain Moisture Meter MC-7825G

Manual

Application: used for fast and accurate measurement of moisture and temperature in the process of allotment, acquisition, storage, machining of packed grains, feedstuff, powder, especially for grains.
Measuring range: please see the table below
Resolution: 0.1
Display: LCD display
Accuracy: ±(0.5%n+0.1)
PC interface: RS232C (Software & communicating cable are optional)
Auto power off
Power supply: 4x1.5V AAA (UM-4) battery
Battery indicator: low battery indicator
Dimensions: 165x62x26mm
Weight (not including probe):119g

Test code and grain species

code	grain	range	code	grain	range	code	grain	range
cd01	Wheat/Rye (Whole)	7-31	cd13	Coffee (Whole)	7-31	cd25	Flax (Whole)	5-21
cd02	Wheat/Rye (Ground)	7-29	cd14	Coffee (Ground)	7-26	cd26	Peas (Progreta) (Ground)	5-21
cd03	Paddy (Whole)	7-29	cd15	Coffee Green (Ground)	7-27	cd27	Peas (Ground)	7-27
cd04	Paddy (Ground)	7-26	cd16	Cocoa Beans (Whole)	4-13	cd28	Ground nuts Hulled (Whole)	5-13
cd05	Rice (Milled)	7-29	cd17	Linseed (Whole)	6-21	cd29	Grass Seed/Rye grass (Whole)	7-28
cd06	Semolina	7-25	cd18	Lentils (Ground/ Whole)	7-21	cd30	Grass Seed /Cocksfoot (Whole)	6-23
cd07	Maize/Corn (Whole)	7-27	cd19	Oilseed Rape (Ground)	5-26	cd31	Flour/Soft Wheat	7-29
cd08	Maize/Corn (Ground)	7-26	cd20	Mustard Seed (Whole)	7-21	cd32	Clover/White Seed (Whole)	6-24
cd09	Soya Beans (Whole)	6-28	cd21	Sorghum/Milo (Whole)	7-28	cd33	Clover/Red Lucerne Seed (Whole)	6-22
cd10	Soya Beans (Ground)	5-22	cd22	Sorghum/Milo (Ground)	7-26	cd34	Buckwheat (Ground)	7-29
cd11	Barley/Oats (Whole)	7-34	cd23	Sunflower seed (Whole)	5-25	cd35	Brassicas/Brussels Sprout (whole /ground),Cabbage seed	5-15
cd12	Barley/Oats (Ground)	7-29	cd24	Sugarbeet Seed (Whole)	6-20	cd36	Beans/Tic/Winter (Ground)	5-15

Digital Grain Moisture Meter MC-7828G

Features:
1. Able to measure grains up to 22 species.
2. The cup type measurement causes small error.
3. Wide measuring range.
4. With storage and statistical functions. Can store 240 groups of measurements.
5. Two presentations, digital display and color coded LED indication.
6. Use the exclusive Micro-computer LSI circuit and crystal time base to offer high accuracy measurement. It can obtain automatically the temperature corrected moisture value.
7. Use USB data output and RS-232 data output to connect with PC.
8. Provide Bluetooth data output choice.

Specifications:
1. Grains: 22 Species
2. Measuring Range: 0~50%
3. Accuracy: ±0.5n%+0.5
4. Resolution: 0.1
5. Display: 4 Digits, 10mm LCD, With Color Coded LED Indicator
6. LED Indicator: Green LED represents a safe, air-dry state; Yellow LED represents a borderline state; Red LED represents a damp state
7. Calibration: Automatic
8. Battery Indicator: Low Battery Indicator
9. Data Output: USB, RS-232, Bluetooth (Optional)
10. Operating Conditions: Temperature: 0~50°C, Humidity: <90%RH
11. Power Supply: 4 x 1.5V AAA Size (UM-4) Battery
12. Dimensions: Unit: 150 x 65 x 30mm; Sensor: 175 x 76 x 76mm
13. Weight: 690g (Not Including Batteries)

Code	Grain	Range %
Cd01	Japonica Rice	0~50
Cd02	Soya Beans	0~35
Cd03	Wheat	0~50
Cd04	Rapeseed	0~35
Cd05	Corn	0~50
Cd06	Barley	0~50
Cd07	Indica Rice	0~50
Cd08	Rice	0~50
Cd09	Bean Pulp	0~50
Cd10	Peanut	0~50
Cd11	Rapeseed Meal	0~50
Cd12	Granulated Feed	0~50
Cd13	Sunflower Seed	0~35
Cd14	Watermelon Seed	0~30
Cd15	White Wheat	0~50
Cd16	Sorghum	0~50
Cd17	Black Sesame	0~45
Cd18	Northeast Corn	0~50
Cd19	Cottonseed	0~50
Cd20	Cottonseed Meal	0~50
Cd21	Coffee Beans	0~45
Cd22	Cocoa Beans	0~40

Digital Grain Moisture Meter MS-G

1. Display:4 digital LCD
2. Measuring range: 3-80%(general); 5-30%(special)
3. Operating conditions:Temperature:0-60°C; Humidity: <90%RH
4. Resolution: 0.1
5. Accuracy: ± 0.5%n
6. Code: 37 kinds
7. Operation: Electrical Resistance Method, Automatic temperature Compensation
8. Power supply: 4x1.5 AAA size (UM-4) battery
9. Dimensions: main unit: 460 x 75 x 35mm; sensor: 370x45x22mm
10. Weight: 265g

Digital Grain Moisture Meter MC-7821

Application: used for fast and accurate measurement of moisture and temperature in the process of allotment, acquisition, storage, machining of packed grains, feedstuff, powder.
Measurement range:moisture content 8-30%; Temperature: –10-55℃
Resolution: 0.1
Accuracy: Moisture: ±0.6%(UNDER 14%);±0.8%(15%-18%);±1(OVER 18)
TEMP: ±0.8℃
Grains: paddy, rice, corm, wheat
Calibration: automatic
Power supply: 4x1.5V AA (UM-3) battery
Dimensions: 182x68x38mm
Probe: 368x44x25mm
Weight (not including probe):334g

Grain Moisture meter AMF039

Functional and technical parameters
1. Measuring range: 5% -30% moisture, temperature -10°C-60°C
2. Maximum error: Moisture ±(1% Rh = 0.5), temperature ±2.5°C (±5°F)
3. Resolution: 0.5% moisture, temperature 0-85% Rh
4. Operating environment: temperature 0°C-40°C / Humidity 0.1-85% Rh
5. Grain varieties to choose: √
6. Grain moisture test: √
7. Food temperature test: √
8. Grain moisture standard setting and excessive moisture Tip: √
9. Backlight control function: √
10. Celsius, Fahrenheit temperature unit conversion: √
11. Battery hold function: √
12. Auto power off function: 5 minutes without any operation automatic shutdown
13. Data hold function: √
14. Size: Host: 72 * 35 * 145mm; Probe: 415 * 36 * 36mm
15. Weight: Host: 190.6g, probe: 208.3g
16. Power: 3 * 1.5VAAA battery
