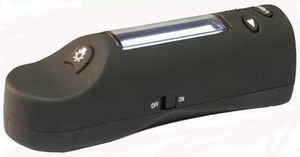

Colorimeter (Color Difference Meter) AMT500                               Manual
  • Easy Operation make you use it easily
  • Widely applied to quality control of plastic and printing industries
  • Display directly color difference by △E*ab, CIE_L*a*b, △L*a*b, CIE_L*c*h
  • Standard deviation within △E*ab0.2 (Test condition: choose average values by 12 pcs white tabula)
  • Measure any color of smooth surface
  • It can be connected with computer to do the inspection by soft ware with USB expansion interface.
Test accuracy: Within 0.2△E*ab
Display: △E*ab; CIE_Lab; △L; △a; △b; CIE_Lch
Test range: L:0~100; a: -128~127; b: -128~127
Test time:  About 3 seconds
Test aperture: Ф8mm
Automatic shutdown after 5 minutes waiting
Light source: C light source
Sensor Correct: silicon photodiode (seed array)
Power: DC/5V (1.5A), two 1.5V (AAA) batteries
Operating environment: 0~+40℃; RH: less than 85%
Size: 170×50×48.8mm
Weight: 204g

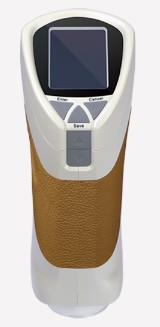

Precise Colorimeter (Color Difference Meter)                           Manual
Order Number: AMT501    Standard Model

AMT501U  with Camera for Sample View
AMT501X  Powder Sampler (can test powder)
  • The 2.4” width colorful screen and portable design
  • Three kinds of light sources for selection, SCI and SCE mode switch and metamerism analysis for different working status
  • Tolerance setting, humanizational auto-judge color difference values and color deviation for judging the color easily
  • Professional color analysis software for doing the color data analysis and color difference diagrammatic outputting
  • The optical mini printer fulfil the output of data
  • Can test various materials including powder
Technical Data
Repeat accuracy 0.08 (Test the standard white tabula for 30 times to get the average value)
Lighting/inspecting system 8/d (8°Falloff/diffuse reflection)
SCI (include Flat Mirror Light)
SCE (eliminate Flat Mirror Light)
Light source White light source
Inspection angle 10˚ Angle of view in CIE
Inspection conditions D65
Rectification White board rectification; Black board rectification
Storage 12 groups of standard samples and it can keep 30 groups of sample values under every standard sample
Display L*a*b*; L*c*h* Chroma values and △E*ab; (△L*a*b*); (△L*c*h*) color difference values
Test caliber 8mm
Power 4 alkaline batteries or nickel batteries special adapter (DC:5V)
Size 77×86×210mm
Weight 550g

Colorimeter (Color Difference Meter) AMT506
Features:
1. Three languages to switch, buttons and menus operation are easy to control
2. A variety of light and color space modes meet special needs of different measurement conditions
3. Two calibrations: white calibration and zero calibration, the measurement data are more accurate and stable
4. 1500 sets of data storage space, can check, callout, upload the data at any time
5. Professional color quality software would assist the color analysis and quality control
Application:
1. Color matching in injection and quality control in production process
2. Color-difference detection and color-difference batch control in printing process
3. Color-difference analysis of spray paint surface and electroplate surface
4. Color-difference of different areas of the metal treating surface
5. Quality control in color difference in sample and the product
6. Color difference inspection of batch products in outdoors
7. On-line monitoring of color difference in production process

Specifications:
1. Illuminant/light system: 45/0
2. Measuring Caliber: Ø8mm
3. Operating language: Simplified Chinese, Traditional Chinese, English
4. Display mode: L*a*b, L*C*H, XYZ, △E*ab, (L*a*b*), (L*C*H*), XYZ
5. Storage space: Standard: 50 sets, 30 sets color difference data under a standard data
6. Standard illuminant: D65, D50, F11, C
7. Standard observer: 10, 2°
8. Calibration: White calibration, Zero calibration
9. Repeatability: Standard deviation: within△E*ab≤0.08(When the white calibration plates measured 30 times, and then averaged)
10. Response Time: About 2 seconds
11. Power source: 4 AA-size batteries or AC adapter
12. Operating temperature: 0- 40℃, (32 -104℉); Relative humidity 85% or less
13. Size (WxHxD): 110*60*190mm
14. Weight: 330g(Without batteries)
15. Standard Accessories: Bag, Protection cap, Software, AC adapter, USB cable, Instrument, Hard case, Calibration plate
16. Optional accessory: Micro-printer
Difference for AMT506, AMT507 (see bold part)
1. Data Storage: AMT506 has, AMT507 no
2. Display mode
3. Standard illuminant
4. Calibration: AMT506 has, AMT507 no
5. Repeatability

Colorimeter (Color Difference Meter) AMT507
Features:
1. Button & menu operation, easy to understand, reasonable price.
2. Commonly used of two measurement modes: Lab& Lch, easy to switch measurement.
3. Automatically display the color difference between the sample and standard sample, also display the color trend degree.
4. The color difference software can analysis, exchange the color difference graph and data.
5. The optional Micro-printer can output the color difference data in time.
Application:
1. Color matching in injection and quality control in production process
2. Color-difference detection and color-difference batch control in printing process
3. Color-difference analysis of spray paint surface and electroplate surface
4. Color-difference of different areas of the metal treating surface
5. Quality control in color difference in sample and the product
6. Color difference inspection of batch products in outdoors
7. On-line monitoring of color difference in production process

Specifications:
1. Illuminant/light system: 45/0
2. Measuring aperture: Ø8mm
3. Display model: L*a*b*、L*C*H*、∆E*ab、∆(L*a*b*), ∆(L*C*H*)
4. Operating language: Chinese or English
5. Measurement model: Single mode, Average mode
6. Standard illuminant: D65
7. Observe: 10°
8. Repeatability: Standard deviation: within △E*ab:0.1 (When the white calibration plates is measured 30 times, and averaged)
9. Response Time: 2 seconds
10. Power source: 4 AA-size battery or AC adapter
11. Operating temperature: 0-40℃ (32-104℉); Relative humidity 85% or less
12. Size (WxHxD): 110 ×60 ×190mm
13. Weight: 310g (Without batteries)
14.Standard Accessories: Bag, Protection cap, Software, AC adapter, USB cable, Istrument, Hard case.
15. Optional accessory: Micro-printer
Difference for AMT506, AMT507 (see bold part)
1. Data Storage: AMT506 has, AMT507 no
2. Display mode
3. Standard illuminant
4. Calibration: AMT506 has, AMT507 no
5. Repeatability

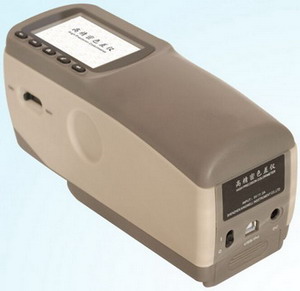

Colorimeter (Color Difference Meter) AMT511
Features:
This high precision colorimeter is developed according to the international standard CIE1931.1974 and relative domestic standard. It has adopted Germany high sensitivity sensor and light source which make the instrument with long life, low maintenance cost and high reliability. It will be a strong tool for color QC , research and production.
Application:
1. Color matching in injection and quality control in production process
2. Color-difference detection and color-difference batch control in printing process
3. Color-difference analysis of spray paint surface and electroplate surface
4. Color-difference of different areas of the metal treating surface
5. Quality control in color difference in sample and the product
6. Color difference inspection of batch products in outdoors
7. On-line monitoring of color difference in production process

Pulp

Powder

Rubber

Hardware

Textile

Printing

Spraying


Specifications:
Model AMT511 AMT512 AMT515 AMT516
Optical Geometry 8/d, equipped with SCI and SCE Synchronous test mode
Measure Caliber 8mm 4mm 14mm 4mm, 8mm switchable
Observer 2°and 10°
Sensor Silicon photodiode array
Repeatability Standard deviation△E﹡ab≤ 0.06 (Using the standard whiteboard to measure 30 times and take the average)
Display Value of chromatism, chromatic value, Color space figure, qualified/ unqualified determination
Observing Light Source D65 D50 C F11 D65 D50 C A F2 F8 F11
Color Space Figure L*a*b, L*c*h, Yxy, RGB △E*ab, △E*ch, CMC((1:1) CMC(2:1), Yellowness Y1, Whiteness W1
Color Difference Formula △E*ab, △E*ch
Power Source 3200 mAh large-capacity lithium battery, AC adapter
Data Storage 20000 groups
Dimension 196 x 71 x 93mm
Weight 660g
Connection USB
Standard Accessories White/black calibration board, USB connection wire, Φ8MM objection cover, power source adapter, Li-battery, color software White/black calibration board, USB connection wire, Φ4MM objection cover, power source adapter, Li-battery, color software White/black calibration board, USB connection wire,Φ14MM objection cover, powder measurement box, power source adapter, Li-battery, color software White/black calibration board, USB connection wire, Φ4MM/ Φ8MM objection cover, power source adapter, Li-battery, color software
Optional Accessories Micro Printer

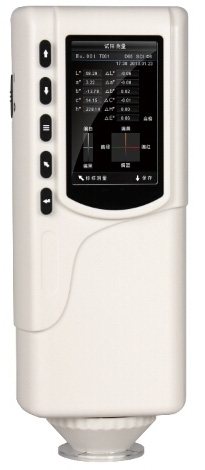

Colorimeter (Color Difference Meter)
Model AMT520 AMT521 AMT522 AMT523
Illuminating/Viewing Geometry 8°/d 45°/0°
Light Source LED Light D65
Measuring aperture Φ4mm, Φ8mm Φ4mm Φ20mm Φ8mm
Color Space CIE L*a*b, XYZ, LCh, RGB, LUV CIE L*a*b*C*h*, L*a*b*, XYZ
Color Difference Formula ΔE*ab, ΔE(h), ΔE*uv, ΔE*94, ΔE*cmc (2:1), ΔE*cmc (1:1), ΔE*00 ΔE*ab, ΔL*a*b*, ΔE*C*h*
Other Chromaticity Data WI (E313, CIE, AATCC, Hunter), YI (D1925, 313), Color Fastness, Staining Fastness, JPC 79, BFD(1.5:1), FMCI I
Observer CIE 10°
Illuminant D65, A, C, D50, F2, F6, F7, F8, F10, F11, F12 D65, LED blue light excitation
Display Data Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset
Measuring Time 0.4s
Repeatability ΔE*ab: ≤0.03 ΔE*ab: ≤0.08
Record 100 Standards, 20000 Samples
Interface USB/ RS-232 USB
PC software CQCS3 software
Battery rechargeable lithium-ion battery 3.7V @3200mAh
Lamp Life 5 years, more than 1.6 million measurements
Optional accessory mini thermal printer, powder test box mini thermal printer

Colorimeter (Color Difference Meter)

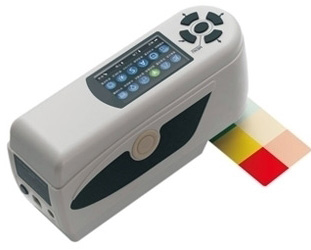

Model AMT525 AMT526 AMT527
Illuminating/Viewing Geometry 8°/d
Light Source D65, D50A D65
Measuring aperture Φ4mm, Φ8mm Φ8mm
Color Space CIE L*a*b*C*h*, L*a*b*, XYZ, RGB, L*u*v*, L*C*h Yellowness & Whiteness Color Fastness CIE L*a*b*C*h*, L*a*b*
Color Difference Formula ΔE*ab, ΔL*a*b*, ΔE*C*h*, ΔE CIE94, ΔE hunter ΔE*ab, ΔL*a*b*, ΔE*C*h*
Extended Aperture (optional) Φ8mm extended aperture, available for measuring concave surface
Repeatability ΔE*ab: ≤0.06 ΔE*ab: ≤0.07 ΔE*ab: ≤0.08
Record 100 Standards, 20000 Samples
Interface USB
Battery rechargeable lithium-ion battery 3.7V @3200mAh
Lamp Life 5 years, more than 1.6 million measurements 3 years, more than 1.0 million measurements
Optional accessory mini thermal printer mini thermal printer, powder test box

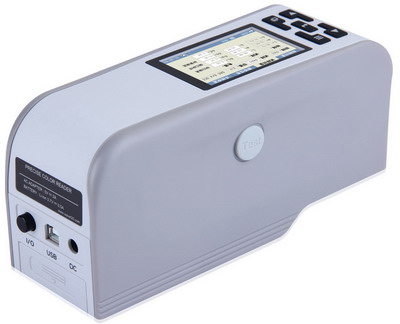

Colorimeter AMT560 General Purpose (Color Difference Meter)
Features:
1. Portable: Structure Design in line with Ergonomics, and easy-to-use Operation. English operating system
2. Stable: The excellent stability △E*ab ≤ 0.07
3. Precision: Precision measurement performance with core technological competence.
4. Using High Capacity Li-ion Battery: Li-ion battery will save cost and charge to ensure the stability of long time measurement.
5. Large Data Storage, Saving more than 10000 data.
6. More Function Expansion: Micro printer.
7. Innovative Technologies: Core technological configuration with a number of innovative technologies. Self calibrate, Direct positioning, Multifunctional testing accessories, Fastest to 0.5s,etc
Specifications:
1. Display Mode: CIELAB, CIELCH
2. Color Difference Formula: △E*ab
3. Illumination Condition: CIE Recommendation：8/d
4. Light Source: LED blue excitation
5. Sensor: Photodiode array
6. Measurement Caliber: φ8mm; Observer: CIE 10°Standard observer
7. Measurement Condition: Light source: D65; Contain light way: SCI SCE
8. Measurement Range L: 0 to 100
9. Repeated Accuracy: △E<0.07(take the deviation average after 30 times measuring the whiteboard)
10. Table Difference: △E<0.2
11. Measurement Interval: 0.5 Sec.
12. Storage Capacity: Type sample data : 100 with testing sample data: 200
13. Language Patterns: Simplified Chinese/English
14. Battery Charging Time: 8 hrs
15. Battery Li-ion battery, 5000 times Measurement
16. Lifetime of Bulb: 5 years more than 1.6 million measurements
17. Display Screen: TFT true color 2.8inch@(16:9) Resolution ratio:400x240
18. Interface of External: RS-232 (115200bps)- connected with micro printer
19. Weight: 700g
20. Size: 199*68*90mm Size of Exterior Package: 400*240*340mm
21. Optional Accessories: Powder measuring device/Liquid measuring device/Micro printer

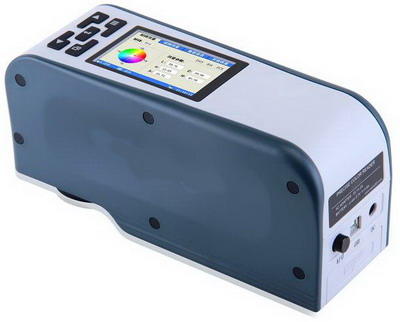

Precision Colorimeter  AMT561: 4mm; AMT562: 8mm; AMT563: 16mm
Features:
These colorimeter is a high precision, high stability, versatile colorimeter. It has three measuring light sources (D50, D65 and F11), two color modes (CIE1976LAB, CIELCH), a color difference formula (△ E * ab); two languages patterns (Simplified Chinese and English) and 3 measuring calibers to choose. It has a greater capacity of data storage space, you also can add mini-printers to do real-time printing measurement data. It can be used with standard color analysis system software.
1. The 4mm caliber version AMT561 is a specially designed, especially for a small area, arc and other special surface type measuring cost-effective precision colorimeter. In a small device, small parts, arc exceptional color quality of face detection to bring great convenience for the user.
2. The 8mm caliber version AMT562 is a universal colorimeter, considering all walks of life and general method of detecting the color to apply customary and considered a variety of materials in the measurement of the measurement aperture size requirements and developed. its versatility and its own tiny difference between units, measurement stability for all sectors for the industry, cross-industry color exchange offer great convenience and trustworthy and reliability.
3. The 16mm caliber version AMT563 precision version to measure the texture of the object exists, pitting, or the measured surface grainy relatively strong or relatively large size of the measured object, or test soft and pop-up object.
Specifications:
1. Display Mode: CIELAB, CIELCH
2. Color Difference Formula: △E*ab
3. Illumination Condition: CIE Recommendation: 8/d
4. Light Source: LED blue excitation
5. Sensor: Photodiode array
6. Measurement Caliber: φ4mm/φ8mm/φ16mm Alternative; Observer: CIE 10°Standard observer
7. Measurement Condition: Light source: D50 D65 F11(TL84); Contain light way: SCI SCE
8. Measurement Range L: 0 to 100
9. Repeated Accuracy: △E<0.05 (take the deviation average after 30 times measuring the whiteboard)
10. Table Difference △E<0.2
11. Measurement Interval: 0.5 Sec.
12. Storage Capacity: Type sample data: 100 with testing sample data: 200
13. Language Patterns: English/Simplified Chinese
14. Battery Charging Time: 8 hrs
15. Battery Li-ion battery, 5000 times Measurement
16. Lifetime of Bulb: 5 years more than 1.6 million measurements
17. Display Screen: TFT true color 2.8inch@(16:9) Resolution ratio: 400x240
18. Interface of External: USB2.0 data communication with color analysis system software RS-232 (115200bps) connected with micro printer
19. Weight: 700g
20. Size: 199*68*90mm; Size of Exterior Package: 400*240*340mm
21. Optional Accessories Flour measuring device/Liquid measuring device/Micro printer

Precision Colorimeter  AMT564: 4mm; AMT565: 8mm; AMT566: 16mm
Features:
These colorimeter is a high precision, high stability, versatile colorimeter. It has 8 kinds of measuring light source (A, D50, D65, C, F2, F7, F11 and F12); 6 kinds of color modes (CIE1976LAB, CIEXYZ, CIELUV, HunterLAB, sRGB, white yellowness); 8 kinds of color difference formula (△E * ab, △ECMC, △EISO, △ECIE94, △EFCM II, △ELuv, △Ehunter, △EsRGB); 3 languages patterns (Simplified Chinese, Traditional Chinese and English), and 3 measurements caliber choice for users. It can be whiteness and yellowness measurements and average measurements, with large-capacity data storage space, you also can add mini-printers to do real-time printing measurement data. It can be used with standard color analysis system software. Caliber 8mm version is a general purpose color difference meter, considering the general method for detecting color, all walks of life habit, and the measuring caliber requirements of various materials. 8mm caliber version provides great convenience and trustworthy reliability for all industry to discuss the color technology, because of its versatility, its tiny table difference, and stability.
Specifications:
1. Display Mode: CIELAB, CIELCH, CIEXYZ, CIELUV, HunterLAB, sRGB
2. Color Difference Formula:  △E*ab, △ECMC, △EISO, △ECIE94, △EFCM II, △ELuv, △Ehunter, △EsRGB
3. Yellowness and Whiteness: Ganci whiteness, ISO brightness, YI yellowness
4. Illumination Condition CIE Recommendation: 8/d
5. Light Source: LED blue excitation
6. Sensor: Photodiode array
7. Measurement Caliber: φ4mm/φ8mm/φ16mm Alternative; Observer: CIE 10°Standard observer
8. Measurement Condition: Light source: A, C, D50, D65, F2(CWF), F7, F11(TL84), F12(U30); Contain light way: SCI SCE
9. Measurement Range L: 0 to 100
10. Repeated Accuracy:  △E<0.03 (take the deviation average after 30 times measuring the whiteboard)
11. Table Difference: △E<0.2
12. Measurement Interval 0.5 Sec.
13. Average Measuring Function: Average measuring frequency: 1-32 times
14. Color Simulation Function: yes
15. Storage Capacity: Type sample data: 100 with testing sample data: 20000; Whiteness/yellowness data: 200
16. Language Patterns: English/Simplified Chinese/Traditional Chinese
17. Battery Charging Time 8 hrs
18. Battery Li-ion battery, 5000 times Measurement
19. Lifetime of Bulb: 5 years more than 1.6 million measurements
20. Display Screen TFT true color 2.8inch@(16:9) Resolution ratio:400x240
21. Interface of External USB2.0 data communication with color analysis system software RS-232 (115200bps) connected with micro printer
22. Weight 700g
23. Size 199*68*90mm; Size of Exterior Package 400*240*340mm
24. Optional Accessories: Powder measuring device/Liquid measuring device/Micro printer

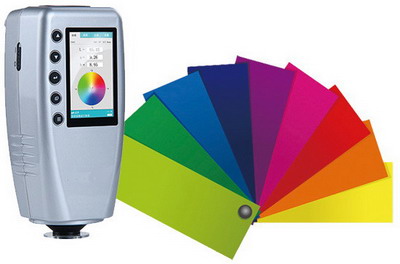

Handheld Colorimeter  AMT567
Features:
Hand-held Colorimeter AMT567 is a high-precision colorimeter, serially developed according to the measuring requirements on different products and gain many optimal achievements with high cost performance. The most convenient colorimeter: automatic correction when starting up (national patent),
Environmental, low energy consumption instrument, high capacity lithium battery, Comfortable observation with real color screen display, Exquisite and delicate.
Specifications:
1. Color Space: CIELAB
2. Color Difference Formula: △E*ab
3. Measurement Caliber: φ8mm
4. Illumination Condition: CIE Recommendation：8/d
5. Light Source: D65
6. Sensor: Photodiode array
7. Observer: CIE 10°Standard observer
8. Measurement Range: L: 0 to 100
9. Repeated Accuracy: △E<0.08
10. Table Difference: △E<0.2
11. Measurement Interval: 1 Sec.
12. Storage Capacity: Type sample data : 100 groups with testing sample data: 100 groups
13. Lifetime of Bulb: 5 years more than 1.6 million measurements
14. Display Screen: TFT true color 2.8inch@(16:9)
15. Language: English/Simplified Chinese
16. Interface of External: USB2.0 (USB-B) RS-232 (115200bps)
17. Weight: 700g
18. Size: 199*68*90mm; Package Size: 400*240*340mm
19. Battery Charging Time: 8 hrs
20. Battery: Li-ion battery, 5000 times Measurement
21. Optional Accessories: Powder measuring device/Micro printer

Handheld Colorimeter  AMT568
Features:
AMT568 includes 3 switchable calibers (4mm/8mm/40mm), It is a specially designed, high performance precision colorimeter, caliber 4mm can apply on small area, cambered and other special surface, caliber 8mm is a universal type for many field, also caliber 40mm can be used for huge, texture and pitting surface. It can bring great convenience for the user in the color quality detection on all kinds of measuring material
Specifications:
1. Color Space: CIELAB, CIELCH, CIEXYZ, sRGB
2. Color Difference Formula: △E*ab △E*LCH
3. Measurement Caliber: Φ40mm/φ8mm/φ4mm Alternative
4. Illumination Condition: CIE Recommendation：8/d
5. Light Source: D65 A F(CWF)
6. Sensor: Photodiode array
7. Observer: CIE 10°Standard observer
8. Measurement Range: L: 0 to 100
9. Repeated Accuracy: △E<0.06
10. Table Difference: △E<0.2
11. Measurement Interval: 0.5 Sec.
12. Storage Capacity: Type sample data : 100 groups with testing sample data: 200 groups
11. Lifetime of Bulb: 5 years more than 1.6 million measurements
12. Display Screen: TFT true color 2.8inch@(16:9)
13. Language: English/Simplified Chinese
14. Interface of External: USB2.0 (USB-B) RS-232 (115200bps)
15. Weight: 700g
16. Size: 199*68*90mm, Package Size: 400*240*340mm
17. Battery Charging Time: 8 hrs
18. Battery: Li-ion battery, 5000 times Measurement
19. Optional Accessories: Powder measuring device/Micro printer

Tintometer (Colorimeter/Levipond Tester) WSL-2

Characteristics:

1. Visual measurement of color matching to determine material color, can measure oil, beer, painting, plastic, jam, textile, grains ect.

2. Design in conformity with internationally accepted color scale of Lovibond

3. Simple structure and easy to operate

Specifications:

1. Measurement range:

    Red R0.1-R79.9 Lovibond unit

    Yellow R0.1-R79.9 Lovibond unit

    Blue R0.1-R49.9 Lovibond unit

    Neutral 0.1-3.9 Lovibond unit

2. Minimum Reading: 0.1 Lovidond unit

3. G.W.: 11kg

4. Dimensions: 620mm X 440mm X 300mm


Color Spectrophotometer
Features
1. Portable: Hand-held design, lightweight, can be run by batteries or AC adapter
2. Compact: Measurements can be taken from many different angles
3. 2.8" TFT display: Has multiple displays and features a display reversing function so screen can be read no matter which hand is holding the device.
4. Easy to use: Only has two main buttons.
5. SCI and SCE measurements: Can calculate and display both simultaneously
6. USB data output
7. Can print data with mini printer

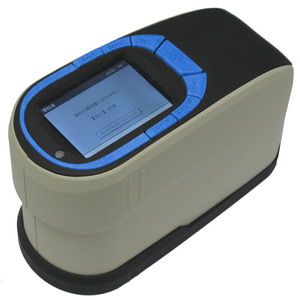

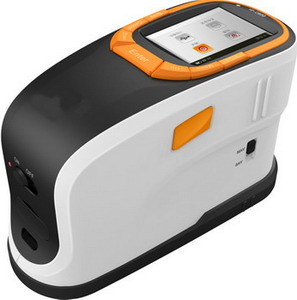

Top popular model: AMT505B

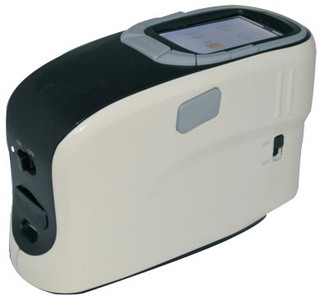

MODEL AMT508 AMT505A AMT505B AMT509A AMT509B AMT510A AMT510B

Measuring Caliber

 8mm 8mm 4mm 8mm 4mm 8mm 4mm

Repeatability

 Light splitting reflectivity: standard deviation within 0.08%
Color Values: ΔE*ab<=0.03 Color Values: ΔE*ab<=0.03 Color Values: ΔE*ab<=0.02 Color Values: ΔE*ab<=0.15

Data Storage

 20000 40000
Sensor

blue light enhanced sensor array

dual light path sensor array
Light Source Longevity 5 years, 1.5 million tests

10 years, 3 million tests
Interface

USB

USB, Bluetooth
Measurement Time Interval 2s 0.5s
Color Space

CIE-L*a*b, L*C*h, L*u*v, XYZ, Yxy, Reflectivity

CIE-L*a*b, L*C*h, L*u*v, XYZ, Yxy, Reflectivity, Hunterlab, Munsell MI, CMYK
Color Difference Formulas

ΔE*ab, ΔE*CH, ΔE*uv, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*94, ΔE*00

ΔE*ab, ΔE*CH, ΔE*uv, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*94, ΔE*00, ΔEab (Hunter), 555, color classification
Other Colorimetric Indices WI (ASTM E313-10,  ASTM E313-
73, CIE/ISO, AATCC, Hunter, Taube, Berger, Ganz, Stensby, Metamerism index Milm, adhesive/changing color fastness

WI (ASTM E313-00, ASTM E313-73, CIE/ISO, AATCC, Hunter, Taube, Berger, Stensby), YI (ASTM D1925, ASTM E313-00, ASTM E313-73), Tint (ASTM E313, CIE, Ganz), Metamerism index Milm, adhesive/changing color fastness, ISO luminance,8 gloss, A density, T density, E density, M density.
Color Matching System

Not Match

Match
Battery Capacity

Rechargeable, 10000 Continuous Tests

Rechargeable, 20000 Continuous Tests

Other Specifications which are all same
Illumination d/8 (Diffused lighting, 8 degrees observe angle); SCS optical engine (light splitting and integration system), ETC (real time calibration technology), SCI (specular reflection included)/SCE (specular reflection excluded) simultaneous measurement. (conform to CIE No.15, ISO 7724/1, ASTM E1164, DIN 5033 Teil7,  JIS Z8722 Condition c standards)

Sphere Size

Φ40mm, Alvan diffused reflection surface coating

Wavelength Range

400nm-700nm

Wavelength Interval

10nm

Half Spectral Width

5nm

Reflectance Range

0 ~ 200%

Reflectance Resolution

0.01%

Observation Angle

2°/ 10°

Measurement Light Source

A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12

Data Being Displayed

SPD distribution/data, sample's color values, color difference values/graph, pass/fail results, color error tendency, color simulation, display measurement area ect.

Measurement Time

1s

Inter Instrument Agreement

ΔE*ab within 0.2 (BCRA color charts II, average of the 12 charts)

Size

181x73x112mm (L*W*H)

Weight

550g

Display Screen

True color screen that includes all colors

Operating Temp./RH

0 ~45°C, RH 80% or less (at 35°) with no condensation

Storage Temp./RH

-25 ~55°C, RH 80% or less (at 35°) with no condensation

Display screen

2.8 inch TFT
UV Light Source Not Include

Standard Accessories

DC adapter, Lithium battery, manual, color management software, drive software, electronic manual, color management guide, USB cable, black/white calibration tube

Optional Accessories

MINI Printer, Powder Molding Device

Color Spectrophotometer AMT505H
Features
1. Portable: Hand-held design, lightweight, can be run by batteries or AC adapter
2. Compact: Measurements can be taken from many different angles
3. 2.8" TFT display: Has multiple displays and features a display reversing function so screen can be read no matter which hand is holding the device.
4. Easy to use: Only has two main buttons.
5. SCI and SCE measurements: Can calculate and display both simultaneously
6. USB data output
7. Can print data with mini printer

Illumination/Observation system

D/8 (diffuse illumination, 8° reception, SCE/SCI)

Sensor

Photoelectric diode array

Integrating Sphere Diameter

40mm

Wavelength range

400nm ~ 700nm

Wavelength interval

10nm

Half bandwidth

<=14nm

Reflectance range

0 to 175%, resolution: 0.1%

Light source

Composite LED

Measurement time

Approx 1.5 seconds

Measuring caliber

8mm

Repeatability

The standard deviation within 0.2%; Colorimetric Value: Standard deviation within ΔE*ab 0.08

Inter instrument agreement

Within ΔE*ab 0.4/ Standard color boards

Languages

Chinese, English

Standard observer

2°, 10° (CIE 1931/2°, CIE 1964/10°)

Observation light source

A,C,D50,D65,F2,F6,F7,F8, F10, F11, F12 (can select two light sources for display at same time)

Displayed data

Spectral value/chart, colorimetric value, chromatic aberration value, pass/fail, color simulation.

Color space/standards

L*a*b*, L*C*h, ΔE*ab (CIE1976), ΔE*ch, ΔE*94 (CIE1994), ΔE00 (CIE2000), CMC(1:1), CMC(2:1), Yxy, XYZ, WI (ASTM E313/CIE), YI (ASTM E313/ASTMD1925), ISO Brightness (ISO2470), Density status A/T, CIE00, WI/Tint

Data storage

100*200 (100 of standard samples, with maximum of 200 records under each standard sample)

Interface port

USB

Power source

lithium battery, DC adapter

Operating temp./ humidity

5 ~40°, RH 80% or less (at 35°) with no condensation

Storage temp. / humidity

0 ~45°, RH 80% or less (at 35°) with no condensation

Display screen

2.8 inch TFT

UV Fluorescence

Without UV

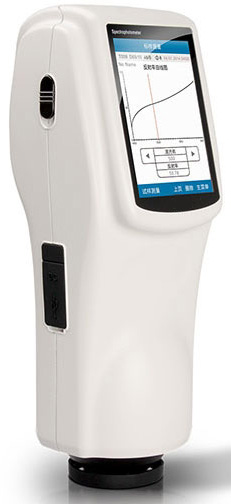

Color Spectrophotometer

Model

 AMT528 AMT529 AMT530

Illumination/observation system 45°/0° D/8°
Integrating Sphere Size Φ58mm
Light Source Combined LED Sources
Sensor Silicon Photodiode Array
Wavelength Range  400~700nm
Wavelength Pitch 10nm
Reflectance Range 0~200%
Measuring Aperture Φ8mm Φ4mm
Color Space CIE LAB, XYZ, Yxy, LCh, CIE LUV CIE LAB, XYZ, Yxy, LCh, CIE LUV, LAB & WI & YI
Color difference Formula ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00 ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*cmc(l:c), CIE2000ΔE*00, ΔE(h)
Other Chromaticity Data WI (ASTM E313, CIE/ISO, AATCC, Hunter), YI (ASTM D1925, ASTM 313), TI (ASTM E313, CIE/ISO), Metamerism Index (Mt), Color Stain, Color Fastness WI (ASTM E313, CIE/ISO, AATCC, Hunter), YI (ASTM D1925, ASTM 313), TI (ASTM E313, CIE/ISO), Metamerism Index (Mt), Strength
Color Stain, Color Fastness
Observer 2°/10°
Illuminant  D65, A, C, D50, D55, D75, F2, F6, F7, F8, F10, F11, F12 D65, A, C, D50, D55, D75, F1, F2(CWF), F3, F4, F5, F6, F7(DLF), F8, F9, F10 (TPL5), F11(TL84), F12 (TL83/U30)
Display Data  Spectral Value/Graph, Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation Spectral Value/Graph, Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation, color index setting (ΔE*94, ΔE*cmc, ΔE2000), tolerance prompt, reverse prompt, time setting, language setting, restore factory setting
Measurement Time 1.5s 1.2s
Repeatability Spectral Reflectance standard deviation within 0.1%, (400~700nm: within 0.2%) Spectral Reflectance: standard deviation within 0.1%, (400~700nm: within 0.2%), Colorimetric Value: Standard deviation within ΔE*ab 0.04
Colorimetric Value Standard deviation within ΔE*ab 0.04
Inter Instrument Agreement Within ΔE*ab 0.2 (Average for 12 BCRA Series II color tiles)
Dimension  L*W*H=90*77*230mm
Weight 600g
Battery Li-ion battery 5000 times within 8 hours Li-ion battery. 2800 times within 8 hours
Lamp Life 5 years, more than 1.6 million measurements
Display Screen TFT 3.5inch, Capacitive Touch Screen
Interface USB/RS-232
Data Memory 1000 Standards, 15000 Samples
Optional Accessory Micro Printer, Universal Test Box

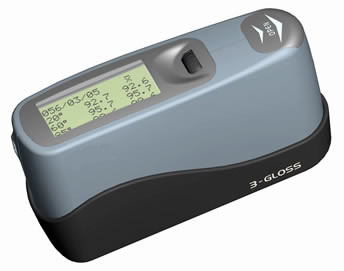

Multi Angle Gloss Meter AMT502
1. Exquisite design more ergonomic, allowing you to use handy.
2. English user interface, operate more simple and convenient.
3. Three-angle gloss data also showed that different gloss conditions to meet your data needs.
4. The latest Bluetooth and removable storage cards allow you to exchange data more easily.
5. Dedicated software can help you gloss for data analysis and output.
Applications Surface luster measure for printing ink, oil paint, bake lacquer, coat, woodwork ect.
Surface luster measure for construction decoration materials: Marble; granite; glass chemical polishing brick, pottery brick
The surface luster measure for plastic, sheet
The surface luster measure for other non-metal materials
Technical Parameter
Measuring Angle
Degree
20°; 60°; 85°
Incidence Angle
GU
Gs(20°): 0.0~120
Gs(60°): 0.0~120
Gs(85°): 0.0~120
Gs(20°): 120~2000
Gs(60°): 120~1000
Gs(85°): 120~160

Measuring Spot
mm
Gs(20°): 10x10
Gs(60°): 9x15
Gs(85°): 5x38
Resolution
GU
0.1
1
Reproducibility
GU
0.2
0.2%
Repeatability
GU
0.5
0.5%
Deviation
GU
+_1.5
+_1.5%
Zero Point Deviation
0.2GU
Operating Temperature
10°~40°C
Storage Temp
-10°~70°C
Relative Humidity

Less then 85%,Non-condensing
Power Supply

4AAA alkaline Battery (optional)
Volume

163.8*58.1*88.3mm
Weight

520g

Single Angle Gloss meter AMT503
1. Exquisite design more ergonomic, allowing you to use handy.
2. English user interface, operate more simple and convenient.
3. Three-angle gloss data also showed that different gloss conditions to meet your data needs.
4. The latest Bluetooth and removable storage cards allow you to exchange data more easily.
5. Dedicated software can help you gloss for data analysis and output.
Applications Surface luster measure for printing ink, oil paint, bake lacquer, coat, woodwork ect.
Surface luster measure for construction decoration materials: Marble; granite; glass chemical polishing brick, pottery brick
The surface luster measure for plastic, sheet
The surface luster measure for other non-metal materials
Technical Parameter
Measuring Angle
Degree
60°

Incidence Angle
GU
Gs(60°): 0.0~120
Gs(60°): 120~1000
Measuring Spot
mm
Gs(60°): 9x15
Resolution
GU
0.1
1
Reproducibility
GU
0.2
0.2%
Repeatability
GU
0.5
0.5%
Deviation
GU
+_1.5
+_1.5%
Zero Point Deviation
GU
0.2
Operating Temperature
°C
10°~40°
Storage Temp
°C
-10°~70
Relative Humidity

Less then 85%,Non-condensing
Power Supply

4AAA alkaline Battery (optional)
Volume
mm
163.8*58.1*88.3
Weight
g
520

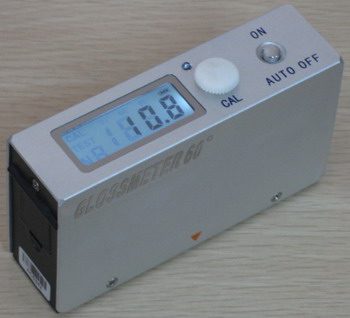

Single Angle Universal Gloss meter AMN60
AMN60 universal gloss meter can meet standards of ISO2813, ASTMD523, DIN67530 and GB9754, GB9966, GB/T13891, it is widely used for:
1. Cars, household appliances, musical instruments, furniture and other industries: paint, paint
surface gloss measurement.
2. Construction, decoration and other industries: the floor, marble, granite, ceramic tile surface gloss measurement.
3. Printing and packaging industry: ink, paper surface gloss measurement
4. Other industry needs to surface gloss measurement.

Specifications:
Range: 0～199.9Gs
Resolution: 0.1Gs
Accuracy: ±1.2
Stability: ±0.4
Angle: 60°
Power: 1 x AA battery
Measuring Area: 10×20mm
Window Size: 14×28mm
Meter Size: 114×32×64mm
N.W.: 180g

Professional  3 Angles Gloss meter AMN66
AMN66 high quality universal gloss meter can meet standards of ISO2813, ASTMD523, DIN67530 and GB9754, GB9966, GB/T13891, can replace BYK products. it is widely used for:
1. Cars, household appliances, musical instruments, furniture and other industries: paint, paint
surface gloss measurement.
2. Construction, decoration and other industries: the floor, marble, granite, ceramic tile surface gloss measurement.
3. Printing and packaging industry: ink, paper surface gloss measurement
4. Other industry needs to surface gloss measurement.

Measuring Angle

Degree

20°, 60°, 85°

Incidence Angle

GU

Gs(20°):0.0~99.9

Gs(20°):100~2000

Gs(60°):0.0~99.9

Gs(60°):100~1000

Gs(85°):0.0~99.9

Gs(85°):100~160

Measuring Spot

mm

Gs(20°):10*10

Gs(60°):10*20

Gs(85°):8*30

Division value

GU

0.1

1

Reproducibility

GU

0.2

0.2%

Repeatability

GU

0.5

0.5%

Deviation

GU

+_1.5

+_1.5%

Zero Point Deviation

GU

0.2

Operating Temperature



10°~40°C

Storage Temp



-10°~70°C

Relative Humidity



Less then 85%,Non-condensing

Power Supply



AA/LR6 battery

Volume

mm

137*38*64

Weight

g

380

Professional  3 Angles Gloss meter MG268-F2
Applications
1. For all types of coatings and finished surface such as paints, varnishes, printed ink, etc.
2. Decorative materials such as marble, granite, ceramic tile, polished brick and others.
3. Other kinds of materials and objects such as plastic, wood, paper, etc.
4. All kinds of metal materials and their coatings.

Characteristics
1. Serial data via RS-232 serial cable interface
2. Data Operator Software Included
3. Memory capacity of 10000 measurements that can be classified into 999 groups
4. Power Consumption: a single AA battery, rechargeable or alkaline
Specifications:
Reading Range: 0~199.9~2000GU
Deviations: ±1.5;±1.5%GU
Measuring Area: 9 x 10/9 x 16/ 5 x 39mm2
Angle of Incidence: 20°/60°/85°
Dimensions (L×W×H): 155 x 48 x 75mm
Weight: 400g

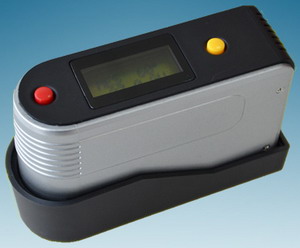

Professional  1 Angles Gloss meter ETB-0686
Applications
* The surface luster measure for printing ink, paint, bake lacquer, coating and woodwork
* The surface luster measure for construction decoration materials: marble; granite; glass; chemical polishing brick and pottery brick
* The surface luster measure for plastic and sheet
* The surface luster measure for other non-metal materials
Characteristics
* Fine, light stylish appearance, easy to carry
* Completely intelligentized design, single key operation, convenient to use
* Automatic adjustment, no need to be hand adjustment
* Long life-span lamp- house, no need to change
* Precise measure, excellent repetition performance
* LCD digital display
* There is buzz sound during operation
* Have electrical source pressure shortage indication function
* Turn off automatically

Specifications:
* Measure range: 0-200GU
* Stability: <±0.4 GU/30Min
* Value error: <±1.2GU
* Power:1.5V(AAA)*2
* Dimension: 114*70*38mm
* Weight: 280g
* Environment temperature: 0-40°C
* Relative humidity: ≤ 85%

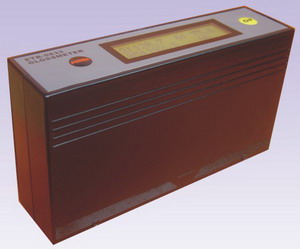

Professional  3 Angles Gloss meter ETB-0833
Applications
* The surface luster measure for printing ink, paint, bake lacquer, coating and woodwork
* The surface luster measure for construction decoration materials: marble; granite; glass chemical polishing brick and pottery brick
* The surface luster measure for plastic and sheet
* The surface luster measure for other non-metal materials
Characteristics
* Fine, light stylish appearance, easy to carry
* Completely intelligentized design, single key operation, convenient to use
* Automatic adjustment, no need to be hand adjustment
* Long life-span lamp- house, no need to change
* Precise measure, excellent repetition performance
* LCD digital display
* There is buzz sound during operation
* Have electrical source pressure shortage indication function
* Turn off automatically

Specifications:
* Measure range: 0-200GU
* Stability: <±0.4 GU/30Min
* Value error: <±1.2Gs
* Environment temperature: 0-40°C
* Relative humidity: ≤ 85%
* Power: 1.5V(AA)*1
* Dimension: 145*38*79(mm)
* Weight: 310g

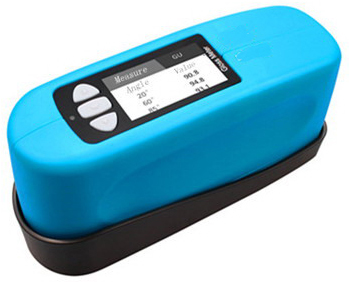

Professional  3 Angles Gloss meter AMN50
Features:
AMN50 gloss meter is produced according to the national verification regulation of JJG696 standard, adopt long life light source, good repeatability, small volume, high precision and good stability. It is mainly used coatings, printing ink, paint, paint, wood, marble, granite, polishing brick, brick of pottery and porcelain, plastic, paper, metal and non-metallic materials to the surface of the mirror gloss measurement.

Description:
(1) One button to complete triangle measurement: one operation can complete three angle measurement; Measuring light incident angle meet ISO 2813 three measuring light incident angle. Three incident angle of mirror gloss meter is 20°, 60°, 85°respectively;
(2) Optional angle mode: choose measuring angle or angle combination according to user needs.
(3) Manually entering standard samples gloss data;
(4) Humanized design, good man-machine communication interface

Specification

Unit

Triangle Gloss Meter

Measuring Angle

degree

20°/ 60°/ 85°

Measuring Range

GU

20°:0-2000

60°:0-1000

85°:0-160

Measuring Spot

mm

20°: 10x10

60°:9x15

85°:5x18

Measuring Spot

GU

0-1000:0.1; 1000-2000:1

Repeatability

GU

0-100:0.2; >100:0.2%

Indication Error

GU

±1.5

Zero Error

GU

0.2

Working Temperature Range

°C

10 - 40°C

Storage Temperature Range

°C

-10°C - 70°C

Humidity Range

RH

Relative humidity less than 85%,without condensation

Power Adapter



alkaline batteries/power adapter

Volume

mm

159x49x72

Weight

g

500

Professional  Single Angles Gloss meter AMN51
Features:
AMN51 gloss meter is produced according to the national verification regulation of JJG696 standard, adopt long life light source, good repeatability, small volume, high precision and good stability. It is mainly used on coatings, printing ink, paint, paint, wood, marble, granite, polishing brick, brick of pottery and porcelain, plastic, paper, metal and non-metallic materials.

Description:
(1) One button to complete measurement: one operation can complete measurement; Measuring light incident angle meet ISO 2813 three measuring light incident angle
(2) Manually entering standard samples gloss data
(3) Humanized design, good man-machine communication interface
(4) Single angle can store 10000 testing records, storage structure is: 100 prototypes, each prototype with 100 testing data
(5) Data browsing and viewing function
(6) The machine has automatic shutdown function, low power warning functions, full data storage hint functions
(8) USB communication interface to communicate with PC
(9) PC software can be extended more functions

Specification

Unit

Single Gloss Meter

Measuring Angle

degree

60°

Measuring Range

GU

60°: 0-1000

Measuring Spot

mm

60°: 9x15

Division Value

GU

0-1000: 0.1; 1000-2000:1

Repeatability

GU

0-100:0.2; >100:0.2%

Indication Error

GU

±1.5

Zero Error

GU

0.2

Working Temperature

°C

10 - 40°C

Storage Temperature

°C

-10 - 70°C

Humidity Range

RH

Relative humidity less than 85%, without condensation

Power Adapter



alkaline batteries/power adapter

Volume

mm

159x49x72

Weight

g

500

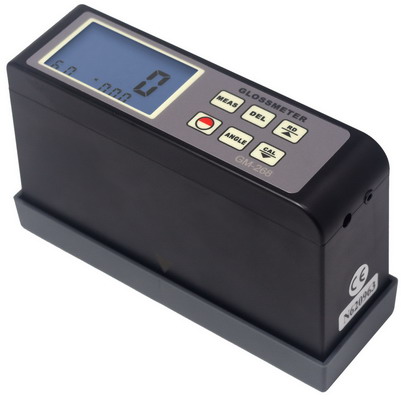

3 Angles Gloss meter GM-268
Applications:
Widely used in Floor maintenance, Surface cleaning quality control, Stone and tile gloss measurement, Checking printed matter, Quality control of paint and ink, Polished metal surface ,measurement (chrome plating), Inspection of paint protection and waxing, Auto-body paint inspection, Surface inspection of plastic moldings, Evaluation of detergents and washers, Checking masonry and washers, Checking building exteriors.

Features:
1. In accordance with international standard ASTMD523, ASTMD1455, ASTMC346, ASTMC584, ASTMD2457, DIN ENISO2813, DIN67530, ENISO7668, JISZ8741, MFT30064, TAPPIT480, GB9754, GB/T13891, GB7706 and GB8807. Its technical parameters conform with JJG696-2002.
2. Accurate measurement, good repetitiveness.
3. Small in size, easy to carry.
4. Auto calibration.
5. Intelligent design, rapid measurement.
6. Able to store 254 groups of measurements.
7. Built-in lithium ion rechargeable battery.
8. Backlight display, suitable for low light environment.
9. Optional USB data output and RS-232 data output to connect with PC.
10. Optional Provide Bluetooth data output choice.
Specifications:
1. Display: 4 Digits Backlit LCD
2. Measuring Geometry: 20/60/85 Degrees
3. Range: 0.1~ 200 GU
4. Accuracy: ±1.0 GU
5. Resolution: 0.1 GU
6. Repeatability: ±0.5 GU
7. Measuring Area: 7 x 14mm (Ellipse)
8. Data Memorized: 254 Groups
9. Working Condition: Temperature: 0~40˚C, Humidity: <85%
10. Power Supply: 3.7V Built-in Lithium Ion Rechargeable Battery
11. Dimensions: 140 x 45 x 75mm
12. Weight: 305g (Including Fitted Batteries)

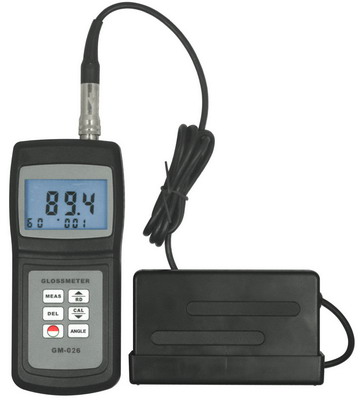

2 Angles Gloss meter GM-026
Applications:
Widely used in Floor maintenance, Surface cleaning quality control, Stone and tile gloss measurement, Checking printed matter, Quality control of paint and ink, Polished metal surface ,measurement (chrome plating), Inspection of paint protection and waxing, Auto-body paint inspection, Surface inspection of plastic moldings, Evaluation of detergents and washers, Checking masonry and washers, Checking building exteriors.

Features:
1. In accordance with international standard ASTMD523, ASTMD1455, ASTMC346, ASTMC584, ASTMD2457, DIN ENISO2813, DIN67530, ENISO7668, JISZ8741, MFT30064, TAPPIT480, GB9754, GB/T13891, GB7706 and GB8807. Its technical parameters conform with JJG696-2002.
2. Accurate measurement, good repetitiveness.
3. Small in size, easy to carry.
4. Auto calibration.
5. Intelligent design, rapid measurement.
6. Able to store 254 groups of measurements.
7. Built-in lithium ion rechargeable battery.
8. Backlight display, suitable for low light environment.
9. Optional USB data output and RS-232 data output to connect with PC.
10. Optional Provide Bluetooth data output choice.
Specifications:
11. Display: 4 Digits Backlit LCD
2. Measuring Geometry: 20/60 Degrees
3. Range: 0.1 ~ 200 GU
4. Accuracy: ±1.0 GU
5. Resolution: 0.1 GU
6. Repeatability: ±0.5 GU
7. Measuring Area: 7 x 14mm (Ellipse)
8. Data Memorized: 254 Groups
9. Working Condition: Temperature: 0~40˚C, Humidity: <85%
10. Power Supply: 4 x 1.5v AAA size (UM-4) battery)
11. Dimensions: Unit: 156 x 67 x 28mm; External Probe: 58 x 28 x 108mm
12. Weight: 190g (Not Including Batteries)

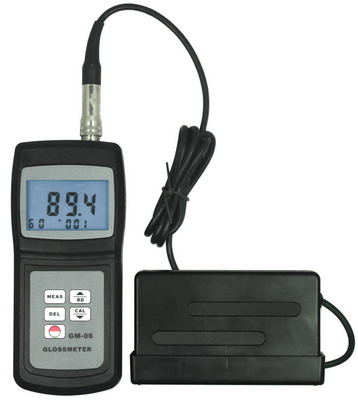

1 Angles Gloss meter GM-06
Applications:
Widely used in Floor maintenance, Surface cleaning quality control, Stone and tile gloss measurement, Checking printed matter, Quality control of paint and ink, Polished metal surface ,measurement (chrome plating), Inspection of paint protection and waxing, Auto-body paint inspection, Surface inspection of plastic moldings, Evaluation of detergents and washers, Checking masonry and washers, Checking building exteriors.

Features:
1. In accordance with international standard ASTMD523, ASTMD1455, ASTMC346, ASTMC584, ASTMD2457, DIN ENISO2813, DIN67530, ENISO7668, JISZ8741, MFT30064, TAPPIT480, GB9754, GB/T13891, GB7706 and GB8807. Its technical parameters conform with JJG696-2002.
2. Accurate measurement, good repetitiveness.
3. Small in size, easy to carry.
4. Auto calibration.
5. Intelligent design, rapid measurement.
6. Able to store 254 groups of measurements.
7. Built-in lithium ion rechargeable battery.
8. Backlight display, suitable for low light environment.
9. Optional USB data output and RS-232 data output to connect with PC.
10. Optional Provide Bluetooth data output choice.
Specifications:
11. Display: 4 Digits Backlit LCD
2. Measuring Geometry: 60 Degrees
3. Range: 0.1 ~ 200 GU
4. Accuracy: ±1.0 GU
5. Resolution: 0.1 GU
6. Repeatability: ±0.5 GU
7. Measuring Area: 7 x 14mm (Ellipse)
8. Data Memorized: 254 Groups
9. Working Condition: Temperature: 0~40˚C, Humidity: <85%
10. Power Supply: 4 x 1.5v AAA size (UM-4) battery)
11. Dimensions: Unit: 156 x 67 x 28mm; External Probe: 58 x 28 x 108mm
12. Weight: 190g (Not Including Batteries)

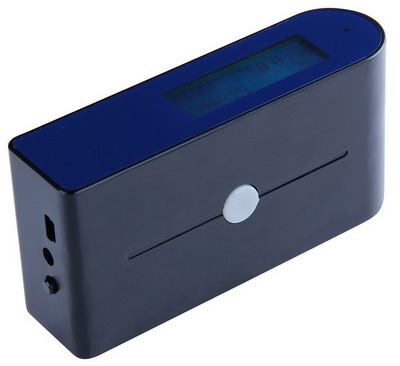

Single Angles Gloss meter AMN52
Features:
This gloss meter is designed and manufactured with the reference to the international standard ISO 2813 and GB/T9754. Technical parameters are in accordance with ASTM D2457, ASTM D523 and GB/T13891, GB/T7706, GB/T8807 standard. All performance indexes meet the primary working machine requirements of metrological verification procedures of national standard JJG696-2002 "mirror gloss meter and gloss board". Apply on paint, ink, stoving varnish, coating, wood products; Marble, granite, vitrified polished tile, pottery brick and porcelain; Plastic, paper; Other nonmetallic material.

Description:
(1) One button to complete measurement: one operation can complete measurement; Measuring light incident angle meet ISO 2813 three measuring light incident angle
(2) Manually entering standard samples gloss data
(3) Humanized design, good man-machine communication interface
(4) Single angle can store 10000 testing records, storage structure is: 100 prototypes, each prototype with 100 testing data
(5) Data browsing and viewing function
(6) The machine has automatic shutdown function, low power warning functions, full data storage hint functions
(8) USB communication interface to communicate with PC
(9) PC software can be extended more functions

Model

AMN52 AMN53

Measurement Range

0-200Gu 0-2000Gu

Application

paint, ink, stoving varnish, coating, wood products; Marble, granite, vitrified polished tile, pottery brick and porcelain; Plastic, paper; Other nonmetallic material. Metal, plating, glass mirror and high gloss surface

Instrument Dimensions

122x34x60mm

Projection Angle

60°

Measuring Spot

8mm*4mm small 1mm*3mm

Measuring Mode

Automatic measurement/ manual measurement/single measurement/average measurement and cross measurement for a variety of combination measuring mode

Data Storage

100 groups 500 groups



 Set standard sample in any stored data, user-define the tolerance range

Language

Chinese/English

Output

Connect the micro printer to realize real-time output of measured data

Division Value

0.1Gu

Repeatability

0.4Gu 0.2Gu

Indication Error

1.0Gu

International Standard 60°

ISO-2813, ASTM-C584, ASTM-D523, DIN-67530, ASTM-D2457, JND-A60, JND-P60

National Standard 60°

GB 9754, GB 9966, GB 8807

Standard Accessories

Power adapter/user manual/warranty certification/standard board

Optional Accessories

Micro-printer

Tintometer WSL-2

Characteristics:

1. Visual measurement of color matching to determine material color, can measure oil, painting, plastic, jam, textile, grains ect.

2. Design in conformity with internationally accepted color scale of Lovibond

3. Simple structure and easy to operate

Specifications:

1. Measurement range:

    Red R0.1-R79.9 Lovibond unit

    Yellow R0.1-R79.9 Lovibond unit

    Blue R0.1-R49.9 Lovibond unit

    Neutral 0.1-3.9 Lovibond unit

2. Minimum Reading: 0.1 Lovidond unit

3. G.W.: 11kg

4. Dimensions: 620mm X 440mm X 300mm

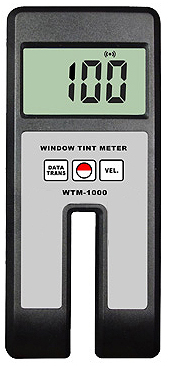

Window Tint Meter WTM-1000 (Combined Sensor)
Features:
1. This Window Tint Meter is a hand held device that measures the amount of light that passes through a window.
2. Technology is designed in accordance with GB 2410-80, ASTM D1033-61, JIS k7105-81 and other standards.
3. Digital display, wide measurement range, high resolution.
4. One key calibration, easy to use.
5. Solid structure, small volume, light weight, exquisite, easy to carry.
6. Single / Continuous measuring mode.
7. Optional Use USB data output and RS-232 data output to connect with PC .
8. Optional Bluetooth data output choice.
Specifications:
1. Display: 10mm LCD
2. Measurement Range: 0~100% Light Transmission
3. Resolution: 0.1
4. Accuracy: ±2%
5. Sample Thickness: Less Than 10mm/0.4inch
6. Light Source: LED
7. Measuring Mode: Single/Continuous
8. Power Supply: 4 x 1.5V AAA Size (UM-4) Battery
9. Dimensions: 126 x 65 x 27mm (5.0 x 2.6 x 1.1 inch)
10. Weight: 100g （Not Including Batteries）

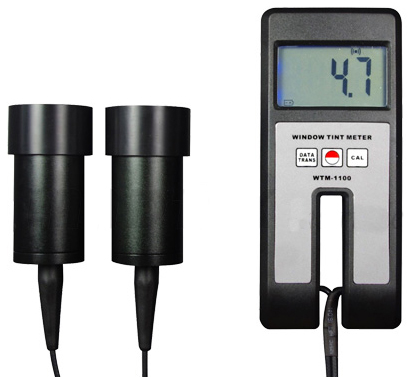

Window Tint Meter WTM-1100 (Separately Sensor)
Features:
1. This Window Tint Meter is a hand held device that measures the amount of light that passes through a window.
2. Technology is designed in accordance with GB 2410-80, ASTM D1033-61, JIS k7105-81 and other standards.
3. Digital display, wide measurement range, high resolution.
4. One key calibration, easy to use.
5. Solid structure, small volume, light weight, exquisite, easy to carry.
6. Single / Continuous measuring mode.
7. Optional Use USB data output and RS-232 data output to connect with PC .
8. Optional Bluetooth data output choice.
Specifications:
1. Display: 10mm LCD
2. Measurement Range: 0~100% Light Transmission
3. Resolution: 0.1
4. Accuracy: ±2%
5. Sample Thickness: Less Than 10mm/0.4inch
6. Light Source: LED
7. Measuring Mode: Single/Continuous
8. Power Supply: 4 x 1.5V AAA Size (UM-4) Battery
9. Dimensions: 126 x 65 x 27mm (5.0 x 2.6 x 1.1 inch); Sensor: 125 x 38 x 38 mm
10. Weight: 100g （Not Including Batteries）
