HOMOGENIZER

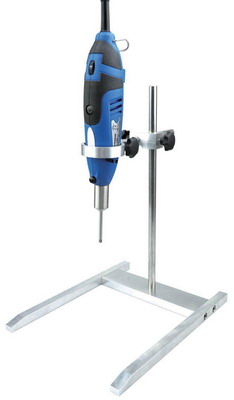

Handheld Homogenizer
ORDER NUMBER:
D-1601: 0.1~50ml   D-1602: 1~250ml

Features:
It is a rotor/stator type hand held tissue homogenizer which can rapidly dispersing, homogenizing, extractions, cell disruption, mixing, emulsifying, suspending samples in 0.1~5ml of liquid or 1~250ml depending on the dispersing shaft. During operation, the suspended material is drawn into the core of the homogenizer by a rotor turning at up to 30,000rpm.
The material is repeatedly cycled through narrow slits in the stator where it is rapidly sheared and disintegrated by high shear mechanical action. Complete homogenization of tissues (muscle, liver, breast tissue, etc.) is usually achieved in a few seconds. Little, if any, heat is produced during the process
Specifications:
1. Speed range: 8,000-30,000rpm
2. Sample volume range: 0.1~50ml or 1~250ml
3. Speed control: 6 position control dial
4. Motor type: Universal motor, 130 Watt
5. pH range: 2-13
6. Fineness: Suspensions & Emulsion 10-15 & 1-10um
7. Noise emission: 54 dB(A) at 30,000 rpm
8. Dimensions: 2.5L x 2.5W x 8H inches (drive only)
9. Weight: 18lbs (with stand) 1.5lbs (drive only)
10. Voltage: 220V/50HZ or 110V/60Hz

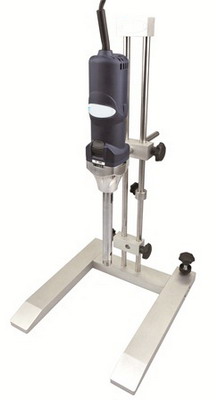

Handheld Homogenizer
ORDER NUMBER:
D-500PK1: shaft 1 for solid/liquid media, 10-5000ml
D-500PK2: shaft 2 for Water in Oil or Oil in Water emulsions, 10-5000ml

Features:
- Viscosity up to 10,000mPas
- Continuously adjustable speeds for better results
- Light-weighted and small-dimensioned for better handling
- Triple safety of the drive, overload protection and smooth start – against jerky work, safety switch
- 316L steel High quality dispersing tools as standard for better resistance to corrosion
- Quick change system of the dispersing tools for a short changing time between preparations
Specifications:
1. Speed Range: 10000~30000rpm
2. Sample volume: 10~5000ml
3. Voltage 230V 50/60Hz, 110V 50/60Hz
2. Power input/output 500/380 Watt
3. Rotor speed between 22,7 to 36m/sec
4. Weight: 13kg
5. Sound Pressure Level: 79dB(A)
6. Double Insulated
7. Speed Setting Infinitely Variable
8. Permissible Ambient Temperature 5°C - 40°C
9. Relative Humidity 85%
10. Permissible Period of Operation 100%
11. Protection IP20
12. Dimensions 70mm x 70mm x 255mm

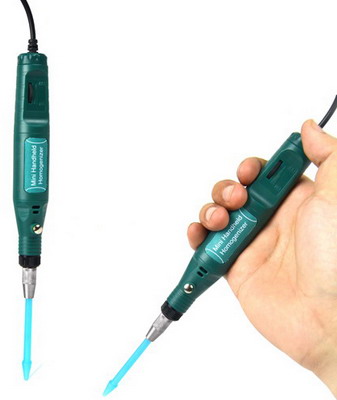

Handheld Homogenizer AMT-M16
Applications:
1. Suitable for grinding various plant tissue sample such as root, stem, leaf, flower, fruit, seed, etc.
2. Suitable for grinding various animal tissue sample such as cerebrum, heart, lung, stomach, liver, thymus, kidney, intestine, lymphonodus, muscle, skeleton, etc.
3. Suitable for homogenate.

Features:
1. Light and easy to operate, broad scope of application.
2. Use micro DC motor for grinding trace tissue, efficient and effective.
3. Grinding pestle is light and reusable, suitable for various sterile ways, convenient to be dismantled.
Specifications:
1. Speed: 13000rpm
2. Power: AC 220V
3. Noise: 60dB
4. Net Weight: 0.1kg
5. Dimension: 25 x 25 x 160mm

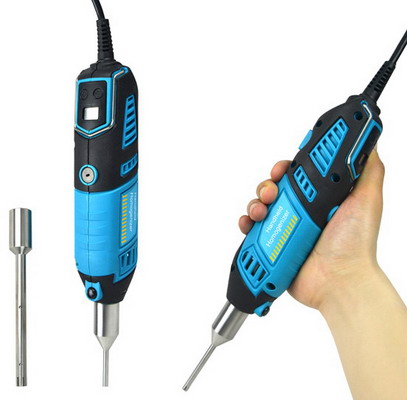

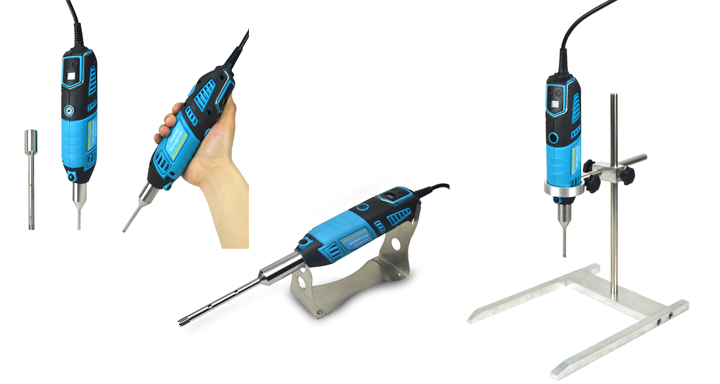

Handheld Homogenizer AMT-M17
The homogenizer is smart hand held instrument for fast organization homogeneous, separation and emulsification. With different dispersing heads, it is appropriate for 0.5~250ml liquid sample, maximum speed is up to 35000rpm. Its working principle is making the sample circularly loop into a narrow space between the high speed and relative motion stator to shear and break the sample. E.g. tissue such as muscle, liver, breast, etc. can be completely homogenization in 10~30 seconds. It is applied in various territories such as bio-pharmaceuticals, gene research, organization broken, cell slurrying, clinicopathologic analysis, emulsions, nanometer materials scattering, polymerization reaction, cosmetics, ink&paint, fine chemical engineering, pesticide, prospection, environmental protection, energy sources, etc.

Features:
1. Designed smart and light. Can operate in one hand.
2. Speed adjustable, digital display speed. Speed precisely controlled to avoid splashing.
3. Suitable for homogeneous dispersion of a small amount of sample in small container.
4. High quality stainless steel dispersing head, anti-corrosion, high temperature resistance for disinfecting.
5. Easy to take off the dispersing head for cleaning.
6. High speed and high efficiency motor, long life.
7. Optional H-type stand, height and angle can be adjusted, convenient to take and store.
Specifications:
1. Power Supply: 230V/50HZ; 110V/60HZ
2. Power (Input/Output): 160W/110W
3. Rotor Line Speed: 6.3~14m/sec
4. Net Weight: 0.7kg
5. Noise: 72dB(A)
6. Speed Control Range: 8000~35000rpm (digital display)
7. Dimension: 46mm*55mm*230mm

Optional Accessories

Order No.: Handling Capacity Diameter of Outer Head Diameter of Inner Head Gap between Outer and Inner Head Min./Max. Dipping Depth Length of Head Material
AMT-M17A Shaft 0.5~50ml 6mm 3.9mm 0.1mm 20/90mm 150mm 316L
AMT-M17B Shaft 1~100ml 8mm 6.1mm 0.3mm 20/107mm 167mm
AMT-M17C Shaft 1~250ml 10mm 7.9mm 0.3mm 20/120mm 180mm
AMT-M17D H Type Stand H Type stand to keep the handheld homogenizer, height and angle adjustable.
