Manometer

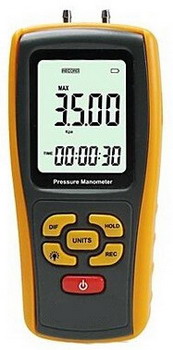

Pressure Manometer

Applications: This unit is widely used in measuring fan pressure, wind speed, oven pressure and hydraulic system. It can also be used controlling the gas ratio in combustion and valve control, monitoring blood pressure, breath pressure with other medical device.
Features: 1. With 11 units to select: Bar, mBar, kPa, Kgf/cm², mmHg, cmH2O, Ozf/in², psi, inHg, inH2O, ftH2O. 2. USB port allows you to connect with computer.
Model	AMF031	AMF032	AMF033
Measuring Range	±10kPa		±35kPa
Display	LCD Display
Accuracy	±0.3% FSO (25℃)
Repeatability	±0.2% (Maximum ±0.5% FSO)
Max Pressure	50kPa		150kPa
Response Time	Typical 0.5s
Low Battery Indications	YES
Temperature Compensation	NO	YES
Up Overload Positive Alert	Err.1
Up Overload Negative Alert	Err.1
Operating Temperature	0~50℃
Storage Temperature	-10~60℃
Power	4 x AAAA
USB Interface	YES

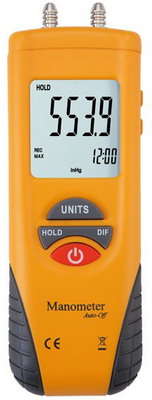

Pressure Manometer / Air Pressure Gauge AMF109

Features: 1. 11 selectable units of Measure 2. Max/min/average, and with a relative time 3. Large LCD Back light dual display 4. Zeroing, offset and data compensation 5. Low battery display and automatic shutdown 6. Data Hold and Error code

Specifications: 1. Range & Resolution:     1) InH2O: ±55.40/0.01     2) Ozin²: ±32.00/0.01     3) Psi: ±2.000/0.001     4) ftH2O: ±4.612/0.001     5) Mbar: ±137.8/0.1     6) cmH2O: ±140.6/0.1     7) Kpa: ±13.79/0.01     8) kgcm: ±0.140/0.001     9) inHg: ±0.407/0.001     10) Bar: ±0.137/0.001     11) mmHg: ±103.4/0.1 2. Display: Dual LCD 3. Accuracy: 0.3% FSO (25°C) 4. Repeatability: 0.2% (Max 0.5%FSO) 5. Linearity/Hysteresis: 0.29% FSO 6. Maximum Pressure: 10PSI 7. Response Time: 0.5s Typical 8. Low Range Indicator: Err.1 9. Under Range Indicator: Err.2 10. Operating conditions: 32°F to 122 °F (0 to 50°C)
