MICROSCOPE

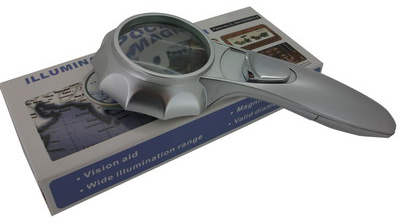

Pocket Magnifier with LED light
Applications:
1. Industrial purpose
2. Circuit board and printing
3. Medicine
4. Gardening
5. Money and Stamp
6. Education
7. Geography
8. Family and office
Specifications:
Model ML750, 7X, Φ50mm
Model ML665, 6X, Φ65mm
Model ML475, 4X, Φ75mm

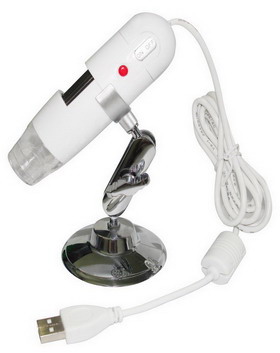

Digital Microscope Camera
ORDER NO.:
CY-200B: 200X
CY-500B: 500X
CY-800B: 800X
CY-1000B: 1000X
CY-1600B: 1600X
Applications
Industrial Inspection, Computer Parts inspection, Telecom module inspection, Scientific teaching tool, Laboratory Research, Medical analysis, School Research tool, Insect dissection/examination, Plant dissection/examination, Skin examination, Scalp examination, Textile Inspection, Jewelry Inspection, Collections/Coin Inspection, Printing Inspection, Reading Aid, On-line chatting...
Specifications
1. Image CMOS Sensor
2. Controller High Speed DSP (Driver Free available)
3. Focus Range 10mm ~ far view
4. Snap Shot Software and Hardware
5. Video Capture Resolution Standard 640*480, Max 1600*1200
6. Built-in 8 White-light LED and adjustable illumination ensure the magnified images are clear and bright
7. Still Image Capture Resolution Standard 640*480, Max 1600*1200
8. Frame Rate 30 f/s under 600 LUX Brightness
9. Digital Zoom 5X Sequence Mode
10. Brightness Control Manual adjustment
11. Magnification Range: 200X, 500X, 800X, 1000X, 1600X
12. Power Supply USB Port (5V DC)
13. USB 2.0 & USB 1.1 Compatible
14. Operation System Windows XP, Vista, Win 7 32 bit and 64 bit.
15. Language: English, Chinese and other language by selection
16. System Requirement: Pentium Computer with 700M Hz & above,
17. 20M HD Space CD ROM Driver, 64MB RAM, Direct X VGA Card
18. CD disk Driver and Micro-Measurement Tool
19. Product dimension 112 mm (L) X 33 mm (R)
20. Product net weight: 250g

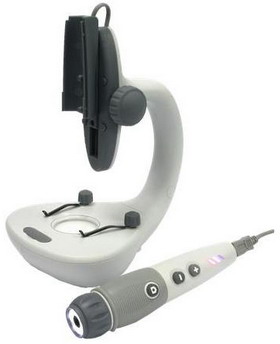

200X Digital Microscope Camera M200
Specifications
1. Up 10x to 200x Magnifications (continuously tunable built-in objective)
2. White LED (Top and Bottom light) 11 levels of Brightness Illumination
3. Function of Linear Size Measurement
4. 1/4” CMOS VGA 1.3M Image Senor
5. USB1.1 Full speed
6. Handhold Operation , Heavy-duty
7. Snapshots
8. Capture in Video
9. Compatible with Window 2000/XP/Vista
10. Dimensions: ~120x170x250mm
11. Weight: ~0.5kg
12. Slide Glass x 2, USB Cable, Tweezers, Calibration Plate

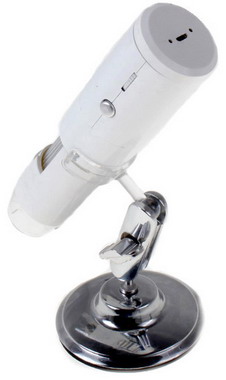

WIFI Digital Microscope Camera M200W
Specifications
Free iOS App, Google's Android App, supports to view the microscope though iPhone, Google's Android smartphone, iPad ect.
1. Connection interface: Wi-Fi wireless
2. Image sensor: 1.3MP
3. Color: 24-bit RGB
4. Lens: dual-axis 27/100x microscope lens
5. Focus range: 10mm to infinite
6. Magnification ratio: 10 to 200x
7. White balance: auto
8. Exposure: auto
9. Light source: 8 LEDs

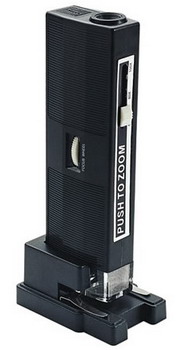

Portable 60x-100x Zoom Microscope 75017
Magnification: 60X-100X zoom
With lamp
A precision illuminated zoom microscope with 30x magnification power. Focus can be adjusted by turning the wheel and the rotatable bulb can pinpoint the light on the object. Countless uses for hobbyists, collectors, electronic engineers, scientists and students.
100 pcs/CTN


Portable 60X-100X Zoom Microscope With Lamp MG10081-1

This is a portable illuminated zoom microscope, focus can be adjusted by turning the wheel and the rotatable bulb can pinpoint the light on the object. Countless uses for hobbyists, collectors, electronic engineers, scientists and students.
Magnification: 60x-100x zoom
With LED light
Size of body: 84mm x 35mm x 20mm
Weight/pcs: 33g
200pcs/ctn: 38.5cm x 34cm x 25.5cm


Portable Measuring Microscope XC Serials
Specification：

　

XC-100L XC-50L XC-40L XC-20L

Total Magnification

 100× 50× 40× 20×

Mechanical Tube Length

 160mm

Eyepiece

 10×

Objective

 10× 5× 4× 2×

Numerical Aperture

 0.25 0.12 0.1 0.05

Diameter of Viewing field in Eyepiece

 φ18mm

Eyepiece Reticle

 0.1mm

Fine Division

 0.01mm 0.02mm 0.025mm 0.05mm

Working Distance

 6.93mm 17.6mm 18mm 17.2mm

Focus Range

30mm

Diameter of Bearing Plane

 φ63mm

Height of Microscope

 210mm

Mass of Microscope

 650g

Illumination

 Pen light, No.7 battery

　

XC-100

XC-60

XC-40

XC-20

XC-100L

XC-60L

XC-40L

XC-20L

Eyepiece10×/ Cross with Reticle

●

●

●

●

●

●

●

●

Objective10×

●







●







Objective5×



●







●





Objective4×





●







●



Objective2×







●







●

Pen Light Illumination
(with holder)









●

●

●

●

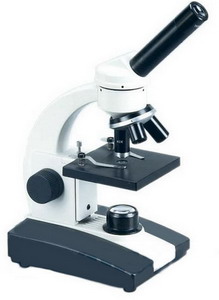

SX-A1 Student Biological Microscope
Student microscope, very popular in school and laboratory.
Eyepiece: 10X,
Objective 4x, 10x, 40x,
1.45º inclined with locked-in eyepiece.
2.Eyepiece: 10*
3.Objective 4x, 10x, 40x,
4.With plan -concave mirror
5.with illumination
Optional Accessory:
Eyepiece: WF5X, 10X, 15X, 25X
Biological Slides
Biological Dissection Set
Zoom eyepiece: 1.0X-1.4X
Outer-connected illumination: 220V/110V,6V/6W


N-800M Laboratory Biological Microscope
Description
With Infinite Optical System, Kohler Illumination, Providing Excellent Optical Quality and making Image Perfect.
With Low and Forward Position Coaxial Focus System, Focusing Knobs and Brightness Adjustable Knob within reaching Location, Stable Integral Structure, Reasonable Ergonomic Design, Making.
Operator Feel More Comfortable and Effective.
Features：
Comfortably observing with compensation free trinocular head Inclined at 30°
Suitable for observer with wide interpupillary range of 48-75mm
Larger viewing area with extra wide field eyepiece EW10×/ 22
Focus control with diopter adjustable
Big operating space with backward quintuple nosepiece
Rectangle double layers mechanical stage 185×142mm, moving range 75×55mm, comfortable operation with low position adjustable knobs
Perfect image with infinite plan achromatic objective
Overcoming illumination asymmetry at low magnification observation
With aspherical condenser and Kohler illumination, providing enough, even and high contrast illumination for various objective observations.
External illumination, halogen lamp 12V/ 30W, brightness adjustable
Specification： N-800M
Viewing Head             Seidentopf Binocular Head ○
Seidentopf Trinocular Head ●
Eyepiece Extra Wide Field Eyepiece EW10×/ 22 ●
Nosepiece Backward Quintuple Nosepiece ●
Backward Sextuple Nosepiece ○
Objective Infinite Plan Achromatic Objective 4× ●
10× ●
20× ○
40× ●
100× ●
Objectives for Dark Field 100× ○
Condenser Swing-out Condenser NA 0.9/ 0.25 ●
Stage Double Layers Mechanical Stage 185×142/ 75×55 ●
Illumination External Illumination, Aspherical Collector, Halogen Lamp6V/ 30W ●
50W/ 100W Power Supply ○
Photo Attachment   ○
Video Adapter C Mount 1× ○
C Mount 0.5× ○
Filter Blue Filter ●
Green Filter ●
Multi Viewing Attachments Multi Viewing Attachments for 5 persons ○
Multi Viewing Attachments for 3 persons ○
Multi Viewing Attachments for 2 persons ○
Polarization Attachment 　 ○
Phase Contrast Kit Turret Phase Contrast Kit ○
Dark Field Attachment 　 ○
Epi-fluorescent Attachment 　 ○
Temperature Controlled Stage 　 ○
Drawing Attachment 　 ○

Note: ●Standard Outfit, ○Optional

NDFA-D Dark Field Condenser (Dry) NDFA-O Dark Field Condenser (Oil)

NPHA Turret Phase Contrast Kit Polarization Attachment

N-510 Series Multi-viewing Microscope
Description
Multi-viewing Microscope allows people observation at the same time.
With the features of Infinite Optical System, Effective Illumination, LED Pointer and images Coherence, it is widely used in Clinic, Scientific Research and Teaching Demonstration.
Specification:
  N-510 N-306 N-204
Optical System Infinite Optical System ● ● ●
Viewing Head Compensation Free Trinocular Head, Inclined at 30°, 360° Rotatable, Interpupilary Distance 48-75mm 1PC 1PC 1PC
Compensation Free Binocular Head, Inclined at 30°, 360° Rotatable, Interpupilary Distance 48-75mm 4PCS 2PCS 1PC
Eyepiece Extra Wide Field Eyepiece EW10x/20 10PCS 6PCS 4PCS
Nosepiece Inverse Quintuple Nosepiece ● ● ●
Objective Infinite Plan Achromatic Objective 4×,10×,40×,100× ● ● ●
Condenser Swing Condenser N.A.0.9/ 0.25 ● ● ●
Focusing Coaxial Coarse & Fine Focus Adjustment, Fine Division 0.002mm ● ● ●
Stage Double Layers Mechanical Stage 185×142mm, Moving Range 75×55mm ● ● ●
Kohler Illumination External Illumination, Halogen Lamp 12V/ 50W ● ● ●
Pointer Green LED Pointer , Brightness Adjustable ● ● ●
Dual Color Pointer , Brightness Adjustable ○ ○ ○
Photo Attachment   ○ ○ ○
Video Adapter C Mount 1× ○ ○ ○
C Mount 0.5× ○ ○ ○
Note: ●Standard Outfit   ○Optional

N-400M Biological Microscope
High transmission optical system, combined base and arm design and wide range of accessories make it an ideal instrument for biology, bacteriology, histology, immunology and pharmacology.
Features:
Monocular, Binocular and Trinocular Head Available for Different Requirements
Big Operating Space With Backward Nosepiece
Easier Comparing Test with Large Size Double Layer Mechanical Stage
More Comfortable Operation with Low Position CA and FA Knob, Low Stage Control and Narrow Base
Even Illumination with Modern Design, Kohler Illumination and Aspheric Collector can be Adapted
Aluminium Carrying Case Available for High Level Packing Requirement
Specification:
    N-400M
Viewing Head Compensation Free Binocular Head, Inclined at 30°, 360° Rotatable

●

Monocular Head, Inclined at 30°, 360° Rotatable

○

Compensation Free Trinocular Head, Inclined at 30°, 360° Rotatable

○

Eyepiece Wide Field Eyepiece WF10×/ 18

●

Wide Field Eyepiece WF16×/ 11

○

Objective Achromatic Objective 4×, 10×, 40×, 100×

●

Achromatic Objective 20×, 60×

○

Plan Achromatic Objective 4×, 10×, 20×, 40×, 60×, 100×

○

Nosepiece Backward Quadruple Nosepiece

●

Backward Quintuple Nosepiece

○

Stage Double Layers Mechanical Stage 140×140mm/ 75×50mm

●

Condenser NA 1.25 Abbe Condenser with lris Diaphragm and Filter, Rack & Pinion Adjustment

●

Focusing Coaxial Coarse & Fine Adjustment System, Range 28mm, Fine Division 0.002mm

●

Illumination Halogen Lamp 6V/ 20W, Brightness Adjustable

●

Kohler Illumination

○

Polarization Set Simple Polarization Set

○

Phase Contrast Kit Simple Phase Contrast Kit

○

Sliding Phase Contrast Kit

○

Turret Phase Contrast Kit

○

Dark Field Attachment Dark Field Condenser (Dry) NA 0.9

○

Dark Field Condenser (Oil) NA 1.25-1.36

○

Epi-fluorescent Attachment 　

○

Filter 　

●

Photo Attachment 　

○

Video Attachment 　

○

Note: ● Standard Outfit, ○ Optional

N-300M Biological Microscope
Excellent image quality with infinitive optical system.
Comfortable operating with ergonomic structure.
Better illumination with sliding-in centerable condenser, Convenient replacement with phase contrast and dark field condenser.
Features
Extra Wide Field Eyepiece EW10X/20 with Diopter Adjustment as Optional
Comfortable Observation with Eyepoint and interpupillary adjustable
Sliding-in Centerable Condense Adjustable
Handle for easy carrying
Lamp Replacement by Direct Removing Housing
Specification



N-300M
Viewing Head Compensation Free binocular head, 30° inclined, Interpupillary 48-75mm ●
Compensation Free trinocular head, 30° inclined, Interpupillary 48-75mm ○
Eyepiece Wide Field Eyepiece WF 10×/18 ●
Extra Wide Field Eyepiece EW10×/20 with Diopter Adjustment ○
Objective Infinitive Semi-plan Achromatic Objectives 4× ●
10× ●
40× ●
100× ●
Nosepiece Quadruple Nosepiece ●
Stage Double Layers Mechanical Stage 140mm×140mm/
75mm×50mm		 ●
Condenser Sliding-in centerable condenser NA12.5 ●
Focusing Coaxial Coarse & Fine Adjustment, Moving Range 20mm ●
Illumination 6V/ 20W Halogen Lamp, Brightness Adjustable ●
Phase Contrast Kit 　 ○
Dark Field Attachment 　 ○
Note: ● Standard Outfit, ○ Optional

N-200M Biological Microscope
With excellent optical system and reliable structure, it makes the image much sharper, and the operation easier. With wide range of accessories [e.g. dark field, phase contrast, epi-fluorescent] and advances to expand the application scope of the N-200M, the versatility of the microscope provides More Microscopy for you.
Features
Big Operating Space with Backward Nosepiece, Sharp Image with High Quality Objectives
Easier Comparing Test with Dual Slides Finger of Mechanical Stage
Comfortable Handling with Precise Focusing System
Specification：
  N-200M
Viewing Head Compensation Free Binocular Head, Inclined at 30° ●
Compensation Free Trinocular Head, Inclined at 30° ○
Monocular Head, Inclined at 30° ○
Eyepiece Wide Field Eyepiece WF10×/ 18 ●
Wide Field Eyepiece WF16×/ 11 ○
Objective Semi-plan Achromatic Objective 4×, 10×, 40×, 100× ●
Plan Achromatic Objective 4×, 10×, 20×, 40×, 60×, 100× ○
Nosepiece Backward Quadruple Nosepiece ●
Quintuple Nosepiece ○
Stage Double Layers Mechanical Stage 140×140mm/ 75×50mm ●
Condenser NA 1.25 Abbe Condenser with lris Diaphragm and Filter ●
Illumination Halogen Lamp 6V/ 20W, Brightness Adjustable ●
Kohler Illumination ○
Filter Blue Filter ●
Green Filter ●
Polarization Set Simple Polarization Set ○
Phase Contrast Kit Simple Phase Contrast Kit ○
Sliding Phase Contrast Kit ○
Turret Phase Contrast Kit ○
Dark Field Attachment Dark Field Condenser (Dry) NA 0.9 ○
Dark Field Condenser (Oil) NA 1.25-1.36 ○
Epi-fluorescent Attachment   ○
Pointer Green LED Pointer System ○
Note: ●Standard Outfit, ○Optional

N-180M Biological Microscope
Nice shape, excellent optical system and flexible outfit make you enjoy the microscope.
It is an ideal instrument for biology field, bacteriology field, immunology field, pharmacology field and so on.
Features:
Convenient and Comfortable Observing with High Point and Wide Field Eyepiece EW10×/ 20
Sharp and Bright Image with Semi-plan Objectives
Replacement of bulbs become easier and more secure, just take away the Collector without overturn the microscope
Convenient Handling with Special Design Low Position Coarse & Fine Adjustment Suitable for Different Region Power Supply with 100V-240V Multi-input Rating
Specification:
  N-180M
Viewing Head Compensation Free Binocular Head, Inclined at 30°, 360° Rotatable ●
Compensation Free Trinocular Head, Inclined at 30°, 360° Rotatable ○
Eyepiece Wide Field Eyepiece EW10×/ 20 ●
Wide Field Eyepiece WF16×/ 11 ○
Objective Semi-plan Achromatic Objective 4×, 10×, 40×, 100× ●
Plan Achromatic Objective 4×, 10×, 20×, 40×, 60×, 100× ○
Nosepiece Backward Quadruple Nosepiece ●
Quintuple Nosepiece ○
Stage Double Layers Mechanical Stage 140×140mm/ 75×50mm ●
Condenser NA 1.25 Abbe Condenser with lris Diaphragm and Filter ●
Illumination Halogen Lamp 6V/ 20W, Brightness Adjustable ●
Kohler Illumination ○
Photo Attachment 　 ○
Video Attachment C Mount 1× & 0.5× ○
Filter Blue Filter ●
Green Filter ●
Polarization Set Simple Polarization Set ○
Phase Contrast Kit Simple Phase Contrast Kit ○
Sliding Phase Contrast Kit ○
Turret Phase Contrast Kit ○
Dark Field Attachment Dark Field Condenser (Dry) NA 0.9 ○
Dark Field Condenser (Oil) NA 1.25-1.36 ○
Epi-fluorescent Attachment 　 ○
Pointer Green LED Pointer System ○

N-120/N-120A Biological Microscope
Sharp Image Display with Excellent Optical Function.
Small Space Occupancy with Integral Stand Design, Low Environment Requirement with Anti-mould Technology.
Comfortable Operation with Ergonomic Design.
Available to observe the specimen from rear of the body (N-120)
Comfortable Operation with Low Position Coarse & Fine Adjustment Knobs
Higher Contrast and Sharper Image with High Quality Objectives
Specification:

Viewing Head Compensation Free Binocular Head, Inclined at 30° ●
Compensation Free Trinocular Head, Inclined at 30° ○
Eyepiece Wide Field Eyepiece WF10×/ 18 ●
Wide Field Eyepiece WF16×/ 11
Objective Achromatic Objective 4×,10×,40×,100× ●
Plan Achromatic Objective 4×,10×,40×,100× ○
Nosepiece Quadruple Nosepiece ●
Stage Double Layers Mechanical Stage 140×140mm/ 75×50mm ●
Condenser NA 1.25 Abbe Condenser with Iris Diaphragm and Filter ●
Illumination Halogen Lamp 6V/ 20W, Brightness Adjustable ●
Photo Attachment   ○
Video Adapter C Mount 1× ○
C Mount 0.5× ○
Filter Blue Filter ●
Green Filter ●
Dark Field Attachment Dark Field Condenser (Dry) ○
Dark Field Condenser (Dry) ○
Phase Contrast Kit Single Phase Contrast Kit ○
Sliding Phase Contrast Kit ○
Turret Phase Contrast kit ○
Polarization Set Simple Polarization Set ○
Fluorescent Attachment Epi-fluorescent Attachment ○

XSZ-N107 Series Biological Microscope
XSZ-N107 series microscope is improved on the basis of XSZ-107BN series such as adding Anti-mould device and some decoration. It looks nice and much modern.

Specification: N106 N107 N207 N107E N107CCD
Viewing Head Monocular Head Inclined at 45°, 360° Rotatable ●
Sliding Binocular Head Inclined at 45°, 360° Rotatable; Anti-mould   ●
Compensation Free Binocular Head Inclined at 30°, 360° Rotatable; Anti-mould     ●
Trinocualr Head for Photography       ●
Trinocular Head for Video Camera      (C Mount)         ●
Eyepiece Wide Field Eyepiece WF10×,P16 × ● ● ● ● ●
Objective Achromatic Objective 4×,10×,40×（S）,100×(S, Oil) ● ● ● ● ●
Nosepiece Quadruple Nosepiece ● ● ● ● ●
Stage Double Layer Mechanical Stage 140×140mm/ 75×50mm ● ● ● ● ●
Focusing Coaxial Coarse & Fine Adjustment, Moving Range 28mm, Fine Division 0.002mm ● ● ● ● ●
Condenser Abbe NA 1.25 with Iris Diaphragm & Filter ● ● ● ● ●
Dark Field Condenser NA 0.9 (Dry) ○ ○ ○ ○ ○
Dark Field Condenser (Oil) NA 1.25-1.36 ○ ○ ○ ○ ○
Illumination Built-in Illumination, Halogen Lamp 6V/20W ● ● ● ● ●
Plan-concave Mirror ● ● ● ● ●
Kohler lighting fixtures ○ ○ ○ ○ ○

XSZ-109 Series Biological Microscope

With excellent optical system, reliable structure and reasonable price, XSZ-109 series biological microscope is widely used in academic and medical fields.

Specification: XSZ-109A XSZ-109B XSZ-209
Viewing Head Monocular Head, Inclined at 30°, 360°, Rotatable ● ● 　
Compensation Free Binocular Head, Inclined at 30°, 360°, Rotatable 　 　 ●
Eyepiece Wide Field Eyepiece WF10×/ 18 ● ● ●
Wide Field Eyepiece WF16×/ 11 ● ● ●
Objective Achromatic Objective 4×,10×,40×,100× ● ● ●
Nosepiece Quadruple Nosepiece ● ● ●
Stage Double Layer Mechanical Stage, 120×120mm/ 60×30mm ● ● ●
Condenser Abbe NA1.25 with Iris Diaphragm and Filter ● ● ●
Illumination Built-in Illumination, Halogen Lamp 6V/ 15W 　 ● ●
Plan-concave Mirror ● ○ ○
Filter Blue Filter ● ● ●
Green Filter ● ● ●

XSZ-N204 Series Multi-viewing Microscope
The microscope is equipped with five heads for five persons observing at the same time.
Specification: XSZ-N204 XSZ-N304 XSZ-510
Viewing Head Sliding Binocular Head, lnclined at 45° 2Pcs 1Pc 5Pcs
Monocular Head, lnclined at 45°   2Pcs
Eyepiece Wide Field Eyepiece WF10× 4Pcs 4Pcs 10Pcs
Nosepiece Quadruple Nosepiece ● ● ●
Objective Achromatic Objective 4×, 10×, 40×,100× ● ● ●
Condenser Abbe Condenser NA1.25 ● ● ●
Focusing Coaxial Coarse & Fine Focus Adjustment, Fine Division 0.002mm ● ● ●
Stage Double Layers Mechanical Stage 140×140mm/ 75×50mm ● ●
Plain Stage 140×140mm/ 75×50mm     ●
lllumination Halogen Lamp 6V/ 20W ● ●
Halogen Lamp 24V/ 100W     ●
Pointer Green LED Pointer , Brightness Adjustable     ●

XSZ-107BN Series Biological Microscope
With Classical Shape, XSZ-107BN series microscope has been popular for 30 years. It can be widely used in medical and sanitary establishments, laboratories, institutes, colleges and universities.
Specification: 106BN 107BN 207 107E 107CCD
Viewing Head Monocular Head Inclined at 45°, 360° Rotatable ● 　 　 　 　
Sliding Binocular Head Inclined at 45°, 360° Rotatable 　 ● 　 　 　
Compensation Free Binocular Head Inclined at 30°, 360° Rotatable 　 　 ● 　 　
Sliding Trinocular Head for Photography 　 　 　 ● 　
Sliding Trinocular Head for Video Camera    (C Mount) 　 　 　 　 ●
Eyepiece Wide Field Eyepiece WF10×/ 18 ● ● ● ● ●
Wide Field Eyepiece WF16×/ 11 ● ● ● ● ●
Objective Achromatic Objective 4×,10×,40×,100× ● ● ● ● ●
Achromatic Objective 20×,60× ○ ○ ○ ○ ○
Plan Achromatic Objective 4×,10×,20×,40×,60×,100× ○ ○ ○ ○ ○
Nosepiece Quadruple Nosepiece ● ● ● ● ●
Stage Double Layer Mechanical Stage 140×140mm/ 75×50mm 　 　 ● 　 　
Single Layer Mechanical Stage140×140mm/ 75×50mm ● ● 　 ● ●
Condenser Abbe NA1.25 with Iris Diaphragm & Filter ● ● ● ● ●
Illumination Built-in Illumination, Halogen Lamp 6V/ 20W 　 ● ● ● ●
Plan-concave Mirror ● ● ● ● ●
Kohler illumination 　 ○ ○ ○ ○
Photo Attachment 　 　 　 　 ○ 　
Video
Adapter		 C Mount 1× 　 　 　 ○ ●
C Mount 0.5× 　 　 　 ○ ○
Filter Blue Filter ● ● ● ● ●
Green Filter ● ● ● ● ●
Polarization Set Simple Polarization Set ○ ○ ○ ○ ○
Phase Contrast Kit Simple phase contrast kit ○ ○ ○ ○ ○
Sliding phase contrast kit ○ ○ ○ ○ ○
Turret phase contrast kit ○ ○ ○ ○ ○
Dark Field Attachment Dark Field Attachment (Dry) NA0.9 ○ ○ ○ ○ ○
Dark Field Attachment (Oil) NA1.25-1.36 ○ ○ ○ ○ ○

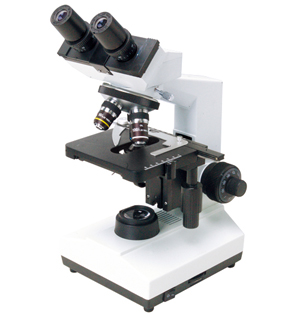

XSZ-107T Series Biological Microscope
Features:
With precision machining equipment and advanced alignment technics, making improvement on the bass of traditional microscope XSZ-107BN. It is an ideal instrument in biological, histological, pathological field and can be widely used in academic demonstration and research.






XSZ-107T

XSZ-N107T

Viewing Head

Sliding Binocular Head

●

●

Sliding Trinocular Head

○

○

hinge type Binocular Head

○

○

Anti-mould

○

●

Eyepiece

WF10X

●

●

P16X

○

○

Nosepiece

Quadruple Nosepiece

●

●

Quintuple Nosepiece

○

○

Objective

Achromatic Objective 4X,10X,40X,100X

●

●

Stage

Double Layers Mechanical Stage 140X140mm/ 75X50mm

●

●

Condenser

Abbe NA1.20 with Iris Diaphragm & Filter

●

●

Focusing System

Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 28mm

●

●

Armrest

Black Armrest

○

●

Rubber Cover

Rubber Cover for Focus Adjustment Knob

○

●

Illumination

S-LED Illumination, Brightness Adjustable

●

●

Halogen Lamp 100V-240V/ 6V20W

○

○

Plan-concave Mirror

●

●

N-100,N-101 Biological Microscope
With the feature of modern C frame shape, comfortable operation and reliable structure, it can be widely used in medical and sanitary establishments, laboratories, institutes, colleges and universities.
Specification: 　 100A 100C 100B 101A 101C 101B
Viewing Head Monocular Head inclined at 45° ● ● 　 ● ●
Binocular Head inclined at 30° 　 　 ● 　 　 ●
Teaching Head
Eyepiece Wide Field Eyepiece WF10×/18 ● ● ● ● ● ●
Eyepiece P16×/11 　 　 　 　 　
Objective 185 Objective 4× ● ● ● 　 　
185 Objective 10× ● ● ●
185 Objective 40× ● ● ●
185 Objective 100× 　 ● ● 　 　
Objective（DIN）4× 　 　 　 ● ● ●
Objective（DIN）10×       ● ● ●
Objective（DIN）40×       ● ● ●
Objective（DIN）100×       ● ● ●
Nosepiece Triple Nosepiece ● 　 　 　 　
Quadruple Nosepiece   ● ● ● ● ●
Stage Plain 125 ×120mm ●
Attachable Mechanical Stage 120X120mm/ 60×30mm   ● ● ●
Double Layer Mechanical Stage 120X120mm/ 60×30mm         ● ●
Condenser Single Lens with Iris ●
Abbe NA1.25 with Iris, Spiral up & down   ● ● ●
Abbe NA 1.25 with Iris, Rack & Pinion Adjustment         ● ●
Illumination Fluorescent Lamp 220V/ 110V/ 7W ● ● ●
Halogen Lamp 6V/ 15W, Brightness Adjustable       ● ● ●
Mirror ○ ○ ○ ○ ○ ○
Filter Blue Filter   ● ● ● ● ●
Green Filter   ● ● ● ● ●

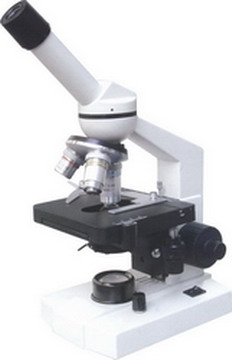

N-10 Series Biological Microscope
N-10 series microscope is an economical microscope with all basic features for educational use in elementary and high school.
Specification:

N-10A

N-10B

N-10C

N-10D

Viewing Head

Monocular, Inclined at 45°, 360° Rotatable

●

●

●

●

Nosepiece

Triple Nosepiece

●

●

●

●

Eyepiece

Wide Field Eyepiece WF10×

●

●

●

●

Eyepiece 5×, 16×

○

○

○

○

Eyepiece WF10× with Pointer

○

○

○

○

Objective

Achromatic DIN 4×, 10×, 40×(S)

●

●

●

●

Objective DIN 20×, 60×, 100×

○

○

○

○

Stage

Plain Stage with Slide Clips, 110×120mm

●

●





Plain Stag with Attachable Mechanical 110×120mm/ 60×30mm





●



Double Layers Mechanical Stage, 110×120mm/ 70×20mm







●

Focusing

Coaxial Coarse and Fine Adjustment

●

●

●

●

Condenser

Single Lens NA 0.65 with Disc Diaphragm

●







Single Lens NA 0.65 with Iris Diaphragm



●





Abbe NA 1.2 with Iris Diaphragm & Blue Filter, Spiral Adjustment for Condenser





●



Abbe NA 1.2 with Iris Diaphragm & Blue Filter, Rack and Pinion Adjustment for Condenser







●

Illumination

Incandescent Lamp 110V/ 220V/ 20W, Brightness  Adjustable

●

●

●

●

Mirror

　

○

○

○

○

Spare Parts

Dust Cover

●

●

●

●

Spare Bulb

●

●

●

●

Spare Fuse

●

●

●

●

Package

Styrofoam & Carton, Dimension
28×20×40 cm

○

○

○

○

Wooden Case & Carton Dimension
28×22×41cm

○

○

○

○

Styrofoam & Wooden Case & Carton, Dimension 28×20×40cm

○

○

○

○

XSP-102 Series Biological Microscope
With light and handy structure, 360° rotatable head and comfortable operation, it is an ideal educational instrument.
Specification: XSP-102M XSP-102A XSP-102B
Viewing Head Monocular Head, Inclined at 45°,  360° Rotatable ● ● ●
Eyepiece Wide Field Eyepiece WF10×/18 ● ● ●
Wide Field Eyepiece WF16×/11
Objective Achromatic DIN 4×,10×,40×(S) ● ● 　
Achromatic DIN  4×,10×, 40×(S) ,100×(S, Oil) 　 　 ●
Nosepiece Triple Nosepiece ● ● 　
Quadruple Nosepiece 　 　 ●
Stage Plain Stage with Slide Clips 120×130mm ● ● 　
Attachable Mechanical Stage 120×130mm/ 60×30mm 　 　 ●
Condenser Single Lens with Disc Diaphragm ● ● 　
Abbe NA 1.25 with Iris Diaphragm and Filter 　 　 ●
Illumination Plan-concave Mirror ● 　 　
Built-in Illumination, Incandescent Lamp 110V/ 220V/ 15W 　 ● ●
Focusing Separate coaxial knobs for coarse & fine adjustment ● ● ●

XSP-105 Series Biological Microscope
With sharp image and reasonable unit price, it is an ideal instrument for student use.
Specification: 　 XSP-105A XSP-105B XSZ-104
Eyepiece Huygens Eyepiece H5×,H10× ● ● ●
Huygens Eyepiece H12.5× ● 　 　
Huygens Eyepiece H16× 　 ● ●
Objective Achromatic Objective 10×,40× ● ● ●
Achromatic Objective 4×,60× ○ ○ ○
Achromatic Objective 100× ○ ○ ●
Nosepiece Triple Nosepiece ● ● ●
Stage Plain Stage with Slide Clips 110×120mm ● ● 　
Attachable Mechanical Stage 110×120mm/ 60×30mm ○ ○ ●
Condenser Disc Diaphragm ● 　 　
Iris Diaphragm 　 ● 　
Abbe with Iris Diaphragm and Filter 　 　 ●
Illumination
system		 Plan-concave Mirror ● ● ●
Attachable Illuminator ○ ○ ○
Filter Blue Filter 　 　 ●
Green Filter 　 　 ●

XSP-103 Series Biological Microscope
With sharp image, convenient operation and favorable price, it became an ideal instrument for medical and sanitary establishments, institutes, colleges and university.
Specification: XSP-103A XSP-103C XSP-103B
Viewing Head Monocular Head, Inclined at 45° ● ● 　
Sliding Binocular Head, Inclined at 45° 　 　 ●
Seidentopf Type Binocular Viewing Head, Inclined at 30°     ○
Teaching Head ○ ○ ○
Eyepiece Wide Field Eyepiece WF10×/18 ● ● ●
Wide Field Eyepiece WF16×/11 ○ ○ ○
Objective Achromatic 4×,10×,40× ● ● 　
Achromatic 4×,10×,40×,100× 　 　 ●
Nosepiece Triple Nosepiece ● ● 　
Quadruple Nosepiece 　 　 ●
Stage Plain Stage with Slide Clips, 120×130mm ● ● 　
Attachable Mechanical Stage 110×120mm/ 60×30mm 　 　 ●
Condenser Single Lens with Disc Diaphragm ● 　 　
Abbe NA1.25 with Iris Diaphragm and Filter 　 ● ●
Illumination
system		 15W Halogen Lamp ● ● 　
Halogen Lamp 6V/ 20W   　 ●
Plan-concave Mirror ● ● ●
Filter Blue Filter   ● ●
Green Filter   ● ●
Carrying Case PVC Carrying Case ○ ○ ○

NIB-100 Inverted Biological Microscope
Excellent Optical Function with Infinitive Optical System. Innovative Stand structure, Sharp Image Display, Convenient and Special for Viewing Incubating Cell Tissue.

Features:


With LWD Infinitive Plan Objective, Making Viewing Field Flatter and Brighter, Contrast Sharper, Living Cell Observing easier

  Advanced and Reliable Mechanical Stage with Knob Height and Tightness Adjustable
Different Holders for Various Observations
With pre-centerable Phase Annulus, Available to Observe Low Contrast or Transparent Specimens
Specification: NIB-100
Viewing Head Trinocular Head Inclined at300, Interpupillary Distance48-75mm ●
Eyepiece High-point, Extra Wide Field Eyepiece EW10×/ 22 ●
Objective LWD Infinite Plan Objective 4×/ 0.1, WD 18mm ●
10×/ 0.25, WD 10mm ○
20×/ 0.4, WD 5.1mm ○
40×/ 0.6, WD 2.6mm ●
Infinite Plan Phase Objective PH10×/ 0.25, WD 10 mm ●
PH20×/ 0.4, WD 5.1mm ●
PH40×/ 0.65, WD 0.35mm ○
Nosepiece Quintuple Nosepiece ●
Condenser ELWD Condenser NA 0.3, LWD 72mm (Without Condenser 150mm) ●
Centering Centering Telescope (Φ30MM) ○
Phase Annulus 10×-20×,40× Phase Annulus Plate ●
10×-20×,40× Phase Annulus Plate ○
Stage Plain Stage 160×250mm ●
Glass Insert ●
Attachable Mechanical Stage, X-Y Coaxial Control, Moving Rang120×78mm ○
Auxiliary Stages70×180mm ●
Terasaki Holder ○
Φ38mm Petri Dish Holder ○
Φ54mm Slide Glass Holder ○
Focusing Coaxial Coarse and Fine Adjustment, Vertical Objective Movement
Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation 		●
Illumination Halogen Lamp 6V/ 30W ●
Filter Diameter 45mm, Blue,Green and Ground Glass ●
Photo Attachment   ○
Video Adapter Video Adapter with C Mount ○

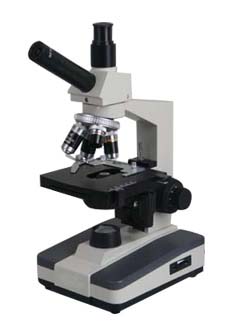

Bio-Microscope Microscope XSP-121V
1. 45mm DIN Achromatic Objective：4X，10X，40X(S)，100X(S, Oil)
2. Wide Field Plane-Scope Eyepiece：WF10X；
3. Total Magnification：40X-1000X
4. Dual Observation Head，One Tube 30º Inclined And Another Tube Vertical，360º Rotatable
5. Double Layers Mechanical Stage：125X130mm, Moving Range X-Y：60X30mm
6. Ø2-Ø30mm Iris Diaphragm And Ø32 Filter；
7. ABBE Condenser：N.A. 1.25
8. Coaxial Coarse And Fine Focusing Adjustable Mechanism：20mm
9. Built-in Adjustable Brightness Halogen Lamp 6V/20W（or Incandescent, or Fluorescent, or LED）
10. Net Weight/Set：4.1kg；
11. Package：2 Sets/Carton 50X34X49cm；
12. Gross Weight/Carton：11kg

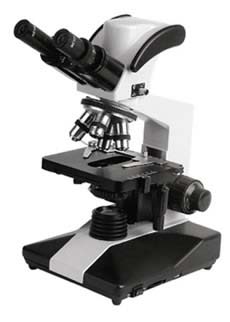

Bio-Microscope Microscope XSZ-801DN
1. 45mm DIN Achromatic Objective: 4X,10X,40X(S),100X(S,Oil);
2. Wide Field Plane-Scope Eyepiece: WF10X,Wf16X
3. Articulated Free Binocular Head, Intepupillary Distance:55-75mm,
4. 30º Inclined, 360º Rotatable
5. Built-in Digital Camera System, Resolution:1280(H)*1024(V),1/2Chip, USB2.0 with Micro-image Process Software
6. Nosepiece: Forward Quadruple Nosepiece
7. Double Layers Mechanical Stage:140X155mm,Moving Range X-Y: 70X50mm
8. Ø2-Ø30mm Iris Diaphragm And Ø32 Filter with ABBE Condenser: N.A. 1.25
9. Coaxial Coarse And Fine Focusing Adjustable Mechansim: 25mm,
10. Precision:0.002mm
11. Built-in Adjustable Brightness Halogen Lamp 6V/20W

YX-2 Epi-fluorescent Attachment
The Epi-fluorescent Attachment can be equipped flexibly with ordinary microscope as an Epi-fluorescent Microscope. Which present Excellent image quality and widely used in venereal disease examination and immuneless diagnosis.
Features:

Comfortable Operation with New Adjustable Knob of New Lamp Housing and Prevent Light from Leaking

More Stable, Reliable Power Supplier NFP-1, with Display and Timer
Specification:

YX-2B
Reflected Light Source

Blue, Green Exciting Light Filter System and O Ordinary Light System

●

Ultraviolet, Violet Exciting Light Filter System and O Ordinary Light System

○
Illumination

100W HBO Ultra Hi-voltage Spherical Mercury Lamp

●
Protection Barrier

Barrier to Resist the Ultraviolet Light

●
Power Supplier

Power Supplier NFP-A，AC Input 220V, Indicator Display



Power Supplier NFP-1, AC Input 220V/ 110V (Interchangeable), Digital Display and Timer

●
Fluorescent Objective 4×, 10×, 40× (S), 100× (S, Oil)

●
Immersion oil

Fluorescence Free Oil

●

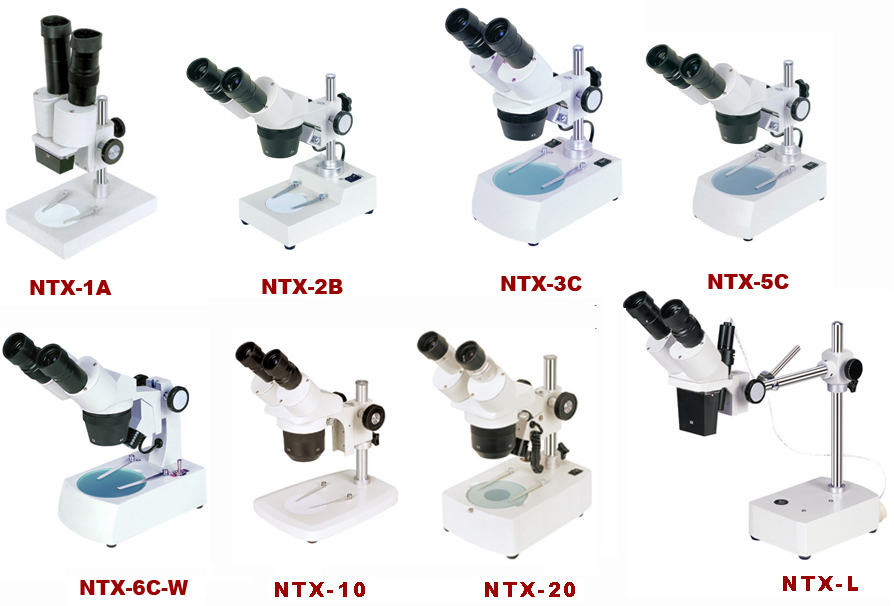

NTX Serials Stereo Microscope

NTX series stereo microscopes are of fully coated excellent optical system providing high resolution and crisp erect image. They are widely used in electric factories, schools laboratories, sculpture and families and so on.
Specifications:

NTX-1A

NTX-1B

NTX-1C

Head

Straight Binocular Viewing Head

●

●

●

Eyepiece

WF5×

○

○

○

WF10×

●

●

●

WF15×

○

○

○

WF20×

○

○

○

Objective

Inserted Objective

1×

○

○

○

2×

●

●

●

3×

○

○

○

4×

○

○

○

6×

○

○

○

Working Distance

80mm

●

●

●

Illumination

No Light

●





Epi-illumination 12V/10W



●

●

Diascopic Illumination 12V/10W





●


NTX-2A

NTX-2B

NTX-2C

NTX-3A

NTX-3B

NTX-3C

Head

Inclined Binocular Viewing Head, Unrotatable

●

●

●

●

●

●

Eyepiece

WF5×

○

○

○

○

○

○

WF10×

●

●

●

●

●

●

WF15×

○

○

○

○

○

○

WF20×

○

○

○

○

○

○

Objective

Inserted Objective

1×

○

○

○







2×

●

●

●







3×

○

○

○







4×

○

○

○







6×

○

○

○







Objective

2×、4×







●

●

●

1×、2×







○

○

○

1×、3×







○

○

○

Working Distance

80mm

●

●

●







57mm







●

●

●

Illumination

No Light

●





●





Transmitted light 6V/ 12W



●

●



●

●

Incident light 6V/ 12W





●





●


NTX-10

NTX-20

Head

Inclined Binocular Head

●

●

Eyepiece

WF5×

○

○

WF10×

●

●

WF15×

○

○

WF20×

○

○

Objective

Objective

2× & 4×

●

●

1× & 2×

○

○

1× & 3×

○

○

Auxiliary Objective

0.5×

○

○

0.75×

○

○

1.5×

○

○

2×

○

○

Working Distance

72mm

●

●

Illumination

No Light

●



Epi-illumination 6V/ 12W



●

Diascopic Illumination 6V/ 12W



●


NTX-L

Head

Inclined Binocular Head

●

Eyepiece

WF5×

○

WF10×

●

WF15×

○

WF20×

○

Objective

Inserted Objective

1×

●

0.5×

○

Working Distance

230mm (Inserted Objective 1×)

●

250mm (Inserted Objective 0.5×)

○

Illumination

Incandescent Lamp 12V/10W

●

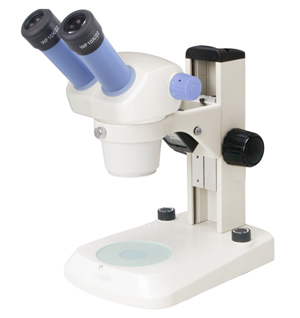

NSZ-405 Zoom Stereo Microscope
Description
· High quality, high function and excellent cost performance.
· Best choose with ergonomic design, sharp image display and wide viewing field.
· Providing a wide viewing field of Φ20mm with the zoom ratio of 1:4.5.
· Ideal instrument in academic, medical and industrial field.



Specifications:

　

NSZ-405

Drawing Tube

Binocular head, inclined at 45°

●

Binocular head, inclined at 60°

○

Trinocular head, inclined at 45°

○

Eyepiece

Wide field eyepiece 10×/ Φ20

●

15×/ 16

○

20×/ 12

○

10× Eyepiece with cross hair

○

Objective

Zoom objective

0.7×～3×

○

1×～4.5×

●

Auxiliary objective

2×、0.75X、0.63X、0.5X

○

Zoom Ratio

1:4.3

○

1:4.5

●

Working Distance

97mm

●

Illumination

LED Reflection illumination

●

LED Transmission illumination

●

Photo Attachment

　

○

Video Attachment

　

○
Note:  ● Standard Outfit, ○ Optional
