Peristaltic Pump

How to choose a right peristaltic pump for you? Simple Step:
1. Select -S, -L, -F, -WG serials.
2. Select the flow rate and channel

Item Serials Introduction Functions External Control
1 -S

Variable Speed

4 LED digital display, keypad operation, reversible direction, start/stop, full speed (fast cleaning or empty), state memory (power-down memory).

Footswitch, external control start/stop, external control direction, with isolation, TTL level, 0-5V/10V, 4-20mA, 0-10KHz control modes, RS485 interface, support MODBUS communication protocol.

2 -L

Flow Control

Color touch screen operation, easy-dispensing, flow rate display, flow calibration, volume accumulated, intelligent temperature control, expert operation system, reversible direction, start/stop, full speed (fast cleaning or empty), state memory (power-down memory).

Infrared remote control, footswitch, external control start and stop, external control direction, with isolation, 5V,12V, 24V level input, 0-5V/10V,4-20mA,0-10KHz control speed,RS485 interface, support MODBUS communication protocol.
3 -F

Dispensing type

Three kinds of dispensing modes: time dispensing, copy dispensing, volume dispensing, touch screen operation, flow rate display, flow calibration, accumulated the volume and times, intelligent temperature control, expert operation system, reversible direction, start/stop, full speed (fast cleaning and empty), state memory (power-down memory).

Infrared remote control, footswitch, external control start and stop, external control direction, with isolation, 5V,12V,24V level input, 0-5V/10V,4-20mA,0-10KHz control speed,RS485 interface, support MODBUS communication protocol.

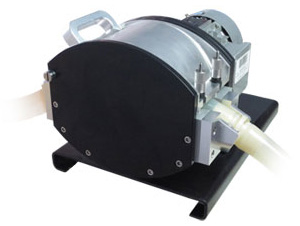

4 -WG Industrial type

This series of peristaltic pumps are suitable for transferring larger amount fluid in the industry .One channel flow rang: 0.01-13L/min.

This series of peristaltic pumps adopts the brushless motor drive with large torque, free maintenance, Low noise, high rotating accuracy. RS485 interface, support the MODBUS communication protocol, can connect with other equipments, such as computer, PLC, human machine interface, Configuration software and Lab view.

Peristaltic Pump & Head

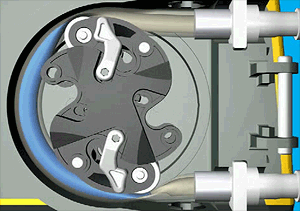

Peristaltic pump is a type of positive displacement pump used for pumping a variety of fluids. The fluid is contained within a flexible tube fitted inside a circular pump casing (though linear peristaltic pumps have been made). A rotor with a number of "rollers", "shoes", "wipers", or "lobes" attached to the external circumference of the rotor compresses the flexible tube. As the rotor turns, the part of the tube under compression is pinched closed (or "occludes") thus forcing the fluid to be pumped to move through the tube. Additionally, as the tube opens to its natural state after the passing of the cam ("restitution" or "resilience") fluid flow is induced to the pump. This process is called peristalsis and is used in many biological systems such as the gastrointestinal tract. Typically, there will be two or more rollers, or wipers, occluding the tube, trapping between them a body of fluid. The body of fluid is then transported, at ambient pressure, toward the pump outlet. Peristaltic pumps may run continuously, or they may be indexed through partial revolutions to deliver smaller amounts of fluid.

Peristaltic pump head with many models to fit the pump, so that control the flow of the liquid.
1. DG serials head
Features: DG series are designed for small flow and multi-channel transmission, easy to replace and fix tubing. Self adapting spring adjusts pressing gap automatically according to tubing. The rollers are made of 304 stainless steel. A whole pump head consists of three parts: frame, roller device and cartridge. According to the numbers of channel, there are DG1, DG2, DG4, DG8,DG12 ,DG16,DG24 series.

Specification:
Flow range: 0.00016 ~ 48ml/min
Card material: POM
Roller material: 304 stainless steel
Roller number: 6, 10
Gap adjustment: micro-adjustment
Applicable tube: wall thickness 0.8~1mm; Inner Diameter: ≤3.17mm
2. YZ15 serials head
Features: Load various tubing; easy-load type, compact structure, can be mounted in tandem (up to 4); pump head with PPS material is resistance to organic solvents and other corrosion liquid, it is solid and durable.

Specification:
• Flow range: 0.006~2300mL/min
• Applicable tubes: 13#,14#,19#,16#,25#,17#,18#
• Shell material: PPS
• Roller material: 304 stainless steel
• Roller number: 3
• Gap adjustment: fixed
• Working temperature: work continuously under 200°C.
• Chemical compatibility: resistant to acid, alkali and organic solvents
3. YZ25 serials head
Features: Load various tubing; easy-load type, compact structure, can be mounted in tandem (up to 4); pump head with PPS material is resistance to organic solvents and other corrosion liquid, it is solid and durable.

Specification:
• Flow range: 0.006~1700mL/min
• Applicable tubes: 15#, 24#
• Shell material: PPS
• Roller material: 304 stainless steel
• Roller number: 3
• Gap adjustment: fixed
• Working temperature: work continuously under 200°C.
•Chemical compatibility: resistant to acid, alkali and organic solvents
4. YZ35 serials head
Features: Load various tubing; easy-load type, compact structure, can be mounted in tandem (up to 2); pump head with PPS material is resistance to organic solvents and other corrosion liquid, it is solid and durable.

Specification:
• Flow range: 100 ~ 13,000mL/min
• Applicable tubes: 73#, 82#
• Shell material: PPS
• Roller material: 304 stainless steel
• Roller number: 3
• Gap adjustment: Micro-adjustment
• Working temperature: work continuously under 200°C.
• Chemical compatibility: resistant to acid, alkali and organic solvents

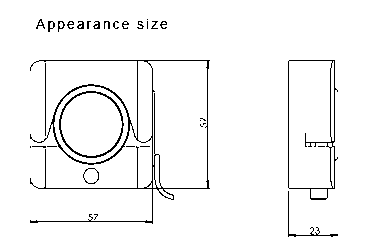

5. FZ-10 serials head
Features: FZ-10 pump head is suitable for micro-flow transmission. Pump head and motor are fixed together, small size, convenient to install.

Specification:
•Flow range: ≤32mL/min
•Speed range: ≤80rpm
•Shell material: Makrolon
•Roller material: POM
•Roller number: 4
•Gap adjustment: Automatic micro-adjustment
•Applicable tubes: Wall thickness:0.8~1mm, Inner Dia: 1mm~3.17mm

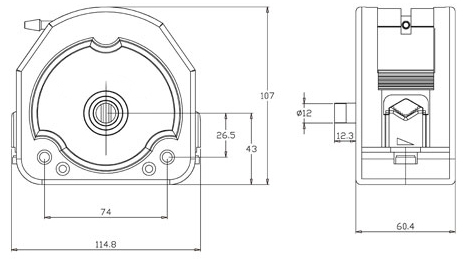

6. KZ-25 serials head
Features: KZ25 pump head is suitable for the big flow transmission, up to 6800mL/min, can load various tubing. Replacing tubing only wastes several seconds, easy to operate. can be mounted in tandem (up to 2). The rollers adopt 304 stainless steel, the shell adopts transparent PC material, moderate intensity, it is convenient for observing the internal work situation of pump head. The top press block adopts PPS material which is resistant to high temperature and corrosion.

Specification:
•Flow range: ≤6800mL/min
•Speed range: ≤600 rpm
•Shell material: PC
•Press block material: PPS
•Roller material: 304 stainless steel
•Roller number: 3
•Tubing-fixing adjustment: manual
•Gap adjustment: fixed
•Applicable tubes: 15 #, 24 #, 35#, 36#

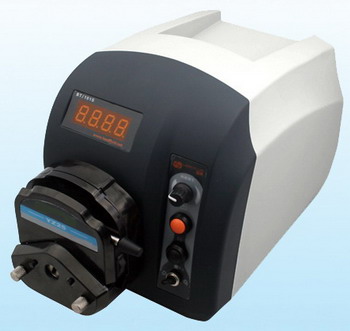

Variable Speed Plastic Peristaltic Pump BT101S Serials
BT101S is a basic speed variable peristaltic pump. Flow range is 0.00016~575ml/min. Rotate speed is 0.1~150rpm. With basic functions such as reversible direction, start/stop, full speed (fast cleaning), adjust speed. Dispensing function can realize the repeat timing quantitative dispensing liquid .RS485 interface, as adopting the MODBUS communication protocol, the pump is easier to be connected with other equipments, such as computer ,human machine interface and PLC.
Function and Features:
• Four-figure digital LED indicator displays working speed.
• LED indicator displays the internal control, external control, footswitch and other working mode.
• Mask keypad operation.
• Reversible direction, start/stop, full speed, state memory (power-down memory).
• Easy dispensing function, it realizes the repeat timing quantitative dispensing liquid.
• 0.1-100rpm, the speed resolution is 0.1rpm. 100~150rpm, the speed resolution is 1rpm.
• ABS plastic housing, patent protection, creative streamlined appearance, beautiful and practical.
• Can drive multi-channels and various types of pump heads.
• The circuit board with conformal coating makes it dust-proof and moisture-proof.
• Super anti-interference feature, wide input voltage range, acceptable for the complex power environment.
• External high-low electrical level controls the start/stop, reversible direction and easy dispensing function, optically coupled isolator; External analog adjusts the rotate speed.
• RS485 interface, MODBUS protocol is available, easy to connect other equipments.
• Optional footswitch or timer for dispensing fluid.
• Flow accuracy:＜0.5%
• Speed resolution: 0.1-100rpm, resolution is 0.1 rpm, 100-150rpm, the speed resolution is 1rpm.
• Power supply :AC 220V±10%,50Hz/60Hz, AC 110V±10%,50Hz/60Hz
• Power consumption: ＜30W
• External control: Input electrical level 5V, 12V (standard),24V(optional).
• External control analog 0-5V(standard),0-10V,4-20mA(optional)
• External communication interface：RS485 communication interface, support the MODBUS protocol.
• Ambient temperature: 0~40℃
• Relative humidity:＜80%
• IP grade:IP31
• Dimensions: (LxWxH) 260mmx181mmx198mm
• Weight: 4.5KG

Order Number Channels Pump Head Tube Size Flow Rate of Single Channel (ml/min)
BT101S-D1 1 DG6-1 (6 Rollers) W.T.:0.8~1mm, I.D.:≤3.17mm 0.00016~49
BT101S-D2 1 DG10-1 (10 Rollers) W.T.:0.8~1mm, I.D.:≤3.17mm 0.00011~41
BT101S-D3 2 DG6-2 (6 Rollers) W.T.:0.8~1mm, I.D.:≤3.17mm 0.00016~49
BT101S-D4 2 DG10-2 (10 Rollers) W.T.:0.8~1mm, I.D.:≤3.17mm 0.00011~41
BT101S-D5 4 DG6-4 (6 Rollers) W.T.:0.8~1mm, I.D.:≤3.17mm 0.00016~49
BT101S-D6 4 DG10-4 (10 Rollers) W.T.:0.8~1mm, I.D.:≤3.17mm 0.00011~41
BT101S-D7 1 YZ15 13#,14#,19#,16#,25#,17#,18# 0.006~575
BT101S-D8 1 YZ25 15#, 24# 0.1667~425
BT101S-D9 1 DT10-18 13#, 14#; W.T.:0.8~1mm, I.D.:≤3.17mm 0.0002~82
BT101S-D10 2 DT10-28 13#, 14#; W.T.:0.8~1mm, I.D.:≤3.17mm 0.0002~82
BT101S-D11 1 YT15 13#,14#,16#,19#,25#,17#,18# 0.006~570
BT101S-D12 1 YT25 15#,24#,35#,36# 0.006~720 <0.1MPa

Remarks: W.T.=Wall Thickness; I.D.:=Inner Diameter

 Variable Speed Plastic Peristaltic Pump BT301S Serials
BT301S is a basic speed variable peristaltic pump. Flow range is 0.006-1340ml/min. Rotate speed is 0.1-350rpm. With basic functions such as reversible direction, start/stop, full speed (fast cleaning), adjust speed. Dispensing function can realize the repeat timing quantitative dispensing liquid. RS485 interface, as adopting the MODBUS communication protocol, the pump is easier to be connected with other equipments, such as computer ,human machine interface and PLC.
Function and Features:
• Four-figure digital LED indicator displays working speed.
• LED indicator displays the internal control, external control, footswitch and other working mode.
• Mask keypad operation.
• Reversible direction, start/stop, full speed, state memory (power-down memory).
• Easy dispensing function, it realizes the repeat timing quantitative dispensing liquid.
• 0.1-100rpm, the speed resolution is 0.1rpm. 100-350rpm, the speed resolution is 1rpm.
• ABS plastic housing, patent protection, creative streamlined appearance, beautiful and practical.
• Can drive multi-channels and various types of pump heads.
• The circuit board with conformal coating makes it dust-proof and moisture-proof.
• Super anti-interference feature, wide input voltage range, acceptable for the complex power environment.
• External high-low electrical level controls the start/stop, reversible direction and easy dispensing function, optically coupled isolator; External analog adjusts the rotate speed.
• RS485 interface, MODBUS protocol is available, easy to connect other equipments.
• Optional footswitch or timer for dispensing fluid.
• Flow range: 0.006-1340ml/min
• Flow accuracy:＜0.5%
• Speed range:0.1-350rpm.
• Speed resolution: 0.1-100rpm, resolution is 0.1rpm. 100-350rpm, resolution is 1rpm
• Power supply :AC 220V±10%,50Hz/60Hz, AC 110V±10%,50Hz/60Hz
• Power consumption:＜40W
• External control: Input electrical level 5V/12V, 24V(optional); External control analog 0-5V, 0-10V/4-20mA(optional)
• External communication interface：RS485 communication interface, support the MODBUS protocol.
• Ambient temperature:0~40℃
• Relative humidity:＜80%
• IP grade:IP31
• Dimensions: (LxWxH) 260mmx181mmx198mm
• Weight: 4.7KG

Order Number Channels Pump Head Tube Size Flow Rate of Single Channel (ml/min)
BT301S-D1 1 YZ15 13#,14#,19#,16#,25#,17# 0.006~1340
BT301S-D2 1 YZ25 15#, 24# 0.1667~990
BT301S-D3 1 YT15 13#,14#,19#,16#,25#,17#,18# 0.006~1300
BT301S-D4 1 YT25 15#,24#,35#,36# 0.16~1600 <0.1MPa

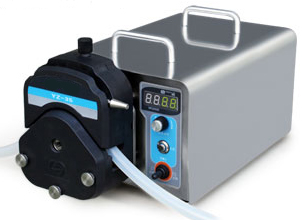

 Variable Speed Stainless Steel Peristaltic Pump BT600S Serials
BT600S Basic Speed –Variable Peristaltic Pump flow range is 0.006-2300ml/min. Rotate speed is 0.1-350rpm.With basic functions such as reversible direction, start/stop, full speed (fast cleaning), adjust speed .Dispensing function can realize the repeat timing quantitative dispensing liquid .RS485 interface, as adopting the MODBUS communication protocol, the pump is easier to be connected with other equipments, such as computer ,human machine interface and PLC
Function and Features:
• Four-figure digital LED indicator displays working speed.
• LED indicator displays the internal control, external control, footswitch and other working mode.
• Mask keypad operation.
• Reversible direction, start/stop, full speed, state memory (power-down memory).
• Easy dispensing function, it realizes the repeat timing quantitative dispensing liquid.
• 0.1-100 rpm, the speed resolution is 0.1 rpm. 100-600 rpm, the speed resolution is 1 rpm.
• Stainless steel housing, easy to clean, excellent resistance to the corrosion of the acid, alkali, sodium and the
organic solvents.
• Can drive multi-channels and various types of pump heads.
• The circuit board with conformal coating makes it dust-proof and moisture-proof.
• Super anti-interference feature, wide input voltage range, acceptable for the complex power environment.
• External high-low electrical level controls the start/stop, reversible direction and easy dispensing function,
optically coupled isolator; External analog adjusts the rotate speed.
• RS485 interface, MODBUS protocol is available, easy to connect other equipments.
• Optional footswitch or timer for dispensing fluid.

Order Number Channels Pump Head Tube Size Flow Rate of Single Channel (ml/min)
BT600S-D1 1 YZ15 13#,14#,19#,16#,25#,17# 0.006~1700
BT600S-D2 1 YZ25 15#, 24# 0.16~1700
BT600S-D3 2 YZ15 x2 13#,14#,19#,16#,25#,17# 0.006~1700 (<0.1MPa)
BT600S-D4 2 YZ25 x2 15#,24# 0.16~1700 (<0.1MPa)
BT600S-D5 2 DT15-26 19#,16#,25#,17# 0.047~1600 (<0.1MPa)
BT600S-D6 1 YT15 13#,14#,19#,16#,25#,17#,18# 0.006~2300
BT600S-D7 1 YT25 15#,24#,35#,36# 0.16~2900 (<0.1MPa)
BT600S-D8 2 YT15 x2 13#,14#,19#,16#,25#,17#,18# 0.006~2300 (<0.1MPa)

 Variable Speed Plastic Peristaltic Pump BT601S Serials
BT601S is a basic speed variable peristaltic pump. Flow range is 0.006-2300ml/min. Rotate speed is 0.1-600rpm. With basic functions such as reversible direction, start/stop, full speed (fast cleaning), adjust speed. Dispensing function can realize the repeat timing quantitative dispensing liquid. RS485 interface, as adopting the MODBUS communication protocol, the pump is easier to be connected with other equipments, such as computer ,human machine interface and PLC.
Function and Features:
• Four-figure digital LED indicator displays working speed.
• LED indicator displays the internal control, external control, footswitch and other working mode.
• Mask keypad operation.
• Reversible direction, start/stop, full speed, state memory (power-down memory).
• Easy dispensing function, it realizes the repeat timing quantitative dispensing liquid.
• 0.1~100 rpm, the speed resolution is 0.1 rpm. 100-600 rpm, the speed resolution is 1 rpm.
• ABS plastic housing, patent protection, creative streamlined appearance, beautiful and practical.
• Can drive multi-channels and various types of pump heads.
• The circuit board with conformal coating makes it dust-proof and moisture-proof.
• Super anti-interference feature, wide input voltage range, acceptable for the complex power environment.
• External high-low electrical level controls the start/stop, reversible direction and easy dispensing function, optically coupled isolator; External analog adjusts the rotate speed.
• RS485 interface, MODBUS protocol is available, easy to connect other equipments.
• Optional footswitch or timer for dispensing fluid.
• Flow range: 0.006-2300ml/min
• Flow accuracy: ＜0.5%
• Speed range: 0.1-600rpm.
• Speed resolution: 0.1-100rpm, resolution is 0.1 rpm; 100-600rpm, resolution is 1rpm
• Power supply: AC 220V±10%,50Hz/60Hz; AC 110V±10%,50Hz/60Hz
• Power consumption: ＜50W
• External control: Input electrical level 5V/12V; 24V(optional); External control analog 0-5V, 0-10V/4-20mA(optional)
• External communication interface：RS485 communication interface, support the MODBUS protocol.
• Ambient temperature: 0~40℃
• Relative humidity:<80%
• IP grade: IP31
• Dimensions (LxWxH) 260mmx181mmx198mm
• Weight：4.9KG

Order Number Channels Pump Head Tube Size Flow Rate of Single Channel (ml/min)
BT601S-D1 1 YZ15 13#,14#,19#,16#,25#,17#,18# 0.006~1700
BT601S-D2 1 YZ25 15#, 24# 0.16~1700, <0.1MPa
BT601S-D3 1 YT15 13#,14#,19#,16#,25#,17#,18# 0.006~2300
BT601S-D4 1 YT25 15#,24#,35#,36# 0.16~2900, <0.1MPa

 Variable Speed Plastic Peristaltic Pump BQ50S Serials
BQ50S Micrometeor Speed –Variable Peristaltic Pump can work on the desktop without any fixed plate, meanwhile, embedded design makes the pump can assort with other equipments conveniently. Having basic functions such as reversible direction, start/stop, full speed (fast cleaning, empty) and speed- variable. Dispensing function realizes the repeat timing quantitative dispensing. The pump head loads Pharmed BPT tubing whose working life is up to 12000 hours under continuously running. RS485 interface, as adopting the MODBUS communication protocol, the pump is easier to be connected with other equipments, such as computer, human machine interface and PLC.
Function and Features:
• Simple operation, small size, easy installation, suitable for ancillary equipment and laboratories.
• Built-in Pharmed BPT tubing whose working life is up to 12000 hours under continuously running
• Four-figure digital LED indicator displays working speed.
• The LED indicator displays the internal, external control mode.
• Mask keypad operation.
• Reversible direction, start/stop, adjust speed and full speed, state memory (power-down memory).
• Easy dispensing function, it realizes the repeat timing quantitative dispensing.
• Speed resolution is 0.1rpm.
• Plastic housing, adopts embedded design, also can work on the desktop separately.
• The circuit board with conformal coating makes it dust-proof and moisture-proof.
• Super anti-interference feature, wide input voltage range, acceptable for the complex power environment.
• External high-low electrical level controls the start/stop, reversible direction and easy dispensing function, optically coupled isolator.
• Can input the electrical level 5V,12V or 24V.
• RS485 interface, MODBUS protocol is available, easy to connect other equipments.
• Optional footswitch or timer for dispensing fluid.
• Flow range :0.005-20ml/min
• Flow accuracy:<0.5%
• Speed range:0.1-50rpm.
• Speed resolution :0.1rpm
• Power supply :AC 220V±10%,50Hz/60Hz; AC 110V±10%,50Hz/60Hz
• Power consumption: <8W
• External control: Input electrical level 5V,12V(standard),24V(optional).
• External communication interface：RS485 communication interface, support the MODBUS protocol.
• Ambient temperature: 0~40℃
• Relative humidity:<80%
• IP grade:IP31
• Dimensions (LxWxH) 112mmx 96mmx96mm
• Weight: 0.7KG

Order Number Channels Pump Head Tube Size Flow Rate of Single Channel (ml/min)
BQ50S-D1 1 DG10-1 (10 rollers) W.T.:0.8~1mm, I.D.: 1~2.4mm 0.00016~13
BQ50S-D2 2 DG10-2 (10 rollers) W.T.:0.8~1mm, I.D.: 1~2.4mm 0.00016~13
BQ50S-D3   DT10-18 W.T.:0.8~1mm, I.D.: 1~3.17mm 0.002~41
BQ50S-D4   DT10-28 W.T.:0.8~1mm, I.D.: 1~3.17mm 0.002~41
BQ50S-D5 1 YZ15 13#,14#,19#,16#,25#,17# 0.006~140
BQ50S-D6 1 YT15 13#,14#,19#,16#,25#,17#,18# 0.006~190

 Variable Speed Plastic Peristaltic Pump BQ80S Serials
BQ80S Micrometeor Speed –Variable Peristaltic Pump can work on the desktop without any fixed plate, meanwhile, embedded design makes the pump can assort with other equipments conveniently. Having basic functions such as reversible direction, start/stop, full speed (fast cleaning, empty) and speed- variable. Dispensing function realizes the repeat timing quantitative dispensing. The pump head loads Pharmed BPT tubing whose working life is up to 12000 hours under continuously running. RS485 interface, as adopting the MODBUS communication protocol, the pump is easier to be connected with other equipments, such as computer, human machine interface and PLC.
Function and Features:
• Simple operation, small size, easy installation, suitable for ancillary equipment and laboratories.
• Built-in Pharmed BPT tubing whose working life is up to 12000 hours under continuously running
• Four-figure digital LED indicator displays working speed.
• The LED indicator displays the internal, external control mode.
• Mask keypad operation.
• Reversible direction, start/stop, adjust speed and full speed, state memory (power-down memory).
• Easy dispensing function, it realizes the repeat timing quantitative dispensing.
• Speed resolution is 0.1rpm.
• Plastic housing, adopts embedded design, also can work on the desktop separately.
• The circuit board with conformal coating makes it dust-proof and moisture-proof.
• Super anti-interference feature, wide input voltage range, acceptable for the complex power environment.
• External high-low electrical level controls the start/stop, reversible direction and easy dispensing function, optically coupled isolator.
• Can input the electrical level 5V,12V or 24V.
• RS485 interface, MODBUS protocol is available, easy to connect other equipments.
• Optional footswitch or timer for dispensing fluid.
• Flow range :0.005-32ml/min
• Flow accuracy:<0.5%
• Speed range:0.1-80rpm.
• Speed resolution: 0.1rpm
• Power supply: AC 220V±10%,50Hz/60Hz; AC 110V±10%,50Hz/60Hz
• Power consumption: <10W
• External control: Input electrical level 5V,12V(standard),24V(optional).
• External communication interface: RS485 communication interface, support the MODBUS protocol.
• Ambient temperature: 0~40℃
• Relative humidity:<80%
• IP grade:IP31
• Dimensions (LxWxH) 112mmx 96mmx96mm
• Weight: 0.8KG

Order Number Channels Pump Head Tube Size Flow Rate of Single Channel (ml/min)
BQ80S-D1 1 FZ10 W.T.:0.8~1mm, I.D.: 1~3.17mm 0.05~40, 20mm Pharmed Tube
BQ80S-D2 1 DW10-1 W.T.:0.8~1mm, I.D.: 0.5~3.17mm 0.005~32
BQ80S-D3 2 DW10-2 W.T.:0.8~1mm, I.D.: 0.5~2.54mm 0.005~19
BQ80S-D4 3 DW10-3 W.T.:0.8~1mm, I.D.: 0.5~3.17mm 0.005~32
BQ80S-D5 1 DW15-1 13#,14#,19#,16#,25# 0.005~64, fit for silicon tube

 Variable Speed Stainless Steel Peristaltic Pump BT50S Serials
BT50S Micrometeor Speed –Variable Peristaltic Pump, Flow range is 0.00011-190ml/min. Rotate speed is 0.1-50rpm. With basic functions such as reversible direction, start/stop, full speed (fast cleaning), adjust speed. Dispensing function can realize the repeat timing quantitative dispensing liquid. RS485 interface, as adopting the MODBUS communication protocol, the pump is easier to be connected with other equipments, such as computer ,human machine interface and PLC.
Function and Features:
• Four-figure digital LED indicator displays working speed.
• LED indicator displays the internal control, external control, footswitch and other working mode.
• Mask keypad operation.
• Reversible direction, start/stop, full speed, state memory (power-down memory).
• Easy dispensing function, it realizes the repeat timing quantitative dispensing liquid .
• Speed resolution is 0.1rpm.
• Stainless steel housing, easy to clean, excellent resistance to the corrosion of the acid, alkali, sodium and the organic solvents.
• Can drive multi-channels and various types of pump heads.
• The circuit board with conformal coating makes it dust-proof and moisture-proof.
• Super anti-interference feature, wide input voltage range, acceptable for the complex power environment.
• External high-low electrical level controls the start/stop, reversible direction and easy dispensing function, optically coupled isolator; External analog adjusts the rotate speed.
• RS485 interface, MODBUS protocol is available, easy to connect other equipments.
• Optional footswitch or timer for dispensing fluid.
• Flow range :0.00011-190ml/min
• Flow accuracy:<0.5%
• Speed range:0.1-50rpm.
• Speed resolution :0.1rpm
• Power supply :AC 220V±10%,50Hz/60Hz; AC 110V±10%,50Hz/60Hz
• Power consumption：<25W
• External control: Input electrical level 5V,12V(standard),24V(optional).
• External communication interface：RS485 communication interface, support the MODBUS protocol.
• Ambient temperature: 0~40℃
• Relative humidity: <80%
• IP grade:IP31
• Dimensions: (LxWxH) 218mmx127mmx122mm
• Weight: 2.6KG

Order Number Channels Pump Head Tube Size Flow Rate of Single Channel (ml/min)
BT50S-D1 1 DG10-1 (10 rollers) W.T.:0.8~1mm, I.D.: ≤2.4mm 0.00016~13
BT50S-D2 2 DG10-2 (10 rollers) W.T.:0.8~1mm, I.D.: ≤2.4mm 0.00016~13
BT50S-D3   DT10-18 W.T.:0.8~1mm, I.D.: ≤3.17mm 0.0002~41
BT50S-D4   DT10-28 W.T.:0.8~1mm, I.D.: ≤3.17mm 0.0002~41
BT50S-D5 1 YZ15 13#,14#,19#,16#,25#,17# 0.006~140
BT50S-D6 1 YT15 13#,14#,19#,16#,25#,17#,18# 0.006~190

 Variable Speed Stainless Steel Peristaltic Pump BT100S Serials
BT100S Basic Speed –Variable Peristaltic Pump flow range is 0.00011-575ml/min. Rotate speed is 0.1-150rpm. With basic functions such as reversible direction, start/stop, full speed (fast cleaning), adjust speed .Dispensing function can realize the repeat timing quantitative dispensing liquid. RS485 interface, as adopting the MODBUS communication protocol, the pump is easier to be connected with other equipments, such as computer ,human machine interface and PLC.
Function and Features:
• Four-figure digital LED indicator displays working speed.
• LED indicator displays the internal control, external control, footswitch and other working mode.
• Mask keypad operation.
• Reversible direction, start/stop, full speed, state memory (power-down memory).
• Easy dispensing function, it realizes the repeat timing quantitative dispensing liquid.
• 0.1-100 rpm, the speed resolution is 0.1 rpm. 100-150 rpm, the speed resolution is 1 rpm.
• Stainless steel housing, easy to clean, excellent resistance to the corrosion of the acid, alkali, sodium and the organic solvents.
• Can drive multi-channels and various types of pump heads.
• The circuit board with conformal coating makes it dust-proof and moisture-proof.
• Super anti-interference feature, wide input voltage range, acceptable for the complex power environment.
• External high-low electrical level controls the start/stop, reversible direction and easy dispensing function, optically coupled isolator; External analog adjusts the rotate speed.
• RS485 interface, MODBUS protocol is available, easy to connect other equipments.
• Optional footswitch or timer for dispensing fluid.
• Flow range :0.00011-575ml/min
• Flow accuracy:＜0.5%
• Speed range:0.1-150rpm.
• Speed resolution: 0.1-100rpm, resolution is 0.1rpm; 100-150 rpm, resolution is 1rpm.
• Power supply: AC 220V±10%,50Hz/60Hz; AC 110V±10%,50Hz/60Hz
• Power consumption: ＜40W
• External control: Input electrical level 5V/12V; 24V(optional). External control analog 0-5V, 0-10V/4-20mA(optional).
• External communication interface：RS485 communication interface, support the MODBUS protocol.
• Ambient temperature: 0~40℃
• Relative humidity:＜80%
• IP grade: IP31
• Dimensions (LxWxH) 223mmx150mmx195mm
• Weight: 4.7KG

Order Number Channels Pump Head Tube Size Flow Rate of Single Channel (ml/min)
BT100S-D1 1 DG6-1 (6 Rollers) W.T.:0.8~1mm, I.D.:≤2.4mm 0.00016~26
BT100S-D2 1 DG10-1 (10 Rollers) W.T.:0.8~1mm, I.D.:≤2.4mm 0.00011~20
BT100S-D3 2 DG6-2 (6 Rollers) W.T.:0.8~1mm, I.D.:≤2.4mm 0.00016~26
BT100S-D4 2 DG10-2 (10 Rollers) W.T.:0.8~1mm, I.D.:≤2.4mm 0.00011~20
BT100S-D5 4 DG6-4 (6 Rollers) W.T.:0.8~1mm, I.D.:≤2.4mm 0.00016~26
BT100S-D6 4 DG10-4 (10 Rollers) W.T.:0.8~1mm, I.D.:≤2.4mm 0.00011~20
BT100S-D7 1 DT10-18 13#,14#, W.T.:0.8~1mm, I.D.:≤3.17mm 0.0002~82
BT100S-D8 2 DT10-28  13#,14#, W.T.:0.8~1mm, I.D.:≤3.17mm 0.0002~82
BT100S-D9 4 DT10-48 13#,14#, W.T.:0.8~1mm, I.D.:≤3.17mm 0.0002~82, <0.1MPa
BT100S-D10 1 YZ15 13#,14#,19#,16#,25#,17# 0.006~420
BT100S-D11 1 YZ25 15#,24# 0.17~420
BT100S-D12 2 YZ15 x 2 13#,14#,19#,16#,25#,17# 0.006~420
BT100S-D13 2 YZ25 x 2 15#,24# 0.17~420, <0.1MPa
BT100S-D14 1 YT15 13#,14#,19#,16#,25#,17#,18# 0.006~570
BT100S-D15 1 YT25 15#,24#,35#,36# 0.17~720
BT100S-D16 2 YT15 x 2 13#,14#,19#,16#,25#,17#,18# 0.006~570
BT100S-D17 2 YT25 x 2 15#,24#,35#,36# 0.006~720, <0.1MPa
BT100S-D18 2 DT15-26 19#,16#,25#,17# 0.05~400, <0.1MPa

 Variable Speed Stainless Steel Peristaltic Pump BT100S1 Serials
BT100S1 Basic Speed –Variable Peristaltic Pump flow range is 0.00011-1500ml/min. Rotate speed is 0.1-150rpm. With basic functions such as reversible direction, start/stop, full speed (fast cleaning), adjust speed .Dispensing function can realize the repeat timing quantitative dispensing liquid .RS485 interface, as adopting the MODBUS communication protocol, the pump is easier to be connected with other equipments, such as computer ,human machine interface and PLC.
Function and Features:
• Four-figure digital LED indicator displays working speed.
• LED indicator displays the internal control, external control, footswitch and other working mode.
• Mask keypad operation.
• Reversible direction, start/stop, full speed, state memory (power-down memory).
• Easy dispensing function, it realizes the repeat timing quantitative dispensing liquid.
• 0.1-100 rpm, the speed resolution is 0.1 rpm. 100-150 rpm, the speed resolution is 1 rpm.
• Stainless steel housing, easy to clean, excellent resistance to the corrosion of the acid, alkali, sodium and the organic solvents.
• Can drive multi-channels and various types of pump heads.
• The circuit board with conformal coating makes it dust-proof and moisture-proof.
• Super anti-interference feature, wide input voltage range, acceptable for the complex power environment.
• External high-low electrical level controls the start/stop, reversible direction and easy dispensing function, optically coupled isolator; External analog adjusts the rotate speed.
• RS485 interface, MODBUS protocol is available
• Flow range: 0.00011-1500ml/min
• Flow accuracy:<0.5%
• Speed range: 0.1-150rpm.
• Speed resolution: 0.1-100rpm, resolution is 0.1rpm; 100-150 rpm, the speed resolution is 1rpm.
• Power supply :AC 220V±10%,50Hz/60Hz; AC 110V±10%,50Hz/60Hz
• Power consumption: <40W
• External control: Input electrical level 5V, 12V (standard), 24V(optional); External control analog 0-5V(standard),0-10V,4-20mA(optional)
• External communication interface：RS485 communication interface, support the MODBUS protocol.
• Ambient temperature: 0~40℃
• Relative humidity: <80%
• IP grade: IP31
• Dimensions: (LxWxH) 285mmx150mmx195mm
• Weight: 6.5KG

Order Number Channels Pump Head Tube Size Flow Rate of Single Channel (ml/min)
BT100S1-D1 8 DG6-8 (6 Rollers) W.T.:0.8~1mm, I.D.:≤2.4mm 0.00016~26
BT100S1-D2 8 DG10-8 (10 Rollers) W.T.:0.8~1mm, I.D.:≤2.4mm 0.00011~20
BT100S1-D3 12 DG6-12 (6 Rollers) W.T.:0.8~1mm, I.D.:≤2.4mm 0.00016~26
BT100S1-D4 12 DG10-12 (10 Rollers) W.T.:0.8~1mm, I.D.:≤2.4mm 0.00011~20
BT100S1-D5 16 DG6-16 (6 Rollers) W.T.:0.8~1mm, I.D.:≤2.4mm 0.00016~26, <0.1MPa
BT100S1-D6 16 DG10-16 (10 Rollers) W.T.:0.8~1mm, I.D.:≤2.4mm 0.00011~20, <0.1MPa
BT100S1-D7 24 DG6-24 (6 Rollers) W.T.:0.8~1mm, I.D.:≤2.4mm 0.00016~26, <0.1MPa
BT100S1-D8 24 DG10-24 (10 Rollers) W.T.:0.8~1mm, I.D.:≤2.4mm 0.00011~20, <0.1MPa
BT100S1-D9 8 DT10-88 13#,14#,W.T.:0.8~1mm, I.D.:≤3.17mm 0.0002~82, <0.1MPa
BT100S1-D10 1 YZ15 13#,14#,19#,16#,25#,17# 0.006~420
BT100S1-D11 1 YZ25 15#, 24# 0.16~420
BT100S1-D12 2 YZ15 x 2 13#,14#,19#,16#,25#,17# 0.006~420
BT100S1-D13 2 YZ25 x 2 15#, 24# 0.16~420
BT100S1-D14 4 YZ15 x 4 13#,14#,19#,16#,25#,17# 0.006~420
BT100S1-D15 4 YZ25 x 4 15#, 24# 0.16~420, <0.1MPa
BT100S1-D16 1 KZ25 15#,24#,35#,36# 1~1700
BT100S1-D17 2 KZ25 x 2 15#,24#,35#,36# 1~1700
BT100S1-D18 4 DT15-46 19#,16#,25#,17# 0.05~400
BT100S1-D19 1 YT15 13#,14#,19#,16#,25#,17#,18# 0.006~570
BT100S1-D20 1 YT25 15#,24#,35#,36# 0.006~720
BT100S1-D21 2 YT15 x 2 13#,14#,19#,16#,25#,17#,18# 0.006~570
BT100S1-D22 2 YT25 x 2 15#,24#,35#,36# 0.006~720
BT100S1-D23 4 YT15 x 4 13#,14#,19#,16#,25#,17#,18# 0.006~570
BT100S1-D24 4 YT25 x 4 15#,24#,35#,36# 0.006~720

 Variable Speed Stainless Steel Peristaltic Pump BT102S Serials
BT102S Micrometeror Speed –Variable Peristaltic Pump flow range is 0.00011-380ml/min. Rotate speed is 0.1-100rpm.With basic functions such as reversible direction, start/stop, full speed (fast cleaning), adjust speed .Dispensing function can realize the repeat timing quantitative dispensing liquid. RS485 interface, as adopting the MODBUS communication protocol, the pump is easier to be connected with other equipments, such as computer ,human machine interface and PLC.
Function and Features:
•Four-figure digital LED indicator displays working speed.
•LED indicator displays the internal control, external control, footswitch and other working mode.
•Mask keypad operation.
•Reversible direction, start/stop, full speed, state memory (power-down memory).
•Easy dispensing function, it realizes the repeat timing quantitative dispensing liquid.
•Speed resolution is 0.1rpm.
•Stainless steel housing, easy to clean, excellent resistance to the corrosion of the acid, alkali, sodium and the organic solvents.
•Can drive multi-channels and various types of pump heads.
•The circuit board with conformal coating makes it dust-proof and moisture-proof.
•Super anti-interference feature, wide input voltage range, acceptable for the complex power environment.
•External high-low electrical level controls the start/stop, reversible direction and easy dispensing function, optically coupled isolator; External analog adjusts the rotate speed.
•RS485 interface, MODBUS protocol is available, easy to connect other equipments.
•Optional footswitch or timer for dispensing fluid.

Technical Data:
• Flow range: 0.00011-380ml/min
• Flow accuracy: ＜0.5%
• Speed range:0.1-100rpm.
• Speed resolution: 0.1rpm
• Power supply: 220V±10%, 50Hz/60Hz; AC 110V±10%,50Hz/60Hz
• Power consumption: ＜30W
• External control: Input electrical level 5V,12V (standard),24V(optional).
• External communication interface: RS485 communication interface, support the MODBUS protocol.
• Ambient temperature: 0~40℃
• Relative humidity:＜80%
• IP grade: IP31
• Dimensions (LxWxH): 218mmx 127mmx122mm
• Weight: 2.7KG
Order Number Channels Pump Head Tube Size Flow Rate of Single Channel (ml/min)
BT102S-D1 1 DG6-1 (6 Rollers) W.T.:0.8~1mm, I.D.:≤2.4mm 0.00016~26
BT102S-D2 1 DG10-1 (10 Rollers) W.T.:0.8~1mm, I.D.:≤2.4mm 0.00011~20
BT102S-D3 2 DG6-2 (6 Rollers) W.T.:0.8~1mm, I.D.:≤2.4mm 0.00016~26
BT102S-D4 2 DG10-2 (10 Rollers) W.T.:0.8~1mm, I.D.:≤2.4mm 0.00011~20
BT102S-D5 1 DT10-18 13#,14#,W.T.:0.8~1mm, I.D.:≤3.17mm 0.0002~82
BT102S-D6 2 DT10-28 13#,14#,W.T.:0.8~1mm, I.D.:≤3.17mm 0.0002~82
BT102S-D7 1 YZ15 13#,14#,19#,16#,25#,17# 0.006~280
BT102S-D8 1 YZ25 15#, 24# 0.16~280
BT102S-D9 1 YT15 13#,14#,19#,16#,25#,17#,18# 0.006~380
BT102S-D10 2 YT25 15#, 24#,35#,36# 0.16~480

 Variable Speed Stainless Steel Peristaltic Pump BT300S Serials
BT300S Basic Speed-Variable Peristaltic Pump flow range is 0.006-1340ml/min. Rotate speed is 0.1-350rpm.With basic functions such as reversible direction, start/stop, full speed (fast cleaning), adjust speed. Dispensing function can realize the repeat timing quantitative dispensing liquid. RS485 interface, as adopting the MODBUS communication protocol, the pump is easier to be connected with other equipments, such as computer, human machine interface and PLC.
Function and Features:
• Four-figure digital LED indicator displays working speed.
• LED indicator displays the internal control, external control, footswitch and other working mode.
• Mask keypad operation.
• Reversible direction, start/stop, full speed, state memory (power-down memory).
• Easy dispensing function, it realizes the repeat timing quantitative dispensing liquid.
• 0.1~100 rpm, the speed resolution is 0.1 rpm. 100-350 rpm, the speed resolution is 1 rpm.
• Stainless steel housing, easy to clean, excellent resistance to the corrosion of the acid, alkali, sodium and the organic solvents.
• Can drive multi-channels and various types of pump heads.
• The circuit board with conformal coating makes it dust-proof and moisture-proof.
• Super anti-interference feature, wide input voltage range, acceptable for the complex power environment.
• External high-low electrical level controls the start/stop, reversible direction and easy dispensing function, optically coupled isolator; External analog adjusts the rotate speed.
• RS485 interface, MODBUS protocol is available, easy to connect other equipments.
• Optional footswitch or timer for dispensing fluid.

Technical Data:
• Flow range: 0.006-1340ml/min
• Flow accuracy: ＜0.5%
• Speed range: 0.1-350rpm.
• Speed resolution: 0.1-100 rpm, the speed resolution is 0.1 rpm. 100-350 rpm, the speed resolution is 1 rpm
• Power supply: AC 220V±10%,50Hz/60Hz; AC 110V±10%,50Hz/60Hz
• Power consumption: ＜50W
• External control: Input electrical level 5V, 2V (standard), 24V(optional). External control analog 0-5V(standard),0-10V,4-20mA(optional)
• External communication interface: RS485 communication interface, support the MODBUS protocol.
• Ambient temperature: 0~40℃
• Relative humidity: ＜80%
• IP grade: IP31
• Dimensions (LxWxH): 223mmx150mmx195mm
• Weight: 4.9KG
Order Number Channels Pump Head Tube Size Flow Rate of Single Channel (ml/min)
BT300S-D1 1 YZ15 13#,14#,19#,16#,25#,17# 0.006~990
BT300S-D2 1 YZ25 15#, 24# 0.16~990
BT300S-D3 2 YZ15 x 2 13#,14#,19#,16#,25#,17# 0.006~990 (<0.1MPa)
BT300S-D4 2 YZ25 x 2 15#, 24# 0.16~990 (<0.1MPa)
BT300S-D5 2 DT15-26 19#,16#,25#,17# 0.05~930 (<0.1MPa)
BT300S-D6 4 DT15-46 19#,16#,25# 0.05~610 (<0.1MPa)
BT300S-D7 1 YT15 13#,14#,19#,16#,25#,17#,18# 0.006~1300
BT300S-D8 1 YT25 15#,24#,35#,36# 0.16~1600
BT300S-D9 2 YZ15 x 2 13#,14#,19#,16#,25#,17#,18# 0.006~1300 (<0.1MPa)

 Variable Speed Stainless Steel Peristaltic Pump WT300S Serials
WT300S adopts DC brushless motor drive which is large torque, free maintenance, can cascade four pump heads. Has basic functions such as reversible direction, start/stop, full speed (fast cleaning) and adjust speed. Control the start/stop, reversible direction, adjusts the speed via external analog quality, and adds the time dispensing function.RS485 interface, as adopting the MODBUS communication protocol, the pump is easier to be connected with other equipments, such as computer, human machines interface and PLC.
Function and Features:
• Four-figure digital LED indicator display working speed.
• The LED indicator displays the internal, external control, footswitch etc working modes.
• Mask keypad operation.
• Reversible direction, start/stop, adjust speed and full speed, state memory (power –down memory).
• Easy dispensing functions, it realizes the repeat timing quantitative dispensing liquid
• Can drive multi-channels and various types of pump heads.
• Speed resolution is 1rpm, speed range is 30-350rpm, flow accuracy is 3%.
• Stainless steel housing, easy to clean, excellent resistance to the corrosion of the acid ,alkali ,sodium and the organic solvents.
• The circuit board with conformal coating makes it dust-proof and moisture-proof.
• Super anti-interference feature, wide input voltage range, acceptable for the complex power environment.
• External high –low electrical level controls the start/stop, reversible direction and easy dispensing function, optically coupled isolator; external analog adjusts the rotate speed.
• RS485 interface ，MODBUS protocol is available ,easy to connect with other equipments.
• Optional footswitch or timer for dispensing fluid

Technical Data:
• Flow range: 3-3400ml/min
• Flow accuracy: ＜3%
• Speed range: 30-350rpm.
• Speed resolution: 1rpm
• Power supply: AC 220V±10%,50Hz/60Hz, AC 110V±10%,50Hz/60Hz
• Power consumption: ＜200W
• External control: Input electrical level 5V,12V(standard),24V(optional). External control analog 0-5V(standard),0-10V,4-20mA(optional)
• External communication interface: RS485 communication interface, support the MODBUS protocol.
• Ambient temperature: 0~40℃
• Relative humidity: <80%
• IP grade: IP31
• Dimensions (LxWxH): 286mmx180mmx230mm
• Weight: 6.2KG
Order Number Channels Pump Head Tube Size Flow Rate of Single Channel (ml/min)
WT300S-D1 1 YZ15 13#,14#,19#,16#,25#,17# 3~990
WT300S-D2 1 YZ25 15#, 24# 50~990
WT300S-D3 2 YZ15 x 2 13#,14#,19#,16#,25#,17# 3~990
WT300S-D4 2 YZ25 x 2 15#, 24# 50~990
WT300S-D5 4 YZ15 x 4 13#,14#,19#,16#,25#,17# 3~990
WT300S-D6 4 YZ25 x 4 15#, 24# 50~990
WT300S-D7 1 YT15 13#,14#,19#,16#,25#,17#,18# 3~1300
WT300S-D8 1 YT25 15#,24#,35#,36# 50~1600
WT300S-D9 2 YT15 x 2 13#,14#,19#,16#,25#,17#,18# 3~1300
WT300S-D10 2 YT25 x 2 15#,24#,35#,36# 50~1600
WT300S-D11 4 YT15 x 4 13#,14#,19#,16#,25#,17#,18# 3~1300
WT300S-D12 4 YT25 x 4 15#,24#,35#,36# 50~1600
WT300S-D13 2 DT15-26 19#,16#,25#,17# 14~930
WT300S-D14 4 DT15-46 19#,16#,25#,17# 14~930
WT300S-D15 1 KZ25 15#,24#,35#,36# 80~3500
WT300S-D16 2 KZ25 x 2 15#,24#,35#,36# 80~3500

 Variable Speed Stainless Steel Peristaltic Pump WT600S Serials
WT600S adopts DC brushless motor drive which is large torque, free maintenance, can cascade four pump heads .Has basic functions such as reversible direction, start/stop, full speed (fast cleaning) and adjust speed. Control the start/stop, reversible direction, adjusts the speed via external analog quality, and adds the time dispensing function.RS485 interface, as adopting the MODBUS communication protocol, the pump is easier to be connected with other equipments, such as computer, human machines interface and PLC.
Function and Features:
• Four-figure digital LED indicator display working speed.
• The LED indicator displays the internal, external control, footswitch etc working modes.
• Mask keypad operation.
• Reversible direction, start/stop, adjust speed and full speed, state memory (power –down memory).
• Easy dispensing functions, it realizes the repeat timing quantitative dispensing liquid
• Can drive multi-channels and various types of pump heads.
• Speed resolution is 1rpm, speed range is 30-600rpm, flow accuracy is 3%.
• Stainless steel housing, easy to clean, excellent resistance to the corrosion of the acid ,alkali ,sodium and the organic solvents.
• The circuit board with conformal coating makes it dust-proof and moisture-proof.
• Super anti-interference feature, wide input voltage range, acceptable for the complex power environment.
• External high –low electrical level controls the start/stop, reversible direction and easy dispensing function, optically coupled isolator; external analog adjusts the rotate speed.
• RS485 interface ，MODBUS protocol is available ,easy to connect with other equipments.
• Optional footswitch or timer for dispensing fluid.

Technical Data:
• Flow range: 1.8-6000ml/min
• Flow accuracy: <3%
• Speed range: 30-600rpm.
• Speed resolution: 1rpm
• Power supply: AC 220V±10%,50Hz/60Hz (standard) AC110V±10%,50Hz/60Hz (optional)
• Power consumption: <200W
• External control: Input electrical level 5V,12V(standard),24V(optional). External control analog 0-5V(standard),0-10V,4-20mA(optional)
• External communication interface：RS485 communication interface, support the MODBUS protocol.
• Ambient temperature: 0~40℃
• Relative humidity: <80%
• IP grade: IP631
• Dimensions (LxWxH) 286mmx180mmx230mm
• Weight: 6.2KG
Order Number Channels Pump Head Tube Size Flow Rate of Single Channel (ml/min)
WT600S-D1 1 YZ15 13#,14#,19#,16#,25#,17# 3~1700
WT600S-D2 1 YZ25 15#, 24# 50~1700
WT600S-D3 2 YZ15 x 2 13#,14#,19#,16#,25#,17# 3~1700
WT600S-D4 2 YZ25 x 2 15#, 24# 50~1700
WT600S-D5 4 YZ15 x 4 13#,14#,19#,16#,25#,17# 3~1700
WT600S-D6 4 YZ25 x 4 15#, 24# 50~1700
WT600S-D7 1 KZ25 15#,24#,35#,36# 80~6000
WT600S-D8 2 KZ25 x2 15#,24#,35#,36# 80~6000
WT600S-D9 2 DT15-26 19#,16#,25#,17# 14~1600
WT600S-D10 4 DT15-46 19#,16#,25#,17# 14~1600
WT600S-D11 1 YT15 13#,14#,19#,16#,25#,17#,18# 3~2300
WT600S-D12 1 YT25 15#,24#,35#,36# 50~2900
WT600S-D13 2 YT15 x2 13#,14#,19#,16#,25#,17#,18# 3~2300
WT600S-D14 2 YT25 x2 15#,24#,35#,36# 50~2900
WT600S-D15 4 YT15 x4 13#,14#,19#,16#,25#,17#,18# 3~2300
WT600S-D16 4 YT25 x4 15#,24#,35#,36# 50~2900

 IP65 Variable Speed Stainless Steel Peristaltic Pump WT600S65 Serials
WT600S65 adopts DC brushless motor drive which is large torque, free maintenance, can cascade four pump heads .Has basic functions such as reversible direction, start/stop, full speed (fast cleaning) and adjust speed. Control the start/stop, reversible direction, adjusts the speed via external analog quality, and adds the time dispensing function.RS485 interface, as adopting the MODBUS communication protocol, the pump is easier to be connected with other equipments, such as computer, human machines interface and PLC.
Function and Features:
• Four-figure digital LED indicator display working speed.
• The LED indicator displays the internal, external control, footswitch etc working modes.
• Mask keypad operation.
• Reversible direction, start/stop, adjust speed and full speed, state memory (power –down memory).
• Easy dispensing functions, it realizes the repeat timing quantitative dispensing liquid
• Can drive multi-channels and various types of pump heads.
• Speed resolution is 1rpm, speed range is 30-600rpm, flow accuracy is 3%.
• Stainless steel housing, easy to clean, excellent resistance to the corrosion of the acid ,alkali ,sodium and the organic solvents.
• The circuit board with conformal coating makes it dust-proof and moisture-proof.
• Super anti-interference feature, wide input voltage range, acceptable for the complex power environment.
• External high –low electrical level controls the start/stop, reversible direction and easy dispensing function, optically coupled isolator; external analog adjusts the rotate speed.
• RS485 interface ，MODBUS protocol is available ,easy to connect with other equipments.
• Optional footswitch or timer for dispensing fluid.
• The IP grade is IP65. The housing adopts full seal design, suitable for more harsh environment application, such as high humidity or water sputtering place.

Technical Data:
• Flow range: 1.8-6000ml/min
• Flow accuracy: <3%
• Speed range: 30-600rpm.
• Speed resolution: 1rpm
• Power supply: AC 220V±10%,50Hz/60Hz (standard), AC 110V±10%, 50Hz/60Hz (optional)
• Power consumption: <200W
• External control: Input electrical level 5V,12V(standard),24V(optional). External control analog 0-5V(standard),0-10V,4-20mA(optional)
• External communication interface: RS485 communication interface, support the MODBUS protocol.
• Ambient temperature: 0~40℃
• Relative humidity: <80%
• IP grade: IP65
• Dimensions (LxWxH) 286 x180 x230mm
• Weight: 6.2KG
Order Number Channels Pump Head Tube Size Flow Rate of Single Channel (ml/min)
WT600S65-D1 1 YZ15 13#,14#,19#,16#,25#,17# 3~1700
WT600S65-D2 1 YZ25 15#, 24# 50~1700
WT600S65-D3 2 YZ15 x 2 13#,14#,19#,16#,25#,17# 3~1700
WT600S65-D4 2 YZ25 x 2 15#, 24# 50~1700
WT600S65-D5 1 KZ25 15#,24#,35#,36# 80~6000
WT600S65-D6 2 DT15-26 19#,16#,25#,17# 14~1600
WT600S65-D7 1 YT15 13#,14#,19#,16#,25#,17#,18# 3~2300
WT600S65-D8 1 YT25 15#,24#,35#,36# 50~2900
WT600S65-D9 2 YT15 x2 13#,14#,19#,16#,25#,17#,18# 3~2300
WT600S65-D10 2 YT25 x2 15#,24#,35#,36# 50~2900

 Flow Stainless Steel Peristaltic Pump BT100L Serials
BT100L Intelligent peristaltic pump flow range: 0.00011-575 ml/min. It adopts color LCD displaying and touch screen technology. Easy operation interface is intuitive and clear. This pump is mainly applicable to the accurate transmission control; It also display, control flow rate and accumulate dispensing volume as the users requirements. Meanwhile, it realizes repeated timing quantitative transmission. Suitable for precise metering and dosing, highest precision can amount to 0.5%, in order to reduce unnecessary peristaltic pump noise, it adopts the intelligent temperature control technology. RS485 interface, as adopting the MODBUS communication protocol, the pump is easier to be connected with other equipments, such as computer, human machine interface and PLC.
Function and Features:
• Color LCD displaying, touch screen and keypad for operating
• Reversible direction, start/stop and full speed, state memory (power-down memory).
• Speed resolution is above 0.1rpm.
• Display and control flow rate, accumulate dispensing volume automatically.
• Calibrating Flow function.
• Easy dispensing function, it realizes the repeat timing quantitative dispensing, without the time controller.
• The operating expert system guides users setting parameters correctly.
• Intelligent temperature-control technology reduces working noise.
• External high-low electrical level controls the start/stop, reversible direction and easy dispensing function, optically coupled isolator; external analog adjusts the rotate speed.
• RS485 interface, MODBUS protocol is available, easy to connect other equipments.
• Internal double-deck isolation structure; circuit board with conformal coating makes it dust-proof and moisture-proof.
• Super anti-interference feature, wide input voltage range, acceptable for the complex power environment.
• Stainless steel housing, easy to clean, excellent resistance to the corrosion of the acid, alkali, sodium and the organic solvents.
• Can drive multi-channels and various types of pump heads.
• Optional footswitch or timer for dispensing fluid.

Technical Data:
• Technical parameters: BT100L
• Flow range (mL/min): 0.00011-575
• Speed range (rpm): 0.1-150
• Speed resolution (rpm): 0.1rpm
• Flow accuracy: <0.5%
• Power supply: AC220V ± 10% 50/60Hz(standard); AC110± 10% 50Hz/60Hz(optional).
• Power consumption: <40W
• External control: Input level 5V,12V(standard),24V(optional) External control analog0-5v(standard),0-10v,4-20mA(optional)
• Communication interface: RS485 communication interface, MODBUS protocol is available.
• Operating condition: Temperature: 0 ~ 40°C; Relative humidity <80%
• IP grade: IP31
• Dimensions (LxWxH): 223x150x195(mm)
• Weight: 4.7kg
Order Number Channels Pump Head Tube Size Flow Rate of Single Channel (ml/min)
BT100L-D1 1 DG6-1 (6 Rollers) W.T.:0.8~1mm, I.D.:≤2.4mm 0.00016~26
BT100L-D2 1 DG10-1 (10 Rollers) W.T.:0.8~1mm, I.D.:≤2.4mm 0.00011~20
BT100L-D3 2 DG6-2 (6 Rollers) W.T.:0.8~1mm, I.D.:≤2.4mm 0.00016~26
BT100L-D4 2 DG10-2 (10 Rollers) W.T.:0.8~1mm, I.D.:≤2.4mm 0.00011~20
BT100L-D5 4 DG6-4 (6 Rollers) W.T.:0.8~1mm, I.D.:≤2.4mm 0.00016~26
BT100L-D6 4 DG10-4 (10 Rollers) W.T.:0.8~1mm, I.D.:≤2.4mm 0.00011~20
BT100L-D7 1 DT10-18 13#,14#, W.T.:0.8~1mm, I.D.:≤3.17mm 0.0002~82
BT100L-D8 2 DT10-28 13#,14#, W.T.:0.8~1mm, I.D.:≤3.17mm 0.0002~82
BT100L-D9 1 YZ15 13#,14#,19#,16#,25#,17# 0.006~420
BT100L-D10 1 YZ25 15#, 24# 0.16~420
BT100L-D11 2 YZ15 x 2 13#,14#,19#,16#,25#,17# 0.006~420
BT100L-D12 2 YZ25 x 2 15#, 24# 0.16~420 (<0.1MPa)
BT100L-D13 4 DT10-28 13#,14#, W.T.:0.8~1mm, I.D.:≤3.17mm 0.0002~82 (<0.1MPa)
BT100L-D14 1 YT15 13#,14#,19#,16#,25#,17#,18# 0.006~570
BT100L-D15 1 YT25 15#, 24#,35#,36# 0.006~720
BT100L-D16 2 YT15 x 2 13#,14#,19#,16#,25#,17#,18# 0.006~570
BT100L-D17 2 YT25 x 2 15#, 24#,35#,36# 0.006~720 (<0.1MPa)
BT100L-D18 1 DT15-16 16#,19#,25#,17# 0.05~400
BT100L-D19 2 DT15-26 16#,19#,25#,17# 0.05~400 (<0.1MPa)
BT100L-D20 4 DT15-46 16#,19#,25# 0.05~260 (<0.1MPa)

Flow Plastic Peristaltic Pump BT101L Serials
BT101L Intelligent peristaltic pump flow range: 0.00016-570 ml/min. It adopts color LCD displaying and touch screen technology. Easy operation interface is intuitive and clear. This pump is mainly applicable to the accurate transmission control. Display and control flow rate, accumulate dispensing volume realizes the users requirements. Meanwhile, it also realizes repeated timing quantitative transmission. Suitable for precise metering and dosing, precision highest can amount to 0.5%, in order to reduce unnecessary peristaltic pump noise, it adopts the intelligent temperature control technology. RS485 interface, as adopting the MODBUS communication protocol, the pump is easier to be connected with other equipments, such as computer, human machine interface and PLC.
Function and Features:
• Color LCD displaying, touch screen and keypad for operating
• Reversible direction, start/stop and full speed, state memory (power-down memory).
• Speed resolution is above 0.1rpm.
• Display and control flow rate, accumulate dispensing volume automatically.
• Calibrating Flow function.
• Easy dispensing function, it realizes the repeat timing quantitative dispensing, without the time controller.
• The operating expert system guides users setting parameters correctly.
• Intelligent temperature-control technology reduces working noise.
• External high-low electrical level controls the start/stop, reversible direction and easy dispensing function, optically coupled isolator; External analog adjusts the rotate speed.
• RS485 interface, MODBUS protocol is available, easy to connect other equipments.
• Internal double-deck isolation structure; circuit board with conformal coating makes it dust-proof and moisture-proof.
• Super anti-interference feature, wide input voltage range, acceptable for the complex power environment.
• ABS plastic housing, creative streamlined appearance.
• Can drive multi-channels and various types of pump heads.
• Optional footswitch or timer for dispensing fluid.

Technical Data:
•Technical parameters: BT101L
•Flow range (mL/min): 0.00016-570
•Speed range (rpm):  0.1-150
•Speed resolution (rpm):  0.1rpm
•Flow accuracy: <0.5%
•Power supply: AC220V ± 10% 50/60Hz(standard); AC110± 10% 50Hz/60Hz(optional).
•Power consumption: <30W
•External control: Input level 5V,12V(standard),24V(optional); External control analog0-5v(standard),0-10v,4-20mA(optional)
•Communication interface: RS485 communication interface, MODBUS protocol is available.
•Operating condition: Temperature 0 ~ 40°C; Relative humidity <80%
•IP grade: IP31
•Dimensions (LxWxH): 225x181x198(mm)
•Weight: 4.5kg
Order Number Channels Pump Head Tube Size Flow Rate of Single Channel (ml/min)
BT101L-D1 1 DG6-1 (6 Rollers) W.T.:0.8~1mm, I.D.:≤2.4mm 0.00016~26
BT101L-D2 1 DG10-1 (10 Rollers) W.T.:0.8~1mm, I.D.:≤2.4mm 0.00011~20
BT101L-D3 2 DG6-2 (6 Rollers) W.T.:0.8~1mm, I.D.:≤2.4mm 0.00016~26
BT101L-D4 2 DG10-2 (10 Rollers) W.T.:0.8~1mm, I.D.:≤2.4mm 0.00011~20
BT101L-D5 4 DG6-4 (6 Rollers) W.T.:0.8~1mm, I.D.:≤2.4mm 0.00016~26
BT101L-D6 4 DG10-4 (10 Rollers) W.T.:0.8~1mm, I.D.:≤2.4mm 0.00011~20
BT101L-D7 1 YZ15 13#,14#,19#,16#,25#,17# 0.006~420
BT101L-D8 1 DT10-18 13#, 14#,W.T.:0.8~1mm, I.D.:≤3.17mm 0.0002~82
BT101L-D9 2 DT10-28 13#, 14#,W.T.:0.8~1mm, I.D.:≤3.17mm 0.0002~82
BT101L-D10 1 YZ25 15#,24# 0.16~420
BT101L-D11 1 YT15 13#,14#,19#,16#,25#,17#,18# 0.006~570
BT101L-D12 1 YT25 15#,24#,35#,36# 0.006~720 (<0.1MPa)

Flow Stainless Steel Peristaltic Pump BT300L Serials
Function and Features:
• Color touch screen, making the information more intuitive peristaltic pump and the operation more convenient;
• Intelligence expert operating system can guarantee smooth operation even the operator never used such kind of machine before;
• The function of accumulative distribution of liquid can record total liquid volume;
• It can be directly set the flow;
• Unique dispensing function, simple operation, suitable for general accuracy of the liquid-dispensing, reducing the human operation errors, improve work efficiency;
• Infrared remote control function, it can be non-contact control;
• BT300L dust-proof type of stainless steel case design, suitable for general industrial environments;
• Suitable for pump head: YZ15, 2×YZ15, YZ25, 2×YZ25
• Flow range:0.006 ~ 1340(ml/min)

Technical Data:
• Speed range: 0.1 ~ 350 r /min
• Speed resolution: 0.1 rev / min, with accuracy 0.5%
• Display: 65535 color LCD + touch screen
• Supply Voltage: AC220V ± 10% 50/60HZ
• Power ratio: < 50W
• Working Environment: Temperature 0 ~ 40℃; Relative humidity: <80%
• Protection level: IP31
• Dimensions: (L × W × H) 223mm×150mm×195mm
• Weight: 5kg
• External control start and stop, external control orientation, Isolated, TTL level input; 0-5V/10V ,4-20mA ,0-10KHz speed control input; support RS485 connector, MODBUS communication protocol.
Order Number Channels Pump Head Tube Size Flow Rate of Single Channel (ml/min)
BT300L-D1 1 YZ15 13#,14#,19#,16#,25#,17# 0.006~990
BT300L-D2 1 YZ25 15#,24# 0.16~990
BT300L-D3 2 YZ15*2 13#,14#,19#,16#,25#,17# 0.006~990 (<0.1MPa)
BT300L-D4 2 YZ25*2 15#,24# 0.16~990 (<0.1MPa)
BT300L-D5 1 YT15 13#,14#,19#,16#,25#,17#,18# 0.006~1300
BT300L-D6 1 YT25 15#,24#,35#,36 0.16~1600 (<0.1MPa)
BT300L-D7 2 YT15*2 13#,14#,19#,16#,25#,17#,18# 0.006~1300 (<0.1MPa)
BT300L-D8 1 DT15-16 16#,19#,25#,17# 0.05~930
BT300L-D9 2 DT15-26 16#,19#,25#,17# 0.05~930 (<0.1MPa)
BT300L-D10 4 DT15-46 16#,19#,25# 0.05~610 (<0.1MPa)

Flow Plastic Peristaltic Pump BT301L Serials
BT301L Intelligent peristaltic pump flow range: 0.006-1340 ml/min. It adopts color LCD displaying and touch screen technology. Easy operation interface is intuitive and clear. This pump is mainly applicable to the accurate transmission control; It also display, control flow rate and accumulate dispensing volume as the users requirements. Meanwhile, it realizes repeated timing quantitative transmission. Suitable for precise metering and dosing, highest precision can amount to 0.5%, in order to reduce unnecessary peristaltic pump noise, it adopts the intelligent temperature control technology. RS485 interface, as adopting the MODBUS communication protocol, the pump is easier to be connected with other equipments, such as computer, human machine interface and PLC.
Function and Features:
• Color LCD displaying, touch screen and keypad for operating
• Reversible direction, start/stop and full speed, state memory (power-down memory).
• Speed resolution is above 0.1rpm.
• Display and control flow rate, accumulate dispensing volume automatically.
• Calibrating Flow function.
• Easy dispensing function, it realizes the repeat timing quantitative dispensing, without the time controller.
• The operating expert system guides users setting parameters correctly.
• Intelligent temperature-control technology reduces working noise.
• External high-low electrical level controls the start/stop、reversible direction and easy dispensing function, optically coupled isolator; External analog adjusts the rotate speed.
• RS485 interface, MODBUS protocol is available, easy to connect other equipments.
• Internal double-deck isolation structure; circuit board with conformal coating makes it dust-proof and moisture-proof.
• Super anti-interference feature, wide input voltage range, acceptable for the complex power environment.
• ABS plastic housing, creative streamlined appearance.
• Can drive multi-channels and various types of pump heads.
• Optional footswitch or timer for dispensing fluid.

Technical Data:
• Technical parameters: BT301L
• Flow range (mL/min): 0.006-1340
• Speed range (rpm): 0.1-350
• Speed resolution (rpm): 0.1 rpm
• Flow accuracy: <0.5%
• Power supply: AC220V ± 10% 50Hz/60Hz(standard ); AC110± 10% 50 Hz /60Hz(optional)
• Power consumption: <40W
• External control: Input level 5V,12V(standard),24V(optional) External control analog0-5v(standard),0-10v,4-20mA(optional)
• Communication interface: RS485 communication interface, MODBUS protocol is available.
• Operating condition: Temperature 0 ~ 40°C; Relative humidity <80%
• IP grade: IP31
• Dimensions (LxWxH): 255x181x198mm
• Weight: 4.7kg
Order Number Channels Pump Head Tube Size Flow Rate of Single Channel (ml/min)
BT301L-D1 1 YZ15 13#,14#,19#,16#,25#,17# 0.006~990
BT301L-D2 1 YZ25 15#,24# 0.16~990
BT301L-D3 1 YT15 13#,14#,19#,16#,25#,17#,18# 0.006~1300
BT301L-D4 1 YT25 15#,24#,35#,36 0.16~1600

Flow Stainless Steel Peristaltic Pump BT600L Serials
Function and Features:
• Multi term patent technologies guarantee the peristaltic pump work at its best.
• Color touch screen, making the information more intuitive and the operation more convenient;
• Intelligence expert operating system can guarantee smooth operation even the operator never used such kind of machine before;
• The function of cumulative distribution of liquid can record total liquid volume;
• Intelligent temperature control temperature greatly reduces the operating noise of cool exhaust fan, and energy conservation.
• it can be directly set the flow;
• Unique dispensing function, simple operation, suitable for general accuracy of the liquid-dispensing, reduces the human operation errors, improve work efficiency;
• Infrared remote control function, it can be non-contact control;
• BT300L dust-proof type of stainless steel case design, suitable for general industrial environments
• For pump head: YZ15, 2 x YZ15, YZ25, 2 x YZ25
• Flow range:0.006 ~ 2300(ml/min)

Technical Data:
• Speed range: 0.1 ~ 600 rpm
• Speed resolution: 0.1 rpm, with accuracy 0.2%
• Display: 65535 color LCD + touch screen
• Supply Voltage: AC220V ± 10% 50/60HZ
• Power ratio: < 50W
• Working Environment: Temperature: 0 ~ 40℃ Relative humidity: <80%
• Protection level: IP31
• Dimensions: (L x W x H) 223 x 150 x 195mm
• Weight: 5.2kg
• External control start and stop, external control orientation, Isolated, TTL level input; 0-5V/10V, 4-20mA, 0-10KHz speed control input; support RS485 bus, MODBUS communication protocol.
Order Number Channels Pump Head Tube Size Flow Rate of Single Channel (ml/min)
BT600L-D1 1 YZ15 13#,14#,19#,16#,25#,17# 0.006~1700
BT600L-D2 1 YZ25 15#,24# 0.16~1700
BT600L-D3 2 YZ15*2 13#,14#,19#,16#,25#,17# 0.006~1700 (<0.1MPa)
BT600L-D4 2 YZ25*2 15#,24# 0.16~1700 (<0.1MPa)
BT600L-D5 1 YT15 13#,14#,19#,16#,25#,17#,18# 0.006~2300
BT600L-D6 1 YT25 15#,24#,35#,36 0.16~2900 (<0.1MPa)
BT600L-D7 2 YT15*2 13#,14#,19#,16#,25#,17#,18# 0.006~2300 (<0.1MPa)

Flow Plastic Peristaltic Pump BT601L Serials
Function and Features:
• Multi term patent technologies guarantee the peristaltic pump work at its best.
• Color touch screen, making the information more intuitive and the operation more convenient;
• Intelligence expert operating system can guarantee smooth operation even the operator never used such kind of machine before ;
• The function of accumulative distribution of liquid can record total liquid volume;
• it can be directly set the flow;
• Unique dispensing function, simple operation, applicable to general accuracy of the liquid-dispensing, reduces the human operation errors, improve work efficiency;
• Infrared remote control function, it can be non-contact control;
• Sleek lines plastic case design, suitable for laboratory use
• For pump head: YZ15, 2 x YZ15, YZ25, 2 x YZ25
• Flow Range: 0.006~2300 (ml/min)

Technical Data:
• Speed range: 0.1 ~ 600 rpm
• Speed resolution: 0.1rpm, with accuracy 0.2%
• Display: 65535 color LCD + touch screen
• Supply Voltage: AC220V ± 10% 50/60HZ
• Power ratio: < 50W
• Working Environment: Temperature 0 ~ 40 ℃; Relative humidity <80%
• Protection level: IP31
• Dimensions: (L x W x H) 255 x 180 x 185mm
• Weight: 5.5kg
• External control start and stop, external control orientation, Isolated, TTL level input; 0-5V/10V ,4-20mA ,0-10KHz speed control input; support RS485 bus, MODBUS communication protocol.
Order Number Channels Pump Head Tube Size Flow Rate of Single Channel (ml/min)
BT601L-D1 1 YZ15 13#,14#,19#,16#,25#,17# 0.006~1700
BT601L-D2 1 YZ25 15#,24# 0.16~1700
BT601L-D3 1 YT15 13#,14#,19#,16#,25#,17#,18# 0.006~2300
BT601L-D4 1 YT25 15#,24#,35#,36 0.16~2900

 Dispensing Stainless Steel Peristaltic Pump BT100F Serials
BT100F Intelligent dispensing peristaltic pump flow range: 0.00016-570ml/min. It adopts color LCD touch screen with intuitive and clear displaying interface, easy to operate. Mainly used for accurate measurement and distribution of fluid. If need high accuracy when dispensing, volume dispensing mode is available; if need high producing efficiency, time dispensing mode is more convenient; if want to separate fluid to number of equal parts, copy dispensing mode would be best. When working on flow mode, it is as same as intelligent flow peristaltic pump. The pump adopts intelligent temperature-control technology to reduce working noise. RS485 interface, as adopting the MODBUS communication protocol, the pump is easier to be connected with other equipments, such as computer, human machine interface and PLC.
Function and Features:
• Color LCD displaying, touch screen and keypad for operating.
• Three types of distributing mode: time dispensing mode; volume dispensing mode; copy dispensing mode.
• Automatically store five groups of working parameters.
• Precious controlling technology for motor’s rotating angle increases the dispensing accuracy comparing to traditional time dispensing mode.
• Remote infrared controlling function.
• Reversible direction, start/stop and full speed, state memory (power-down memory).
• Speed resolution is 0.1rpm.
• Display and control flow rate, accumulate dispensing volume automatically.
• Calibrating flow function.
• The operating expert system guides users setting parameters correctly.
• Intelligent temperature-control technology reduces working noise.
• External high-low electrical level controls the start/stop, reversible direction and easy dispensing function, optically coupled isolator; External analog adjusts the rotate speed.
• RS485 interface, MODBUS protocol is available, easy to connect other equipments.
• Internal double-deck isolation structure; circuit board with conformal coating makes it dust-proof and moisture-proof.
• Super anti-interference feature, wide input voltage range, acceptable for the complex power environment.
• Stainless steel housing, easy to clean, excellent resistance to the corrosion of the acid, alkali, sodium and the organic solvents.
• Can drive multi-channels and various types of pump heads.
• Optional footswitch or timer for dispensing fluid.

Technical Data:
• Technical parameters: BT100F
• Flow range (mL/min): 0.00016-570
• Speed range (rpm): 0.1-150
• Speed resolution (rpm): 0.1
• Flow accuracy: <0.5%
• Power supply: AC220V ± 10% 50Hz/60Hz (standard ); AC110± 10% 50Hz/60Hz (optional)
• Power consumption: <40W <50W
• External control: Input level 5V,12V(standard),24V(optional); External control analog 0-5v(standard),0-10v,4-20mA(optional)
• Communication interface: RS485 communication interface, MODBUS protocol is available.
• Operating condition: Temperature 0 ~ 40°C; Relative humidity <80%
• IP grade: IP31
• Dimensions (LxWxH): 223x150x195(mm)
• Weight: 4.7kg
Order Number Channels Pump Head Tube Size Flow Rate of Single Channel (ml/min)
BT100F-D1 1 DG6-1 (6 Rollers) W.T.:0.8~1mm, I.D.:≤3.17mm 0.00016~49
BT100F-D2 1 DG10-1 (10 Rollers) W.T.:0.8~1mm, I.D.:≤3.17mm 0.00011~41
BT100F-D3 2 DG6-2 (6 Rollers) W.T.:0.8~1mm, I.D.:≤3.17mm 0.00016~49
BT100F-D4 2 DG10-2 (10 Rollers) W.T.:0.8~1mm, I.D.:≤3.17mm 0.00011~41
BT100F-D5 4 DG6-4 (6 Rollers) W.T.:0.8~1mm, I.D.:≤3.17mm 0.00016~49
BT100F-D6 4 DG10-4 (10 Rollers) W.T.:0.8~1mm, I.D.:≤3.17mm 0.00011~41
BT100F-D7 8 DG6-8 (6 Rollers) W.T.:0.8~1mm, I.D.:≤3.17mm 0.00016~49
BT100F-D8 8 DG10-8 (10 Rollers) W.T.:0.8~1mm, I.D.:≤3.17mm 0.00011~41
BT100F-D9 1 YZ15 13#,14#,19#,16#,25#,17#,18# 0.006~575
BT100F-D10 1 YZ25 15#, 24# 0.1667~425
BT100F-D11 2 YZ15 x 2 13#,14#,19#,16#,25#,17#,18# 0.006~575
BT100F-D12 2 YZ25 x 2 15#, 24# 0.1667~425

 Industrial Stainless Steel Peristaltic Pump WG600S Serials
WG600S is suitable for transferring large amount of fluid in industry. One channel flow range: 0.4-13 L/min, speed range: 30-600 rpm. It can cascade two pump heads. It adopts the brushless motor drive with large torque, free maintenance. Having basic function such as reversible direction, start/stop, full speed (fast cleaning) and speed-variable. RS485 interface, as adopting the MODBUS communication protocol, the pump is easier to be connected with other equipments, such as computer, human machine interface and PLC.
Function and Features:
• Stainless steel housing.
• keypad controls running speed, reversible direction, start/stop, full speed, easy operation.
• Applicable pump head: YZ35, 2xYZ35.
• One channel flow range: 0.4-13(L/min).
• Speed resolution: 1rpm.
• Four-figure digital LED indicator displays working speed.
• Brushless motor drive, free maintenance.
• Stainless steel housing, easy to clean, excellent resistance to the corrosion of the acid, alkali, sodium and the
organic solvents.
• The circuit board with conformal coating makes it dust-proof and moisture-proof.
• External high-low electrical level controls the start/stop, reversible direction and easy dispensing function,
optically coupled isolator, can choose 5V,12V,24V. External analog adjusts the rotate speed, can choose 0-
5V/10V, 4-20mA.
• RS485 interface, MODBUS protocol is available, easy to connect other equipments.

Technical Data:
• One channel flow range: 0.4-13L/min
• Flow accuracy:＜3%
• Speed range: 30-600rpm.
• Speed resolution: 1 rpm
• Power supply: AC 220V±10%,50Hz, 110V/60Hz
• Power consumption: ＜300W
• External control: Input electrical level 5V, 12V (standard),24V(optional).
• External communication interface：RS485 communication interface, support the MODBUS protocol.
• Ambient temperature: 0~40℃
• Relative humidity:＜80%
• IP grade:IP31
• Dimensions (LxWxH): 340mmx235mmx175mm
• Weight: 13KG
Order Number Channels Pump Head Tube Size Flow Rate of Single Channel (ml/min)
WG600S-D1 1 YZ35PPS 73#,82# 400~13000
WG600S-D2 2 YZ35PPS x 2 73#,82# 400~13000

 Industrial Stainless Steel Peristaltic Pump WG600F Serials
WG600F is suitable for transferring and dispensing large amount of fluid in industry. One channel flow range: 0.01-13L/min; speed range: 0.1-600 rpm. It can cascade two pump heads. It adopts the brushless servo motor drive with large torque, free maintenance, high rotating accuracy. Having basic functions: such as reversible direction, start/stop, full speed (fast cleaning) and speed-variable. The pump has three types of distributing mode: time dispensing mode; volume dispensing mode; copy dispensing mode, meets all kinds of complex dispensing requirements. RS485 interface, as adopting the MODBUS communication protocol, the pump is easier to be connected with other equipments, such as computer, human machine interface and PLC.
Function and Features:
• One channel flow range: 0.01-13(L/min)
• Applicable pump head: YZ35, 2xYZ35.
• Brushless servo motor drive with large torque, no maintenance, high rotating accuracy.
• The circuit board with conformal coating makes it dust-proof and moisture-proof.
• Color LCD displaying, touch screen and keypad for operating.
• Reversible direction, start/stop and full speed, state memory (power-down memory).
• Speed resolution: <0.1rpm, speed accuracy : <0.5%
• Calibrating flow function.
• Three types of distributing mode: time dispensing mode; volume dispensing mode; copy dispensing mode.
• Automatically store five groups of working parameters.
• The operating expert system guides users setting parameters correctly.
• Remote infrared controlling function.
•Super anti-interference feature, wide input voltage range, acceptable for the complex power environment.
• Stainless steel housing, easy to clean, excellent resistance to the corrosion of the acid, alkali, sodium and the organic solvents.
• External high-low electrical level controls the start/stop, reversible direction and easy dispensing function, optically coupled isolator, can choose 5V,12V,24V. External analog adjusts the rotate speed, can choose 0-5V/10V, 4-20mA.
• RS485 interface, MODBUS protocol is available, easy to connect other equipments.

Technical Data:
• One channel flow range: 0.01-13L/min
• Flow accuracy:＜0.5%
• Speed range: 0.1-600rpm.
• Speed resolution: 0.1 rpm
• Power supply: AC 220V±10%,50Hz, 110V/60Hz
• Power consumption: ＜300W
• External control: Input electrical level 5V, 12V (standard),24V(optional).
• External communication interface：RS485 communication interface, support the MODBUS protocol.
• Ambient temperature: 0~40℃
• Relative humidity: ＜80%
• IP grade: IP31
• Dimensions (LxWxH): 350mmx235mmx315mm
• Weight: 15KG
Order Number Channels Pump Head Tube Size Flow Rate of Single Channel (ml/min)
WG600F-D1 1 YZ35PPS 73#,82# 10~13000
WG600F-D2 2 YZ35PPS x 2 73#,82# 10~13000

 Batch Transferring Pump JP300S
Product introduction
Batch Transferring Pump is suitable for the tube wall thickness of 4.8mm,6.3mm. Maximum flow rate is 35L/min, the largest pressure is 0.3Mpa. It has reasonable tight composition, easy to load the tube. The roller adopts planetary gear transmission, safe and reliable, at the same time it can prolong the tubing life.
Function and Features:
• Flow range is wide, can reach 2m3/hour, suitable for batch transferring.
• The pressure of transmission is high, suitable for massive viscosity and high-lift materials.
• It adopts planetary gear design, safe and reliable, with high-power.
• Roller driving force rotation, rolling friction with tube, prolong tubing life.
• Press tube gap is adjustable.
• AC motor with frequency control of motor speed control, it can be achieved networking operation with PLC, IPC and computer.

Specification:
1: Flow rates: Maximum 35L/min, can reach 2m3/hour
2: Suitable tubing: 88# 92#; 86# 90#
3: Shall material: aluminium alloy
4: Roller: 304 Stainless steel
5: Speed range: 30-300rpm
6: Gap adjustment: adjustable
7: Operating condition: temperature 0 ~ 60℃
8: Chemical compatibility: resist acid-base, organic solvent.
9: Power supply: AC 220V ±20%/400W

 Silicon Tube for Peristaltic Pump

Tube type

Inner Dia. (mm)

External Dia. (mm)

Wall Thickness (mm)

Suitable Head pump

Standard packing (m)

0.5×0.8

0.5

2.1

0.8

DG series

FZ10

15

1×1

1

3

1

15

2×1

2

4

1

15

2.4×0.8

2.4

4

0.8

15

3×1

3

5

1

15

0.5×0.8

0.5

2.1

0.8

DG series

FZ10 (Install pipe card)

12(piece)

1×1

1

3

1

12(piece)

2×1

2

4

1

12(piece)

2.4×0.8

2.4

4

0.8

12(piece)

3 x 1

3

5

1

12(piece)

13#

0.8

4

1.6

YZ15

15

14#

1.6

4.8

1.6

15

19#

2.4

5.6

1.6

15

16#

3.1

6.3

1.6

15

25#

4.8

8

1.6



15

17#

6.4

9.6

1.6

15

18#

7.9

11.1

1.6

15

15#

4.8

9.8

2.5

YZ25; BZ25; KZ25; DMD25

15

24#

6.4

11.4

2.5

15

35#

7.9

12.9

2.5

15

36#

9.6

14.6

2.5

15

73#

9.5

16.1

3.3

YZ35

15

82#

12.7

19.3

3.3

15

88#

12.7

22.3

4.8

JP300S



92#

25.4

35

4.8



86#

9.5

22.1

6.3



90#

19

31.6

6.3



Remark

The tube is made of silicone rubber, platinum vulcanization process, If transmission special fluid, please contact us.
