Sound Level meters

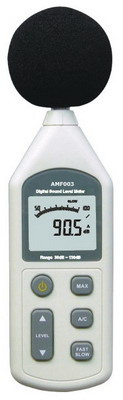

Digital Sound Level Meter AMF003
*This meter was designed according to following standards:
  A. International electrician committee standard: IEC PUB 651 TYPE2
  B. US national standard: ANSI S1.4 TYPE2
*Measuring range: 30~130dBA; 35~130dBC
*Accuracy: ±1.5 dB
*Digit & Resolution: 5 digit & 0.1dB
*Frequency response: 31.5Hz ~8.5KHz
*Measuring level: 30~130, 40~90, 50~100, 60~110, 80~130
*Frequency weighting characteristic: A & C
*Time weighting: FAST/SLOW
*Sampling rate: 2times/Second
*Microphone: 1/2 inch polarization capacitance microphone
*AC/DC output
*Max reading
*Overload indication: OVER/UNDER
*Low battery indication
*Packing method: PP box + Gift box
*Power: 1.5V AA* 4pcs or DC 6V 100mA adapter
*Dimension: 256*70*35mm
*Weight: 308g (including batteries)

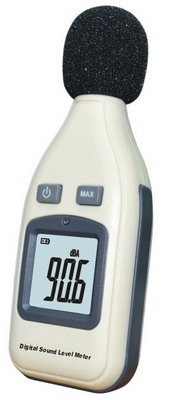

Mini Digital Sound Level Meter AMF004
*This meter was designed according to following standards:
--A. International electrician committee standard: IEC PUB 651 TYPE2
--B. US national standard: ANSI S1.4 TYPE2
*Measuring range: 30~130 dBA
*Accuracy: ±1.5 dB
*Digit & Resolution: 4 digits & 0.1 dB
*Frequency response: 31.5Hz ~8.5KHz
* Frequency weighting characteristic: A
*Sampling rate: 2times/second
*Microphone：1/2 inch polarization capacitance microphone
*Max reading
*Automatic backlight
*Low battery indication
*Automatic power off
*Dimension: 57*36*149mm
*Weight: 110g

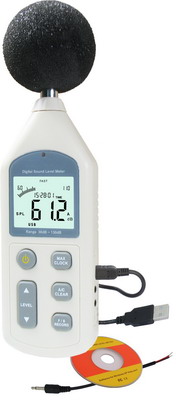

Mini Digital Sound Level Meter AMF013
This unit was designed according to following standards:
A. International electrician committee standard: IEC PUB 651 TYPE2
B. US national standard: ANSI S1.4 TYPE2

1. Measuring range: 30~130 dBA; 35~130 dBC
2. Accuracy: ±1.5 dB
3. Digit & Resolution: 5 digit & 0.1 dB
4. Frequency response: 31.5Hz ~8.5KHz
6. Measuring level: 30~130, 40~90, 50~100, 60~110, 80~130
7. Frequency weighting characteristic: A & C
8. Time weighting: FAST/SLOW
9. Sampling rate: 2times/second
10. Microphone：1/2" polarization capacitance microphone
11. AC/DC output
12. Max reading
13. PWM signal output
14. Calendar function
15. 4700 data store with USB interface
16. USB computer interface
17. Analysis software
18. Overload indication: OVER / UNDER
19. Automatic backlight
20. Low battery indication
21. Auto power off

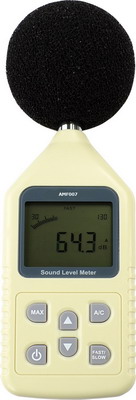

Digital Sound Level Meter AMF007
*This unit was designed according to following standards:
  A. International electrician committee standard: IEC PUB 651 TYPE2
  B. US national standard: ANSI S1.4 TYPE2
*Measuring range: 30~130dBA; 35~130dBC
*Accuracy: ±1.5 dB
*Digit & Resolution: 5 digit & 0.1dB
*Frequency response: 31.5Hz ~8.5KHz
*Measuring level: 30~130, 40~90, 50~100, 60~110, 80~130
*Frequency weighting characteristic: A & C
*Time weighting: FAST/SLOW
*Sampling rate: 2times/second
*Microphone: 1/2 inch polarization capacitance microphone
*AC/DC output
*Max reading
*Overload indication: OVER / UNDER
*Low battery indication
*Packing method: PP box + Gift box
*Power: 9V battery* 1pcs or DC 6V 100mA adapter
*Dimension: 207*70*29mm
*Weight: 178g (including batteries)


5 IN 1 Environment Tester AMF035
Features:
1. Rugged 5-in-1 environmental tester with tripod mount
2. Large dual LCD simultaneous display of Real-time Value and MAX/MIN/AVG/DIF(MAX-MIN) Value
3. Data Hold, MAX/MIN/AVG/DIF, Auto power off, Low Battery and Over Range indicators
4. Built-in low friction vane wheel improves accuracy or air velocity in CMM, CFM, m/s, km/h, FPM, knots
5. Built-in precision digital humidity and temperature sensor for fast response
6. Utilizes precision photo diode and correction filter for Cosine and color corrected light measurements
7. Sound Level measurement meets IEC61672 class 2 using A/C weighting and fast/slow sample rating modes

Specifications Range Resolution Accuracy
Temperature -10~60℃; 14~140℉ 0.1℃; 0.1℉ ±1℃; ±2℉
Humidity 20%~80% RH 0.1RH ±3.0% RH
Light 0~50000LUX 1LUX ±(5.0%+10)
Anemometer 0.4~20m/s 0.1m/s ±(3.0%+10)
1.4~72km/h 0.1km/s
1.3~65.7ft/s 0.1ft/h
0.8~38.9knots 0.1knots
Air Flow  0~999900CMM 0.1CMM
0~999900CFM 0.1CFM
Sound Level 30~130dB(A) 0.1dB ±1.5dB

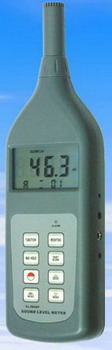

Sound Level Meter SL-5868P
Application: it is used to calibrate the sound level meters. This instrument is compatible with several standards of GB/T 3785, IEC 651 Type 2, ANSIS 1.4 Type 2. It is widely used to test the sound level of environment, mechanic, vehicle, ship and other noise. Fit for industry environment protecting, working, sanitation, teaching search and other departments.
Display: 10mm (0.4″) LCD (Liquid Crystal Display)
Function: LP, Leq, LN.
Frequency range: 31.5Hz~8kHz
Measurement range: LP:30~130dB (A); 35~130dB (C); 35~130 dB (F); Leq:30-130dB; LN :0-100%
Resolution: 0.1 dB
Accuracy: 1dB
Memory: Maximum value (30groups)
Indicator: Low battery indicator
Alarm: electron
Connector: RS232C
Power supply: 4x1.5v AAA (UM-4 battery
Size: 236 x 63 x26 mm
Weight: 170g (including batteries)
Standard delivery:
1.Main Unit---------------1pc
2.Carrying Case................1pc.
3.Operation Manual..........1pc.
Optional Accessories:
1.ND9 sound level meter calibrator
2.RS-232 and software
3.External relay

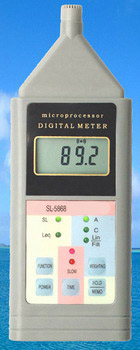

Sound Level Meter SL-5868
Standard: GB/T3785, IEC651 Type2, ANSIS1.4Type2
Function: SL LEQ
Measuring: A .40-125dB C. 40-125dB Line. 40-125dB
Filter
Detection characteristics: fast/slow
DC output: 10mv=1dB
Resolution: 0.1dB
Accuracy: 1dB
Display: LCD display
Power supply: 1x9V 6F22 battery
Battery indicator: low battery indicator
Dimensions: 195x72x31mm
Weight (not including probe): 195g

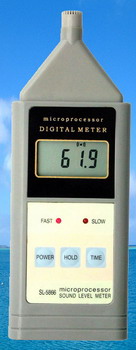

Sound Level Meter SL-5866
Standard: GB/T3785, IEC651 Type2, ANSIS1.4Type2
Function: SL
Measuring: A .40-125dB
Filter
Detection characteristics: fast/slow
Resolution: 0.1dB
Accuracy: 1dB
Display: LCD display
Power supply: 1x9V 6F22 battery
Battery indicator: low battery indicator
Dimensions: 195x72x31mm
Weight (not including probe): 195g

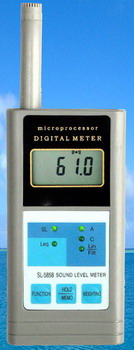

Sound Level Meter SL-5858
Standard: GB/T3785, IEC651 Type2, ANSIS1.4Type2
Function: SL LEQ
Measuring: A .40-125dB C. 40-125dB Line. 40-125dB
Filter
Detection characteristics: fast/slow
DC output: 10mv=1dB
Resolution: 0.1dB
Accuracy: 1dB
Display: LCD display
Power supply: 1x9V 6F22 battery
Battery indicator: low battery indicator
Dimensions: 195x72x31mm
Weight (not including probe): 195g

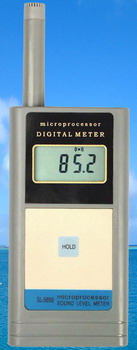

Sound Level Meter SL-5856
Standard: GB/T3785, IEC651 Type2, ANSIS1.4Type2
Function: SL
Measuring: A .40-125dB
Filter
Detection characteristics: fast/slow
Resolution: 0.1dB
Accuracy: 1dB
Display: LCD display
Power supply: 1x9V 6F22 battery
Battery indicator: low battery indicator
Dimensions: 195x72x31mm
Weight (not including probe): 195g

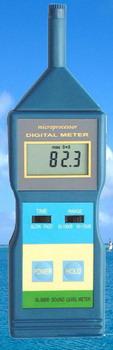

Sound Level Meter SL-5826
Standard: IEC651 Type2, ANSIS1.4Type2
Function: SL
Measuring: A .L 35-100dB H 80-130dB
Filter
Detection characteristics: fast/slow
DC output: 10mv=1dB
Resolution: 0.1dB
Accuracy: 1dB
Display: LCD display
Power supply: 4x1.5V AA (UM-3) battery
Battery indicator: low battery indicator
Dimensions: 210x69x32mm
Weight (not including probe): 175g

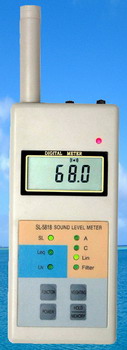

Sound Level Meter SL-5818
Standard: IEC651 Type2, ANSIS1.4Type2
Function: SL LEQ
Measuring: A .40-125dB C. 40-125dB Line. 40-125dB
Filter
Detection characteristics: fast/slow
DC output: 10mv=1dB
Resolution:v0.1dB
Accuracy: 1dB
Display: LCD display
Power supply: 4x1.5V AA (UM-3) battery
Battery indicator: low battery indicator
Dimensions: 210x69x32mm
Weight (not including probe): 175g

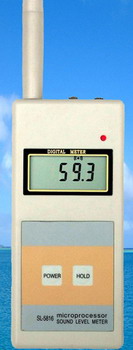

Sound Level Meter SL-5816
Standard: IEC651 Type2, ANSIS1.4Type2
Function: SL
Measuring: A .40-130dB
Filter
Detection characteristics: fast/slow
DC output: 10mv=1dB
Resolution: 0.1dB
Accuracy: 1dB
Display: LCD display
Power supply: 4x1.5V AA (UM-3) battery
Battery indicator: low battery indicator
Dimensions: 210x69x32mm
Weight (not including probe): 175g

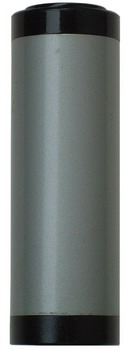

Sound Level Calibrator ND9A & ND9B
Standard: ANSI S1.40 CLASS2, IEC942
Measuring: 94dB & 114dB
Frequency: 1000Hz+2.4%
Accuracy: 0.5dB (For ND9A); 0.3dB (For ND9B)
Power supply: 9V 6F22 battery
Dimensions: 145X47X47mm

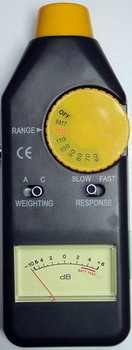

Sound Level Meter KK-205
  • Seven sound level ranges, from 50 - 126dB
  • A and C weightings, let you check compliance with safety regulations as well as make acoustic analysis
  • Slow and fast response setting, let you peak and average noise levels
  • Build in battery condition indicator
  • Phone type output jack, for connection to home theater or test equipment
  • Range: 50-126dB (7 band: 60, 70, 80, 90, 100, 110, 120dB)
  • Accuracy: +-2dB @ 114dB
  • Standard: 0dB = 0.0002 uBar
  • Battery check: tests good from 7.0 to 10.5V
  • Size: 160 x 62 x 44mm
  • Weight: 185g
