MAGNETIC STIRRER

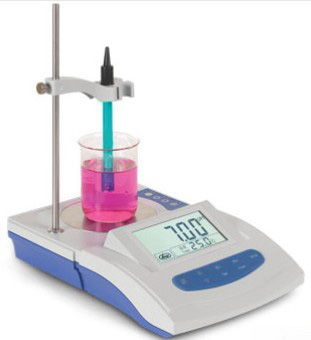

Lab pH and Stirrer Combo AMT10
Functions:
Large screen, LCD display, dual parameter, Automatic buffer recognition and two-point calibration.
Specifications:
1. Measuring range: pH: -2.00~19.99pH; mV: +-1999mV
2. Resolution: pH: 0.01pH; mV:1mV
3. Accuracy: pH: ±0.01pH; mV: ±0.1%FS
4. Input impedance>=1 x 10¹²Ω
5. Stability: ±(0.01pH ± 1byte)/3h
6. ATC: 0.0~60.0°C
7. Stir range: 0-1500RPM
8. Dimension: 210×320×90mm
9. Weight: 2kg

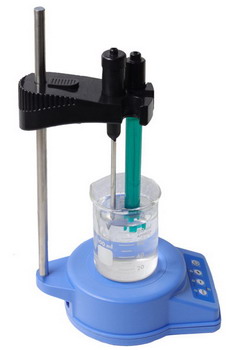

MS-088 MINI MAGNETIC  STIRRER
Features:
● Compact design; Easy to handle, these lightweight and compact stirrers need little room and are quickly recognizable on busy benches
● Adjustable stirring speed functions: flexible speed adjustment, using control buttons, multi-speed
● Timing mixing function: 4 files regular time (30,60,90 minutes and without timer)
● 25 degrees Celsius reminder function: Connect the temperature sensor, the measured solution reaches 25 degrees Celsius, the automatic alarm to remind the user can perform the corresponding operation
● AC-DC, a battery low voltage alarm function.
● It can be carry and field use.
● Configuring strut and the electrode holder, It can be as Agitation type Electrode stand to use

Specifications:
Speed Range: 0~2300 rpm
Maximum Stirring Capacity: 1000ml
Dimensions for working area: 100mm x 100mm
Environment: 0~50°C
Timing Range: 0~90 minutes
Maximum Operating Current: 150mA
Maximum Power Consumed: 0.9W
Installing Size: Φ16mm and Φ13mm
Space for up and down: 0~250mm
Power Supply: DC6V or 4 x 1.5V (AA Batteries)
Dimensions: 100 x 146 x 48 mm
Weight: 340g

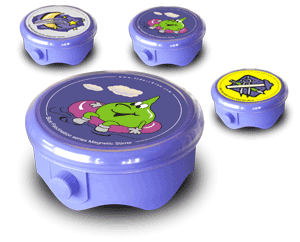

MS-1A CARTOON MAGNETIC  STIRRER
MS-1A cartoon magnetic stirrer with beautiful colour can make your lab colourful. The stirrer is designed with motor and magnet, the speed is the range of 0 to 1250rpm. It can make static solution begin to stir in very short time.
Specification:
Maximum Stirring Volume: 0~2000mL 　
Stirring Speed Range: 0~1250rpm
Top plate size: 145(Dia.)mm
Panel Material: Engineering Plastic
Stirring bar's Dimension: 30(L)mm×7(Dia.)mm
Power Requirement: 220V/50Hz or 110V/60Hz
Dimension: 185(Dia.)mm×75(H)mm
Weight:1.5kg

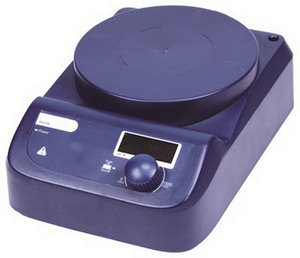

MS-PA MAGNETIC STIRRER
Features
1. Speed range of 100-1500 rpm
2. Max. stirring quantity 3L
3. LED display set and actual speeds
4. Microprocessor control technology guarantees speed control accuracy
5. ABS casing with fire retardant material, resistance of weak acid and alkali


Specifications:
Dimension of work plate φ135mm (5 inch)
Work plate material Plastic
Motor type DC motor
Motor rating input 5W
Motor rating output 3W
Power 15W
Voltage 100-240V
Frequency 50/60HZ
Stirring positions 1
Max. stirring quantity [H2O] 3L
Max. magnetic bar (L x Ø) 50mm
Speed range 100-1500RPM
Speed display LED
Speed display resolution ±1RPM
Protection class according to DIN EN60529 IP42
Dimension [W x D x H] 150×260×80mm
Weight 1.8Kg
Permissible ambient temperature 5-40
Permissible relative humidity 80%

MS-200 MAGNETIC STIRRER
Microprocessor-Based:
MS200 magnetic stirrer is designed in high performance
digital circuit and CPU.
Digital Speed Control:
The stirrer is press-key designed to adjust speed, which
prevent the stirring bar from stopping. The indicator
display the stirrer's motor speed.
What's included: Stir bar



Model MS200
Maximum Stirring Volume 0~2000mL
Stirring Speed Range 0~1250RPM
Top Plate Size 135mm x 135mm
Panel Material Stainless Steel
Timer 999 minutes
Stir Bar's Dimensions 30(L) x Dia.7mm
Power Requirements 220VAC/50Hz
Dimensions 230(L) x 180(W) x 120(H)mm
Weight 2.7kg

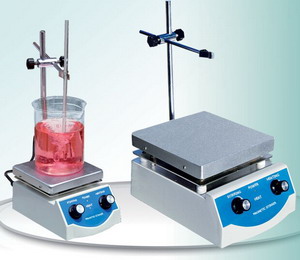

MSH-2 and MSH-3 HOT PLATE MAGNETIC STIRRER
Characteristics
1.Heating and Magnetic Stirring can simultaneously work, It can adjust the heating power and rotating speed.
2.It is very easy to operate it, work well, can steadily stir the liquid in a large range of speed.
Main Technical Parameters
1. Speed: 0~1600RPM
2. Temperature: RT~100°C
3. Capacity:
  MSH-2: 180W 500ml
  MSH-3: 500W 1000ml
4. Size of heating plate:
  MSH-2: 118 x 118mm
  MSH-3: 170 x 170mm


MS-300 and MS-400 HOT PLATE MAGNETIC STIRRER
It is designed in high performance digital circuit and CPU, The maximum can be up to the range of 300 to 400oC , the accuracy of constant temperature is 1°C.
Speed: The stirrer is key press designed to adjust speed, which prevent the stirring bar from stopping. The icon on LCD display the stirrer's motor speed.
Temperature Measurement:
Connecting the temperature sensor into the meter, so that it can measure temperature and enters constant temperature mode.

Model MS300　 MS400
Maximum Stirring Volume　

0~2000mL
Stirring Speed Range　

0~1250rpm
Top plate size　

135(L)mm×135(W)mm
Panel Material　

Stainless Steel
Temperature Range　 Room Temperature~300oC Room Temperature~400oC
Temperature Accuracy　

±1oC(<100oC), ±3oC(>100oC)
Timer　

999 minutes
Stirring bar's Dimension

30(L) x 7(Dia.)mm　
Power Requirement　

220V/50Hz or 110V/60Hz　
Dimension　

230(L)mm×180(W)mm×120(H)mm
Weight　

2.7kg　

Digital Magnetic Stirrer Porcelain Plate AMT550
Features:
1. 7" square hotplate magnetic stirrers are widely used in chemical synthesis, physical and chemical analysis, bio-pharmaceuticals and other fields.
2. PID temperature technology precise controls heating process, rapidly reaches target temperature and enhances control accuracy, heating temperature up  to 550°C. It has glass ceramic plate extremely resistant to corrosion and easy to clean.
3. The heating models are suitable for external temperature sensor PT1000, display and control actual medium temperature.
4. External temperature sensor PT1000 is available, real-time control medium temperature.
5. Simple running interface easy to use and program. Automatically identify temperature sensor PT1000 and transfer to PT1000 operation mode. Record and display the last running parameters when switch on.
6. LCD display target and actual temperature, as well as set speed and actual speed can be displayed.
7. Separate safety circuits with fixed safety temperature of 580oC, automatically stops heating once exceed secure temperature
8. HOT warning indicates residual hotplate temperature. LCD display would show “Hot” when hotplate temperature over 50°C warning point, even if switched off.
9. Free software, computer can control and document all operation values via RS232 interface
Specifications:
1. Dimension of work plate: 184x184mm (7 inch)
2. Work plate material Glass ceramic
3. Motor type DC brushless motor
4. Motor rating input: 18W
5. Motor rating output: 10W
6. Power: 1050W
7. Voltage: 100-120/200-240V
8. Frequency: 50/60HZ
9. Stirring positions: 1
10. Max. stirring quantity: 20L
11. Max. magnetic bar: 80mm
12. Speed range: 100-1500RPM
13. Speed display: LCD
14. Speed display resolution: ±1RPM
15. Heating output: 1000W
16. Heating temperature range: RT-550°C, increment 1
17. Control accuracy of work plate: ±1°C(<100°C) ±1%(>100°C)
18. Safety temperature: 580°C
19. Temperature display: LCD
20. Temperature display accuracy: ±0.1°C
21. External temperature sensor: PT1000
22. Control accuracy with external temperature sensor PT1000: ±0.2°C
23. Heating warning: 50°C
24. Remote control (RS232 interface): Yes
25. Protection class according to DIN EN60529: IP21
26. Dimension [W x D x H]: 215x360x112mm
27. Weight: 5.3Kg
28. Permissible ambient temperature: 5-40°C
29. Permissible relative humidity: 80%

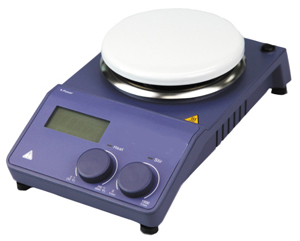

Digital Hot Plate Magnetic Stirrer Porcelain Plate AMTAST PRO
Features
•High accuracy of heating temperature controlling and the control of safe temperature
•Hotplate with porcelain enamel surface with excellent chemical resistance
•2 adjustable safety circuits
•Separateness temperature sensor, protection temperature can be set
•Temperature sensor for heat transfer fluid and medium available(PT1000, Optional)
•Warning display indicating presence of any residual heat when the unit is switched off
•A, B, C Mode, ensure the stirring function not change due to external factors
•Bushing according to DIN 12878 for the use of contact thermometers

Specifications
Model AMTAST PRO
Voltage 100-120/200-240V
Frequency 50/60HZ
Power 550W
Stirring point position quantity 1
Max. stirring quantity (H2O) 20L
Stirring point position quantity 80mm
Motor type External rotor brushless motor
Motor rating input 18W
Motor rating output 10W
Speed range 100-1500RPM
Speed display LCD
Speed display accuracy 1RPM
Material Porcelain enamel
Dimension of Plate φ135mm
Heating power 500W
Heat rate (1Lwater) 6K/min
Heating Temperature Range RT-340oC
Temperature display LCD
Temperature display accuracy 0.1oC
Control accuracy of heating temperature 1oC
Adjustable safety circuit (heating plate) 100-350oC
Control accuracy of heating temperature with temperature 0.2oC
Temperature sensor of extra position PT1000 (Optional)
Dimension 280×160×85mm
Weight 2.8Kg
Permissible ambient temperature 5-40oC
Permissible relative humidity 80%
Protection class acc. to DIN EN60529 IP42
RS232 interfaces Yes
Optional Temperature Sensor Model Number PT1000, Holder Model Number PT1000H,  Temperature Length: 230mm


Analog Hot Plate Magnetic Stirrer  Porcelain Plate AMTAST BASIC
Technical Data

AMTAST BASIC

Voltage 100-120/200-240V
Frequency 50/60HZ
Power 430W
Stirring point position quantity 1
Max stirring quantity (H2O) 20L
Max magnetic bar 80mm
Motor type Exterior rotor brushless motor
Motor rating input 18W
Motor rating output 10W
Speed range 0 – 1500RPM
Speed display Scale
Material of plate Porcelain Enamel
Dimension of Plate φ135mm
Heating Power 400W
Heating Rate (1L water) 6K/min
Temperature range Room Temp ~ 340oC
Safety circuit (heating plate) 350oC
Dimension (W×D×H) 280×160×85mm
Weight [kg] 2.8
Permissible ambient temperature 5~40oC
Permissible relative humidity 80%
Protection class acc. to DIN EN60529 IP42

10 Channel Analog Magnetic Stirrer
Features
•High-performance multi-position magnetic stirrer with
•10 stirring position, optimum use of laboratory space
•Individually controlled stirring for consistency with various samples
•Step less speed regulation. Wide speed range: 0-1000rpm
•External rotor brushless motor reduces operating noises and increases motor life
•Variable speed of motor
•Electronic speed control motor provides constant speed during changes in load
•Inner set temperature control panel, uniform temperature distribution(MS-H-S10)
•Stainless steel plate with silicone films, anti-slip and anti-corrosion

Specifications
  MS-H-S10 MS-M-S10
Voltage 100-120/200-240V
Frequency 50/60HZ
Power 490W 20W
Heating power] 470W ----
Heating Temperature Range Room Temp. ~120oC ----
Stirring point position quantity 10
Max. stirring quantity of single stirring position (H2O) 0.4L
Stirring point position quantity 90mm
Single stirring position speed error 5%
Max. stirring quantity (H2O) 4L
Max. magnetic bar 40mm
Motor type External rotor brushless motor
Motor rating input 12W
Motor rating output 4W
Speed range 0-1100RPM
Speed display Scale
Material Silicone Films
Dimension of Plate 180×450
Dimension [mm] 182×552×65mm
Weight 3.2Kg
Permissible ambient temperature 5-40oC
Permissible relative humidity 80%
Protection class acc. to DIN EN60529 IP42

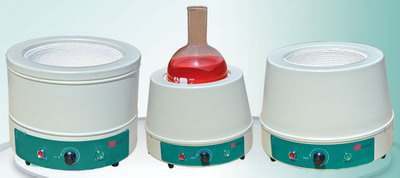

Analog Heating Mantle with Magnetic Stirrer
Uses:
It applies to colleges, petrochemical industries, medicine, and environment protection institutions for liquid heating and stirring.
Characteristics:
1.Cold rolling sheet stretching and spraying exterior.
2.Electronic temperature regulation heating mode and magnetic stirring; with characteristics of large heating area, fast warm-up, high temperature evenness, accurate tem-control, time and cost saving.
3.Heating and stirring can proceed simultaneously; stepless speed adjustment.

Model Number TLD005 TLD006 TLD007 TLD008
Capacity 100ml 250ml 500ml 1000ml
Voltage 220V / 50Hz
Max. Temperature 380oC
Heating Power 100W 150W 250W 350W
Working Time continuous
Exterior Dimension (R x H) ф220 x 165mm ф280 x 220mm
Packaging Dimensions 230 x 210 x 195mm 280 x 280 x 275mm
Net Weight 2.5Kg 5.5Kg
Gross Weight 2.8Kg 6Kg

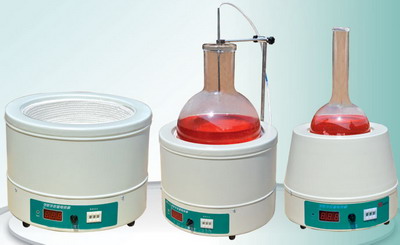

Digital Controller Heating Mantle
Uses:
It applies to colleges, petrochemical industries, medicine, and environment protection institutions for liquid heating.
Characteristics:
1.Cold rolling sheet stretching and spraying exterior.
2.Auto temperature control; digital display; with characteristics of large heating area, fast warm-up, high temperature evenness, accurate tem-control, time and cost saving.
3.Featured by anti-corrosion, age-resistant, durable and safe.
4.Beautifully shaped, easy to operate and effective.
5.Adjustable test-tube rack.

Model TLD009 TLD010 TLD011 TLD012 TLD015 TLD016 TLD017 TLD018 TLD019
Capacity 100ml 250ml 500ml 1000ml 2000ml 3000ml 5000ml 10000ml 20000ml
Voltage 220V / 50Hz
Max. Temperature 380oC
Heating Power 100W 150W 250W 350W 450W 600W 800W 1200W 2500W
Working Time continuous
Exterior Dimensions ф220*165mm ф280*220mm ф330*230mm ф340* 245mm ф350*250mm ф425*320mm 500*510*390
Packaging Dimensions 230*210*195mm 290*290*300 340*340*280 360*360* 280 390*390*310 470*470*380 540*540*420
Net weight 2.5Kg 5.5Kg 6.5Kg 7.5Kg 8.5Kg 9.8Kg 21Kg
Gross weight 2.8Kg 6Kg 7Kg 8Kg 9.2Kg 12Kg 26Kg

Analog Controller Heating Mantle
Uses:
It applies to colleges, petrochemical industries, medicine, and environment protection institutions for liquid heating.
Characteristics:
1.Cold rolling sheet stretching and spraying exterior.
2.Electronic temperature regulation mode with characteristics of stepless speed adjustment, uniform temperature, fast heating-up, and safety and durability.
3.Beautifully shaped, easy to operate and durable and safety.

Model TLD020 TLD021 TLD022 TLD023 TLD025 TLD026 TLD027 TLD028 TLD029 TLD031
Capacity 50ml 100ml 250ml 500ml 1000ml 2000ml 3000ml 5000ml 10000ml 20000ml
Voltage 220V / 50Hz
Max. Temperature 380oC
Heating Power 80W 100W 150W 250W 350W 450W 600W 800W 1200W 2500W
Working Time continuous
Exterior Dimensions ф220*165mm ф280*220mm ф330*230 ф340*245 ф350*250 ф425*320 550*510*390
Packaging 230×210×185mm 280×280×275 330×330×280 360*360*280 390*390*300 470*470*370 540*540*420
Net Weight 2Kg 3.5Kg 4Kg 6Kg 7Kg 10Kg 21Kg
Gross Weight 2.5Kg 4Kg 5Kg 7Kg 8Kg 12.5Kg 26Kg

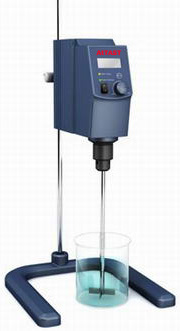

Overhead Stirrer
Features:
•Accurate stirring speed control: The control technology effectively guarantees the speed precision.
•Anti-spill samples: PC control system starts up smoothly, prevent samples overflow.
•LCD real-time display: Setting value and actual value can be displayed. Real-time monitoring torque and speed via LCD display.
•Overload protection: Motor would automatically stop in case of continuous overload.
•Setting safety circuit: Automatically cut off the circuit when motor overheating and other exceptional circumstances, make sure using security.
•Extended application: PC can control and document all measuring values via RS232 interface. Parameter can be set to carry out safety monitoring
Specifications
  MSV-40 MSV-40A MSV-20 MSV-20A
Max. stirring quantity (H2O) 40L 20L
Motor rating input 120W 60W
Motor rating output 100W 50W
Speed range 50-2200RPM
Speed display accuracy ±3RPM
Speed display DIGITAL LCD ANALOG LED DIGITAL LCD ANALOG LED
Speed display resolution 1RPM
Max. torque 60Ncm 40Ncm
Torque display LCD LED LCD LED
Overload protection  LED light flash, auto stop
Motor protect
Viscosity max. 50000mPas 10000mPas
Chuck range diameter 0.5-13mm
Rod size [dia. x L] 14x220mm
Dimension [W x H x D] 83x220x186mm
Weight 2.4Kg
Voltage 100-240V
Frequency 50/60HZ
Power 130W 70W
Protection class acc. to DIN/EN 60529 IP42
Temperature 5-40oC
Permission relative humidity 80%
Remote control (RS232 interface) Yes

Vortex Mixer Fix Speed VORTEX1
Voltage 220~230V/110~120V

Frequency 50/60HZ
Power 60W
Shaking movement orbital
Orbital diameter 4mm
Motor rating input 58W
Motor rating output 10W
Permissible ON time 100%
Speed range 2500RPM
Speed display ---
Run type Continuous/touch operation
Dimensions [W×H×D] 127×130×160mm
Weight 3.5Kg
Permissible ambient temperature 5 ~ 40oC
Permissible relative humidity 80%
Protection class acc. to DIN EN60529 IP21
Optional Head
Order Number Serviceable Range Operation Mode
MX-FS Test tube and small vessels Continuous/Touch operation
MX-F1 For all kinds of vessels Continuous operation
MX-F2 For 48 eppendorf tubes Continuous operation
MX-F3 For 18 test tubes 10mm Continuous operation
MX-F4 For 12 test tubes 12mm Continuous operation
MX-F5 For 8 test tubes 16mm Continuous operation
MX-F6 For 8 test tubes 20mm Continuous operation


Vortex Mixer Adjustable Speed VORTEX2
Voltage 220~230V/110~120V

Frequency 50/60HZ
Power 60W
Shaking movement orbital
Orbital diameter 4mm
Motor rating input 58W
Motor rating output 10W
Permissible ON time 100%
Speed range 0~2500RPM
Speed display Scale
Run type Continuous/touch operation
Dimensions [W×H×D] 127×130×160mm
Weight 3.5Kg
Permissible ambient temperature 5 ~ 40oC
Permissible relative humidity 80%
Protection class acc. to DIN EN60529 IP21

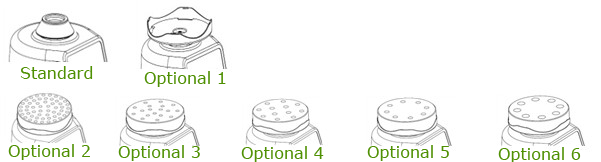

Optional Head
Order Number Serviceable Range

Operation Mode
MX-SS Top cup for test tube and small vessels Continuous/Touch operation
MX-S1 Universal top plate for S2-S6 Continuous operation
MX-S2 For 48 test tubes Ø6mm Continuous operation
MX-S3 For 18 test tubes Ø10mm Continuous operation
MX-S4 For 12 test tubes Ø12mm Continuous operation
MX-S5 For 8 test tubes Ø16mm Continuous operation
MX-S6 For 8 test tubes Ø20mm Continuous operation


Digital Orbital and Linear Shaker
1. Compact, orbital shaker with ideal swivel motion, for a maximum shaking weight of 7.5kg
2. LCD display for speed and time adjustment, makes it possible to read the speed, timer function and operating mode
3. Wide range of attachment combinations makes it possible to use almost all shapes and sizes of vessels
4. Electronic adjustment of speed and timer
5. Electronic time switching clock: time or continuous operation mode
5, Outer rotor brushless motor
6. Linear shaker optional
7. Over speed detection and protection
8. PC control via RS232 interface, software is available to control and document all measuring values via PC. Parameter can be set to carry out safety monitoring

Date Description SKO-180 SKL-180 SKO-300 SKL-300
Voltage 100-240V
Frequency 50/60HZ
Power 30W
Shaking movement Orbital Linear Orbital Linear
Orbital diameter 4mm 10mm
Max shaking weight (with attachment) 2.5Kg 7.5Kg
Motor Type External rotor brushless motor
Motor rating input 28W
Motor rating output 15W
Speed Range 100-800RPM 100-500RPM
Speed display LCD
Timer YES
Timer display LCD
Time setting range 1-1199min
Run type Time/Continuous operation
Overall dimensions (DxWxH) 340x300x100mm 420x370x100mm
Weight 8.1Kg 13.5Kg
Permissible ambient Temp 5-40oC
Permissible relative humidity 80%
Protection class to DIN EN60529 IP21
RS232 interface YES

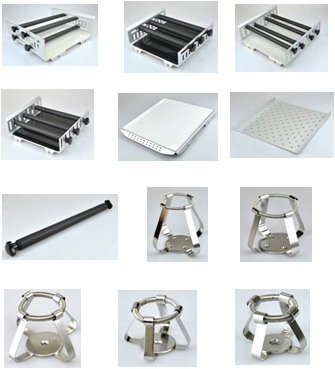

Optional Parts

Model Number Description
SK180-1 SK 180.1 Universal attachment
SK180-2 SK 180.2 Fixing clip attachment
SK180-3 SK180.3 Lengthways Roller Attachment
SK180-4 SK180.4 Dish Attachment (with slip-resistant foil)
SK330-1 SK 330.1 Universal attachment
SK330-2 SK 330.2 Fixing clip attachment
SK330-3 SK330.3 Lengthways Roller Attachment
SK330-4 SK330.4 Dish Attachment (with slip-resistant foil)
SK180-21 /SK330-21 Fixing Clip For flask volume 25 ml
SK180-22 /SK330-22 Fixing Clip For flask volume 50 ml
SK180-23 /SK330-23 Fixing Clip For flask volume 100 ml
SK180-24 /SK330-24 Fixing Clip For flask volume 200/250 ml
SK180-25 /SK330-25 Fixing Clip For flask volume 500 ml
  Bar for SK330-1 Universal attachment, black
  Bar for SK180-1 Universal attachment, black

Digital Orbital Shaker OS-100
OS-100 Orbital Shaker is a powerful variable speed shaker which provides efficient orbital motion. Speed and time are under microprocessor control. The shaker can be applicable in different laboratories: in microbiology, chemistry, immunology, biochemistry, and molecular biology.
Features
1. Speed range: 50-300rpm
3. Orbit: 10 mm
4. Digital timer: 1min ~ 99h59min
5. Universal platform, flat platform or platforms with clamps (see below)
6. Maximum load capacity: 3 kg
7. Orbital Shaker can be used in a cold room or incubator
8. Operating ambient: temperature range +5°C to +40°C
9. Overall dimensions: 280 x 270 x 110 mm
10. Weight: 7.2kg
11. Power supply: DC24V

Optional Platform:
PP12-100 PP06-250 UP-1 PP-1

Digital Orbital Shaker OS-200
OS-200 Orbital Shaker is a powerful variable speed shaker which provides efficient orbital motion. Speed and time are under microprocessor control. The shaker can be applicable in different laboratories: in microbiology, chemistry, immunology, biochemistry, and molecular biology.
Features
1. Digital speed control
2. Speed range: 50~250RPM
3. Orbit: 20mm
4. Digital timer: 1min ~ 99h59min
5. Universal platform, flat platform or platforms with clamps (see below)
6. Maximum load capacity 2.5 kg
7. Orbital Shaker can be used in a cold room or incubator
8. Operating ambient: temperature range +5°C to +40°C
9. Overall dimensions: 280 x 270 x 110 mm
10. Weight: 7.2kg
11. Power supply: DC24V

Optional Platform:
PP12-100 PP06-250 UP-1 PP-1

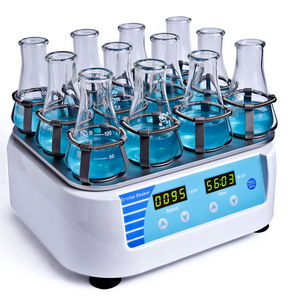

Digital Orbital Shaker AMT-M10
Product description: AMT-M10 orbital shaker is compact and amazingly designed. It is used for any mixing applications in different industries. Built with DC brushless motor, adopted micro-computer control technology, the orbital shaker is easy to operate. Gentle shaking, it is applied in different laboratories of molecular biology, microbiology, immunology, chemistry, etc. It is low-energy, safe, stable and no noise.
Product features:
1. Speed adjustable. Gentle shaking, applied in different industries.
2. LED display time and speed.
3. Compact and clean designed, streamlined fuselage, simple operation, convenient for cleaning.
4. Timing function. Beep alarm when operation ends.
5. DC brushless motor, safe, long life and free of maintenance. Operating silent and stable.
6. Different platforms to adapt different conical flasks and other sample containers for optional choices.

Model

AMT-M10

AMT-M11

AMT-M12

Speed Range

50-350 rpm

50-300 rpm

50-250 rpm

Orbit

10mm

20mm

30mm

Timing Range

1min ~ 99h59min

Max. Loading Capacity

2.0kgs

Operating Condition Temp.

4 ~45°C

Dimensions

284 x 264 x 108 mm

Voltage

AC 100 ~230V

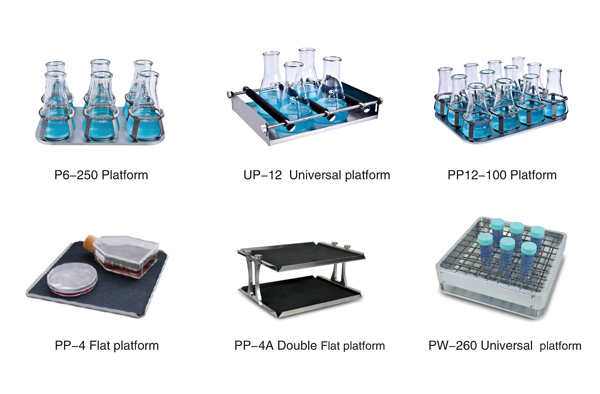

Optional Platform:

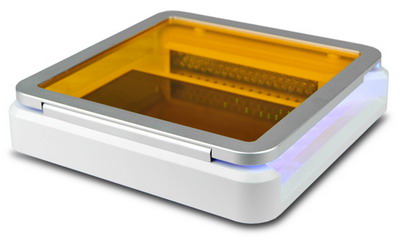

Blue Light Transilluminator AMT-M15
Features:
The Blue Light Transilluminator is used for the observation of gel electrophoresis. It uses LED Light to observe or shoot various dyes. LED light is strong illumination with no harm. It is long life, smart and portable.
1. With 108 pieces of LED light, long life and strong illumination. Suitable for observation of large range of fluorochrome. High luminance, high sensitivity and good homogeneity.
2. It can be used individually as blue light platform while It can also be used matching up multilmager.
3. Perfect observation with full size transparent optical filter. Safe operation, no need to wear safety glasses or other protection device.

Technical Parameters
Wave Length: 470nm
Gel Size: 100*160mm
Dimension: 210*210*30mm
Net Weight: 2.3kgs
Power DC: 24V 0.65A
