TACHOMETER
TACHOMETER

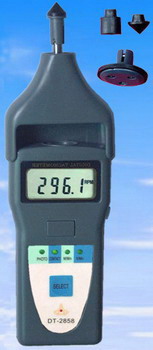

Tachometer (Photo/Touch Type) DT-2858
 |
|
Application:
applicable to the product departments of motor, fan, paper-product,
chemical fiber, washing-machine, automobile, airplane, steamer etc. Measuring range: rotative velocity laser: 2.5-99999r/min; Contact 0.5-1999r/min Surface: 0.05-1999.9 m/min; 0.2-6560ft/min Laser tacho detecting distance: 50-600mm Accuracy: ±(0.05%n+1d) Resolution: 0.01/0.1/1 Memory: max/min/last value Power supply: 4x1.5V AA (UM-3) battery Battery indicator: low battery indicator Dimensions: 220x75x29mm Weight (not including probe):174g |
|
|

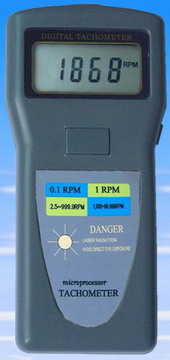

Tachometer (Laser Type) DT-2857
|
|
Application:
applicable to the product departments of motor, fan, paper-product,
chemical fiber, washing-machine, automobile, airplane, steamer etc. Measuring range: rotative velocity laser 2.5-99999r/min Laser tacho detecting distance: 50-600mm Accuracy: ±(0.05%n+1d) Resolution: 0.01/0.1/1 Memory: max/min/last value Power supply: 4x1.5V AA (UM-3) battery Battery indicator: low battery indicator Dimensions: 146x71x25mm Weight (not including probe):114g |
 |
|

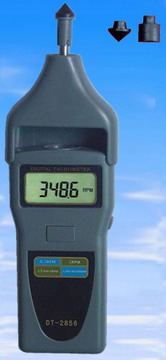

Tachometer (Photo/Touch Type) DT-2856
|
|
Application:
applicable to the product departments of motor, fan, paper-product,
chemical fiber, washing-machine, automobile, airplane, steamer etc. Measuring range: rotative velocity laser: 2.5-99999r/min; Contact 0.5-1999r/min Laser tacho detecting distance: 50-600mm Accuracy: ±(0.05%n+1d) Resolution: 0.01/0.1/1 Memory: max/min/last value Power supply: 4x1.5V AA (UM-3) battery Battery indicator: low battery indicator Dimensions: 220x75x29mm Weight (not including probe):171g |
 |
|

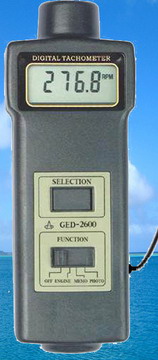

Multifunctional Engine Tachometer
GED-2600
|
|
Application: 2 in 1
(Engine & Laser tachometer ) Applicable to the product departments of
motor, fan, paper-product, plastics, chemical fiber, washing-machine,
automobile, airplane, steamer etc. Application: 2-CIRCLE
1,2,3,4-cylinder; 4-CIRCLE 1,2,3,4,5,6,8- cylinder Measurement range: engine 100-20000r/min; Laser: 2.5-99999r/min Detection method: engine: electromagnetic induction; Laser reflective Laser tacho detecting distance: 30-600mm Resolution: 0.1/1 Operating conditions: 0-+45℃(32℉-104℉),≤90%RH Accuracy: ±(0.05%n+1d) Memory: MAX/MIN/LAST value Power supply: 4x1.5V AA (UM-3) battery Dimensions: 220x68x38mm Weight (not including probe): 164g |
 |
|

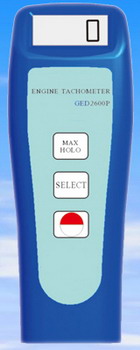

Engine Tachometer GED-2600P
|
|
Application:
2-CIRCLE 1,2,3,4-cylinder; 4-CIRCLE
1,2,3,4,5,6,8- cylinder
Measurement range: engine 100-9999r/min
Detection method: engine
electromagnetic induction
Resolution: 0.1/1
With RS232C interface
Accuracy: ±(0.05%n+1d)
MAX value HOLD
Auto power off
Operating conditions: 0-+45℃(32℉-104℉),≤90%RH
Power supply: 2x1.5V AAA (UM-4) battery
Dimensions: 100x35x23mm
Weight (including battery): 50g
|
|
|

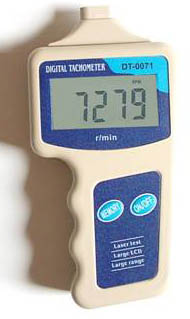

Laser Type Tachometer
KL-0071
|
|
*Max/Min Value *Memory function *Large and easy-to-read LCD |
|
Model |
KL-0071 |
|
|
Measuring range |
30~99999r/min |
|
|
Accuracy |
±(0.02%n+1dight) |
|
|
Measuring distance |
5~150cm |
|
|
Store time |
no limit |
|
|
Memory |
Max/Min Value |
|
|
Operating Temperature |
0-50°C |
|
|
Adoption time |
1(automation) |
|
|
Power supply |
3×1.5V AAA BATTERY |
|
|
Dimensions |
72mm x 136mm x 33mm |
|
|
Weight |
146g |
|

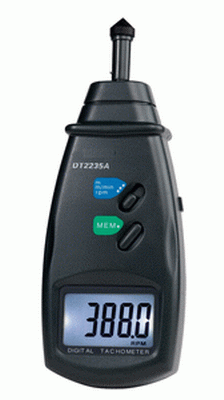

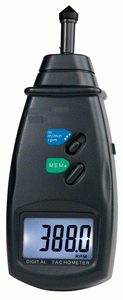

Contact Type Surface Speed Tachometer
DT2235A
|
| Specifications: |
|
| 5 digits
18mm (0.6") White backlight LCD Accuracy: ±(0.05%+1 digit) Sampling Time: 0.5sec(over 120RPM) Range Select: Auto-Ranging Memory: Max. value, Min. value, Last value, Can store 96s data Power Consumption: Approx 45mA Time Base: 6MHz Quartz crystal Time Base Accuracy: 10x10-6(0~50°C) Measuring Range: CONTACT TACH: 0.5~19,999RPM SURFACE SPEED: 0.05~1,999,9m/min Resolution: CONTACT TACH: 0.1RPM(0.5~999.9RPM), 1RPM(over 1,000RPM) SURFACE SPEED: 0.01m/min(0.05~99.99m/min), 0.1m/min (over 100m/min) Battery: 4x1.5V AA Size Battery |
|

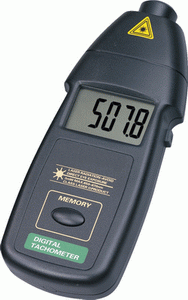

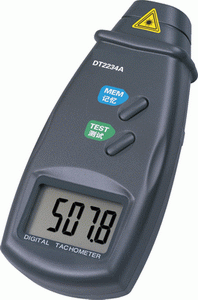

Photo Type Tachometer
DT2234A, DT2234C
|
| Specifications: |
DT2234A |
DT2234C |
| 5 digits 18mm
(0.6") LCD Accuracy: ±(0.05%+1 digit) Sampling Time: 0.8sec(over 120RPM) Range Select: Auto-Ranging Memory: Max. value, Min. value, Last value Measuring Range: 2.5~99,999RPM Resolution:0.1RPM(2.5~999.9RPM) 1RPM(over 1,000RPM) Detecting Distance: 50~500mm Battery: 3x1.5V AA battery(DT2234A) 3x1.5V AAA battery(DT2234C) Time Base: 6MHz Quartz crystal Time Base Accuracy: 10x10-6(0~50°C) Power Consumption: Approx 40mA Dimension:160Lx72Wx37H(mm)(DT2234A) 184Lx76Wx30H(mm)(DT2234C) |
|
|
|

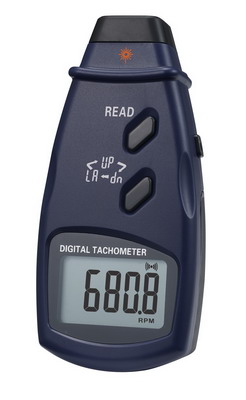

Photo Type Tachometer
SM2234A
|
| 5 digits 18mm
(0.6") LCD Accuracy: ±(0.05%+1 digit) Sampling Time: 0.8sec(over 60RPM) Range Select: Auto-Ranging Memory: Max. value, Min. value, Last value Measuring Range: 2.5~99,999RPM Resolution:0.1RPM(2.5~999.9RPM) 1RPM(over 1,000RPM) Detecting Distance: 50~500mm Battery: 3x1.5V AA battery Max, Min and Last Value memory Time Base: 6MHz Quartz crystal Dimension:155Lx70Wx35H(mm) |
|
|

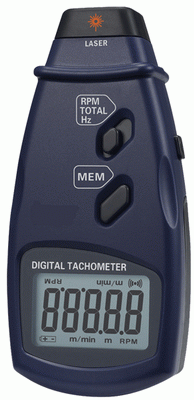

Photo Type Tachometer
SM6234E
|
| Display:
5digital, 18mm LCD Range: 2.5~99999 RPM;0.05~1666 Hz; 1~99999 Count Resolution: 0.1 RPM 2.5~999.9RPM; 1RPM above 1000RPM; 0.01Hz 0.05~99.99Hz; 0.1Hz above 100Hz Accuracy: ± (0.05%+1digital) of reading Sampling Time: 0.8second (over 60RPM) Memory: Max. value, Min. value, Last value. Can store 96s data. Range Select: Auto-range Time Base: 6MHz Quartz crystal Detecting Distance: 50mm-500mm Dimension: 155*70*35mm Power: 3×1.5V AAA battery |
|
|
CONTACT TACHOMETER
SURFACE SPEED METER
DT2236A
|
| Specifications: |
|
|
5 digits 18mm (0.6") White
backlight LCD Accuracy: ±(0.05%+1 digit) Sampling Time: 0.5sec(over 120RPM) Range Select: Auto-Ranging Memory: Max. value, Min. value, Last value, Can store 96s data Power Consumption: Approx 45mA Time Base: 6MHz Quartz crystal Time Base Accuracy: 10x10-6(0~50°C) Measuring Range: CONTACT TACH: 0.5~19,999RPM SURFACE SPEED: 0.05~1,999,9m/min Resolution: CONTACT TACH: 0.1RPM(0.5~999.9RPM) 1RPM(over 1,000RPM) SURFACE SPEED: 0.01m/min(0.05~99.99m/min) 0.1m/min(over 100m/min) Battery: 4x1.5V AA Size Battery |
|

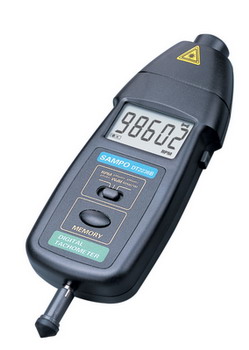

PHOTO／CONTACT TACHOMETER
DT2236B
|
| Specifications: |
|
|
5 digits 18mm (0.6") LCD Accuracy: ±(0.05%+1 digit) Sampling Time: 0.5sec(over 120RPM) Range Select: Auto-Ranging Test Base: 6MHz Quartz crystal Battery: 3x1.5V AAA battery Detecting Distance: 50~500mm Power Consumption: Approx 45mA Measuring Range: Photo Tach: 2.5~99,999RPM Contact Tach: 0.5~19,999RPM Surface Speenhvd: 0.05~1,999.9(m/min) Resolution: Photo Tacho: 0.01RPM(2.5~999.99); 0.1RPM(1,000~9,999.9R; 1RPM(over 10,000) Contact Tacho: 0.01RPM(0.5~999.99); 0.1RPM(1,000~9,999.9); 1RPM(over 10,000) Surface Speed: 0.01m/min(0.05~99.99m/min); 0.1m/min (over 100m/min) |
|

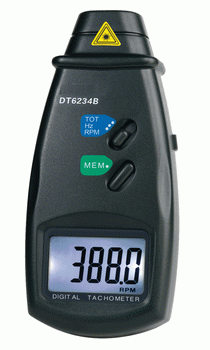

PHOTO TACHOMETER
DT6234B
|
| Specifications: |
|
|
5 digits 18mm (0.6")
White backlight LCD Accuracy: ±(0.05%+1 digit) Sampling Time: 0.5sec(over 120RPM) Range Select: Auto-Ranging Memory: Max. value, Min. value, Last value, Can store 96s data Time Base: 6MHz Quartz crystal Detecting Distance: 50~500mm Power Consumption: Approx 55mA Measuring Range: 2.5~99,999RPM Resolution: 0.1RPM(2.5~999.9RPM); 1RPM(over 1,000RPM) Total Test Range: 1~99,999 Frequency Range: 1~1,666.6Hz Resolution: 0.01Hz Battery: 4x1.5V AA Size Battery or to external DC 6V Regulated power supply |
|

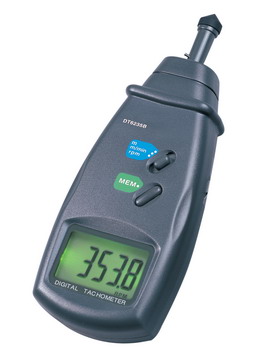

CONTACT TACHOMETER
SURFACE SPEED METER
LINE LENGTH METER DT6235B
|
| Specifications: |
|
|
Display: 5digits
18mm(0.6") Yellow green backlight LCD
Accuracy: ±(0.05%+1 digit) Sampling Time: 0.5 sec (over 120RPM) Range Select: Auto - Ranging Memory: Last value, Max. Value, Min. value Can store 96s data Time Base: 6MHz Quartz crystal Power Consumption: Approx 45mA Measurement: CONTACT TACHO: 0.5 to 19,999RPM SURFACE SPEED: (m/min) 0.05 to 1,999.9(m/min) SURFACE SPEED: (ft/min) 0.2 to 6,560ft/min Resolution: CONTACT TACHO: 0.1RPM(0.5 to 999.9RPM); 1RPM(over 1,000RPM) Surface speed (m/min): 0.01m/min(0.05 to 99.99m/min); 0.1m/min (over 100m/min) Surface speed (ft/min): 0.1ft/min(0.1 to 999.9m/min); 1ft/min (over 1,000ft/min) Power: 4X1.5V AA Size Battery or to external DC 6V Regulated power supply |
|

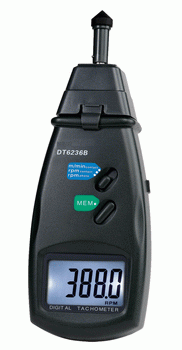

PHOTO／CONTACT TACHOMETER
SURFACE SPEED METER
DT6236B
|
| Specifications: |
|
|
5 digits
18mm (0.6") White backlight LCD Accuracy: ±(0.05%+1 digit) Sampling Time: 0.5 sec (over 120RPM) Range Select: Auto-Ranging Memory: Max. value, Min. value, Last value. Can store 96s data. Time Base: 6MHz Quartz crystal Detecting Distance: 50~500mm Measuring Range: Photo Tacho: 2.5~99,999RPM Contact Tacho: 0.5~19,999RPM Surface Speed: 0.05~1,999.9m/min Resolution: Photo Tacho: 0.1RPM(2.5~999.9RPM); 1RPM(over 1,000RPM) Contact Tacho: 0.1RPM (0.5~999.9RPM); 1RPM(over 1,000RPM) Surface Speed: 0.01m/min(0.05~99.99m/min); 0.1m/min (over 100m/min) Battery: 4x1.5V AA Size Battery or to external DC 6V Regulated power supply |
|

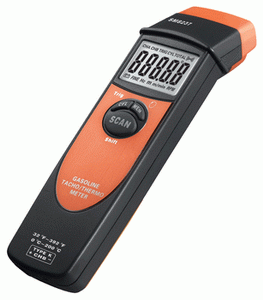

GASOLINE ENGINE TACHOMETER
SM8237
|
| Specifications: |
|
|
Inductive
type measure the engine speed by noncontact Measuring the temperature cooling water in engine by contact Testing the rotate speed of multi-cylinder in same time, or testing one of cylinder rotate speed Testing the rotate speed used to 2 stokes and 4 strokes Can set the cylinder in 2, 3, 4, 5, 6, 8, 12 or set the impulse of each rotation Memory the maximum value, minimum value and last value Can record 300 testing data Low power symbol automatic indicating Yellow-green back light °C and °F Temperature switch function Rotation Speed Range: 100~40,000RPM Rotation Speed Resolution: 1RPM Rotation Speed Accuracy: ±1r/min(100~11,999); ±2r/min(12,000~19,999); ±4r/mi(20,000~40,000) Temperature Range: 0~200°C Temperature Resolution: 0.5°C Temperature Accuracy: ±2°C |
|

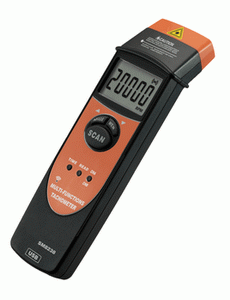

MULTI-FUNCTIONAL RECORDING TACHOMETER
SM8238
|
| Specifications: |
 |
|
Measure Range:
2.5~99,999RPM Resolution: 0.01RPM(3~999.99); 0.1RPM(1,000~9,999.9); RPM (over 10,000) Accuracy: ±(0.05%+1 digit) Response Time: ≥1,000RPM, 0.2second; <1,000RPM, 0.5second Memory Function: Single-mode automatic memory, maximum, minimum, the last measurement, continuous mode can record 15000 measuring values. Interface: MINI-USB interface The lens with filter, only receive the red light with specific wavelength and filter the other light effectively. Measurable speed (RPM), frequency (Hz), with the accumulated date function. White backlight LCD. Compact valuable body. |
|
Tachomerter AMF072
|
| Specifications: |
|
|
1. LCD
Monitor: five large-screen LCD display, character height
18mm 2. Unit: rpm 3. Range: 2.5-99999rpm 4. Resolution: 0.1rpm (2.5 ~ 999.9rpm); 1rpm (1000 ~ 99999rpm) 5. Basic accuracy: ± (0.1% n + 5d) rpm, (1000 ~ 99999rpm) 6. Laser power: CLASSⅡ 2-5mW 7. Sampling rate: 1 times / sec. 8 Test distance: 50-500mm 9. Time base: quartz crystal 10. Automatic shutdown: no key operation, the instrument will be turned off after 61s 11. Maximum, minimum, average, last measured value remains: √ 12. Low Battery Tips: √ 13. LCD backlight display: √ 14. Memory function: √ 15. Operating Environment: 0 ~ 50oC, 32 ~ 122oF, 10 ~ 90% RH 16. Preservation of the environment: -10 ~ 80oC, -14 ~ 176oF, 10 ~ 75% RH 17. Dimensions: 55.7 * 29.9 * 127mm 18. Weight: 106g 19. TEU Quantity: 60pcs 20. Standard box size: 43.9 * 35.9 * 30.3cm 21. Power: 2x1.5V AAA battery 22. With three silver-paper (200 * 12mm) |
