CrackCheck Sirius series UV led inspection lamps/NDT inspection lamps/NDT Lamp
UV LED / Pure UV-A / 365nm /50000hrs/ Big beam /multifunction
High intensity version: Sirius-60 (Model:SI-60)
Standard intensity version: Sirius-45 (Model:SI-45)

Product description:
Check Sirius series handheld NDT inspection lamps are portable lamps based on the most advanced UV LED technology The lamps feature 4 powerful UV-A (365nm) LED splus a convenient white light LED to quickly switch between fluorescent inspection and flaw location.
Their broad-beam configuration produce an extremely wide coverage area, making them ideal for both handheld and in-line applications. These non-destructive testing UV led lamps are famous for their super high intensity, ergonomic design compact size and light weight.
Available in two models to meet your specific inspection requirements which include high-intensity and standard-intensity versions each with or without a black light filter.
 High intensity: Sirius-60 (6000-9000μW/cm2 at 380mm )
Standarded intensity: Sirius-45 (4500μW/cm2 at 380mm)
Standard intensity version: Sirius-45 (Model:SI-45)

Features:
●100% solid state circuit ensures working properly in strong magnetic field
●Switch function between UV light and White light
● Safe and pure UV-A content with no UV-B and UV-C
● Spectrum range from 365nm-370nm with expected lifespan of 50,000 hours.
●Rugged, modular construction allows for easy field serviceability.
●Extremely large coverage area of up to 6 inches (15 cm), with a minimum UV-A intensity of 2,000 μW/cm2
●Unique mechanical cooling system keeps LED s cool to maintain optimum light output during extended use
●Choice of one high-intensity model with an UV-A intensity range from 6,000-9,000μW/cm2 or a standard- intensity model with an UV-A intensity of 4,500 μW/cm2 at 15 inches (38 cm) and almost no visible light.
● Compliant with conformation to EMC and IEC810. CE certification and FCC certification.
●ISO9001 compliant ,meet ASTM UV-A intensity and wavelength specifications for FPI and MPI
● IP - 65 compliant


General description
Sirius series UV-LED NDT lamp
High Intensity version
6000-9000μw/cm2 at 15inch(380mm)
Standard Intensity version
4500μw/cm2 at 15inch(380mm)
Certified wavelength
365-370nm
Typical visible light
＜1foot candle
Weight
About 1.09kg
Running temperature ＜104°F（40℃）
Storge temperature 41-131°F(5-55°)
Operating temperature 41-131°F(5-55°)
Size 240mm*145mm*120mm
Operating voltage 12V,DC
Power supply AC100V-240V 50/60HZ

AJR UV LED Series Handheld Rechargeable UV LED Lamp
Product  lnfomation:

Power energy saving of only 9VA;The average service life the light source-30000h!The content of UV-B is 0;

5-6 hours of battery life; External without wiring; Quartz and optical glass module, non PMMA material, excellent

weather resistance. Continuous working outside surface temperature<5K(5C)

Model: UV -LED4000/8000/10000
Specifications: UV intensity:4000/8000/10000uw/cm² at 15 inch(at380mm)

Color: Black

Parameters:
Project
Parameter/ way
Form
Handheld type
UV (Light)-FLUX  Room Temperalure25℃380mm calibration
UV-LED4000:4000uW/cm²  UV-LED8000:8000uW/cm² Light-MAX1500LUX                                                     UV-LED10000:10000uW/cm² Light-MAX1500LUX
The effective coverage area  380mm Calibration
Diameter of about 200mm
Wavelength
Roorntemperature25℃   365nm±3nm(UVA)
FLUX Error
0-40℃ ±10%
The light distribution characteristic The light distribution center
Power source AC100-240V  50/60Hz
Power UV LED-9VA Light-3VA
Overall dimensions 203mm(W) *110mm(D) *220mm(H)
Weight 995g
The charging time
 3-4H
Battery capacity
5800mA/H12.6V
Battery life (total time)
UV LED4-5H or Light 16H

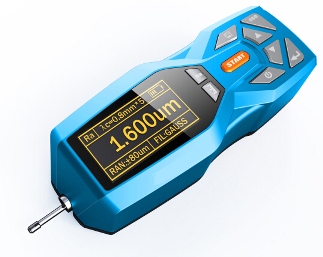

  Surface Roughness Tester  MR220
Main feature:
*Electromechanical integration design, small volume, light weight, easy to use;
*Using DSP chip to control and data processing, high speed, low power consumption;
*128 x 64 OLED dot matrix display, digital / graphic display; highlight no perspective;
*Intuitive and rich display information, can display all the parameters and graphics;
*Compatible with ISO, DIN, ANSI, JIS national standards;
*Residual quantity icon, prompting the user to charge;
*Continuous working time: more than 20 hours.
*Real-time clock settings and display, convenient data recording and storage.
*With automatic dormancy, automatic shutdown and power saving function
*Reliable control motor to go dead circuit and software design
*Measurement information display, menu prompt information, false information and switch machine and other tips that information;
*Can be connected to a computer and printer;
*Optional different sensor, measuring platform, mini printer, extension rod and other accessories.
*Plastic shell, inspired by “TRANSFORMERS” stylish design, portable, high reliability.
*Optional bluetooth function.
*High price performance.





Functions:
roughness parameters
MR220 Ra, Rz, Rq, Rt, Rp, Rv, R3z, R3y
Testing parameters
RzJIS, Rsk, Rku, Rsm, Rmr, Rx, RPc, Rk, Rpk, Rvk, Mr1, Mr2;
Measuring range (um)
Ra: 0.005-16.000
 Rz: 0.02-160.00
Sample length (mm)
0.25, 0.80, 2.50
Evaluation length (mm)
(1-5)L
Maximum drive stroke
17.5mm/0.7inch
Indication accuracy 0.001
Indication error ±(7-10)%
Variability <6%
Data Storage 100 groups
Power Rechargeable li-battery
Working temperature -20℃～40℃
Relative humidity <90%
Size 158mmx63.5mmx46mm
Weight of Host 13kg
