vacuum pump

Single Stage Rotary Vacuum Pump

TYPE

 VP-0.5A
Voltage (V/Hz) 220/50 110/60
Free Air Displacement 1 CFM 1.2 CFM
Ultimate Vacuum (Pa) 10
Motor (hp) 1/8
Rotating speed (r/min) 1440 1720
Intake Fitting 1/4SAE
Oil capacity (ml) 160
Dimension (mm) 243 x 114 x 207
Net weight (kg) 6.95













TYPE

 VP-1A
Voltage (V/Hz) 220/50 110/60
Free Air Displacement 2 CFM 2.3 CFM
Ultimate Vacuum (Pa) 10
Motor (hp) 1/6
Rotating speed (r/min) 1440 1720
Intake Fitting 1/4SAE
Oil capacity (ml) 220
Dimension (mm) 273 x 114 x 207
Net weight (kg) 7.05













TYPE

VP-1.5A

Voltage (V/Hz) 220/50 110/60
Free Air Displacement 3 CFM 3.6 CFM
Ultimate Vacuum (Pa) 10
Motor (hp) 1/4
Rotating speed (r/min) 1440 1720
Intake Fitting 1/4SAE, 1/2Acme
Oil capacity (ml) 220
Dimension (mm) 273 x 114 x 207
Net weight (kg) 7.10












Type VP-2A
Voltage (V/Hz) 220/50 110/60
Free Air Displacement 4 CFM 4.7 CFM
Ultimate Vacuum (Pa) 10
Motor (hp) 1/3
Rotating speed (r/min) 1440 1720
Intake Fitting 1/4SAE, 1/2Acme
Oil capacity (ml) 250
Dimension (mm) 313 x 128 x 236.5
Net weight (kg) 11.20













Type

 VP-4A
Voltage (V/Hz) 220/50 110/60
Free Air Displacement 8 CFM 9.5 CFM
Ultimate Vacuum (Pa) 10
Motor (hp) 1/2
Rotating speed (r/min) 1440 1720
Intake Fitting 1/4SAE, 1/2Acme
Oil capacity (ml) 250
Dimension (mm) 357 x 147 x 254.5
Net weight (kg) 14.10












Single Stage Rotary Vacuum Pump With Magnetic Valve and Press Gage

Type

 VP-0.5AG
Voltage (V/Hz) 220/50 110/60
Free Air Displacement 1 CFM 1.2 CFM
Ultimate Vacuum (Pa) 10
Motor (hp) 1/8
Rotating speed (r/min) 1440 1720
Intake Fitting 1/4SAE
Oil capacity (ml) 160
Dimension (mm) 243 x 114 x 107
Net weight (kg) 6.95













Type

 VP-1AG
Voltage (V/Hz) 220/50 110/60
Free Air Displacement 2 CFM 2.3 CFM
Ultimate Vacuum (Pa) 10
Motor (hp) 1/6
Rotating speed (r/min) 1440 1720
Intake Fitting 1/4SAE
Oil capacity (ml) 220
Dimension (mm) 273 x 114 x 207
Net weight (kg) 7.05













Type

 VP-1.5AG
Voltage (V/Hz) 220/50 110/60
Free Air Displacement 3 CFM 3.6 CFM
Ultimate Vacuum (Pa) 10
Motor (hp) 1/4
Rotating speed (r/min) 1440 1720
Intake Fitting 1/4SAE, 1/2Acme
Oil capacity (ml) 220
Dimension (mm) 273x 114 x 207
Net weight (kg) 7.10












Type

 VP-2AG
Voltage (V/Hz) 220/50 110/60
Free Air Displacement 4 CFM 4.7 CFM
Ultimate Vacuum (Pa) 10
Motor (hp) 1/3
Rotating speed (r/min) 1440 1720
Intake Fitting 1/4SAE, 1/2Acme
Oil capacity (ml) 250
Dimension (mm) 313 x 128 x 236.5
Net weight (kg) 11.20











Type

 VP-4AG
Voltage (V/Hz) 220/50 110/60
Free Air Displacement 8 CFM 9.5 CFM
Ultimate Vacuum (Pa) 10
Motor (hp) 1/2
Rotating speed (r/min) 1440 1720
Intake Fitting 1/4SAE, 1/2Acme
Oil capacity (ml) 250
Dimension (mm) 357 x 147 x 254.5
Net weight (kg) 14.10










Oilless Vacuum Pump AS Serials

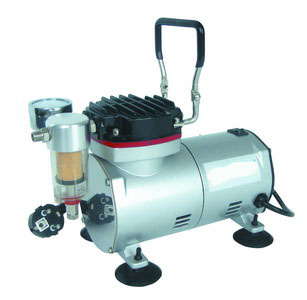

Oilless Vacuum Pump AS20
Specifications:
Power: 1/6 HP
Voltage: 220-240V/50HZ; 110-120V, 220V/60HZ
Vacuum Rate: 600mmHG
Air input per min./litres: 20~23L/min
Fitting: manometer; air let-in valve; handy carrying handle
Connections: with connection 1/8'' BSP
Net Weight: 4.0KG
Dimension: 245X135X170mm
Package:
Carton Dimensions (CM): 43x26.5x38.3; 6pcs/CTN
N.W/G.W.: 24/26Kg
Certificate: CE, GS, ETL, CETL

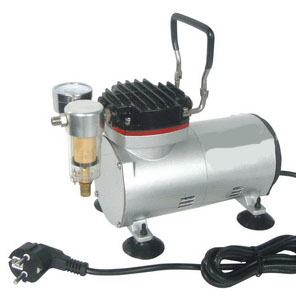

Oilless Vacuum Pump AS20-1
Application field:
1. For home vacuum package, vacuum article store.
2. Vacuum products machining, craft producing, air condition and so on.
3. For medicament, environment protection, laboratory and other industrial equipment.
Features:
1. Oilless, piston type, no air polluted.
2. The vacuum gauge can show the vacuum degree when vacuuming.
3. Low noise, about 47db.
Specifications:
Please choose the right voltage, frequency and plug according to local market.
Type: Piston type Compressor
Power: 1/6 HP
Speed: 2900/3400RPM
Air output per min./liter: 35~40L/min
Vacuum degree: 650mmHG
Net Weight: 3.4KG
Dimension: 25.5X13.5X17 CM
Package:
Carton Dimensions (CM): 44.5x27.5x39.5; 6pcs/CTN
N.W/G.W.: 21.6/23.6 KG
Certificate: CE, GS, ETL, CETL

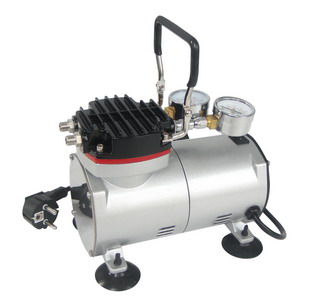

Inflation Air Compressor/Vacuum Pump AS20W
Application field:
1. Charging different cars and balls.
2. For airbrushing without requirement of pressure adjustment.
3. For home vacuum package, vacuum article store.
4. Vacuum products machining, craft producing, air condition and so on.
5. For medicament, environment protection, laboratory and other industrial equipment.
Features:
1. Oil less, no air polluted.
2. Collocated with HS-B1 multi-functional charging air hose suitable for: Charging cars, auto bicycles; Charging bicycles; Charging different kinds of balls.
3. The gauge can show the charging pressure directly.
4. The vacuum gauge can show the vacuum degree when vacuuming.
5. The customer change the inflation pump into vacuum pump can easily just change the muffle and air out-let.
6. Low noise, about 47db.
Specifications:
Type: Piston type Compressor
Power: 1/6HP
Speed: 1450/1700RPM
Air output per min./liter: 20~23L/min
Maximum pressure: 7bar(100PSI)
Vacuum degree: 600mmHG
Air hose: HS-B1; ??8 braid air hose, length 550MM.
Net Weight: 3.7KG
Dimension: 25.5X13.5X17 CM
Package: Carton Dimensions (CM): 44.5x27.5x39.5; 6PCS/CTN
N.W/G.W.: 22.2/24.2KG
Certificate: CE, GS, ETL, CETL



Vacuum Pump AS26
Application field:
1. For home vacuum package, vacuum article store.
2. Vacuum products machining, craft producing, air condition and so on.
3. For medicament, environment protection, laboratory and other industrial equipment.
Features:
1. Oilless, membrane type, high air flow.
2. The vacuum gauge can show the vacuum degree when vacuuming.
3. Low noise, about 50db.
Specifications:
Please choose the right voltage, frequency and plug according to local market.
Power: 1/4 HP
Speed: 1450/1700r.p.m
Air output per min./liter: 65~68L/min
Vacuum degree: 600mmHG
Net Weight: 4.6KG
Dimension: 30.5X12.5X17 CM
Package:
Carton Dimensions: 44.3x28.6x40.5cm; 6PCS/CTN
N.W/G.W.: 27.6/29.6 KG
Certificate: CE

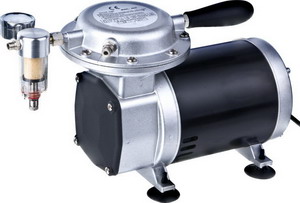

Oil-less Vacuum Pump AS29
Application field:
1. For home vacuum package, vacuum article store.
2. Vacuum products machining, craft producing, air condition and so on.
3. For medicament, environment protection, laboratory and other industrial equipment.
Features:
1. Oilless, membrane type, high air flow.
2. The vacuum gauge can show the vacuum degree when vacuuming.
3. Low noise, about 55db.
Specifications:
Please choose the right voltage, frequency and plug according to local market.
Power: 1/3 HP
Speed: 1450/1700r.p.m
Air output per min./liter: 128~135L/min
Vacuum degree: 600mmHG
Net Weight: 9.1KG
Dimension: 43X16.5X23 CM
Package:
Carton Dimensions (CM): 38x38x25.5; 2pcs/CTN
N.W/G.W.: 18.2/20.2 KG
Certificate: CE

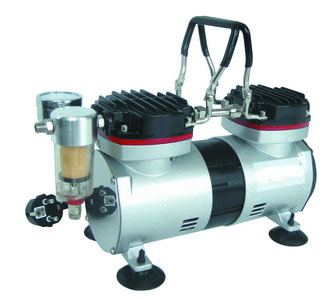

Oil-less Vacuum Pump AS30
Application field:
1. For home vacuum package, vacuum article store.
2. Vacuum products machining, craft producing, air condition and so on.
3. For medicament, environment protection, laboratory and other industrial equipment.
Features:
1. Oil less, piston type, no air polluted.
2. The vacuum gauge can show the vacuum degree when vacuuming.
3. Low noise, about 47db.
Specifications:
Please choose the right voltage, frequency and plug according to local market.
Type: Piston type Compressor
Power: 1/4 HP
Speed: 1450/1700r.p.m
Air output per min./liter: 35~40L/min
Vacuum degree: 650mmHG
Net Weight: 5.5KG
Dimension: 33X13.5X20.5 CM
Package:
Carton Dimensions (CM): 67X39X26; 4pcs/CTN
N.W/G.W.: 22/24 KG
Certificate: CE, GS, ETL, CETL


Oil-less Vacuum Pump AP Serials
Oil Free Vacuum Pump AP-01D
Light and beautiful design, high efficiency, low noise, pressure adjustable, most suitable for biochemical analysis laboratories.
Vacuum Pressure:0-80Kap (Adjustable)
Flux: 8000mL/min
Power: 50VA
Voltage: AC220V/50Hz, 110V/60HZ
Dimension: 246*236*136mm
Net weight: 3.2kg



Oil Free Vacuum Pump AP-01P
Light and beautiful design, high efficiency, low noise, pressure adjustable, most suitable for biochemical analysis laboratories.
Vacuum Pressure: 80Kap
Flux: 8000mL/min
Power: 50VA
Voltage: AC220V/50Hz, 110V/60HZ
Dimension: 246*236*136mm
Net weight: 3.1kg



Oil Free Vacuum Pump AP-02B
Flat shape, particularly suitable for display on the shelves under the bench.
A double-digit "LED" "S" pressure show clearly and accurately.
Knob adjust the vacuum pressure pump, simple and convenient.
There is positive pressure, negative pressure two interfaces to be more extensive.
Vacuum Pressure: 80Kap
Maximum pressure: 18Psi
Flux: 10000mL/min
Power: 45VA
Voltage: AC220V/50Hz, 110V/60HZ
Dimension: 230*80*200mm
Net weight: 2.5kg



Oil Free Vacuum Pump AP-9901S
Compact, easy to use
Vacuum Pressure: 80Kap
Maximum pressure: 18Psi
Flux: 12000mL/min
Power: 80VA
Voltage: AC220V/50Hz, 110V/60HZ
Dimension: 210*150*120mm
Net weight: 3.5kg



Oil Free Vacuum Pump AP-9908S
Increase the pressure regulator, flow features.
Double-pump head structure, and can easily select series (increasing pressure) or parallel (increased traffic) of the work.
Vacuum Pressure: 0-80Kap (Adjustable)
Maximum pressure: 20Psi
Flux: 20000mL/min
Power: 100VA
Voltage: AC220V/50Hz, 110V/60HZ
Dimension: 292*180*155mm
Net weight: 5.6kg



Oil Free Vacuum Pump AP-9925
Features:
The vacuum pump through the pressure regulator knob, easy to operate
There are two negative pressure interface, wide range of applications
Vacuum Pressure: 80KPa min
Maximum pressure: 20Psi
Flux: 25L/min
Power: 120VA
Voltage: 220V/50Hz, 110V/60HZ
Dimension: 269*210*155mm
Net weight: 7.3kg



Oil Free Adjustable Vacuum Pump AP-9950
Features:
.The vacuum pump through the pressure regulator knob, easy to operate
.There are two negative pressure interface, wide range of applications
.Vacuum pressure: 0-80KPa Adjustable
.Maximum pressure: 20Psi
.Flux:50L/min
.Power: 180VA
.Voltage: 220V/50Hz
.Dimension: 269*210*155mm
.Net weight: 8.2Kg


Diaphragm Vacuum Pump Double Function DVP001
The diaphragm vacuum pump is mainly used in medicinal products analysis, tenuously chemical engineering, biochemical pharmacy, food examination, investigating and solving criminal case, etc. It is an ideal product used with the high-accuracy chromatogram apparatus, HPLC solvent filter apparatus, and it is the essential equipment in the laboratory. The body is made of aluminum alloy through die casting. It is antiseptic, sprayed, agile and beautiful. It has the features of higher antisepsis, wider working range. It can meet requirements of all kinds of working environments.
Speed of Evacuation: 15L/Min
Temp of the body: 55°C max  Ultimate pressure: 0.075Mpa min
Ultimate Vacuum: 250mbar
Dimensions: 195 x 98 x 156mm
Pressure:  30 Psi min
Noise Level: <50db
Inlet: dia 6mm
Outlet: dia 6mm
Weight: 4Kg
Motor Power: 75W
Pump Head: Nylon
Temperature of working environment: 7-40°C;  Function: Vacuum & Pressure


Diaphragm Vacuum Pump DVP002
Speed of Evacuation: 20L/Min
Temp of the body: 55°C max  Ultimate pressure: 0.08Mpa min
Ultimate Vacuum: 200mbar
Dimensions: 215 x 120 x 235mm
Noise Level: <50db
Inlet: dia 6mm; Outlet: Silencer
Pump Head: 1pcs
Weight: 7.5Kg
Motor Power: 160W
Temperature of working environment: 7-40°C  Diaphragm Valves: NBR


Diaphragm Vacuum Pump DVP003
Speed of Evacuation: 20L/Min
Temp of the body: 55°C max  Ultimate pressure: 0.095Mpa min
Ultimate Vacuum: 50mbar
Dimensions: 300 x 120 x 235mm
Noise Level: <50db
Inlet: dia 6mm; Outlet: Silencer
Pump Head: 2pcs
Weight: 10Kg
Motor Power: 160W
Temperature of working environment: 7-40°C Diaphragm/Valves: NBR


Diaphragm Vacuum Pump Double Function DVP005
Speed of Evacuation: 30L/Min
Temp of the body: 55°C max Ultimate pressure: 0.08Mpa min
Ultimate Vacuum: 200mbar
Dimensions: 210 x 160 x 235mm
Noise Level: <50db
Inlet: dia 6mm; Outlet: dia 6mm
Pump Head: 1pcs
Weight: 8Kg
Motor Power: 160W
Temperature of working environment: 7-40°C  Diaphragm/Valves: NBR;  Function: Vacuum & Pressure


Diaphragm Vacuum Pump DVP006
Speed of Evacuation: 30L/Min
Temp of the body: 55°C max Ultimate pressure: 0.095Mpa min
Ultimate Vacuum: 50mbar
Dimensions: 300 x 120 x 235mm
Noise Level: <50db
Inlet: dia 6mm; Outlet: Silencer
Pump Head: 2pcs
Weight: 9Kg
Motor Power: 160W
Temperature of working environment: 7-40°C  Diaphragm/Valves: NBR


Diaphragm Vacuum Pump Double Function DVP007
Speed of Evacuation: 60L/Min
Temp of the body: 55°C max Ultimate pressure: 0.08Mpa min
Ultimate Vacuum: 200mbar
Dimensions: 300 x 160 x 235mm
Noise Level: <50db
Inlet: dia 6mm; Outlet: dia 6mm
Pump Head: 2pcs
Weight: 9Kg
Motor Power: 160W
Temperature of working environment: 7-40°C Diaphragm/Valves: NBR; Function: Vacuum & Pressure


Diaphragm Pump FL Serials
Application:
 •Water purification, filter machine, spray equipment and fluid filling, measurement in chemical industry.
 •Kitchen, toilet rinse in vehicles, ships and boats.
 •Liquid filling and transfer in food, beverage processing.
 •Solar industry.
 •Cleaning equipments, road construction equipments, purification and cooling system.
 •Other fluid transfer and spray situation

Features:
•Maximum torque and operating efficiency
•Higher operating pressure and/or lower amperage than competitive pumps
•Long life, no leaks
•Low noise; acid, alkali and corrosion resistant
•Run dry with no problem
•Thermal overload protection automatically stops motor should it overhear due to overload, with auto re-start feature


Model Volts (V) Flow Rate (LPM) Pressure Off (PSI) Amp Draw (A) Packing (mm) N.W.(kg) G.W.(Kg)
FL-30 12 10 17 2.2 350*125*110 1.785 2.215
FL-31 24 10 17 1.5
FL-35 12 12.5 35 3.9 1.800 2.230
FL-34 24 12.5 35 2
FL-33 115 12.5 35 0.5 2.280 2.2710
FL-32 220 12.5 35 0.4
FL-40 12 17 40 6 2.460 2.910
FL-44 24 17 40 2.5
FL-41 115 17 40 0.5 2.800 3.250
FL-43 220 17 40 0.4
air compressor
Airbrush Mini Compressor AS176
Specification:
Voltage: 100V/115V/220V~240V; AMP: 0.4~1.0A
Auto stop pressure: 45 PSI (3 bar)
Auto start pressure: 30 PSI (2 bar)
Working pressure: 5~35PSI (0.35~2.5bar)
Air flow: 20~23L/Min; Air tank: 0.3L; Noise Level: 47 db
Dimension: 160X150X175mm; N.W. 2.7KG; Air outlet: 1/8'' BSP

Features:
Oil-less Piston type; Auto stop Function
Working pressure adjustor; Pressure gauge; Continuous working
Small air tank inside; Thermally overload protected
Light on/off switch; Air inlet filter and air outlet filter; Airbrush holder
Certificate: CE, GS, ETL, CETL
Suitable For: widely used in craftwork spraying, cosmetics, tattoo, tanning, hobbies/models, fingernail painting, and general airbrushing.

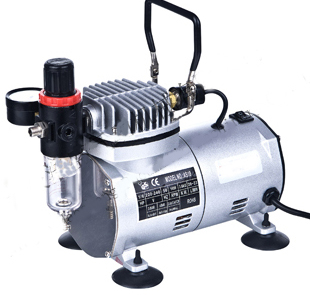

Oil Free Airbrush Compressor AS18-2
Specifications:
Power: 1/6 HP
Voltage: 220-240V / 50HZ; 110V-120V /60HZ
RPM: 50HZ: 1450/min; 60HZ: 1700/min
Auto stop: 4Bar/57PSI.
Auto start: 3Bar/43PSI.
Air flow: 20-23L/Min
Net Weight: 3.6KG
Dimension: 255 x 135 x 205mm
Package: Carton Dimensions: 520 x 310 x 520mm; 6pcs/CTN.
Net weight: 22Kg; Grass weight: 24Kg
Certificate: CE, GS, ROHS, ETL, CETL

Features:
1. Air Pressure gauge, air filter, adjustable
2. Oil free, Piston type
3. It can start with pressure, continuous working, powerful
4. Thermally protected
5. Auto stop function
6. Low noise, 47db
Suitable For: this machine is designed for cosmetic nail beauty, body painting, arts and crafts, toys, models, painted ceramic decoration, painting and graphic art, as well as medicine, environmental protection, farming, food, chemical, and automation of scientific research equipment and other industries to provide gas source.

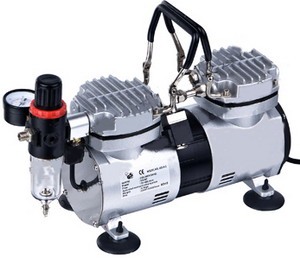

Oil Free Airbrush Compressor AS19
Specifications:
Power: 1/4 HP
Voltage: 220-240V / 50HZ; 110V-120V /60HZ
RPM: 50HZ: 1450/min; 60HZ: 1700/min
Auto stop: 4Bar/57PSI. Auto start: 3Bar/43PSI.
Max pressure: 6Bar/86PSI.
Air flow: 35-40L/Min
Net Weight: 5.5KG
Dimension: 330 x 135 x 205mm
Package: Carton Dimensions: 68 x 40 x 27cmm; 4pcs/CTN.
Net weight: 22Kg; Grass weight: 24Kg
Certificate: CE, GS, ROHS, ETL, CETL

Features:
1. Double cylinder, high air flow, can operate with many airbrushes
2. Oil free, piston type, no air polluted
3. Air Pressure gauge, water filter, pressure adjustable
4. double air pressure switch: 1) low pressure auto stop switch, for airbrush purpose; 2) high pressure none stop switch, for other high pressure air tools.
5. It can start with pressure, continuous working, powerful
6. Thermally overload protected
7. Low noise, 47db.
Suitable For: this machine is Double Cylinder airbrush Compressor. apply to screen higher, voltage supply inkjet printer and you want a larger diameter injection pen, or dual-use, can be matched with all kinds of art-art inkjet. Can be widely used for body painting, t-shirt painting, arts and crafts, toys, models, surface painting, decoration, art-art of painting; can also be matched with small gas nail guns, pneumatic tools; and for the pharmaceutical, environmental, chemical, and automatic control of scientific research and other industries to provide gas source.

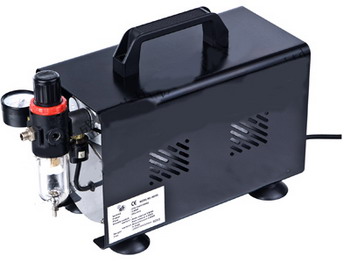

Oil Free Airbrush Compressor AS19B with cover
Twin cylinder airbrush compressor with cover
Field of application: the compressor are suitable for master art working spraying proposes, and can be operate with big nozzle airbrush, even can be operate with two airbrush at the same time ,can be widely used in craftwork spraying, cosmetic, tattoo, tanning, hobbies/models, fingernail painting, And the high pressure switch can operate with small nailer gun and small spray gun, it can be also used for providing air source for many industrial, laboratory and so on.
Features:
1. Air compressor with cover, with airbrush holder, beauty in shape
2. Double cylinder, high air flow, can operate with many airbrushes
3. Oil free, piston type, no air polluted
4. Air Pressure gauge, water filter, pressure adjustable
5. Double air pressure switch:
   1) Low pressure auto stop switch, for airbrush purpose
   2) High pressure none stop switch, for other high pressure air tools
6. It can start with pressure, continuous working, powerful
7. Thermally overload protected
8. Low noise, 47db.

Specifications:
Power: 1/4 HP
Voltage: 220-240V / 50HZ; 110V-120V /60HZ
RPM: 50HZ: 1450/min; 60HZ: 1700/min
Auto stop: 4Bar/57PSI. Auto start: 3Bar/43PSI.
Max pressure: 6Bar/86PSI.
Air flow: 35-40L/Min
Net Weight: 6.7KG
Dimension: 330 x 135 x 220mm
Package: Carton Dimensions: 64 x 38 x 28cmm; 4pcs/CTN.
Net weight: 27Kg; Grass weight: 29Kg
Certificate: CE, GS, ROHS, ETL, CETL

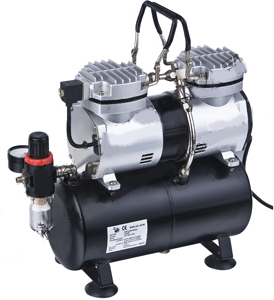

Oil Free Airbrush Compressor AS196 with tank
Twin Cylinder Piston Compressor With Tank
Field of application: the compressor are suitable for master art working spraying proposes, and can be operate with big nozzle airbrush, even can be operate with two airbrush at the same time ,can be widely used in craftwork spraying, cosmetic, tattoo, tanning, hobbies/models, fingernail painting, And the high pressure switch can operate with small nail gun and small spray gun, it can be also used for providing air source for many industrial, laboratory and so on.
Features:
1. Air tank, providing smooth air flow, zero pulse
2. Twin cylinder, high air flow, can operate with many airbrushes
3. Oil free, piston type, no air polluted
4. Pressure gauge, water filter, pressure adjustable
5. Double air pressure switch:
   1) Low pressure auto stop switch, for airbrush purpose??
   2) High pressure none stop switch, for other high pressure air tools
6. Auto release pressure function, start without any pressure, prolong the motor life
7. Thermally overload protected
8. Safety protect devices for air tank
9. Can operate with small air nailer tools, spray gun
10. Low noise, 47db

Specifications:
Power: 1/4 HP, Tank: 3.5L
Voltage: 220-240V / 50HZ; 110V-120V /60HZ
RPM: 50HZ: 1450/min; 60HZ: 1700/min
Auto stop: 4Bar/57PSI. Auto start: 3Bar/43PSI.
Max pressure: 6Bar/86PSI.
Air flow: 35-40L/Min
Net Weight: 7.2KG
Dimension: 350 x 135 x 310mm
Package: Carton Dimensions: 48 x 39 x 34cmm; 3pcs/CTN.
Net weight: 22Kg; Grass weight: 24Kg
Certificate: CE, GS, ROHS, ETL, CETL

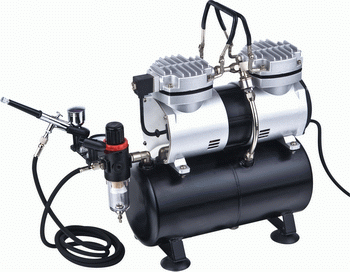

Oil Free Airbrush Compressor AS196K (With Airbrush)
Our compressor AS196, together with airbrush, can be widely used in craftwork spraying, cosmetics, tanning, hobbies/models, fingernail painting, and general airbrushing.
1. Piston structure; be suitable to cooperate with all kind of airbrush.
2. Double-safety protection inside; it will discharge the pressure to control the pressure in a certain scope; a hot protection equipment inside, so the motor will shut down when the temperature over hot accidentally

Specifications:
Power: 1/4 HP, Tank: 3.5L
Voltage: 220-240V / 50HZ; 110V-120V /60HZ
RPM: 50HZ: 1450/min; 60HZ: 1700/min
Auto stop: 4Bar/57PSI. Auto start: 3Bar/43PSI.
Max pressure: 6Bar/86PSI.
Air flow: 35-40L/Min
Net Weight: 7.2KG
Dimension: 350 x 135 x 310mm
Package: Carton Dimensions: 48 x 39 x 34cmm; 3pcs/CTN.
Net weight: 22Kg; Grass weight: 24Kg
Certificate: CE, GS, ROHS, ETL, CETL

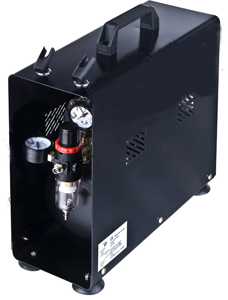

Oil Free Airbrush Compressor AS196A with tank with cover
Twin Cylinder Piston Compressor With Tank
Field of application: the compressor are suitable for master art working spraying proposes, and can be operate with big nozzle airbrush, even can be operate with two airbrush at the same time ,can be widely used in craftwork spraying, cosmetic, tattoo, tanning, hobbies/models, fingernail painting, And the high pressure switch can operate with small nail gun and small spray gun, it can be also used for providing air source for many industrial, laboratory and so on.
Features:
1. Air tank, providing smooth air flow, zero pulse
2. Twin cylinder, high air flow, can operate with many airbrushes
3. Oil free, piston type, no air polluted
4. Pressure gauge, water filter, pressure adjustable
5. Double air pressure switch:
   1) Low pressure auto stop switch, for airbrush purpose??
   2) High pressure none stop switch, for other high pressure air tools
6. Auto release pressure function, start without any pressure, prolong the motor life
7. Thermally overload protected
8. Safety protect devices for air tank
9. Can operate with small air nail tools, spray gun
10. Low noise, 47db

Specifications:
Power: 1/4 HP, Tank: 3.5L
Voltage: 220-240V / 50HZ; 110V-120V /60HZ
RPM: 50HZ: 1450/min; 60HZ: 1700/min
Auto stop: 4Bar/57PSI. Auto start: 3Bar/43PSI.
Max pressure: 6Bar/86PSI.
Air flow: 35-40L/Min
Net Weight: 10.7KG
Dimension: 350 x 135 x 360mm
Package: Carton Dimensions: 39 x 33 x 41cm; 2pcs/CTN.
Net weight: 22Kg; Grass weight: 24Kg
Certificate: CE, GS, ROHS, ETL, CETL

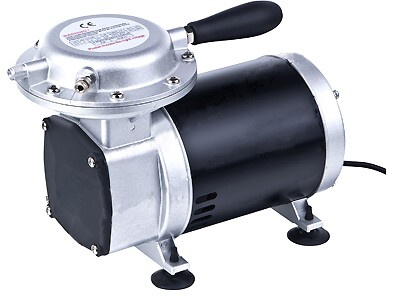

Oil Free Compressor AS09
Application:
AS29 widely used in home decoration, construction scaffolding, advertising, furniture, toys, arts and crafts, fine arts products, equipment, paint, coating on the surface. Insecticides, spray, air disinfection of flowers, cars, and other vehicles and inflatable balls. Or for use in medical, environmental, chemical, gas, automatic control of scientific research and other industries to provide sources.
Features:
1. Oil free, membrane type, low noise, no air polluted
2. Big membrane produce air, high air flow
3. The pump have international certificate, and have high quality
4. Long life, pass more than 1000hours continuous test, steady in performance
5. Cooperate with spray tools for area spraying
6. Blow dust: without pressing trigger, can be used as spray dusting gun
7. Cooperate air hose for inflating cars and balls
8. Convenient to take, suitable for services and moving working
9. Low noise, about 55db

Specifications:
Power: 1/2 HP
Voltage: 220-240V / 50HZ; 110V-120V /60HZ
RPM: 50HZ: 1450/min; 60HZ: 1700/min
Max pressure: 3.5Bar/50PSI.
Air flow: 128~135L/Min
Net Weight: 9KG
Dimension: 376 x 160 x 230mm
Package: Carton Dimensions: 38 x 38 x 26cm; 2pcs/CTN.
Net weight: 18Kg; Grass weight: 20Kg
Certificate: CE, GS, ROHS, ETL, CETL

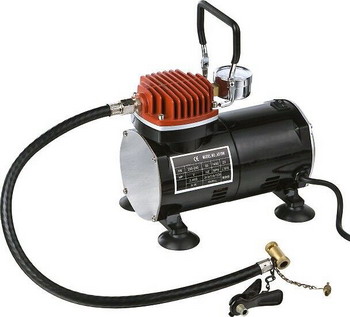

Inflation Pump AS18W
Features:
1. Oil free, no air polluted.
2. Collocated with HS-B1 multi-functional charging air hose suitable for:
a. Charging cars, bikes, air bag ect.
b. Charging bikes.
c. Charging different kinds of balls.
3. The gauge can show the charging pressure directly.
4. It can start with pressure, powerful performance.
5. Low noise, about 47db.

Specifications:
Power: 1/6 HP
Voltage: 220-240V / 50HZ; 110V-120V /60HZ
RPM: 50HZ: 1450/min; 60HZ: 1700/min
Max pressure: 7Bar/100PSI.
Air flow: 20~23L/Min
Net Weight: 3.6KG
Dimension: 450 x 280 x 170mm
Package: Carton Dimensions: 45 x 28 x 40cm; 6pcs/CTN.
Net weight: 21.6Kg; Grass weight: 23.6Kg
Certificate: CE, GS, ROHS, ETL, CETL 		Standard Packing: Air Hose AH-1, Optional parts: Airbrush AB-130, Filters AF-4

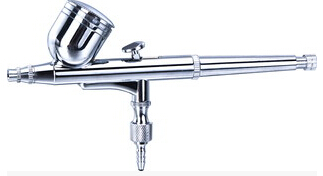

Double Action Airbrush AB-130
1.Feed Type: Gravity
2. Standard Nozzle Dia: 0.3mm
3. Optional Nozzle Size: 0.2mm / 0.3mm / 0.5mm
4. Cup Capacity: 7cc
5. Air Consumption: 15-50 PSI
6. Double-action trigger air-paint control
7. Painting Distance: 50~100mm
8. Carton Size:55.5*42*25cm
9. PCS/CTN:50
10. N.W./G.W.:15/17.5kg


Air Hose
AH-1 Connect: 1/4" BSP female
1. Unique sculpt; beauty and utility;
2. It can charge any type of tyres and balls.
Application field:
a. To inflate cars and motorcycles.
b. To inflate bicycle.
c. To inflate basketball, footballs and other sport balls.

AH-2 Specification
Dia: 12×6mm
Length: 2.5m
Adaptor:1/4-1/4

AH-3 Specification
Dia: 6×4mm
Length: 1.8m
Adaptor：1/8''BSP--1/8''BSP

Mini Filters
AF-4 1. Attaching directly onto the airbrush, AF-4 mini filter is the final defense to delivery clean, dry air to the airbrush. Miniature in size, the super-fine mini filter plays perfect performance in your airbrush work.
2. The clear filter bowl allows a visual inspection of built-up moisture and evacuated through a spring-loaded release valve – without taking the filter off the airbrush.
3. Comfortable in the hand, this mini filter acts as a handle on the airbrush to relieve muscle tension.
4. Application field: Suitable for all kinds of airbrushes.

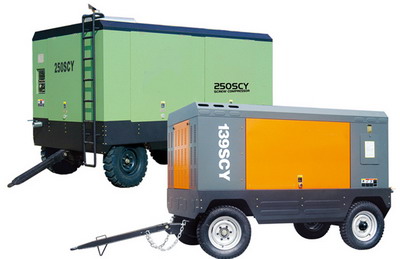

Portable Diesel Screw Air Compressor
Product Features
1. Cummins or Yuchai engines.
2. Automatic control and protection system.
3. Error free capacity control.
4. Deluxe micro-computer florescence control panel.
5. All weather models for high altitude operations (customization available for above 5500m high altitude applications).
6. High quality filtration system with safety filters.

Technical Specifications: Low, Medium Pressure Series

Model

 Nominal Pressure F.A.D (Free Air Delivery) Oil Content Diesel Power Weight Unit Dimensions (overall)
(MPa) (m³/min) (ppm) KW(HP) (kg) L*W*H (mm)
42SCY-7 0.7 4 ≤6 42(65) 780 2110×1500×1620
58SCY-8 0.8 7 ≤6 58(80) 1550 3140×1740×1900
110SCY-8 0.8 12 ≤6 110(150) 2480 3120×1630×2290
110SCY-10 1.0 12 ≤6 110(150) 2480 3120×1630×2290
110SCY-10 1.0 10 ≤6 110(150) 2480 3120×1630×2290
110SCY-14.5 1.45 8.5 ≤6 110(150) 2480 3120×1630×2290
140SCY-8 0.8 17 ≤6 140(180) 3000 3650x1700x2040
138SCY-14.5 0.8/1.45 12.8 ≤6 140(180) 3000 3350×2060×2350
139SCY-13 1.3 15 ≤6 140(180) 3000 3650x1700x2040
177SCY-14.5 1.45 15.2 ≤6 179(240) 3800 3720×1970×2550
178SCY-14.5 1.45 17 ≤6 179(240) 3800 3720×1970×2550
180SCY-8 0.8 20 ≤6 179(240) 3800 3720×1970×2550
180SCY-14.5 1.45 17 ≤6 179(240) 3800 3720×1970×2550
190SCY-16 1.6 20 ≤6 179(240) 3800 3720×1970×2550
250SCY-14.5 1.45 17 ≤6 179(240) 3800 3720×1970×2550
Technical Specifications: Portable Diesel Screw Air Compressors (High Pressure Series)

Model

 Nominal Pressure F.A.D (Free Air Delivery) Oil Content Diesel Power Weight Unit Dimensions (overall)
(MPa) (m³/min) (ppm) KW(HP) (kg) L*W*H (mm)
177SCY-17 1.7 16 ≤6 179(240) 3760 3720×1970×2550
188SCY-17 1.7 18 ≤6 191(260) 3650 3720×1970×2550
191SCY-17 (Highland) 1.7 18 ≤6 191(260) 3830 3720×1970×2550
250SCY-17 1.7 22 ≤6 250(340) 4800 3810x2000x2900
195SCY-19 1.9 19 ≤6 194(260) 3830 3720x1970x2550
260SCY-21 2.1 22 ≤6 250(340) 4590 4150x2000x2900
288SCY-22 2.2 27 ≤6 288(380) 4940 4150x2000x2900

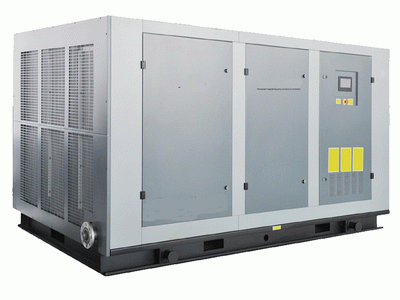

Industry Permanent Magnetic Frequency Air Compressor
1.High reliability and long life time
 2.High efficiency and Energy Saving
 3.Low noise
 4.excellent quality

Air Cooling Type

Model

 OGD-PM11F OGD-PM15F OGD-PM18F OGD-PM22F OGD-PM30F OGD-PM37F
Rated discharge pressure (Mpa) 0.7 0.8 1.0 0.7 0.8 1.0 0.7 0.8 1.0 0.7 0.8 1.0 0.7 0.8 1.0 0.7 0.8 1.0
Min capacity (M3/min) 0.3 0.5 0.6 0.8 1 1.3
Rated capacity (M3/min) 1.7 1.6 1.4 2.7 2.5 2.2 3.3 3.14 2.8 3.94 3.75 3.14 5.66 5.16 4.1 7.3 6.71 5.9
Max capacity (M3/min) 1.8 1.7 1.5 2.8 2.6 2.3 3.5 3.3 2.9 4.1 3.9 3.3 5.9 5.4 4.3 7.7 7 6.1
Discharge air temperature <Ambient  temperature +10°C
Electromotor Power 11KW 15KW 18.5KW 22KW 30KW 37KW
Rated frequency (Hz) 220 200 200 213 200 213 213 200 213 213 200 200 213 200 200 213 200 213
Rated speed min 3300 3000 3000 3200 3200 3200 3200 3000 3200 3200 3000 3000 3200 3000 3000 3200 3000 3200
Starting Mode Frequency conversion starting
Voltage 380V (Special Voltage can be produced)
Oil content 2ppm max
Dimension Length (mm) 1030 1330 1330 1500
Width (mm) 875 895 895 1098
Height (mm) 1100 1200 1200 1460
Air outlet diameter G3/4" G1" G1" G1" G1" G1-1/4"
Weight (Kg) 655 675 750 765 770 920
Noise db(A) 64±3 65±3 70±3



Air Cooling Type
Model OGD-PM45F OGD-PM55F OGD-PM75F OGD-PM90F OGD-PM110F OGD-PM132F
Rated discharge pressure (Mpa) 0.7 0.8 1.0 0.7 0.8 1.0 0.7 0.8 1.0 0.7 0.8 1.0 0.7 0.8 1.0 0.7 0.8 1.0
Min capacity (M3/min) 1.6 2.0 2.7 3.2 3.9 4.8
Rated capacity (M3/min) 8.55 7.79 6.6 11.1 9.9 8.8 14.88 13.6 12.1 16.88 15.84 14.5 21.2 19.3 16.3 25.5 23.9 20.6
Max capacity (M3/min) 9 8.2 6.9 11.7 10.4 9.2 15.6 14.3 12.7 17.7 16.6 15.2 22.3 20.3 17.1 26.8 25.1 21.6
Discharge air temperature <Ambient  temperature +10°C
Electromotor Power 45KW 55KW 75KW 90KW 110KW 132KW
Rated frequency (Hz) 213 200 213 213 200 200 213 200 200 213 200 200 220 200 200 213 200 200
Rated speed min 3200 3000 3200 3200 3000 3000 3200 3000 3000 3200 3000 3000 3300 3000 3000 3200 3000 3200
Starting Mode  Frequency conversion starting
Voltage  380V (Special Voltage can be produced)
Oil content 2ppm max
Dimension Length (mm) 1750 1750 2200 2540 2540 2540
Width (mm) 1250 1250 1400 1634 1634 1634
Height (mm) 1550 1550 1650 1860 1860 1860
Air outlet diameter G1-1/4" G2" G2" DN65 DN65 DN65
Weight (Kg) 950 1100 1180 1700 2550 2600
Noise db(A) 71±3 71±3 71±3 71±3 72±3 72±3





Air Cooling Type
Model OGD-PM160F OGD-PM185F OGD-PM200F OGD-PM250F OGD-PM290F OGD-PM315F OGD-PM355F
Rated discharge pressure (Mpa) 0.7 0.8 1.0 0.7 0.8 1.0 0.7 0.8 1.0 0.7 0.8 1.0 0.7 0.8 1.0 0.7 0.8 1.0 0.7 0.8 1.0
Min capacity (M3/min) 5.6 6.5 7.0 8.5 10.1 11.0 12.6
Rated capacity (M3/min) 29.6 27.8 25.5 34.5 32.4 27.7 37.1 34.8 32.3 45.3 42.5 37.1 53.9 50.5 45.2 58.7 50.4 45.2 67.3 63.1 54.9
Max capacity (M3/min) 31.1 29.2 26.8 36.2 34.0 29.1 39.0 36.5 33.9 47.6 44.6 39 56.6 53.0 47.5 61.6 57.8 52.9 70.7 66.3 57.6
Discharge air temperature  <Ambient  temperature +10°C
Electromotor Power 160KW 185KW 200KW 250KW 290KW 315KW 355KW
Rated frequency (Hz) 213 200 200 213 200 200 213 200 200 213 200 213 213 200 213 213 200 213 213 200 200
Rated speed min 3200 3000 3200 3200 3000 3200 3200 3000 3200 3200 3000 3200 3200 3000 3200 3200 3000 3000 3200 3000 3000
Starting Mode Frequency conversion starting
Voltage  380V (Special Voltage can be produced)
Oil content 2ppm max
Dimension Length (mm) 2540 2540 3400 3400 3400 4000 4000
Width (mm) 1634 1634 2025 2025 2025 2200 2200
Height (mm) 1860 1860 1950 1950 1950 2250 2250
Air outlet diameter DN65 DN65 DN80 DN80 DN80 DN125 DN125
Weight (Kg) 2650 2680 4200 4320 4400 6500 6750
Noise db(A) 72±3 73±3 75±3 75±3 76±3 78±3 78±3
